payment terms: | wire transfer | Scan speed: | 120 frames per second |
Interface Type: | Serial port, USB, RS232 | Working current: | <200mA, can be powered by POS |
Origin: | Fujian Province, China | brand: | Tongtai information |
Software Development Kit (SDK): | Yes | product status: | in stock |
Certification: | CE | Scanning element type: | CMOS |
Warranty period (years): | 2 years | Optical resolution: | 4 million |
After-sales service: | Returns, repairs, free spare parts, on-site training and inspection, call center and online technical support | type: | Scanner |
Packaging Details: | 1. Pack each scanner with a PVC bag. 2. Put each PVC bag into a carton that meets export packaging standards. |
sensor capability |
||
sensor |
Image, CMOS sensor |
|
scanner speed |
1/120 frame/second |
|
vision |
Diagonal 70°, horizontal 55°, vertical 45° |
|
scanning capability |
||
Scanning accuracy |
2D≥7.5mil, 1D≥4mil |
|
depth of field |
Test Conditions |
depth of field |
Code 128 10mil 18bytes |
0~90mm |
|
Code 128 18 bytes |
0~120mm |
|
QR code 10 million 160 bytes |
0~55mm |
|
DM 15 million 100 bytes |
0~90mm |
|
QR code 18 bytes |
0~255mm |
|
scan angle |
Roll 360°, Pitch ±70°, Helix ±70° |
|
Semiotics |

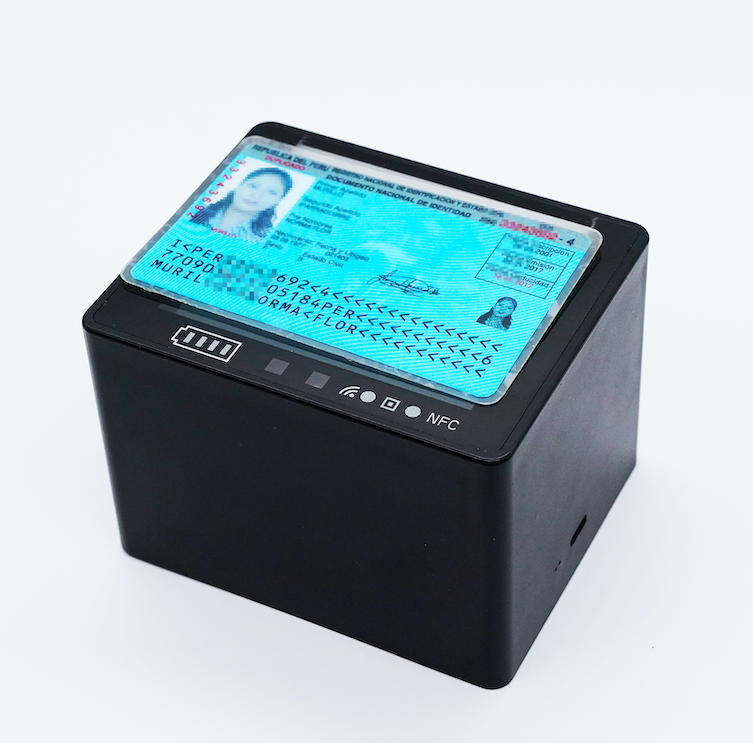

European ID card OCR code support: Austria; Belgium; Bulgaria; Croatia; Cyprus; Czech Republic; Estonia; Finland; France; Germany; Hungary; Ireland; Italy; Latvia; Lithuania; Luxembourg; Netherlands; Poland; Spain; Sweden, etc.
QR code: QR code, Data Matrix, PDF417, Aztec code, Hanxin code, etc.
1D code: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 data column etc.
|
|
symbol contrast |
25% minimum reflectivity |
|
notify |
Buzzer, LED light |
|
interface |
USB/DB9 Type-C |
|
scan mode |
Infrared single mode, infrared continuous mode |
|
environment |
Set scan code |
|
Working current |
250mA (working); 50mA (standby); DC5V±0.25V (charging) |
|
battery capacity |
2000mAh, charging time: 2 hours |
|
to lead |
||
illumination |
White LED |
|
physical parameters |
||
size |
95mm x 77mm x 67mm (L x W x H) |
|
weight |
223g (including battery) |
|
Material |
ABS |
|
Environmental parameters |
||
Operating temperature |
0°C-45°C (operation); -40°C-60°C (storage) |
|
Static Protection |
±15kV (air discharge); ±8kV (direct discharge) |
|
different models |
||
DCS20 |
With battery; Bluetooth+2.4G+NFC+Type C USB/DB9 5V power supply. |
|
DCS20-FV |
Without battery; Bluetooth+2.4G+NFC+Type C USB/DB9 data cable; 3.3V-16V power supply; USB/RS232/TTL/Wigand/RS485 interface |
|
DCS20-J |
5V power supply; USB, RS232 (TTL/Wigand/RS485 need to be customized) |
|
DCS20-N |
Near field communication; 3.3V-16V power supply; USB/RS232 (TTL/Wigand/RS485 needs to be customized) |
|
DCS20-B |
With battery; Bluetooth+2.4G+Type C USB/DB9 5V power supply |
|
DCS20-Z |
Metal bracket (MOQ 1000 pieces) |
|
DCS20-ZZ |
Bus pipe bracket (MOQ 1000 pieces) |
