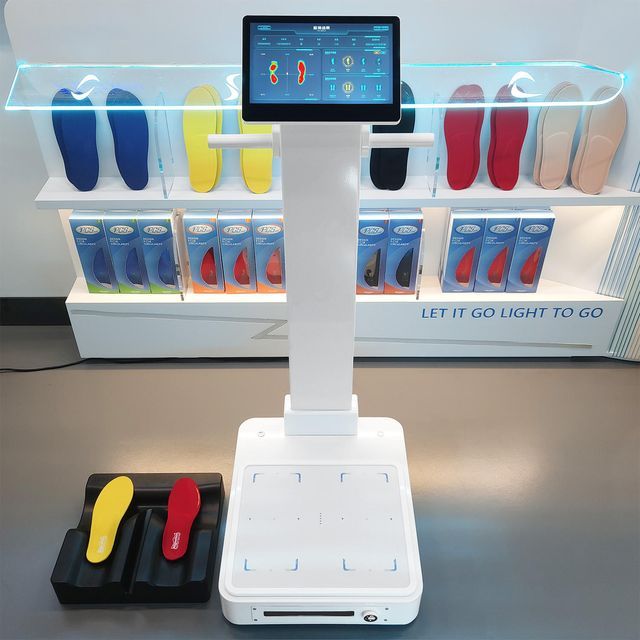

Foot scanning insole thermoforming machine Foot measuring device Custom self-service terminal

Product details
Package preview:Product Category:Insole personal customization machine
application:Medical departments, rehabilitation centers, shoe stores, etc.Display method:13 inch LCD screen
Function:Integration of detection, analysis and insole customizationcolor:white
feature:Smart, easy to operate,type:foot scanner
Measuring range 1:Arch type, foot posture type, plantar pressure distributionMachine volume:685CM*500CM*1200CM
product name:Foot Pressure Analysis Custom OrthoticsInterface Type:USB
Origin:Fujian Province, Chinaproduct status:in stock
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramAfter-sales service:Returns, free spare parts, call center and online technical support
Supply capacity:1000 sets per monthWarranty period (years):1 year
weight:40 kgMeasuring range 2:Health risk warning, insole recommendation
Packaging Details:plywood packagingport:Xiamen
Product Description
product description
The foot pad customization system has two functionsPlantar Pressure Analysisand Custom mats. The system uses international advanced high-precision plantar pressure analysis technology to analyze and evaluate the user's arch and foot posture. At the same time, the system adopts a unique heating and shaping technology, which is easy to operate and highly efficient in the process of customizing the mat. After 5 minutes of on-site class, you can directly get a pair of customized foot pads that fully fit the user's arch and foot shape. wear.
Insole customization system technical parameters

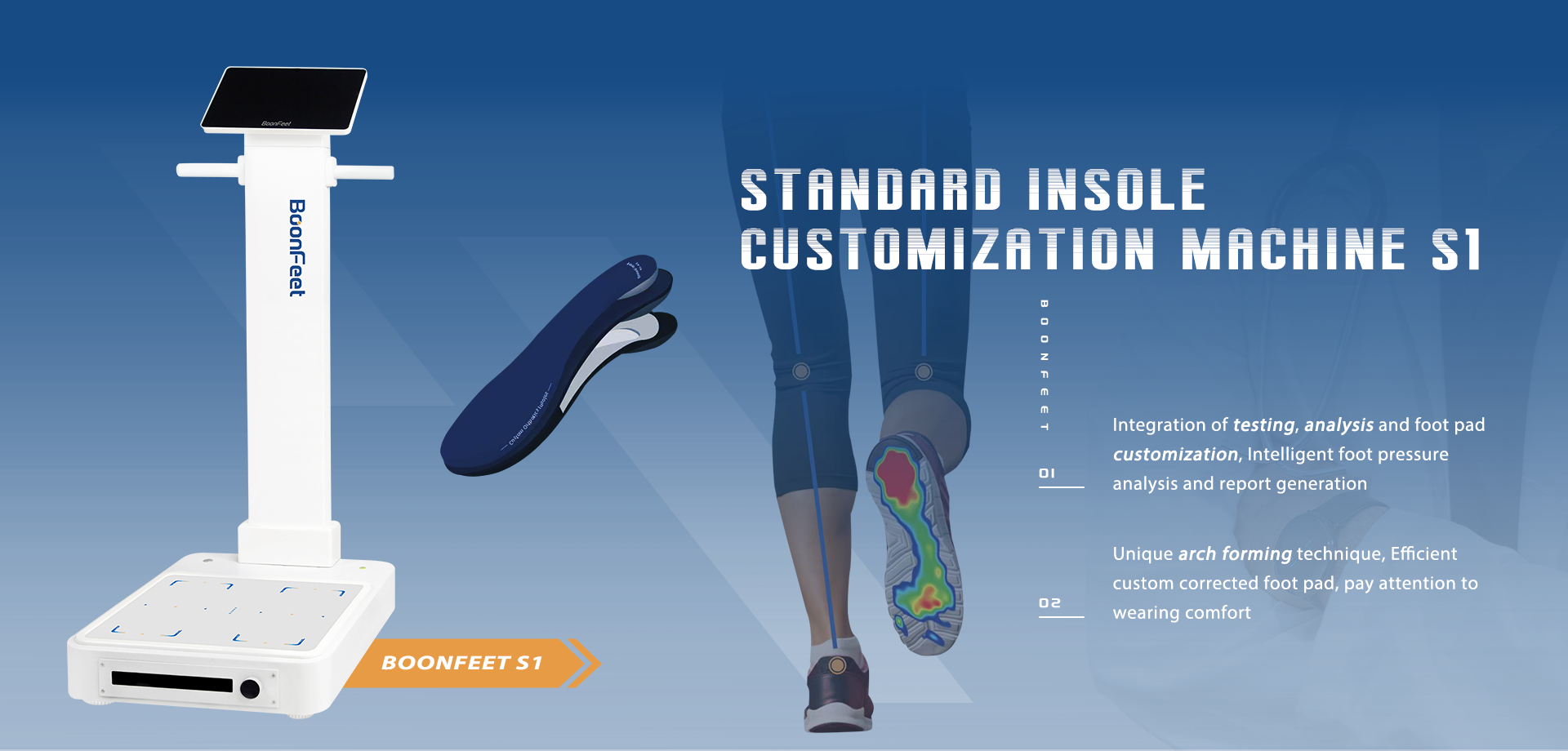

Device model
S1
Function
The device obtains personal plantar pressure data through plantar pressure analysis, and automatically generates a foot analysis report. At the same time, the system will recommend suitable insoles based on the tester's foot data. Through heating and shaping, a custom insole that perfectly fits the tester's foot is produced
Measurement items
Foot arch type, foot posture type, plantar pressure distribution map, health risk reminder, foot pad recommendation, etc.
Test Report

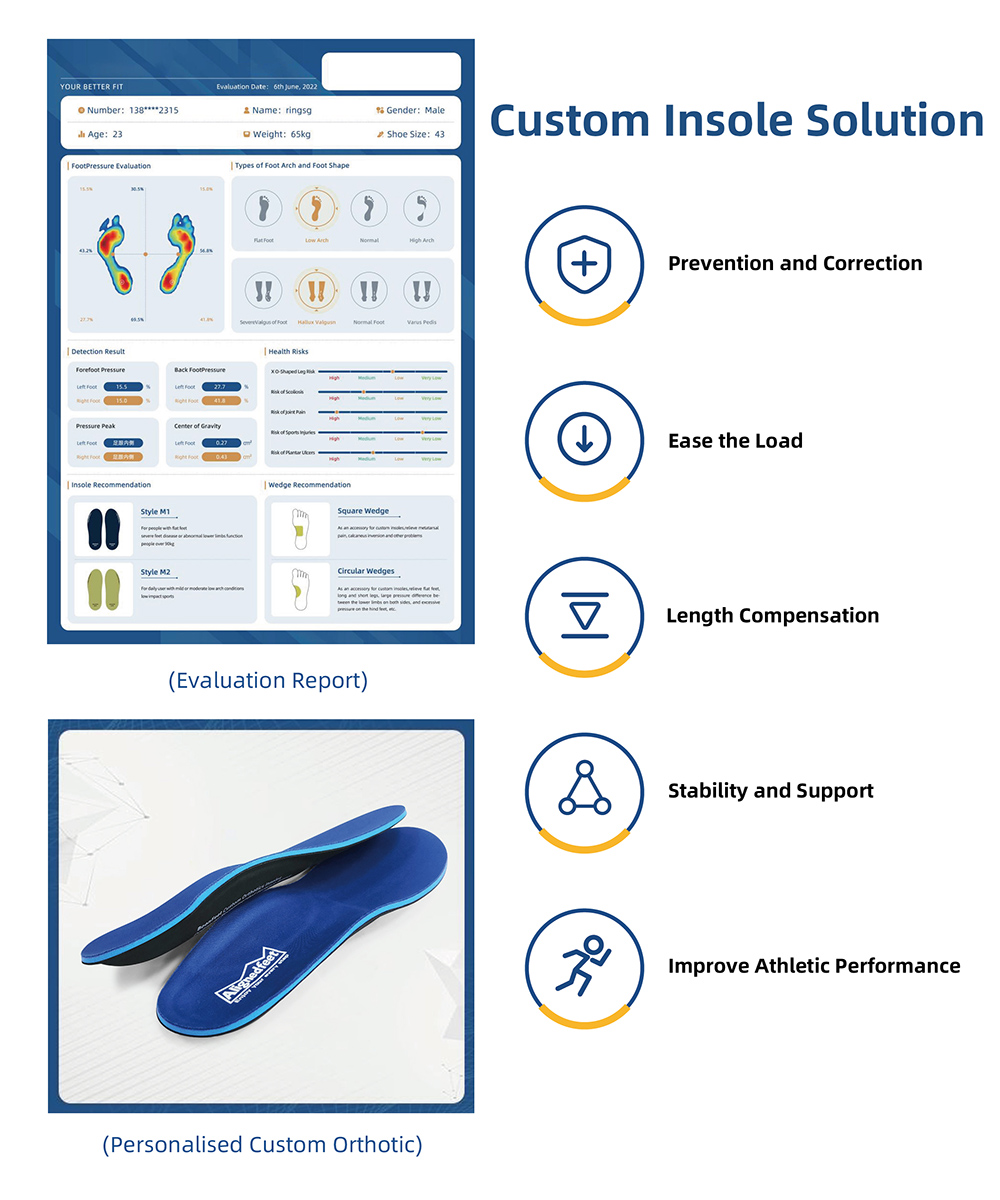

Can output a complete plantar pressure test analysis report
Pressure capacity
100N/cm²
testing time
30 seconds
Sensor service life
>1000000
Display method
External 10.1-inch tablet
Power Indicator
Input (AC220V, 50Hz); Output (DC12V, 5A)
Instrument Specifications
Volume: 460mm x 480mm x120mm Weight: 20KG

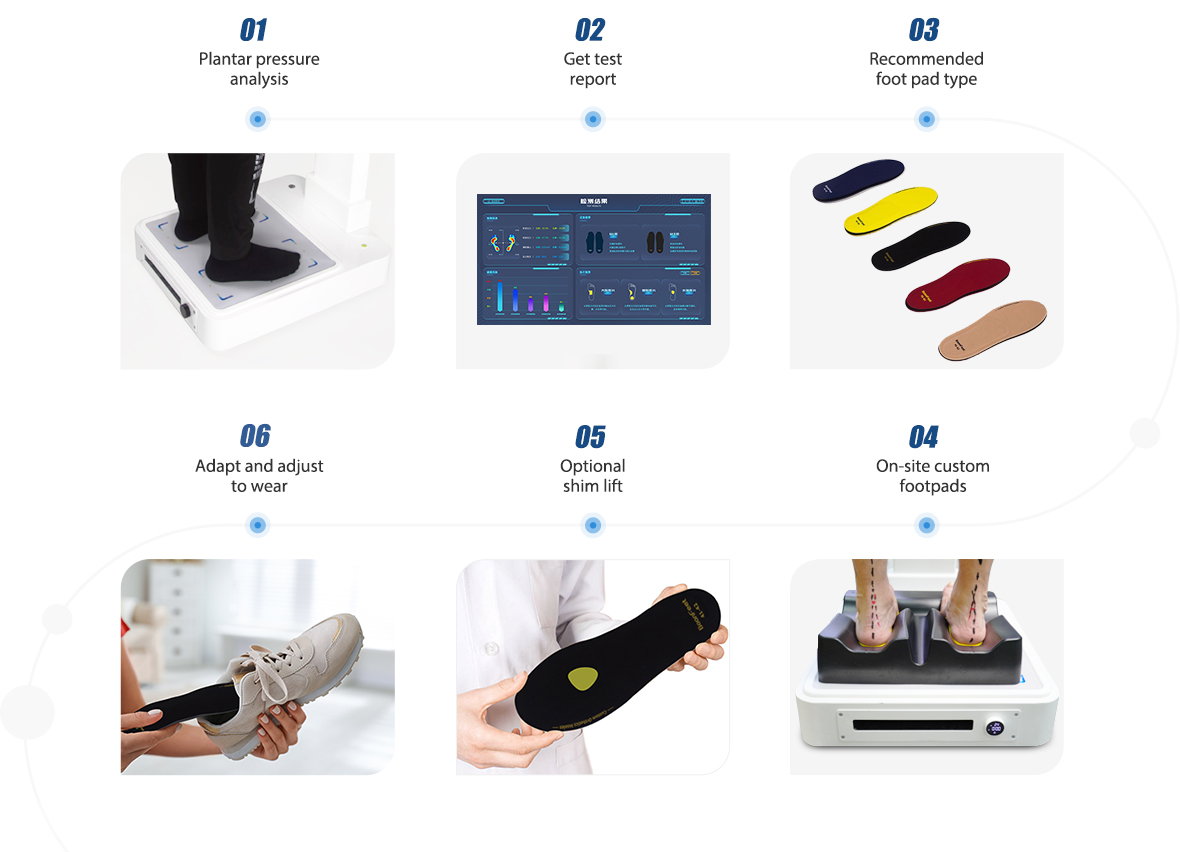

Insole customization process
1. Plantar pressure analysis 2. Obtain test report 3. Recommended foot pad type
4. On-site customized foot pads 5. Optional gasket lifting 6. Adapt and adjust wearing
Choose your custom orthosis type
N1: flat feet
N2: low arch
N3: normal foot
N4: high arch
