SINREY SIP2103T SIP audio module network radio intercom system
-
Supplier: Guangzhou Xinyue Network Equipment Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Weibin Lu -
Price: $75.00 / 1 - 9 pieces
$65.00 / 10 - 99 pieces
$55.00 / >=100 pieces -
Min. Order: 1 piece
Product details
| port: | Guangzhou Port Shenzhen Port | Packaging Details: | Pearl cotton, carton |
| Package preview: | style: | Sophisticated and Powerful | |
| type: | module | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Supply capacity: | 8300 pieces per week | model: | SIP2103T |
| Origin: | Guangdong, China | brand: | Xinrui |
product description
SIP2101T
The SIP2101T network audio module is a general-purpose independent SIP audio function module, which can be easily embedded into OEM products.
This module encodes and decodes SIP protocol and RTP audio streams from the network. The module supports a variety of network protocols and audio codec protocols, and can be used for VoIP and IP paging, high-quality music streaming media playback and other applications.
This module encodes and decodes SIP protocol and RTP audio streams from the network. The module supports a variety of network protocols and audio codec protocols, and can be used for VoIP and IP paging, high-quality music streaming media playback and other applications.
List of functions
Network alarm, network player
* Universal two-way full-duplex VoIP intercom for paging and intercom applications
* Source encoder for IP audio distribution applications
* Background music and music on hold encoder for VoIP applications
* Compatible with various low-latency IP audio encoders
* Universal two-way full-duplex VoIP intercom for paging and intercom applications
* Source encoder for IP audio distribution applications
* Background music and music on hold encoder for VoIP applications
* Compatible with various low-latency IP audio encoders

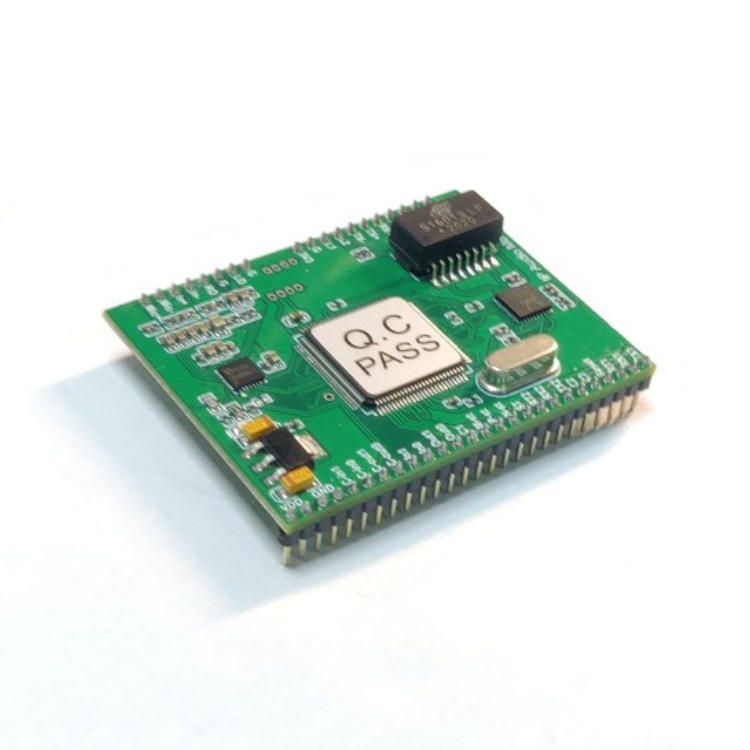

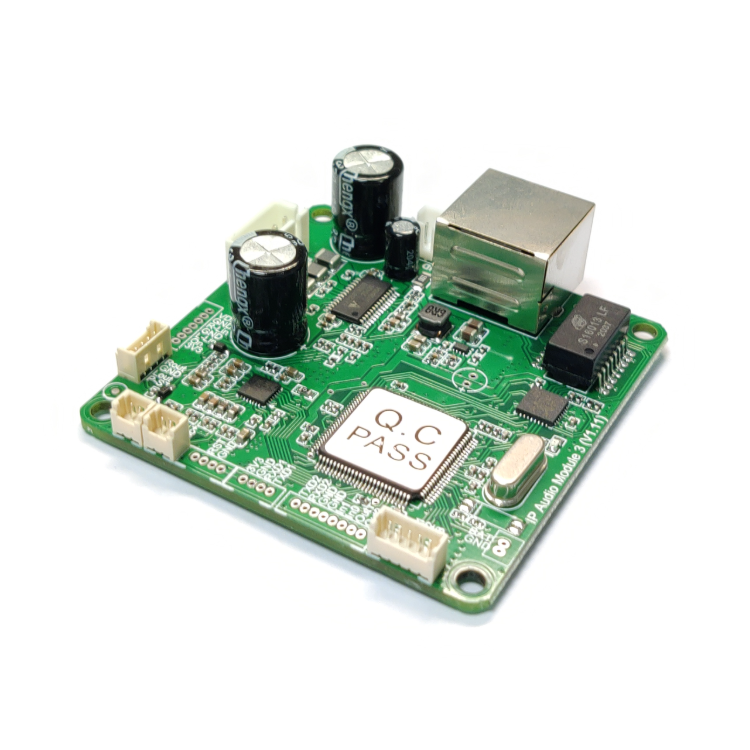

SIP2103T
SIP2401T
SIP2701T
product specification
power input | DC 4.7 ~ 16 V. Maximum operating current, 200mA |
temperature | Industrial grade: - 40 ~ 65 ℃. Storage temperature range - 40 ~ 85 ℃ |
Network Interface | 10 / 100M basic adaptive Ethernet interface, supports IPv4. SIP, TCP/IP, UDP, RTP, DHCP, HTTP |
Mic/Line in | Typical amplitude 1000mvrms Frequency response: 20 Hz … 20 kHz (-3 dB) Dynamic range: 90dB, signal-to-noise ratio -90dB, THD<0.05% |
line out output | Load 510 Ω, typical value 1000vrms, Signal-to-noise ratio 95dB (play mode) |
bidirectional mode (intercom mode) | AEC (linear and non-linear) 8kHz sampling, ADPCM encoding. Minimum delay 80ms |
decoding method (play mode) | Wav (PCM + ima ADPCM), Mp3, G.711 a/u, G.722 and other formats. (Provide stereo playback, maximum 48Khz, 320kbps audio stream Minimum delay 50ms) |
Encoding (recording mode) | G.711a/u, G.722 Minimum delay 30ms |
control serial interface | Baud rate 115.2kbps |
module size | Length x width x height: 50 x 50 x 17mm |
