SINREY SIP2402V sip audio module for sip speakers

Click here to contact
Product details
Product Description

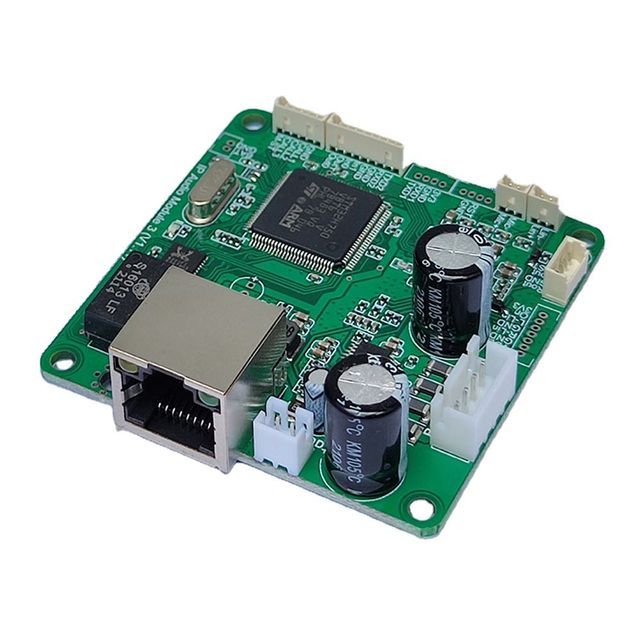

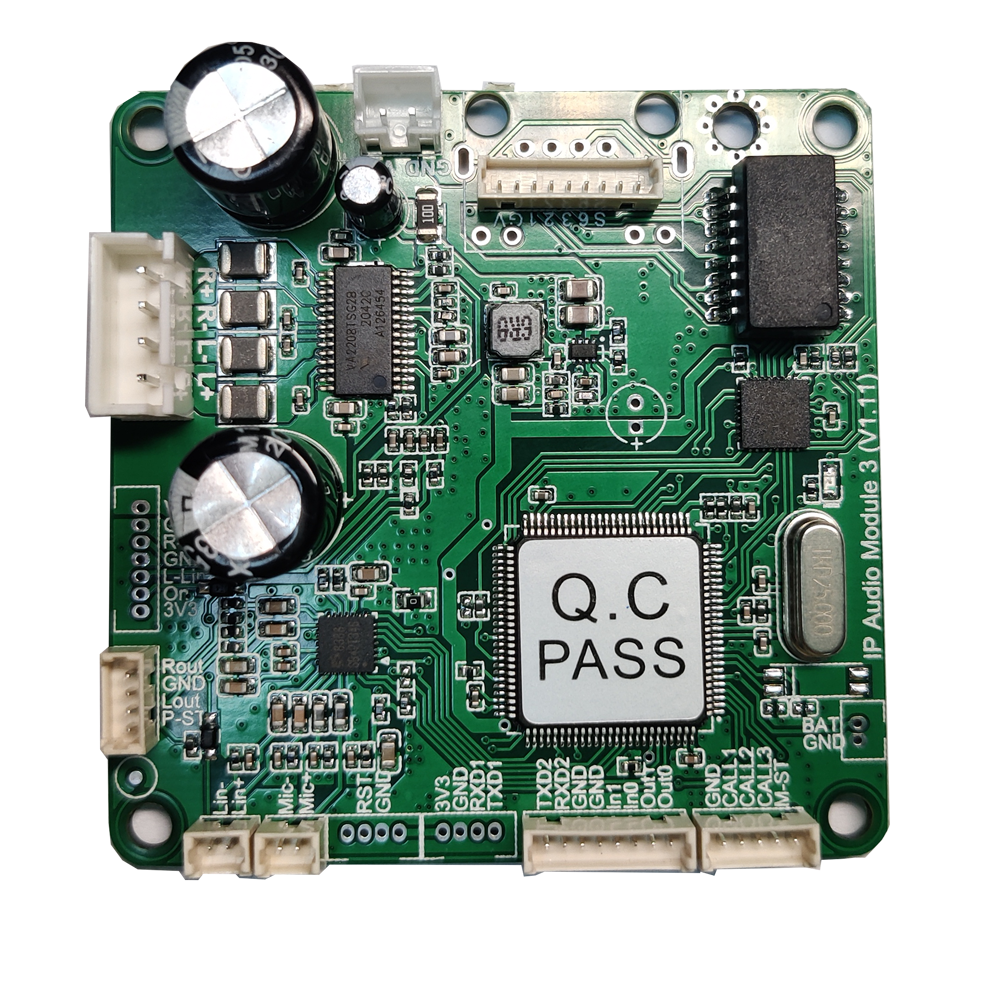

The SIP2403T network audio module is a universal independent SIP audio function module that can be easily embedded into OEM products. This module encodes and decodes SIP protocol and RTP audio streams from the network.

This module supports a variety of network protocols and audio codec protocols, and can be used for VoIP and IP paging, high-quality music streaming and other applications.

SIP2403T also provides 2 serial ports and 8 digital I/O, allowing users to program control
Specification
Power input
DC 12~24V
Maximum operating current, 2000mA
temperature
Industrial grade: - 40～65℃
Storage temperature range——40～85℃
network interface
10/100M basic adaptive Ethernet interface
Support IPv4
SIP, TCP/IP, UDP, RTP, DHCP, HTTP
Microphone/line input
Typical amplitude 1000mvrms, signal-to-noise ratio 95dB
Frequency response: 20 Hz … 20 kHz (-3 dB)
Dynamic range: 90dB, signal-to-noise ratio -90dB, THD<0.05%
Line out output
Load 10K Ω, typical value 1000vrms,
Signal-to-noise ratio 95dB (playback mode)
RL line input
local amplified input,
Typical amplitude 1000mvrms,
Signal-to-noise ratio 95 decibels
Amplifier output
Output power 2*15W or 1*40W
bidirectional mode
(intercom mode)
AEC (linear and non-linear) 8kHz sampling, ADPCM encoding.
Minimum delay 80ms
decoding method
(play mode)
Waveform (PCM + ima ADPCM)
mp3
G.711 a/u, G.722 and other formats.
(Provides stereo playback, maximum 48Khz, 320kbps audio stream
Minimum delay 50ms)
encoding method
(recording mode)
G.711a/u, G.722
Minimum delay 30ms
Control serial interface
Baud rate 115.2kbps
Universal input and output interface
4 channels of general IO, including 2 channels of input and 2 channels of output
Universal serial port
Support transparent transmission, baud rate 2400-115.2kbps, 7,8 data bits, 1,2 stop bits, none, even, odd, space, mark check
Module size
Length×width×height: 57×57×17mm
