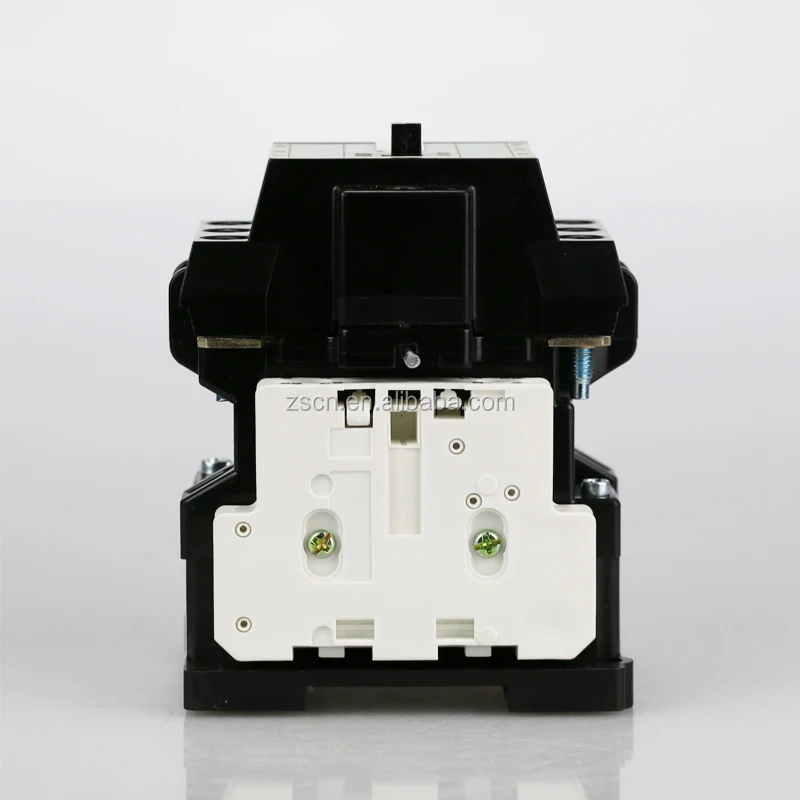

3TB44 22-OX Elevator Contactor 3 pole ac magnetic contactor

Supplier: Zhejiang Zhongshuo Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms. Aimee Ye
Price: $5.20 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Certificate:	CE;	Supply Ability:	10000 Piece/Pieces per Day;
Delivery Detail:	depend on quantity;	Port:	ningbo or Shanghai;
ontrol power:	4KW-200KW;	STANDARD:	IEC 60947;
Main Circuit Rating Current:	0.02-0.08mA;	Phase:	3;
Model Number:	3TB44;	Main Circuit Rating Current:	32a;
Payment Terms:	D/P,T/T,Western Union;	Brand Name:	ZHSO;
Place of Origin:	Zhejiang China (Mainland);	Main Circuit Rating Voltage:	380v;
Number of Pole:	3;	Packaging Detail:	standard export package;
Electricity Type:	AC;

3TB-44 pole ac magnetic contactor

ZS3TB series AC contactor are latest products in 1990’s. The products bring in produce technical from German Siemens company for 50/60Hz, rated insulation voltage up to 690-1000V, rated operational current up to 9A-400A at rated operational voltage up to 380V under the ac-3 category. 3TB series are mainly used for connecting or disconnecting electric circuits at long distance, including starting, stopping and reversing ac motors. They are made according to IEC947, VDE0660, GBI4048.

Type	Rated thermal current (A)	Rated operating current at AC 3 380V (A)	Rated operating current at 660V (A)	The power of controlled motor (KW)		Type of auxiliary contact
Type	Rated thermal current (A)	Rated operating current at AC 3 380V (A)	Rated operating current at 660V (A)	380V	660V	Type of auxiliary contact
3TB40	20	9	3.33	4	5.5	1NO
3TB41	20	12	4.33	5.5	7.5	1NC
3TB42	30	18	7.77	7.5	11	1NO+1NC
3TB43	30	22	8.5	11	11	2NO+2NC
3TB44	45	32	12	15	23	2NC+2NO
