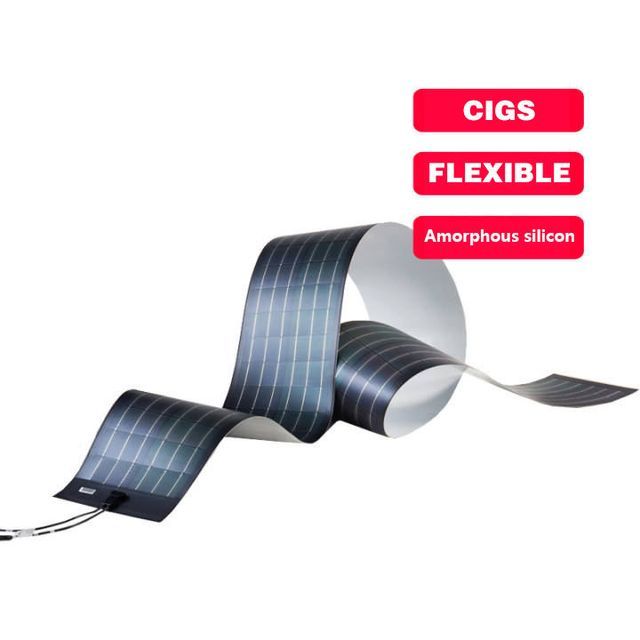

Hot Sale 100w Amorphous Silicon Cigarette Thin Film Flexible Solar Panel Outdoor Flexible Solar Panel

Supplier: Jiangxi Green System Manufacture and Trade Co., Ltd
Region: Jiangxi, China
Contact: Ms Jenny Lai
Price: $3.10 / 1000 - 9999 pieces
$2.90 / 10000 - 199999 pieces
$2.30 / >=200000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

brand:	green system	port:	Shenzhen, Shanghai
Battery efficiency:	original design manufacturer	color:	Balk
Origin:	Jiangxi, China	Material:	Amorphous silicon
Supply capacity:	100000 watts per day	Cell type:	Solar battery
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Solar panel system:	please ask for your plan
model:	CIGS-Y1	Wind load:	2400 Pa
Power Tolerance:	0-+5W	type:	PERC
Solar panel connector:	MC4 (waterproof)	Certificate:	TUV ISO UL
Panel efficiency:	16.2%	Warranty:	10 years
product name:	CIGS solar panels

Product Details

model	KXSF N36-75	KXSF N36-80	custom made
Nominal power (PMPP)	75W	80W	custom made
Aperture efficiency (η)	15.2%	16.20%	custom made
Maximum supply voltage (VMPP)	18.3V	18.8V	custom made
Maximum Power Current (IMPP)	4.09A	4.26A	custom made
Open circuit voltage (VOC)	23.3V	23.8V	custom made
Short circuit current (ISC)	4.70A	4.74	custom made
Maximum Series Fuse Rating		10A	custom made
Standard test conditions: 1000W/m2, 25°C battery temperature, AM 1.5 spectrum
Physical and Mechanical Specifications
length	mm	Chapter 1709	custom made
width	mm	Chapter 348	custom made
Maximum thickness at J-Box*	mm	20	custom made
Weight (module without glue)	Kilogram	1.2	custom made
Weight (module with adhesive)	Kilogram	1.6	custom made
Weight/Area (module without adhesive)	kg/square meter	2.0	custom made
Weight/Area (module with adhesive)	kg/square meter	2.7	custom made
cell type			custom made

detailed picture

Installation plan one

It can be installed with mounting glue, suitable for long-term installation.

Installation scheme 2

Comes with mounting holes for easy installation anywhere.

Installation scheme 3

It adopts the back-adhesive method, no need to install a bracket, light in weight, and can be pasted arbitrarily.

Junction Box

*High-quality diodes ensure safe operation of the modules.
* Waterproof grade IP68.
* Heat dissipation, long service life.

connection interface

It adopts MC4 interface, which is easy to connect and has waterproof function.

Application field
