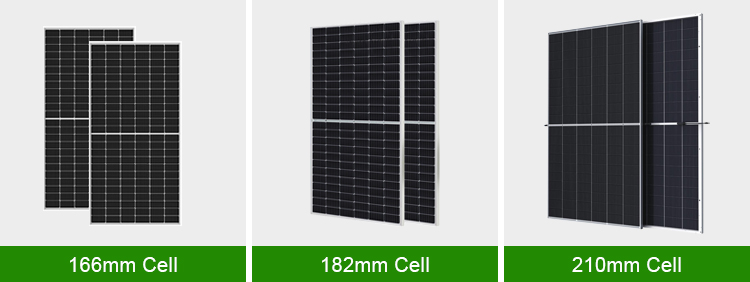

Customized Monocrystalline Solar Panel 270 W 60 Cell 166mm Cell OEM Solar Module

Supplier: S K Tech Co., Ltd.
Region: Anhui, China
Contact: Ms Anne Cao
Price: $0.15 / 100 - 9999 pieces
$0.13 / 10000 - 99999 pieces
$0.11 / >=100000 pieces
Min. Order: 100 pieces

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Busbar:	5BB/6BB/9BB/10BB
Back:	2mm (silver/aluminum) discontinuous pad	Warranty:	25 years
Solar battery:	156*156 monocrystalline cells	Supply capacity:	500000 watts per month China complete off grid solar system 20kw off grid solar system
Certificate:	EU CE certification	Battery efficiency:	21.5~23.5%
model:	SK cells 144	type:	PERC, MWT, IBC, HJT, HBC, semi
Battery quantity:	1	Place of origin:	China
weight:	0.1 kg	port:	Shanghai or any Chinese port
thickness:	200um±20um	brand:	SK
application:	Solar products	OEM orders:	acceptable
front:	108 Finger Grid

you might like

Product Description

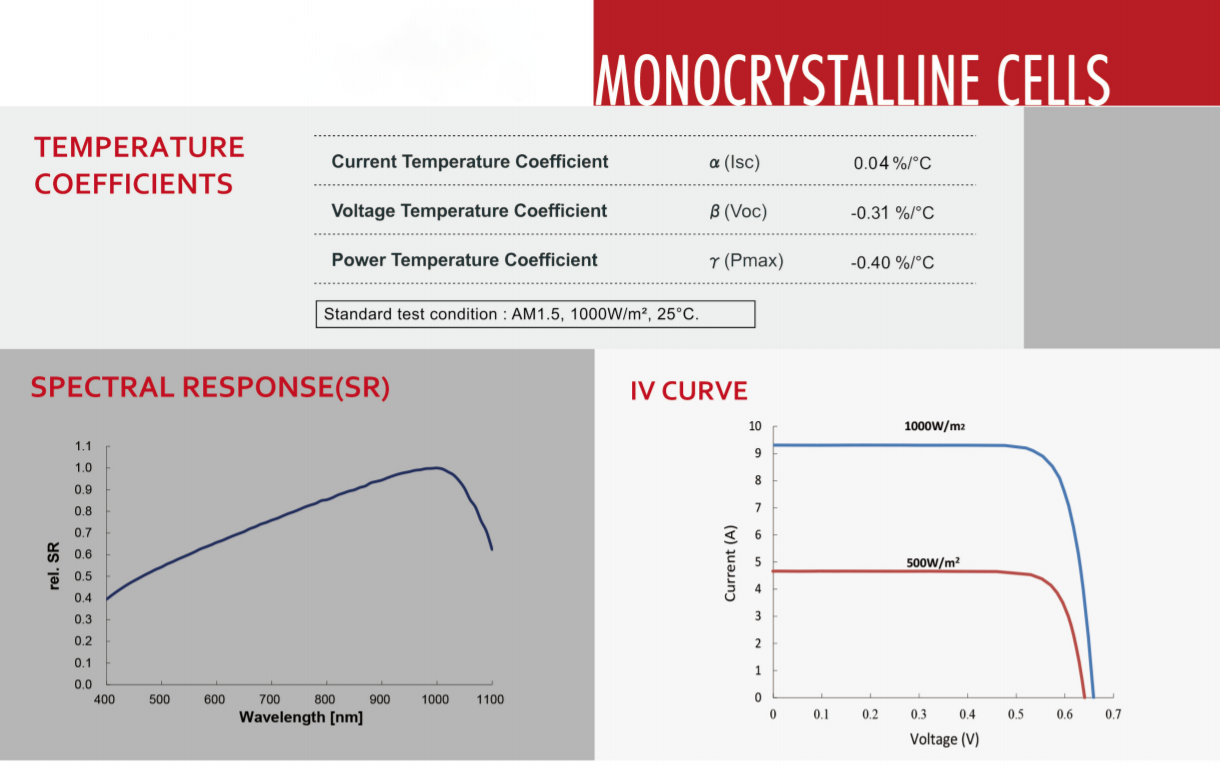

Specification
efficiency code	214	213	212	211	210	209
Eff (%)	21.4	21.3	21.2	21.1	twenty one	20.9
Powerppm(W)	5.23	5.2	5.18	5.16	5.13	5.11
maximum. Power supply current lpm(A)	9.22	9.2	9.18	9.17	9.14	9.13
Short circuit current Isc(A)	9.73	9.71	9.7	9.68	9.66	9.65
maximum. Power supply voltage Vpm(V)	0.567	0.565	0.564	0.563	0.561	0.56
Open circuit voltage Voc(V)	0.666	0.665	0.664	0.663	0.662	0.661

efficiency code	208	206	205	204	203	Chapter 202
Eff (%)	20.8	20.6	20.5	20.4	20.3	20.2
Powerppm(W)	5.08	5.03	5.01	4.98	4.96	4.94
maximum. Power supply current lpm(A)	9.11	9.08	9.06	9.04	9.02	9
Short circuit current Isc(A)	9.63	9.61	9.59	9.57	9.55	9.54
maximum. Power supply voltage Vpm(V)	0.558	0.554	0.553	0.551	0.55	0.549
Open circuit voltage Voc(V)	0.659	0.657	0.656	0.655	0.654	0.653

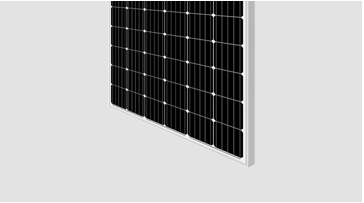

Product display

Glass

*Anti-reflective glass
*High transmittance and low reflectivity improve model efficiency
*High mechanical strength

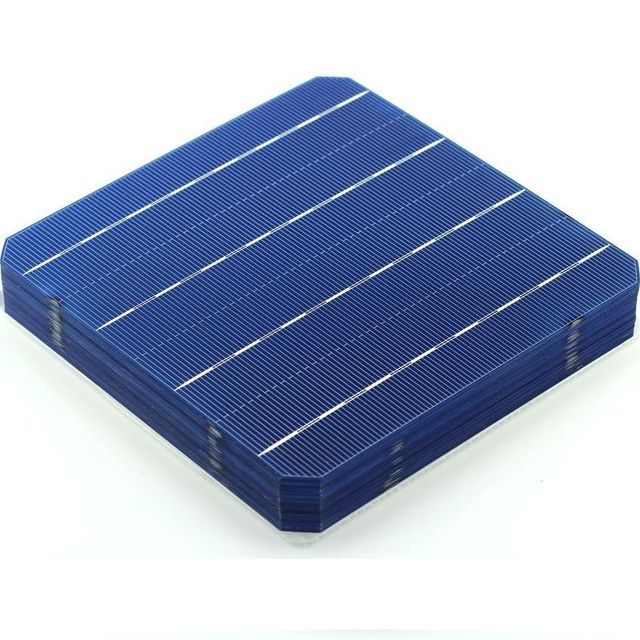

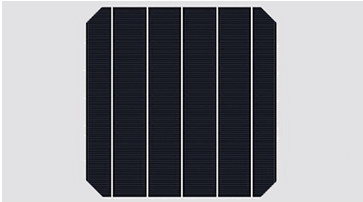

Solar battery

*High model efficiency up to 20% *High shunt resistance: adapt to various environmental conditions
*High PID resistance
* Low breakage rate
*Uniform color

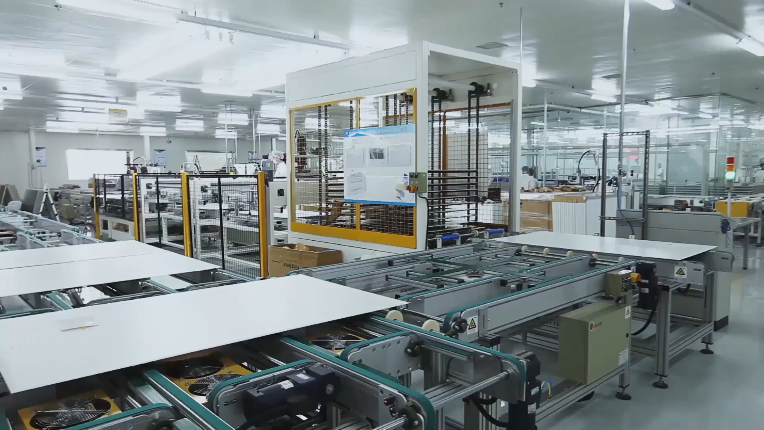

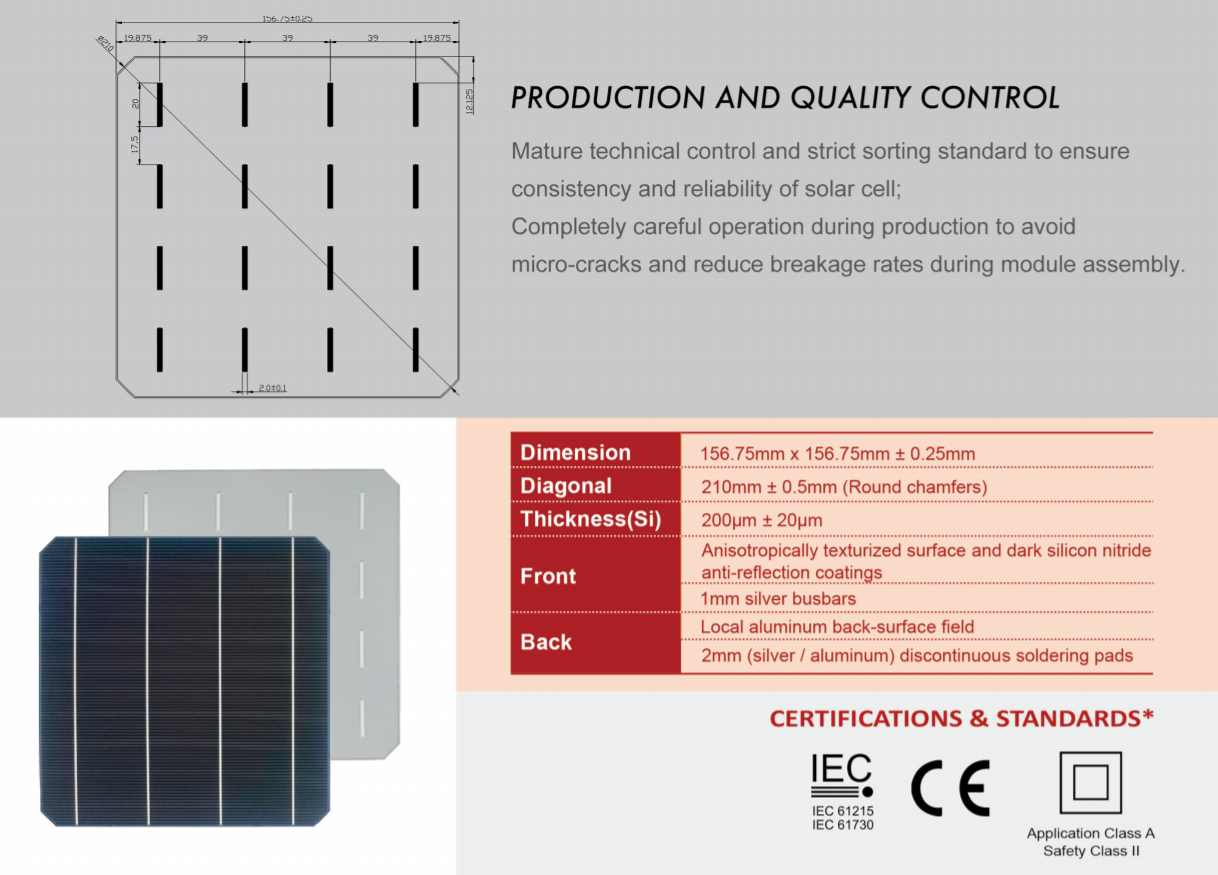

Production and quality control

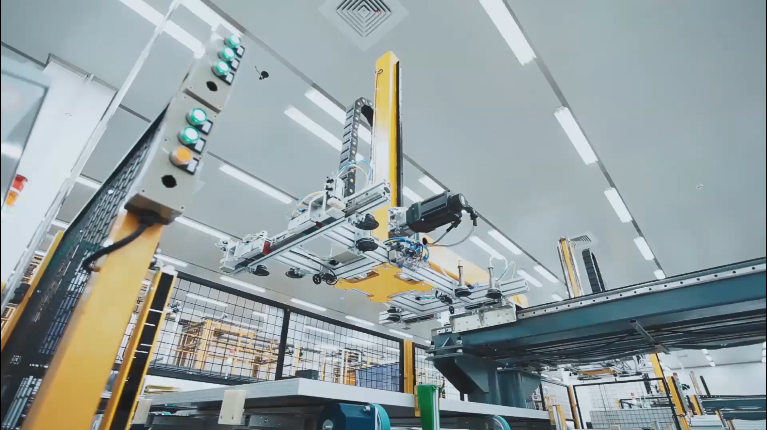

Automatic typesetting machine

After setting the program according to the requirements of the process drawings, the typesetting machine will automatically
Typeset battery string. High precision, high efficiency, low defective rate

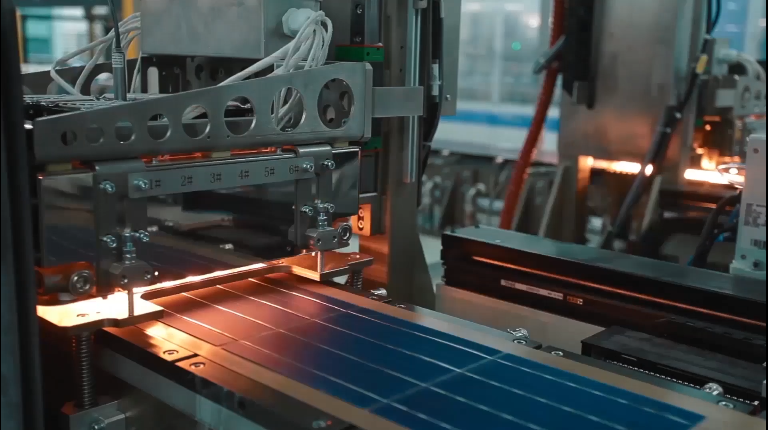

Solar cell welding

Using automatic welding machine to connect solar cells in series

All solar cells are from top brands such as TW Solar, Longi Solar

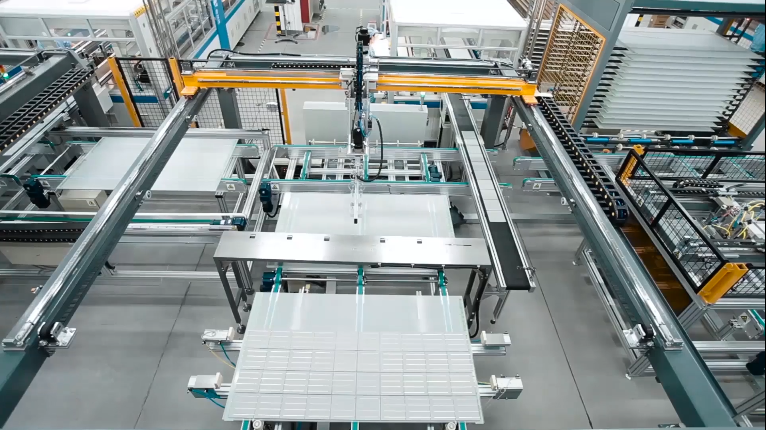

automatic welding

Automatic laying of EVA, backing, and automatic cutting of excess backing material. The entire production process is 100% automated.

100% best tested

Ensures 3% positive power tolerance Comprehensive QC information management system with barcode ID. A quality traceability system is in place to keep quality data flowing.

Product packaging

Package configuration
container	310W-340W	360W-410W	440W-480W	500W-660W
tray	35 pieces	30 pieces	27 pieces	27 pieces
20GP	390 pieces	360	270 pieces	180
40GP	924 pieces	840 pieces	780	660 pieces

NOTE: The above packaging information contained on this website is subject to change without notice. If your order is less than pallets, we will provide wooden box packaging, which requires additional material and labor costs, and we accept customized packaging according to your requirements.
