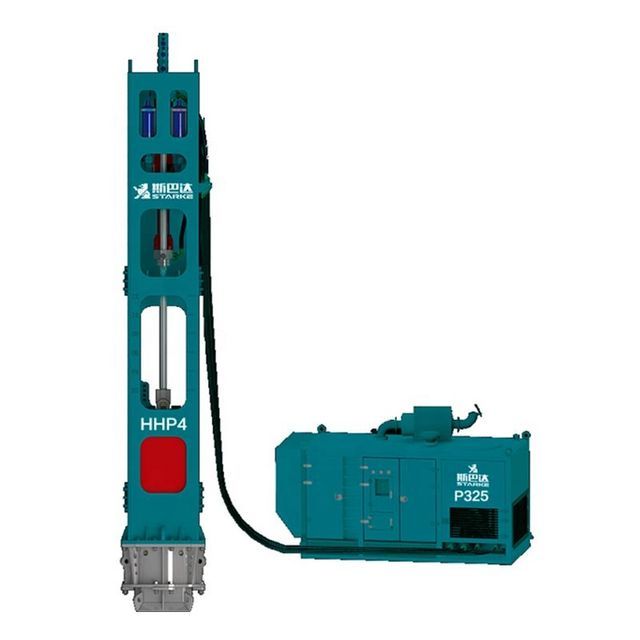

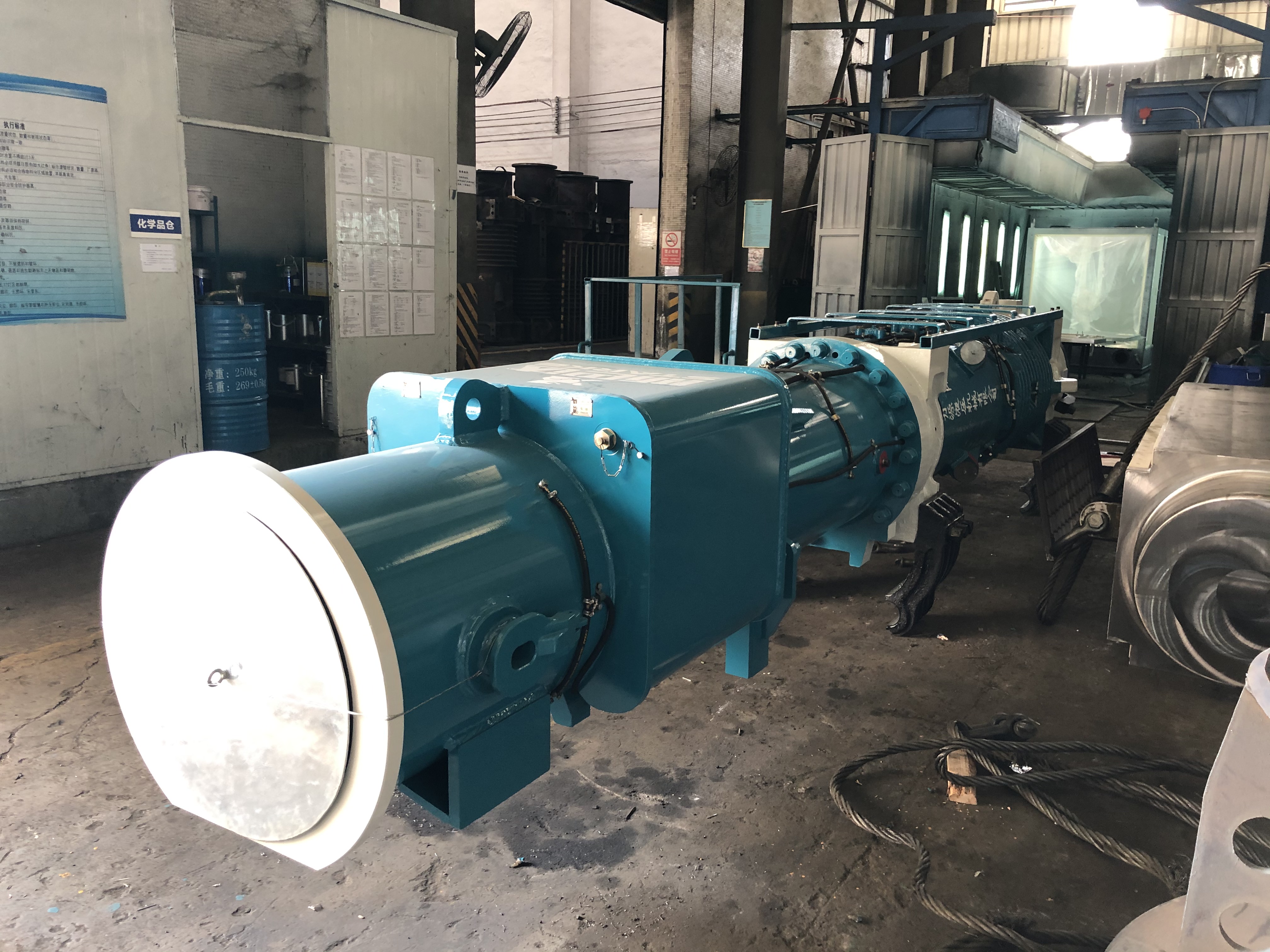

Powerful Starke brand model HHP4 hydraulic impact pile driving hammer for sale at best price

Supplier: Dongtai Ventex International Trading Limited Company
Region: Jiangsu, China
Contact: Mr Kris Cao
Price: $20000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Supply capacity:	15 units per month	Piling speed (m/min):	12
Suitable pile:	Concrete piles, pipe piles, sheet piles	brand:	Stark, Ventex
model:	HHP4~HHP60	color:	black or customized
Warranty:	1 year	Core components:	Pump
payment terms:	Western Union, L/C, T/T	Package preview:

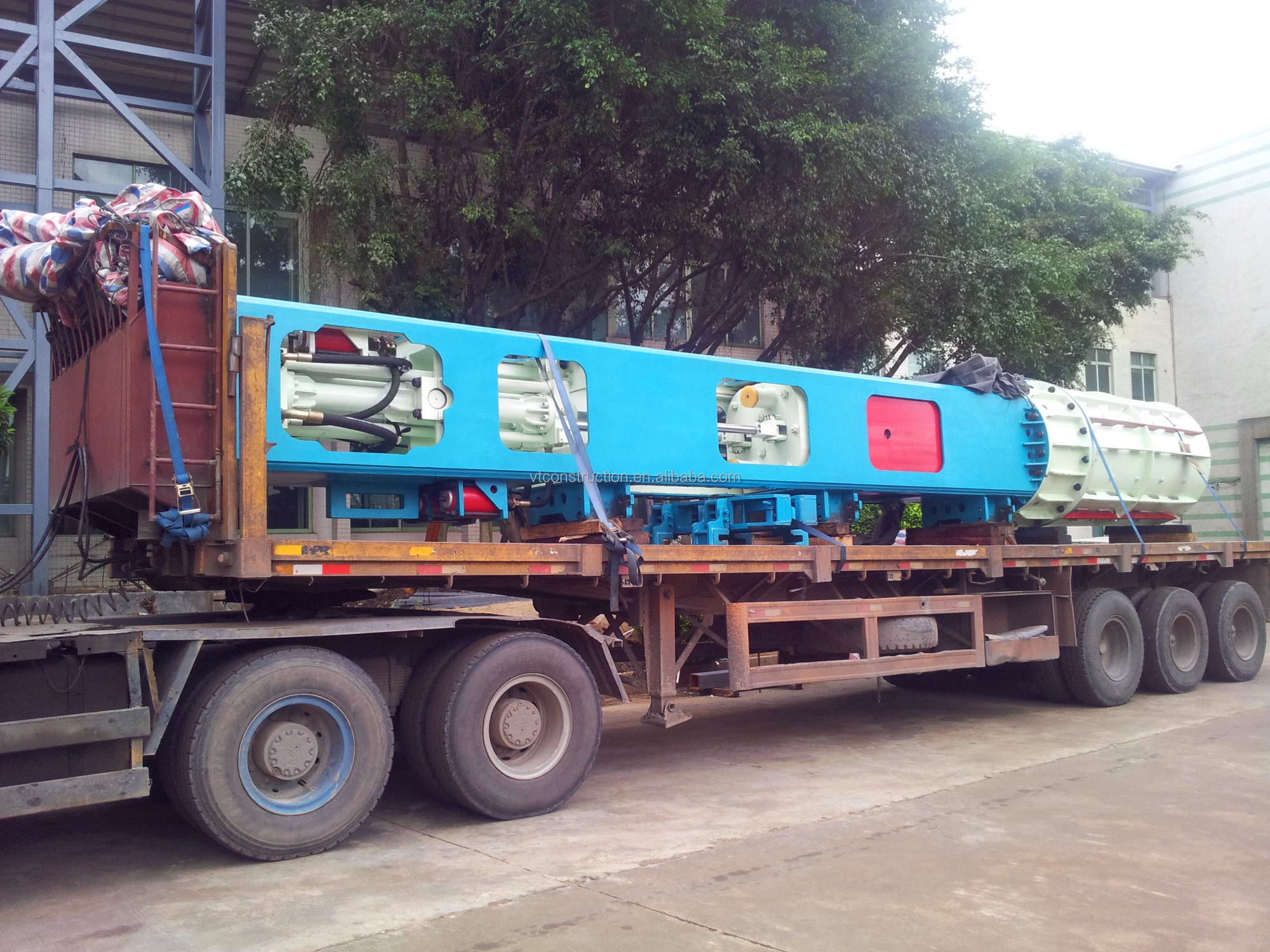

Packaging Details:	container	Core component warranty:	1 year
Unique selling point:	high operating efficiency	Service life:	8 years
Showroom location:	not any	Marketing Type:	2020 New Products
application:	piling	Applicable cranes:	100 tons
weight:	7000 kg	Health status:	new
After-sales service provided:	On-site installation, commissioning and training	Impact frequency:	35-50 times/min
Applicable industries:	Manufacturing plants, construction, energy and mining	After Warranty Service:	On-site maintenance and repair services
Local service locations:	Vietnam, Philippines, Indonesia, India, Russia	efficiency:	100%
Pile diameter:	300~1000mm	Dimensions (LWH):	4.81.30.8m
port:	Shanghai	Video outbound inspection:	if
Origin:	Jiangsu, China	product name:	hydraulic impact hammer
Certification:	ISO9001	Mechanical test report:	if

Product Description

Our advantage

feature

1. Work based on hydraulic system

2. The effect of soft soil start and cold start is very good

3. Simple structure and easy maintenance

4. Combined with our company's walking pile frame to achieve good performance
5. Widely used in metal piles, concrete piles, pouring piles, tamping piles

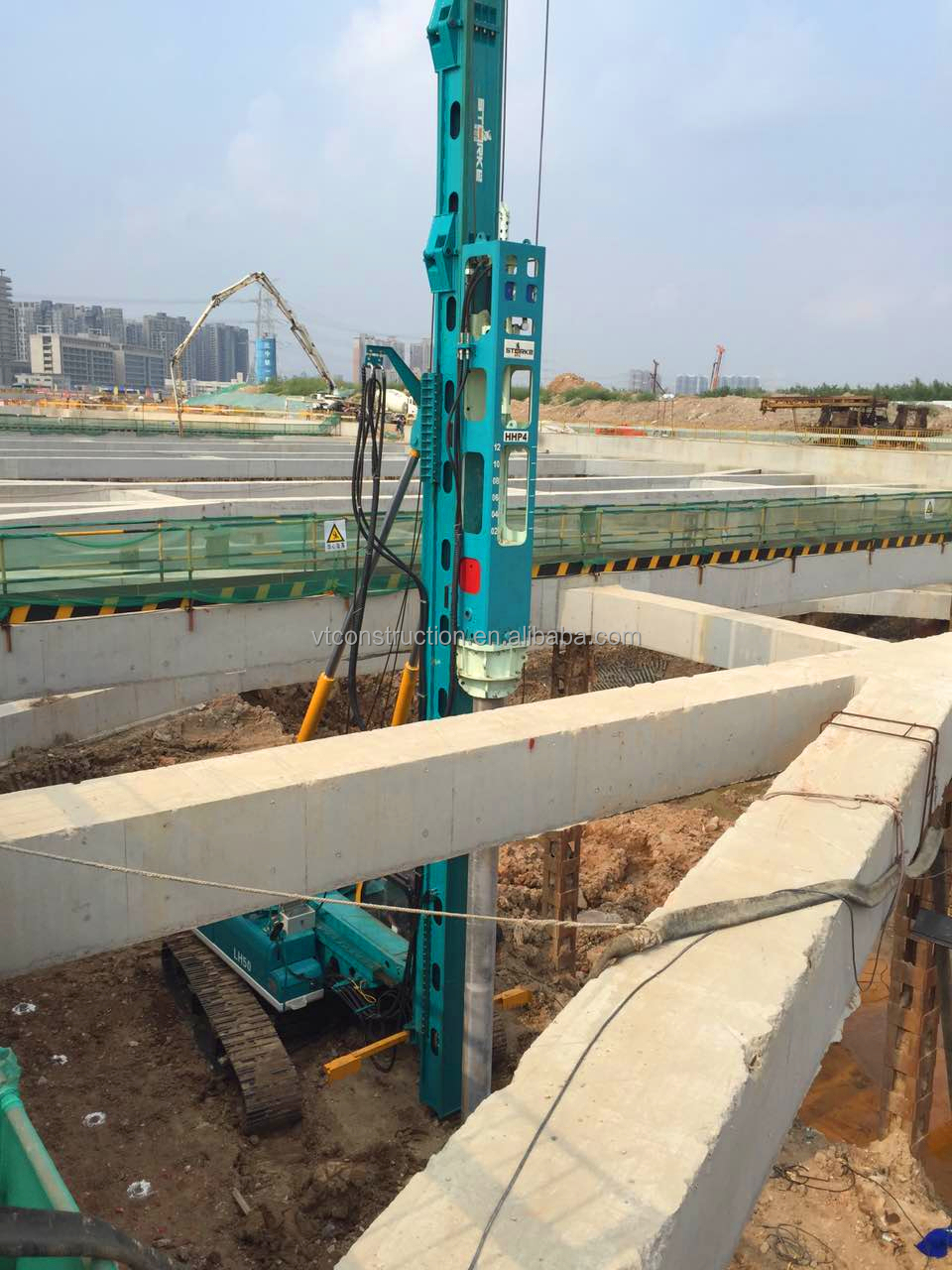

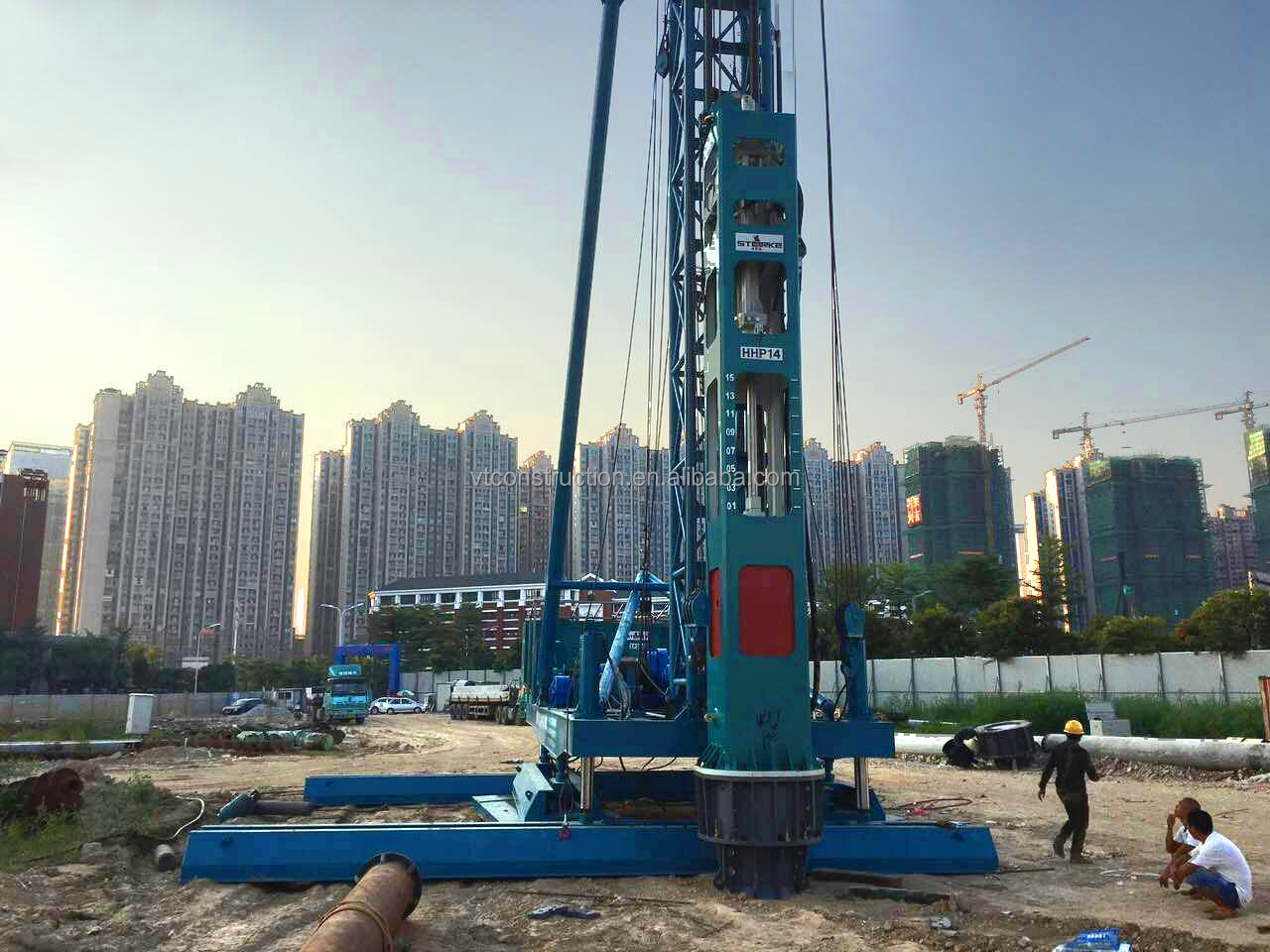

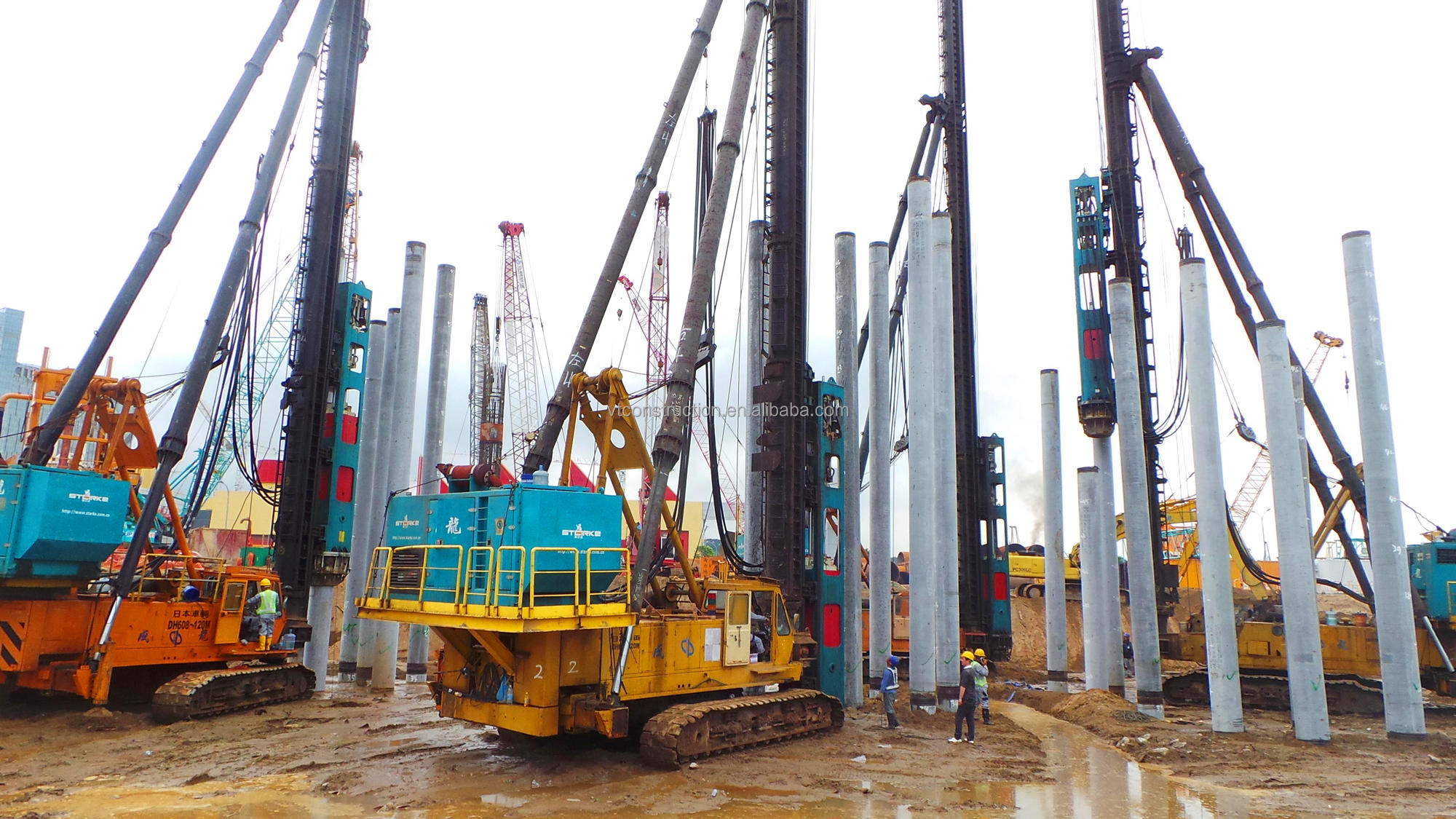

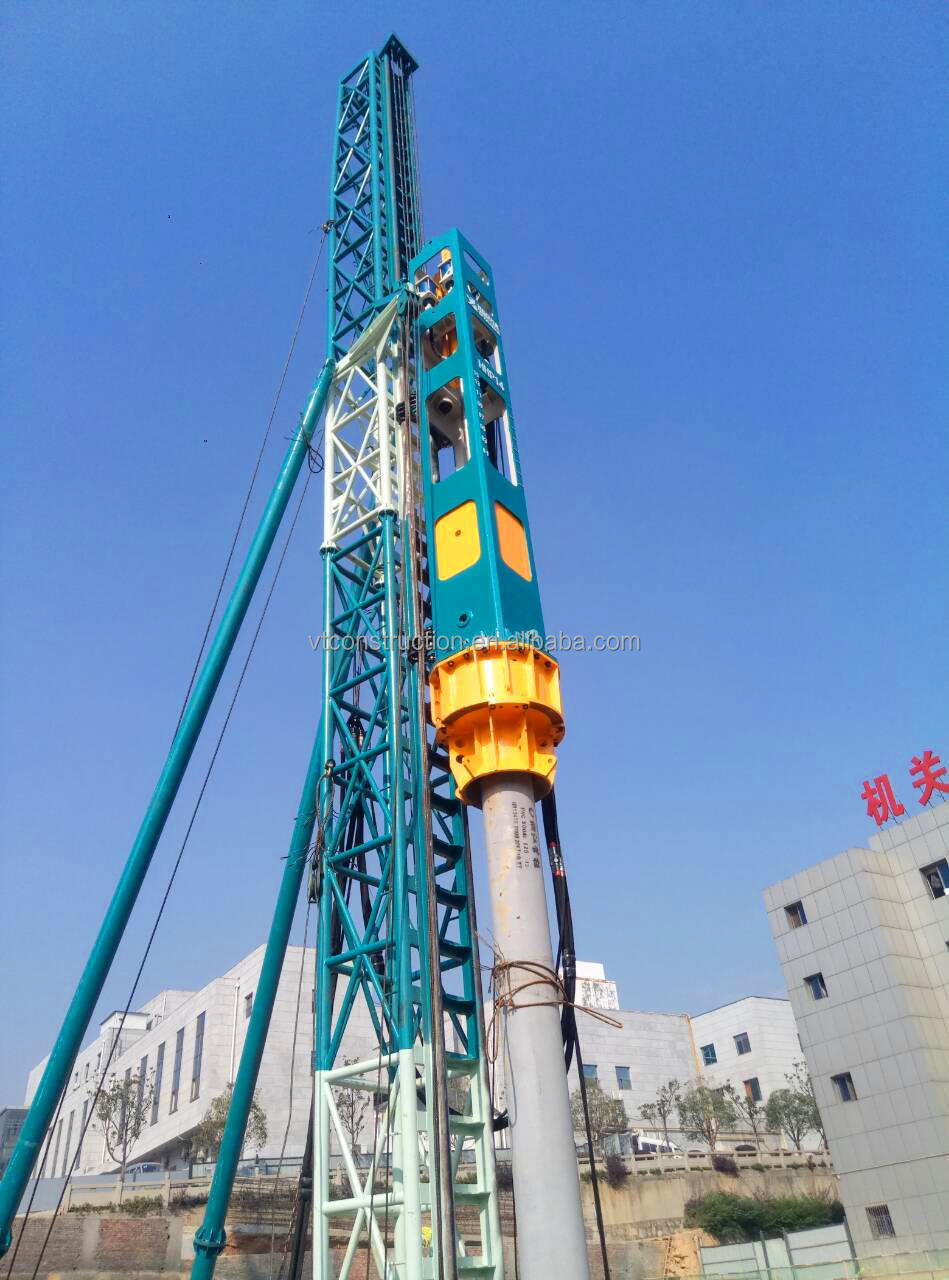

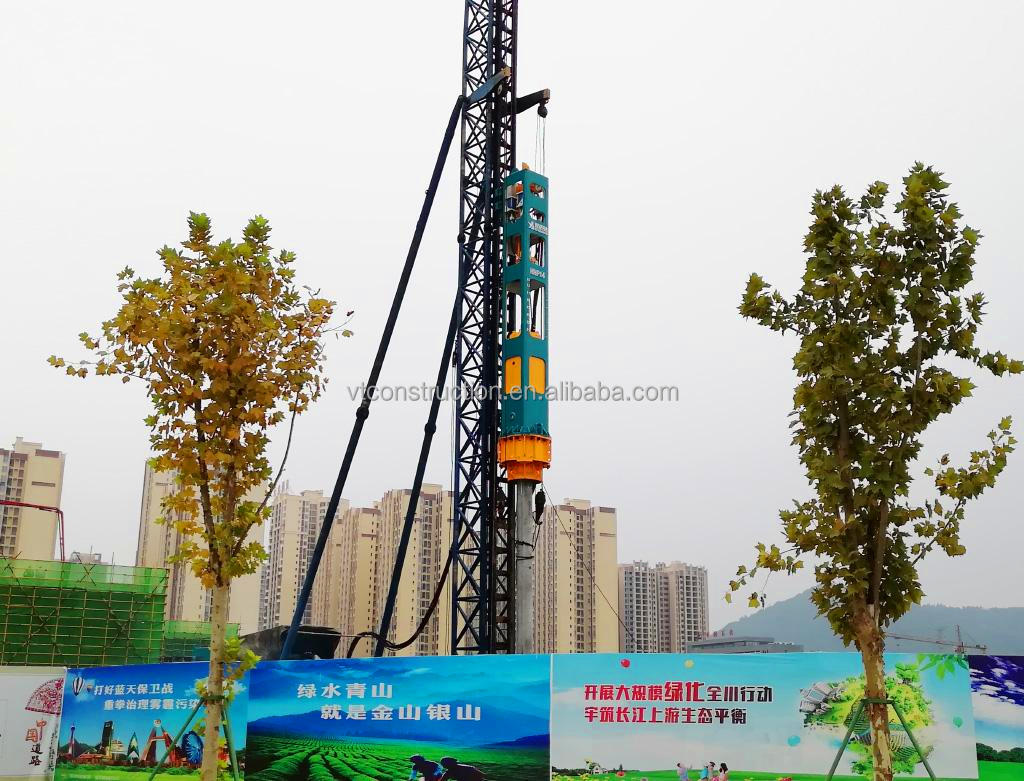

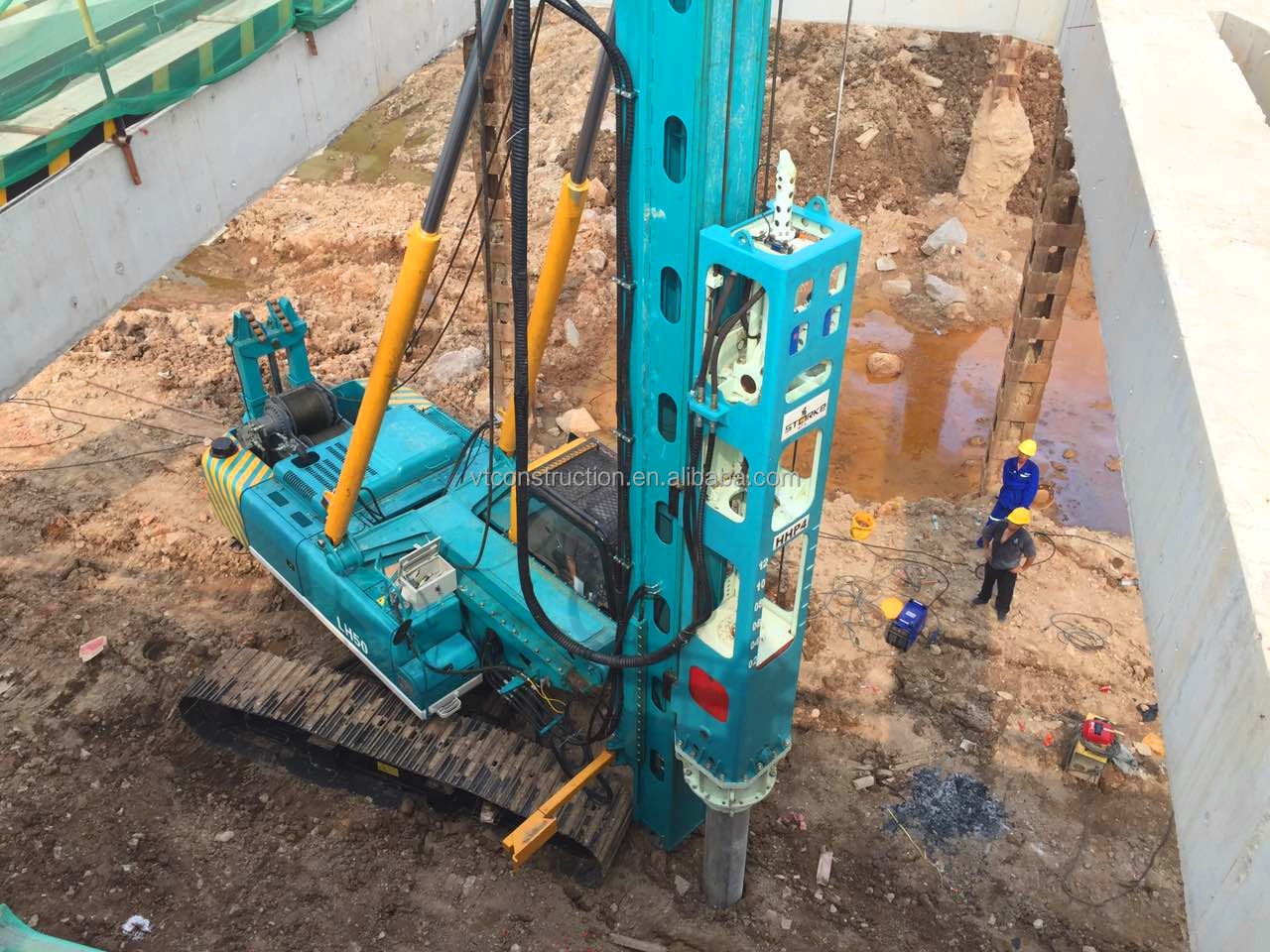

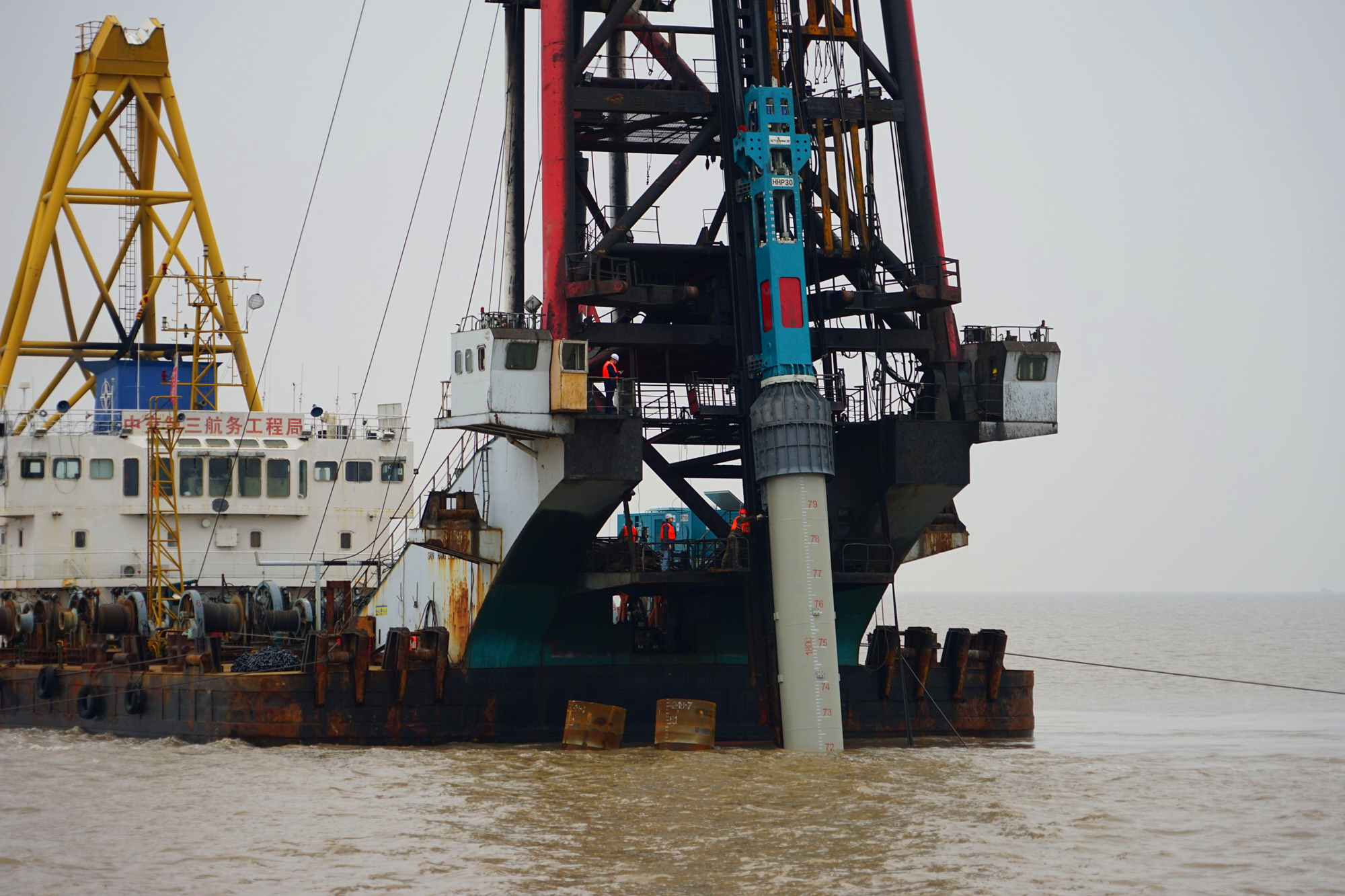

6. Scope of application: ports, docks, airports. highway, railway. high base building

Model	unit	HHP4	HHP5	HHP8	Hehe 10	HHP12	HHP14
maximum. vitality	KNm	48	60	120	150	180	210
maximum. stroke	mm	1200	1200	1500	1500	1500	1500
frequency		36~90	36~90	36~90	36~90	36~90	36~90
Ram Weight	Kilogram	4000	5000	8000	10000	12000	14000
Lift hydraulic cylinder		single lift hydraulic cylinder
Hammerhead height (without pile cap)	mm	4820	5130	6595	7320	7460	7460
Hammer head transverse width	mm	Chapter 885	950	1125	1135	1135	1225
Hammer head vertical width	mm	1340	1285	Chapter 1385	1400	Chapter 1385	Chapter 1465
Distance between hammer center and guide rail	mm	700	750	Chapter 730	Chapter 740	Chapter 740	780
Distance between rail centers	mm	600	600	600	600	600	600
Hammer weight (without pile cap)	Kilogram	7000	8250	12900	16420	18100	21000
stroke device weight	Kilogram	390	390	Chapter 595	630	630	630
