Factory sale with high price, hydraulic rotary pile rig

Supplier: Shandong Hengwang Group Co., Ltd.
Region: Shandong, China
Contact: Ms Kristin Han
Price: $24999.00 / 1 - 4 sets
$21990.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

After-sales service provided:	Video technical support, online support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services	Applicable industries:	Construction, energy and mining
Pressure Mode:	Twin cylinder supercharger	engine:	Weichai or Cummins
efficiency:	2-3 minutes/minute	advantage:	Large diameter drilling
Dimensions (LWH):	8700mm2300mm3200mm	Origin:	Shandong Province, China
Warranty:	1 year	Video factory inspection:	if
weight:	9000 kg	payment terms:	L/C, T/T, Western Union, MoneyGram
Drill Diameter:	Max. 2000mm	product name:	Wheeled rotary drilling rig piling
Drilling depth:	Up to 15 meters	Local service locations:	not any
Pile driving speed (m/min):	0.5 m/min	Core component warranty:	6 months
color:	custom made	Supply capacity:	100 sets per month
Exhibition Hall Location:	not any	Certification:	International Organization for Standardization
Packaging Details:	High quality factory discount sale hydraulic wheel rotary drilling rig for piling loaded in 40'HQ container	port:	Qingdao
Marketing Type:	normal product	brand:	Hengwang
Mechanical test report:	if	brand:	Can make your brand
application:	Drilling large holes. Piling construction	Unique Selling Points:	High operating efficiency
Fuel consumption:	8-10 liters/hour	Core components:	engine
Health status:	new

Product Description

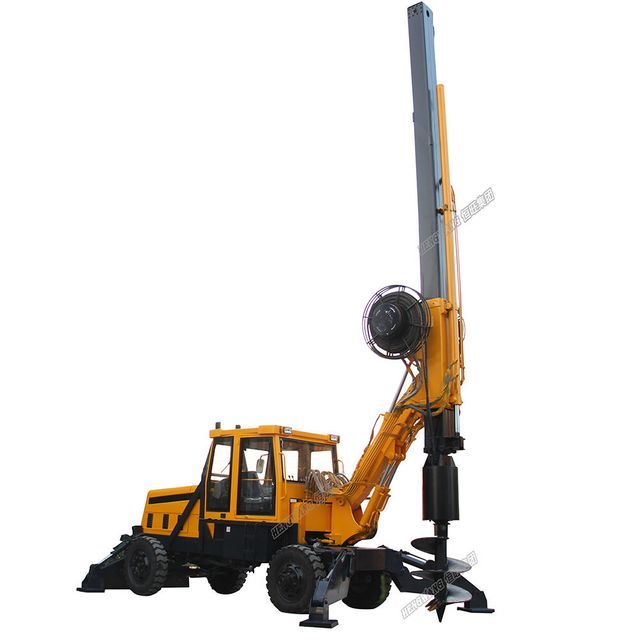

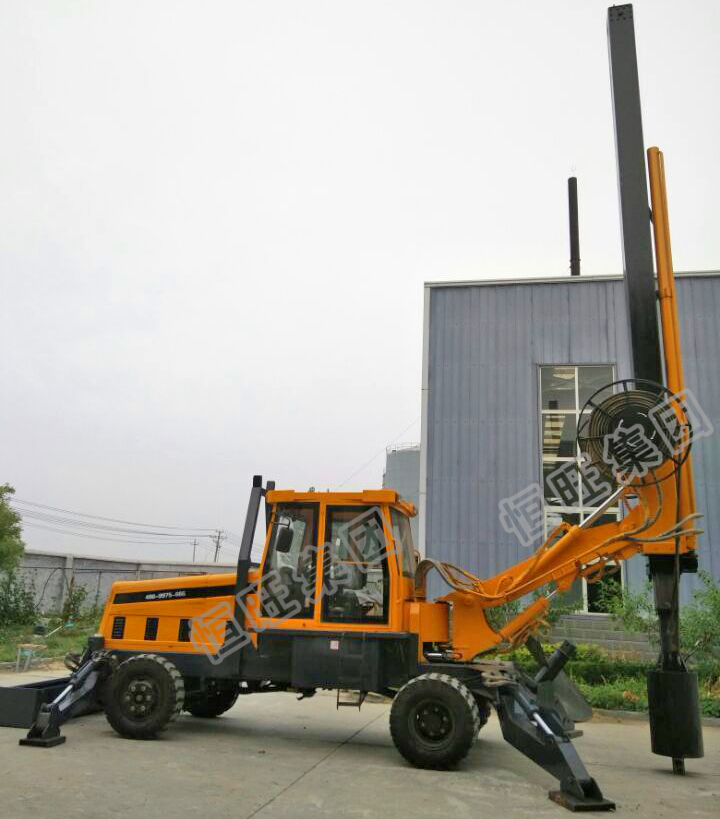

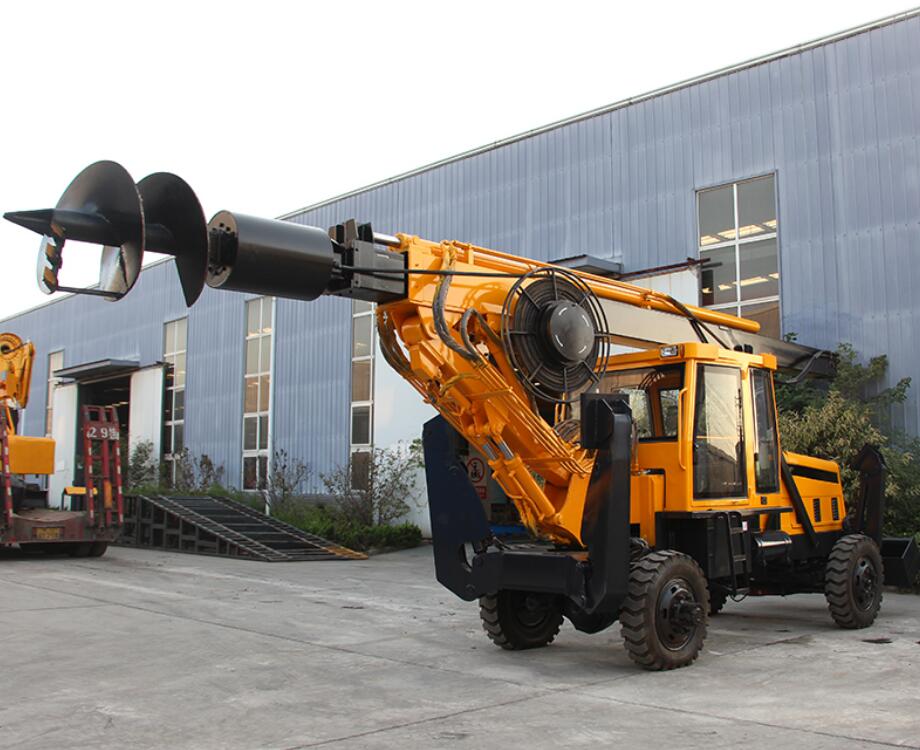

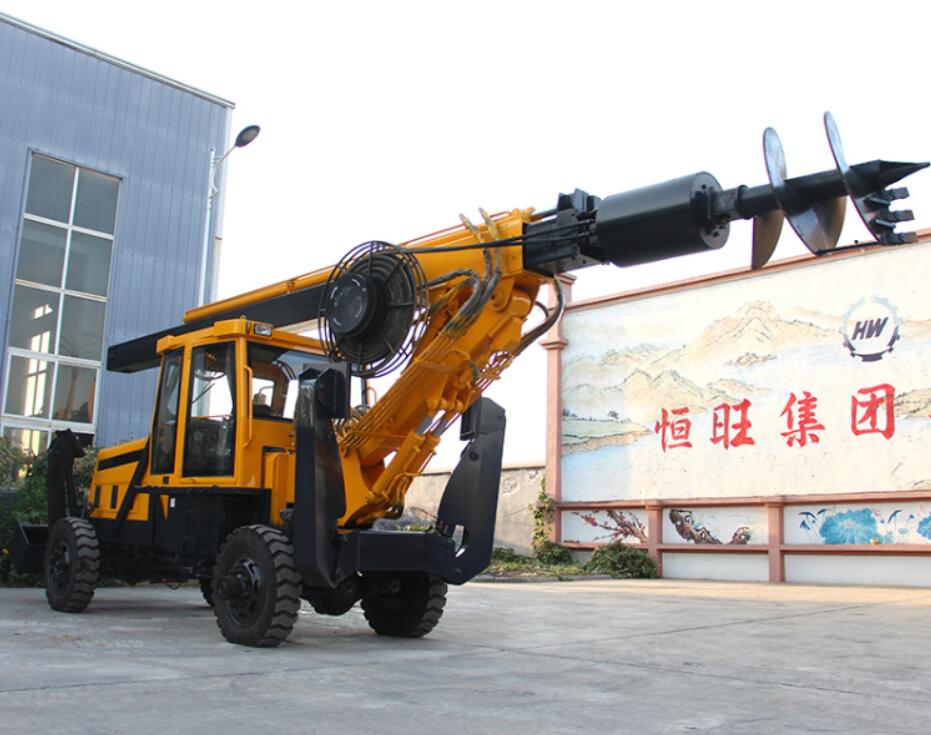

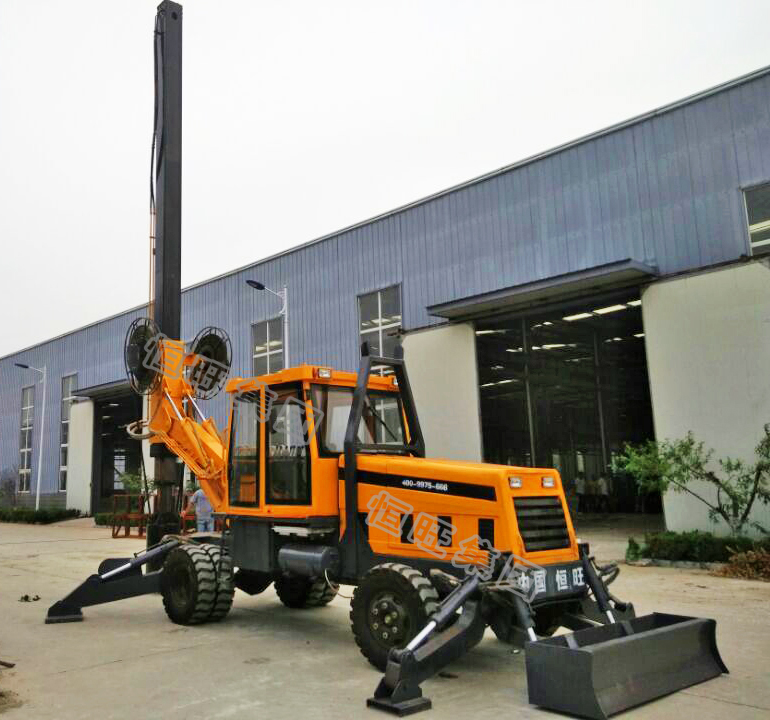

HWDR150L Wheel Rotary Pile Driver

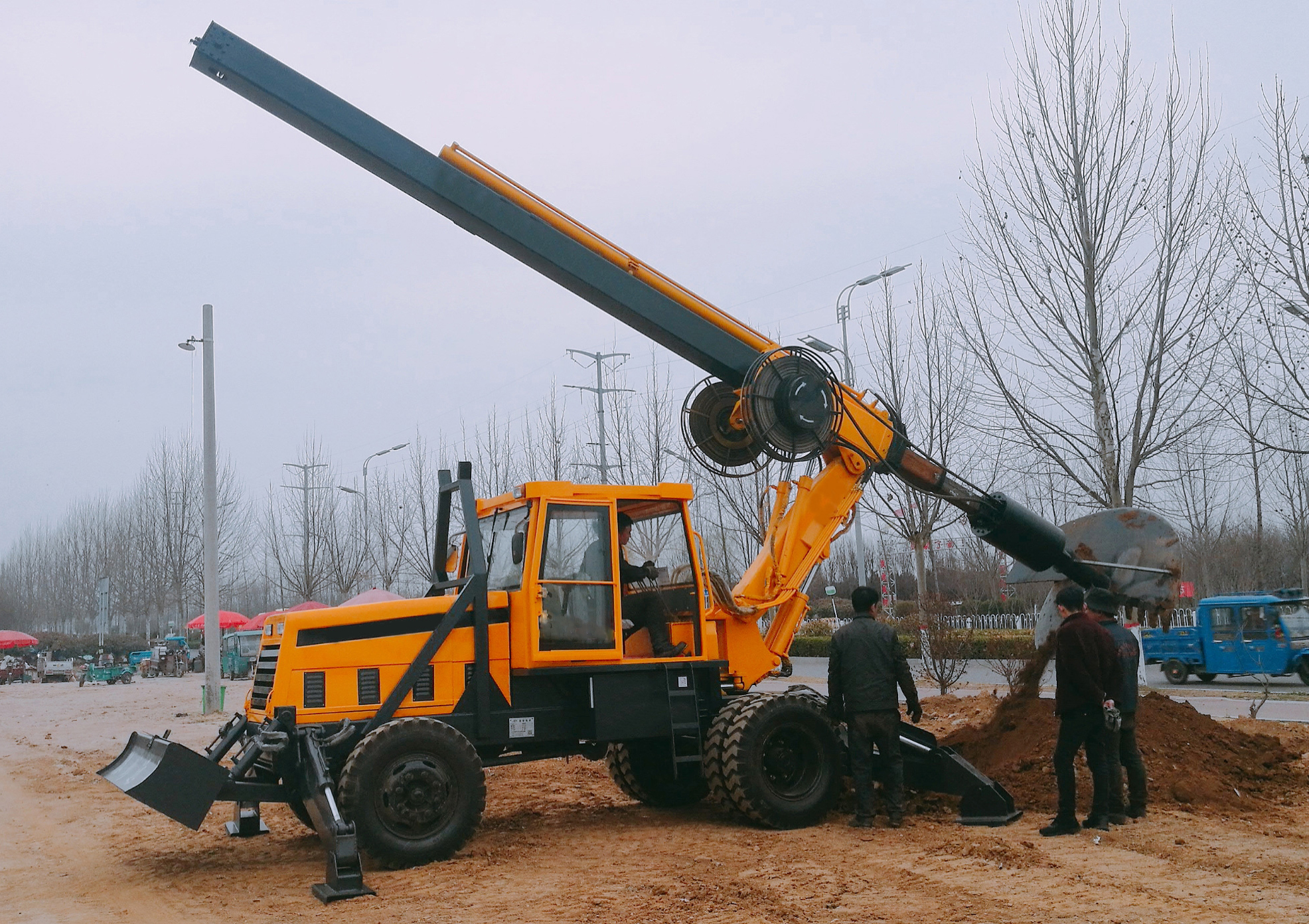

The rotary drilling rig is a construction machine suitable for drilling holes in building foundation projects. It is mainly suitable for construction of sandy soil, clay soil, silty soil and other soils, and is widely used in foundation construction such as cast-in-place piles, continuous walls, and foundation reinforcement. The output torque is 120-400 kN•m, the maximum hole diameter can reach 1.5-4m, and the maximum hole depth is 60-90m, which can meet the requirements of various large-scale foundation construction.

High quality factory discount sales hydraulic wheel rotary drill rig for piling

Features of our rotary pile driver:

1. Economical and efficient, mainly used in medium and small diameter pile foundation civil engineering projects

2. The diesel engine has load sensing and output power automatic control functions, and fuel consumption is reduced by 5-10%;

3. Five-level anti-vibration technology absorbs drilling vibration frequency in all directions to ensure high stability;

4. Special lubrication system ensures it can work in high temperature environment;

5. The detachable and symmetrical structural design doubles the service life of the slewing drive device;

6. The push cylinder has two working modes: normal lifting and fast lifting, which improves the pushing efficiency;

7. Chassis tilt alarm device can be optionally equipped to enhance construction safety;

8. Automatic adjustment technology of mast verticality ensures pile accuracy.

Technical Parameters

Hengwang Wheel Drilling Rig/Pile Driver Technical Parameters
Model			HWDR150L
engine			Weichai 6105
strength			125 kW
Gear Pumps			CBJT2080
Drilling diameter			Max. 2000mm
Maximum drilling depth			15 minutes

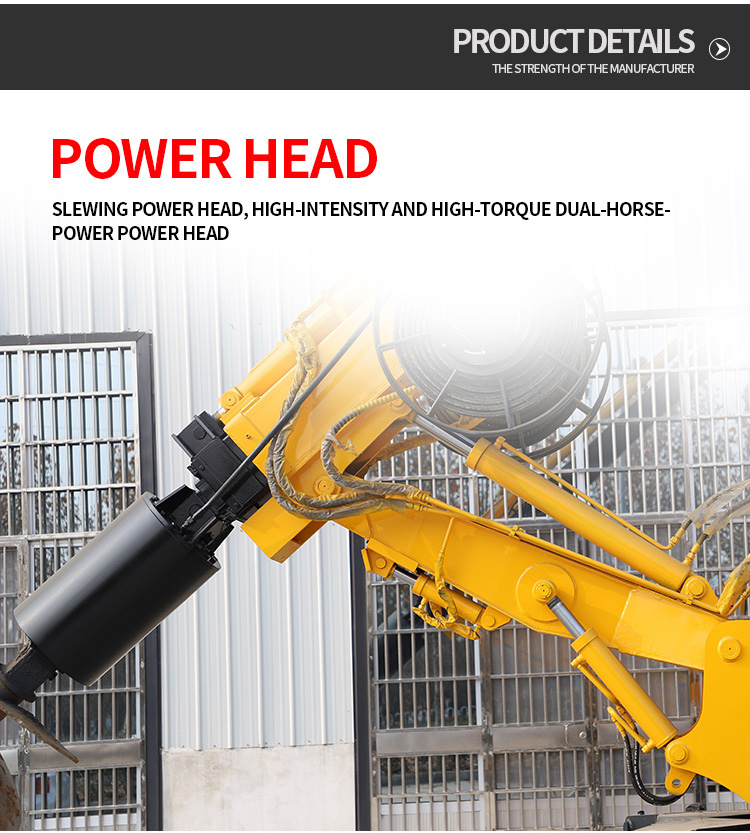

Power Head			125
spread			140
Lifting capacity			4-5 tons
Descaling stick			40/16
Total Weight			9000 kg

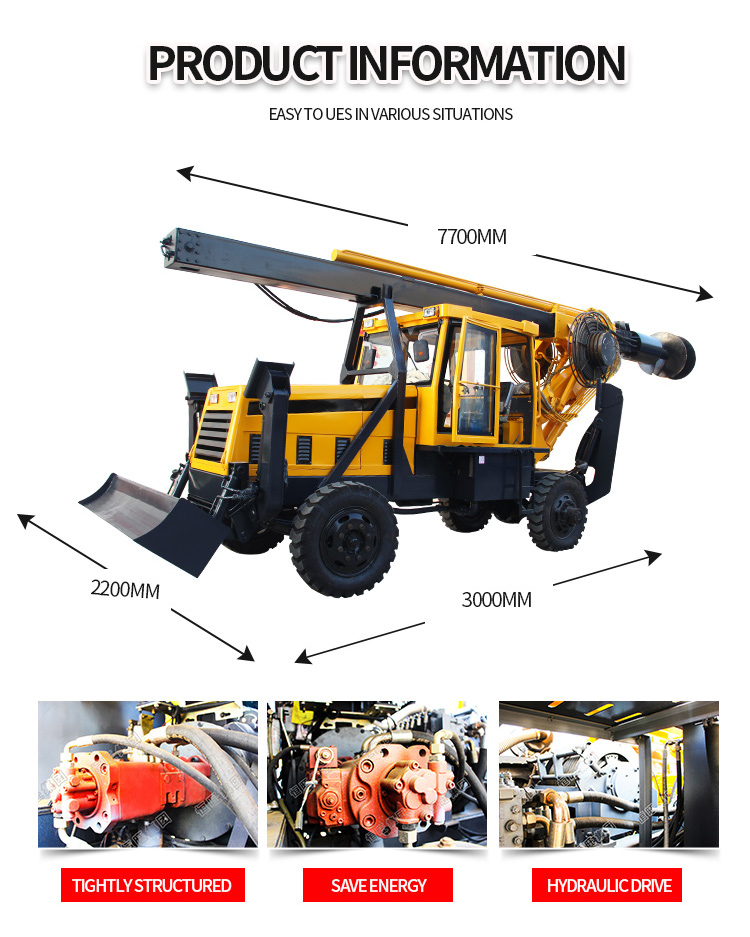

Dimensions			8700mm2300mm3200mm
Rotation angle/arm			180°
Fuel consumption			8-10 liters/hour
Driving speed			50 km/h
Hydraulic system working pressure			20-25 MPa
Shift			80 ml/turn
Tire size			900-20
Front and rear axles			DF140
Pressure Mode			Twin cylinder supercharger
Distance between axes			3250 mm
Wheelbase			Front 1600mm Rear 1260mm
