Feature: | High Efficency, Energy Saving, Long Use Life; | Product name: | Continuous Casting Machine; |
Port: | Shanghai; | Certification: | CE ISO9001; |
Application: | Casting Brass Tube, Brass Rod, Brass Bar, etc.; | Power: | Adjustable; |
Brand Name: | Fortune Electric; | Warranty: | 1 Year; |
Place of Origin: | Shanghai China (Mainland); | Dimension(L*W*H): | 3000*1200*1500; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Condition: | New; |
Packaging Detail: | Plywood Case for Horizontal Continuous Casting Machine For Brass Tube; | Supply Ability: | 200 Set/Sets per Year Horizontal Continuous Casting Machine For Brass Tube; |
Color: | Green, or as needed; | Power(W): | 300kw; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Voltage: | 220V/380V/415V/440V; |
Product Size: | Diam 6-8mm; | Weight: | 2t; |
Raw Material: | Brass Scraps; |

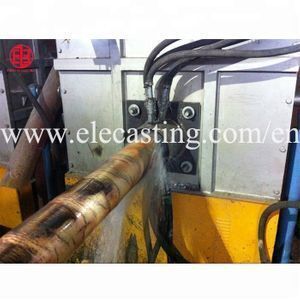

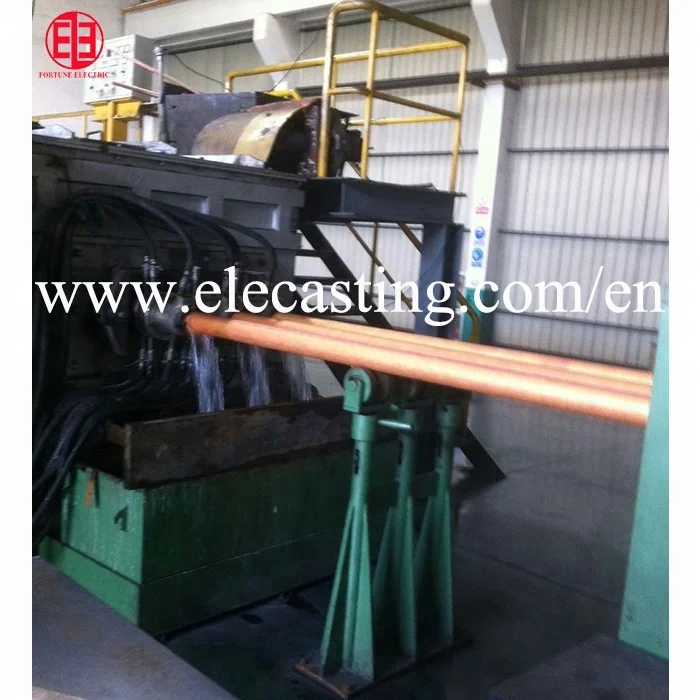

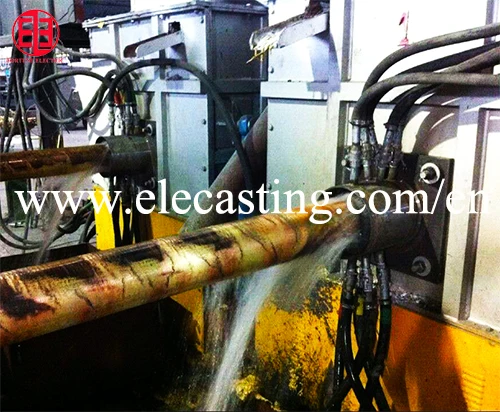

Horizontal Brass Tube Continuous Casting Machine is mainly used for brass tube casting, raw material can be brass scrap.

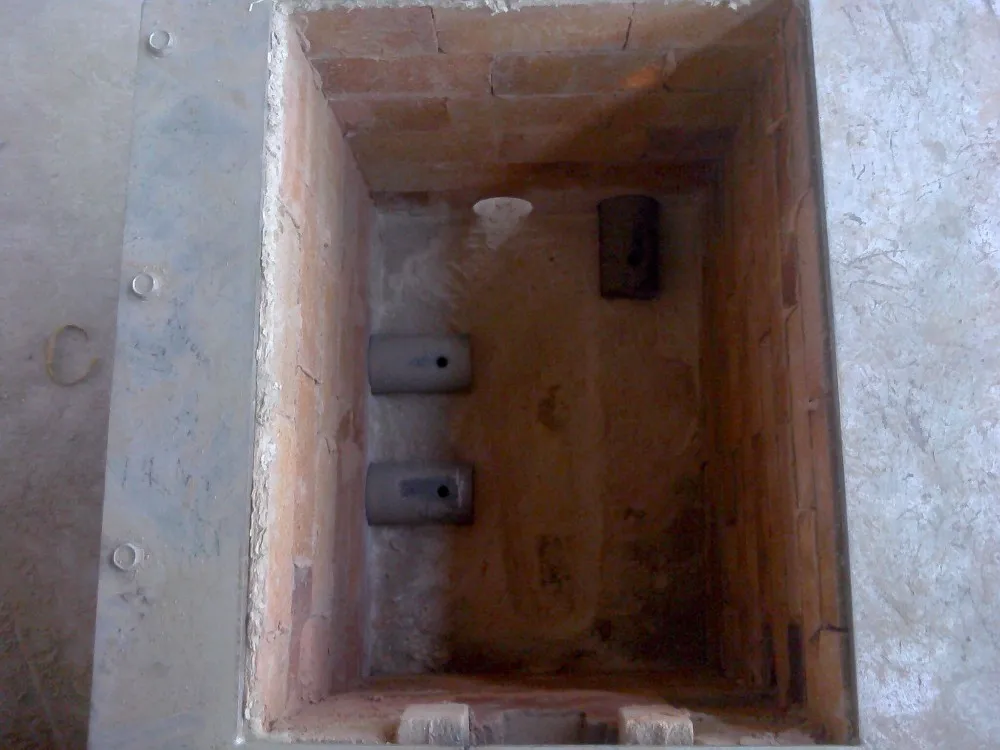

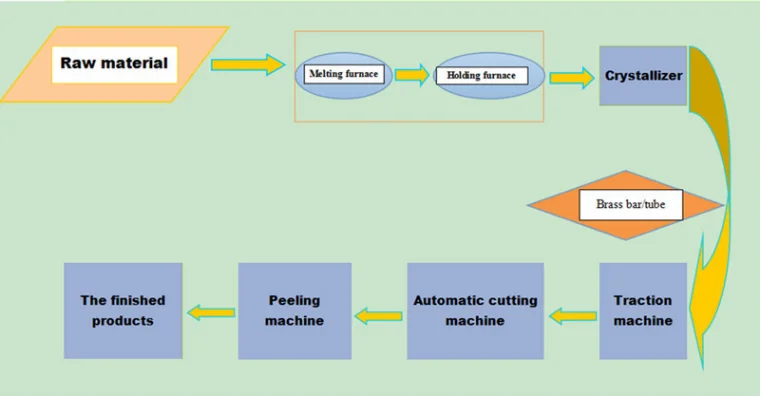

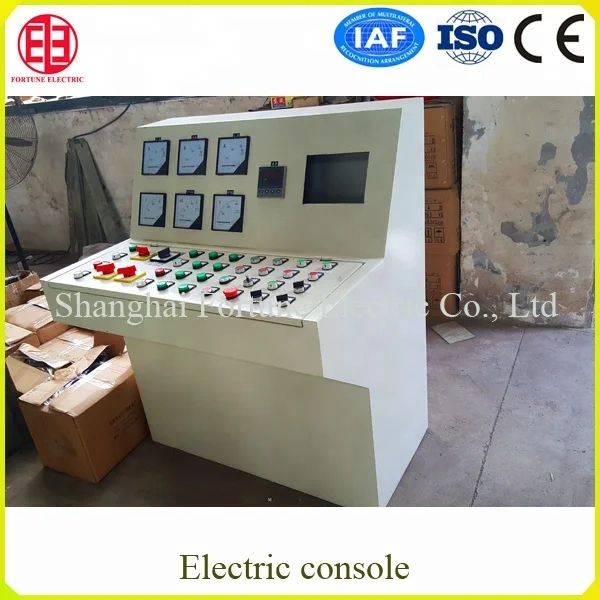

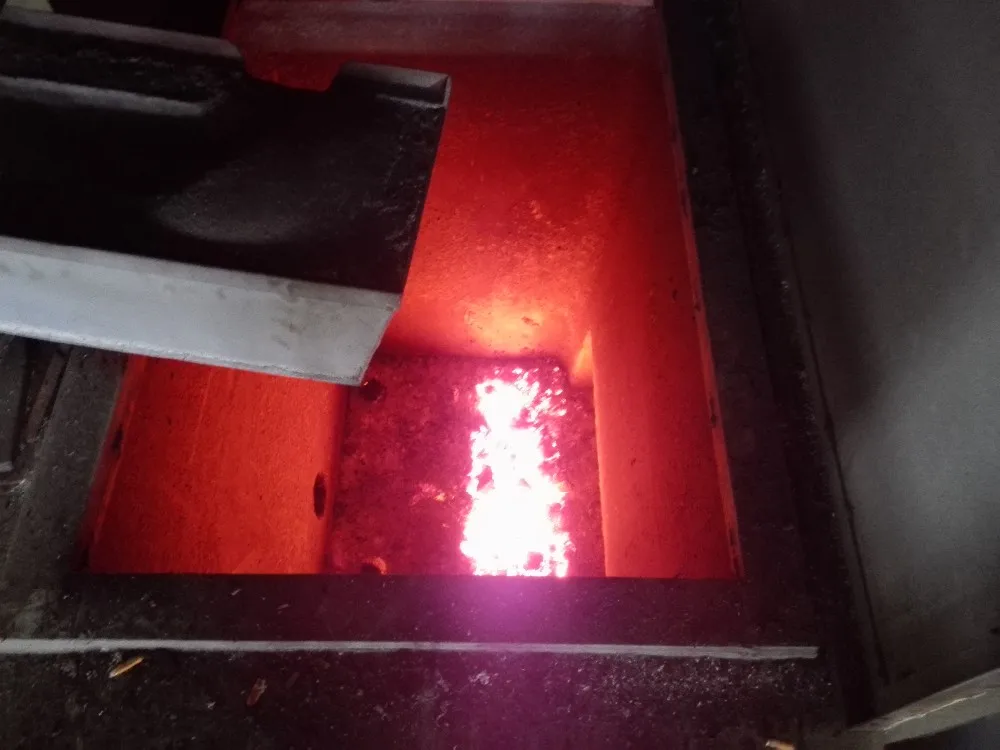

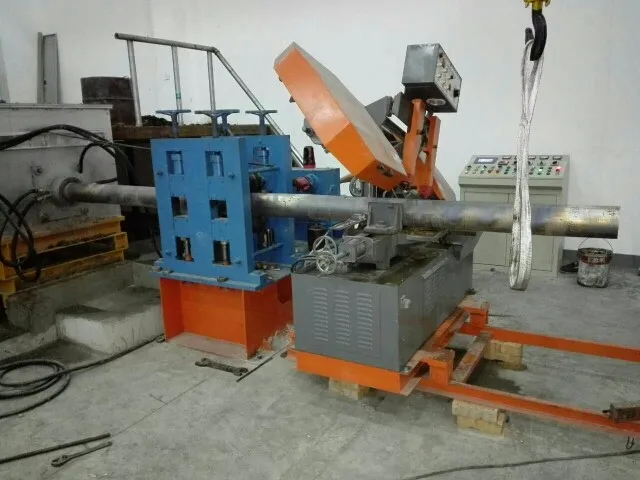

The unit is composed of subsurface line-frequency cored combination furnace, micro-stroke back stepping drawing machine, synchronous shearing machine/cutting machine, take-up machine/collection table and so on. The working process is automatically controlled by PLC system. The techinical parameters are easy to adjust, so that the quality of castings is significantly improved. The unit is characterized by advanced technology, novel structure and obvious energy saving. The finished products shape can be strip, pipe billet, round billet, square billet, hexagonal rods and other irregular billet, and the material can be copper, barss, phosphor bronze, zinc-copper-nickel alloy, etc..
