copper/brass/bronze wire /rod / sheet horizontal continuous casting machine

Supplier: Wenzhou Shuangming Electrical Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms mandy ye
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Temperature:	1250 ℃;	Supply Ability:	10 Set/Sets per Month;
After-sales Service Provided:	Engineers available to service machinery overseas;	Condition:	New;
Packaging Detail:	standard and suitable for sea transportation;	Dimension(LWH):	customized;
Place of Origin:	Zhejiang China (Mainland);	Certification:	ISO9001:2008;
Application:	brass, bronze, copper;	Payment Terms:	L/C,T/T,Western Union;
Production capacity:	0.2-100 ton/day;	Model Number:	CDO;
Delivery Detail:	Shipped in 50 days after payment;	Voltage:	380V-440V;
Power(W):	200-1500kw;	Weight:	customized;
Warranty:	1 Year;	Item:	Copper tube/rod horizontal Continuous Casting Machine;
Power consumption:	230-300 Kw.h/t;	Port:	Ninbgo port or Shanghai Port.;
Brand Name:	SMKJ;

Product Description

Copper tube/rod horizontal Continuous Casting Machine

Brief Introduction:

Copper Horizontal Continuous Casting Machine is a production lines for producing the copper rod, copper tube, copper bar, copper plate, copper billet, copper wire, copper strip etc. And This production lines are widely service for the industries like produce the electric wire, cable, electron, lockmaking, water heating equipments, refrigeration .

Model	CDO-0.15T	CDO-0.3T	CDO-0.5T	CDO-0.75T	CDO-1.0T	CDO-1.5T	CDO-3.0T
Capacity (T)	0.5	0.8	1.5	1.8	2	2.5	5
Power (KW)	45	75	120	185	240	400	600
Frequency(HZ)	50	50	50	50	50	50	50
Temperature(℃)	1200	1200	1200	1200	1200	1200	1200
Melting Rate (T/H)	320	310	300	290	290	280	280
Comsuption(KW.H/T)	80	100	150	200	250	500	800

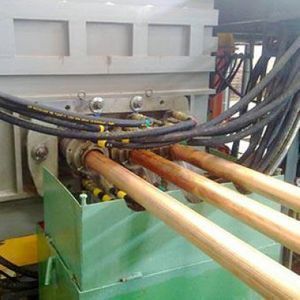

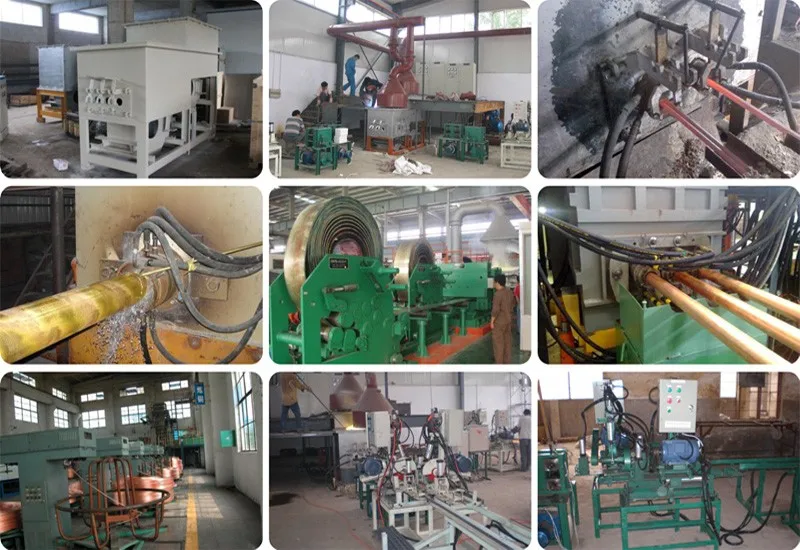

Products Picture

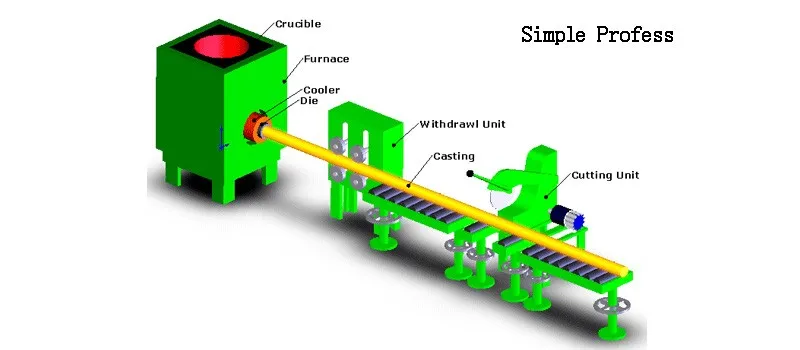

Machine Composition

1. Furnace (melting furnace and holding furnace); 2. Tractors; 3. Automatic cutting machine;

4. peeling machine(barking machine)

5. Electric control system; 6.Water cooling system; 7. Dust removal equipment.

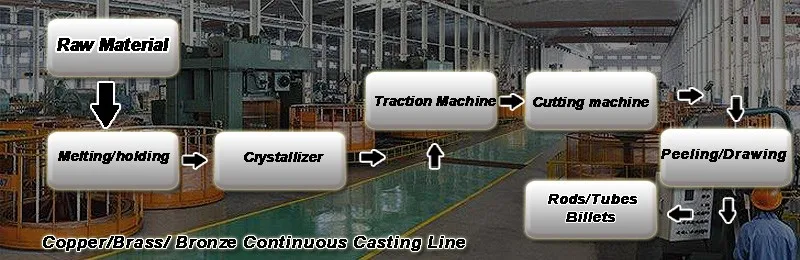

Producing Process

Melting furnace/ holding furnace:

Melting furnace is vertical structure and welded by steel plate, and the furnace consists of furnace body, inductor, tilting furnace system, electrical control. and about the Holding furnace, which is used for thermal insulation and traction. The holding furnace can be used separately, also can be used with melting furnace together.

Tractor

Distance between two wheels can be adjusted; available For dimension 10-65mm copper;

Adjustable tracting speed; To tract the copper straightly, improving the production and quality.

Cutting machine

Titighen the copper both the vertical and horizontal direction; High cutting efficiency and precision;

Automative collection of the cutting slag; Low-voltage on the control cabinet for safe operation.

Peeling machine

Hydraulic motivation for sending; Widely use for pipe, bar, flat, and irregular metal.

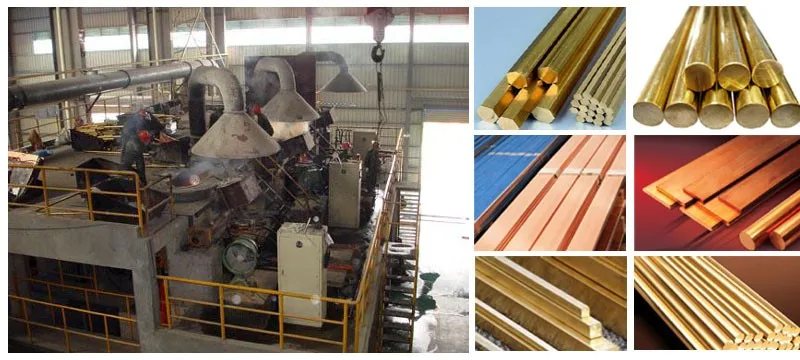

Application

Contacting

Please link our website:

www.cdoinduction.com
