Ti:Sapphire Crystal Titanium Doped Sapphire Laser Crystal

Supplier: Hangzhou Brandnew Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr David Wang
Price: $99.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Melting point:	2040°C	Supply capacity:	10000 pieces per month
model:	Titanium: Sapphire	frequency:	/
type:	laser	brand:	Lumbar disc herniation
payment terms:	Western Union, T/T	Specific heat:	0.42 J/g/g
Packaging Details:	One piece per carton (according to your request)	Load Capacitance:	/
Frequency Tolerance:	/	Thermal Conductivity:	52 W/m/g
Moh's hardness:	9	Origin:	Zhejiang, China
Operating temperature range (°C):	/	Laser effect:	4 levels of electronic vibration
Crystal structure:	hexagon

Product Description

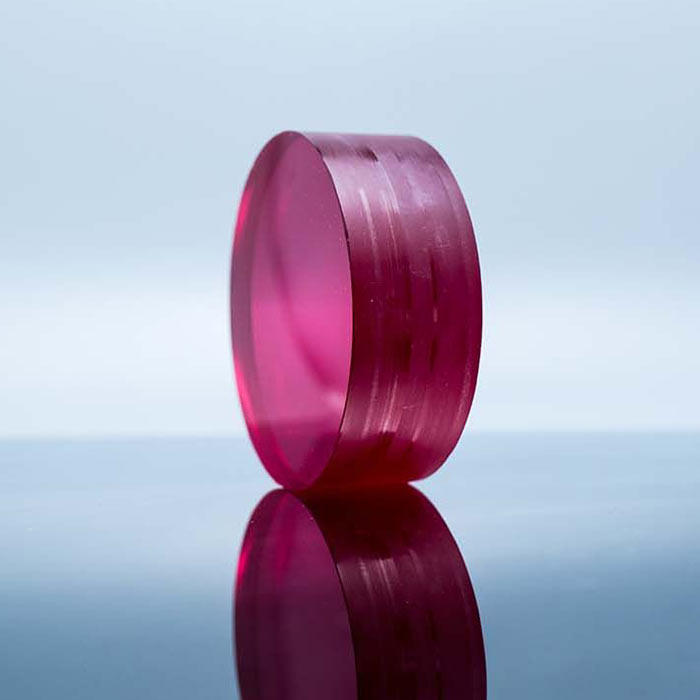

Ti: sapphire crystal Titanium-doped sapphire laser crystal

Titanium-doped sapphire (Ti:Sapphire) is the most widely used laser crystal for broadly tunable and ultrashort pulse lasers with high gain and power output. CASTECH has an advanced temperature gradient technology (TGT) growth method, which can provide high-quality large-size (diameter 30x30mm) titanium sapphire crystals, no light scattering, and dislocation density less than 102cm-2. The sapphire crystal grown by TGT has the characteristics of (0001) orientation growth, high doping level (α490=4.0cm-1), high gain and laser damage threshold.

main application:
• Wide tunable wavelength coverage from 700 to 1000 nm makes Ti:Sapphire an excellent replacement for dye lasers in many applications;
• Through frequency doubling of NLO crystals such as BBO in ultra-thin Ti:Sapphire, UV and DUV (up to 193 nm) lasers with ultrafast pulses below 10 fs can be generated;
• Ti:Sapphire is also widely used as a pump source for OPO to extend the tunable range.

Specification

Basic Features
chemical formula	Ti3+: Al2O3
Crystal structure	hexagon
Lattice constant	a=4.758Å, c=12.991Å
density	3.98 g/cm3
melting point	2040°C
Moh's hardness	9
Thermal Conductivity	52 W/m/g
specific heat	0.42 J/g/g
laser action	4 levels of electronic vibration
Fluorescence lifetime	3.2μs (T=300K)
Tuning range	660 - 1050 nm
Absorption range	400 - 600 nm
emission peak	795 nm
absorption peak	488nm
Refractive index	1.76 @ 800nm
peak cross section	3~4×10-19 square centimeters
thermal expansion	8.40×10-6/℃

Standard Product Specifications:
• Direction: optical axis C perpendicular to the rod axis;
• Ti2O3 concentration: 0.06 - 0.2wt%;
• Quality factor (FOM): 100~250 (>250 can be provided on special request);
• α490: 1.0~4.0cm-1;
• Diameter: 2~30mm or specified;
• Optical path length: 2~30mm or specified;
• End Configuration: Plain/Plain or Brewster/Brewster;
• Flatness: <λ/10 @ 633 nm;
• Parallelism: <10 arc seconds;
• Finish: <40/20 scratches/pitting per MIL-PRF-13830B;
• Wavefront Distortion: <λ/4 per inch.

Note: AR coatings are available upon request.
