Quartz crystal oscillator WTL WX6 49S DIP 27.000 MHz 20 pF 20 ppm

Supplier: WTL International Limited
Region: Guangdong, China
Price: $0.10 / 10 - 99 pieces
$0.09 / 100 - 1999 pieces
$0.08 / >=2000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Certificate:	ISO9001, ISO14001, RoHS	aspect:	11.05x4.7x3.68mm
Installation type:	Through hole	type of packaging:	dip
Package preview:		Packaging details:	2000 pieces/box
Operating temperature range (°C):	-20 to +70℃	transportation:	DHL, UPS, TNT, FedEx, EMS, China Post
Load capacitance:	20pF	Warranty:	Global 180 days returns
Storage temperature range:	-55℃ to +125℃	payment terms:	Wire transfer, PayPal
Supply capacity:	10,000,000 pieces per month	Place of origin:	Guangdong, China
Frequency stability:	±30ppm	frequency:	27.000MHz
brand:	World TL	Frequency tolerance:	±20ppm
model:	WX6	Supplier type:	Original factory
Available media:	data sheet	sample:	accept
ESR (equivalent series resistance):	30Ω	Application level:	industrial
type:	quartz crystal	Ageing:	± 3 ppm/year or ± 5 ppm/year

Product Description

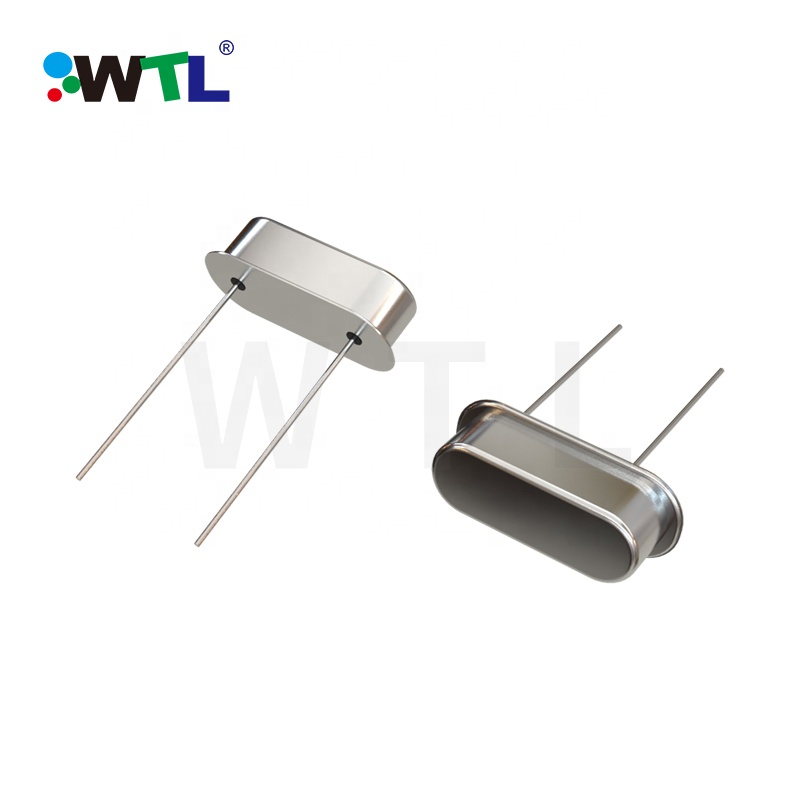

Quartz Crystal, WX6 Series

Resistance welding HC-49S

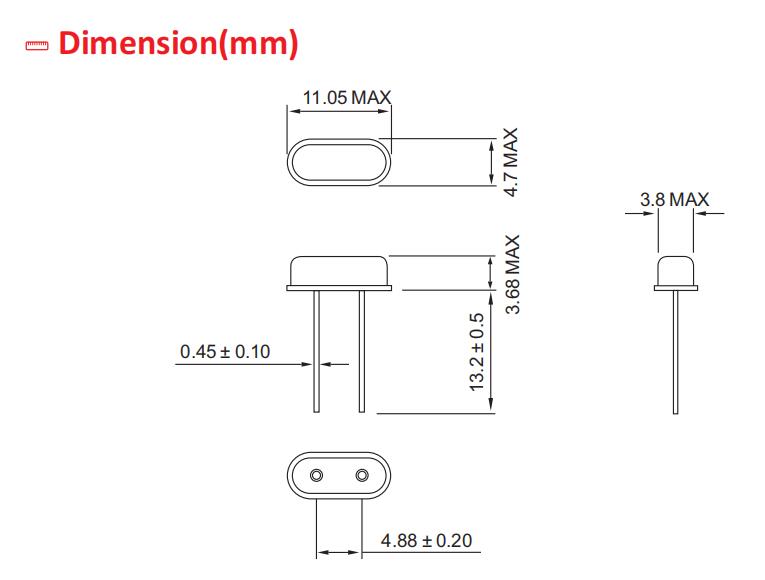

11.05×4.7×3.68mm

feature

1. Resistance welding crystal resonator

2. A large number of standard frequencies

3. Higher frequency and lower equivalent series resistance

4. Low cost and strong mass production capacity

5.RoHS compliant/lead-free

Electrical Specifications

thing	Specification
Frequency(MHz)	27.000MHz
model	AT/Basic
Load capacitance (CL)	20pF
Frequency tolerance (at 25°C)	±20ppm
range of working temperature	-20~+70℃
Frequency stability over operating temperature range	±30ppm
Equivalent Series Resistance (ESR) Max.	30Ω
Storage temperature range	-55~+125℃
Parallel capacitor (C0)	Maximum 7pF
Drive level (typ)	Maximum 10μW
Aging @25 °C 1st year (maximum)	±3ppm or ±5ppm/year

Our advantage

1. Date of establishment: 2012.
2. The full range of frequency components includes:
Quartz crystals, watch crystals, saw blade (ceramic) resonators and filters, oscillators, TCXO, VCXO, VC-TCXO, OCXO, dielectric antennas, etc.
3. The complete quality system includes:
a)IQC, IPQC, FQC, OQC, QA
b) Entire ERP system control
c)ISO9001, ISO14001
d)RoHS & SGS, in line with EU export standards
4. Professional team such as:
a) 365-day online service
b) Solid English knowledge to support you in solving quality problems
c) Professionally operate global express delivery
d) Salespersons who graduated from domestic or foreign foreign trade universities
e) Complete training system, all team members can take up their posts after being trained
5. More than 100+ countries and regions, 30+ distributors.
