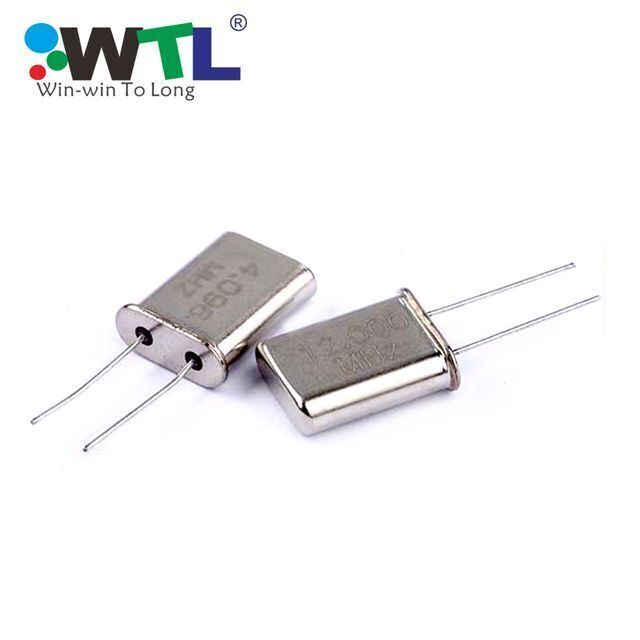

WTL HC49/U Xtal Quartz Oscillator 41.500MHz 41.5MHz Crystal

Supplier: WTL International Limited
Region: Guangdong, China
Price: $0.05 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Frequency Tolerance:	±30ppm;	Package Type:	Throught Hole,DIP;
Frequency - Center:	41.500MHz;	Nominal Frequency:	41.500MHz;
Supply Ability:	1000000 Piece/Pieces per Month 41.5MHz Crystal;	Model Number:	WTL2.03657ZX;
Load Capacitance:	20pF;	Frequency Range:	1.8432MHz-150.000MHz;
Shipment:	DHL, UPS, TNT, Fedex, EMS,China Post;	Operating Temperature:	-20+70℃;
Warranty:	Global 180 Days Return;	Sample:	Accept;
Frequency:	41.500MHz;	Package:	OPP Bag + Carton;
Media Available:	datasheet;	Cross Reference:	9U,ACT HC49U Standard;
D/C:	-;	Dimensions:	HC49/U;
Voltage - Supply:	-;	Application level:	Industrial;
Payment:	T/T, Western Union, PayPal,Credit Card;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Current - Supply (Max):	-;	Tuning Voltage (VDC):	-;
Port:	Shenzhen;	Base Resonator:	Crystal;
Cetificate:	ISO9001, ISO14001, SGS, RoHS;	OEM/ODM:	Welcome;
Brand Name:	WTL;	Place of Origin:	Guangdong China;
Frequency Stability:	30ppm;	Packaging Detail:	DIP 100pcs/bag,1000/box(WTL HC49/U Xtal Quartz Oscillator 41.500MHz 41.5MHz Crystal);

WTL HC49/U Xtal Quartz Oscillator 41.500MHz 41.5MHz Crystal

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com

FEATURE

1. Height 13.46mm

2. A resistance weld completely sealed type

3. The tight frequency stability is good, the reliability is high.

4. Copes with high density mounting and is the optimum for mass production

ELECTRICAL SPECIFICATIONS

Resistance Welded HC-49/U Package
Item	Specifications
P/N	WTL2.03657ZX
Frequency	41.500MHz
Load Capacitance(CL)	20pF
Frequency Tolerance (at 25°C)	± 30ppm
Frequency Stability Over Operating Temperature Range	± 30ppm
Operating Temperature Range	-20°C--+70°C
Storage Temperature Range	-40°C--+85 °C
Shunt Capacitance (C₀)	7pF Max
Driver Level(Typical)	100µW Typical
Aging(at 25°C)	± 5ppm/year maximum

WTL HC49/U Xtal Quartz Oscillator 41.500MHz 41.5MHz Crystal

Packaging & Shipping

Our Services

1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ

1.What is the general lead-time of the products?

Product	Lead Time
HC49 Series	1-2 weeks
SMD Crystal	1-4 weeks
DIP Oscillator	1-2 weeks
SMD Oscillator	1-3 weeks
TCXO	2-8 weeks
Watch Crystal	1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.

3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.

4.What is the WTL main material?

Type	Vendor
Crystal Bar	South Urals,Russia- Crystal Factory, TF
Base	SMI/NTK/KYOCERA(JP)
IC	NPC- Japan
Top Cover	Hua Nu Dike/Yoshikawa Corporation (JP)
Conductive Glue	Three Bond – (JP)
