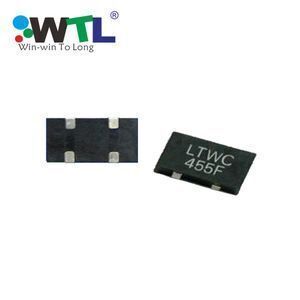

WTL 11.9*7.5*3.0mm SMD Ceramic Filter 450KHz 450 KHz for Communication

Product details
Packaging Detail:Tape & Reel, 1000pcs/Reel (11.9*7.5*3.0mm SMD Ceramic Filter 450KHz 450 KHz for Communication);Input Impedance:1.5KΩ;
Model Number:WTL2.04290ZX;Nominal Center Frequency:450KHz;
Brand Name:WTL;3dB Bandwidth:-;
Port:Shenzhen;Warranty:Global 180 Days Return;
OEM/ODM:Welcome;Transfer Function:Band Pass;
Supply Ability:10000000 Piece/Pieces per Month Ceramic Filter 450KHz;Factory Manufacturer:Yes;
Samples:Accept;Payment Terms:L/C,Western Union,T/T,credit card paypal;
Place of Origin:Guangdong China;Item:Ceramic Filter 450KHz;
RIPPLE:2.0 dB MAX;Shipment:DHL, UPS, TNT, Fedex, EMS,China Post;
Stopband Attenuation:45.0 dB Min;Type:Ceramic Filter;
Operating Temperature Range:-20+80'C;About Us:19 Years Experience;
Insertion Loss:5.0dB Max;Certificate:ISO9001, ISO14000, RoHS;

11.9*7.5*3.0mm SMD Ceramic Filter 450KHz 450 KHz for Communication

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



Electrical Specifications

ITEM

SPECIFICATION

    CENTRE FREQUENCY(f.)

    450.0±1.0 KHz

    BAND WIDTH(6 dB)

    ±7.5 KHz Min(TO 450KHz)

    SELECTIVITY(50dB)

    ±15.0 KHz Max(TO 450KHz)

    STOP BAND ATTENUATION

    45.0 dB Min.(AT f.±100KHz)

    RIPPLE

    2.0 dB Max

    INSERTION LOSS

    5.0 dB Max



11.9*7.5*3.0mm SMD Ceramic Filter 450KHz 450 KHz for Communication



Packaging & Shipping



Our Services



1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ



1.What is the general lead-time of the products?

Product Lead Time
HC49 Series 1-2 weeks
SMD Crystal 1-4 weeks
DIP Oscillator 1-2 weeks
SMD Oscillator 1-3 weeks
TCXO 2-8 weeks
Watch Crystal 1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

Type Vendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)
