WTL 3.2*2.5mm Saw Resonator 12pF 10ppm SMD frequency 26.000MHz Saw Resonator

Supplier: WTL International Limited
Region: Guangdong, China
Price: $0.19 / 1000 - 9999 pieces
$0.18 / 10000 - 99999 pieces
$0.15 / >=100000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Product name:	WTL 3.2*2.5mm Saw Resonator;	Frequency:	26.000MHz,26.000MHz;
Single gross weight:	0.001 KG;	Brand Name:	WTL;
Supplier Type:	Original manufacturer;	Frequency Tolerance:	±10ppm,±30ppm;
Operating Temperature:	-20 °C to +70°C;	D/C:	SR2;
Selling Units:	Single item;	Single package size:	0.3X0.1X0.1 cm;
OEM:	Welcome;	Brand:	3225 resonator;
Model Number:	3.2*2.5mm Saw Resonator;	Type:	Saw Resonator;
Sample:	Free Samples;	Warranty:	Global 180 Days Return;
Frequency Range:	154MHz-1000MHz;	Size:	3.2*2.5mm;
Load Capacitance:	12pF;	Frequency Stability:	±30ppm,±30ppm;
Package Type:	SMD;	Operating Temperature Range:	-20 °C to +70°C;
Place of Origin:	Guangdong, China;	Packaging Detail:	standard package WTL 3.2*2.5mm Saw Resonator 12pF 10ppm SMD frequency 26.000MHz Saw Resonator;
Build-in Load Capacitance:	12pF;

Product Description

Maximum Rating
Item			Value	Unit
DC Voltage	VDC	10	V
Operation Temperature	T	-40 ~ +85	℃
Storage Temperature	Tstg	-55 ~ +125	℃
RF Power Dissipation	P	10	dBm

Item					Minimum	Typical	Maximum	Unit
Center Frequency	Absolute Frequency	fc		433.920		MHz
Center Frequency		Tolerance from 433.920MHz	fc		±75		KHz
Insertion Loss(min)			IL		1.5	2.0	dB
Quality Factor	Unloaded Q	QU		18362
Quality Factor		50Ω Loaded Q	QL		2150
Temperature Stability	Turnover Temperature	T0	25	40	55	℃
		Turnover Frequency	f0		fc
		Frequency Temperature Coefficient	FTC		0.032		ppm/℃
Frequency Aging	Absolute Value during the First Year	\|fA\|		≤10		ppm/yr
DC Insulation Resistance between Any Two Pins				1.0			MΩ
RF Equivalent RLC Model	Motional Resistance	RM		13.2	18.0	Ω
		Motional Inductance	LM		89.4	110.2	µH
		Motional Capacitance	CM		1.5		fF
		Static Capacitance	C0	1.45	1.75	2.05	pF

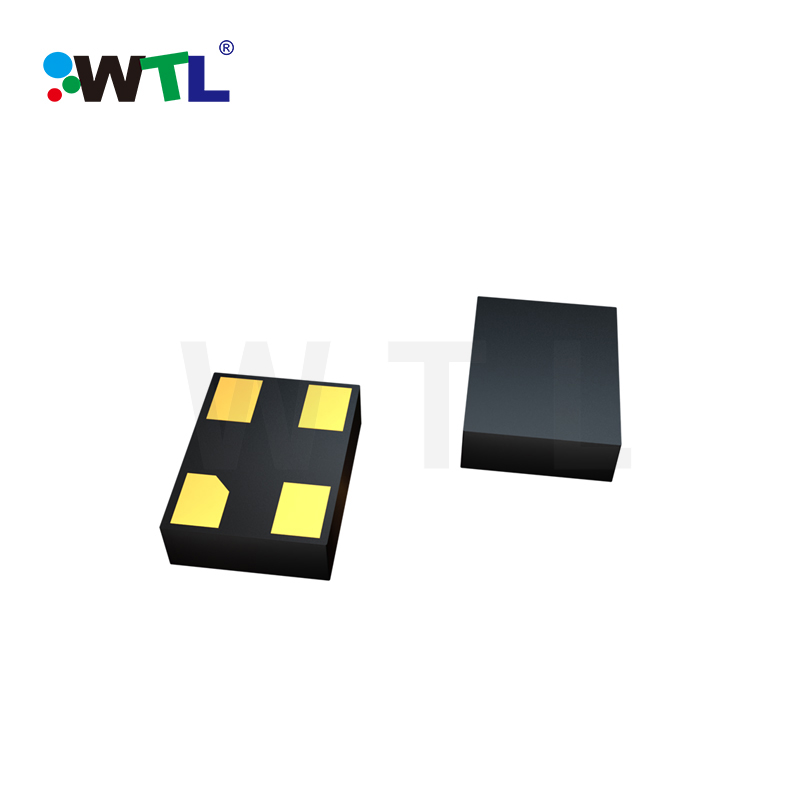

3.2×2.5 mm SMD SAW Resonator

Feature 

●Small size 3.2x2.5x1.0mm
●Welding can be done with automatic mounting
●Environmental resistance, including high temperature resistance
and impact resistance
●RoHS Compliant
