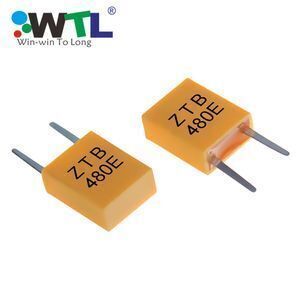

WTL ZTB 5.1*6.3mm 0.5%KHz -20+80'C 800KHz Ceramic Resonator

Click here to contact
Product details
Packaging Detail:500PC/BAG(ZTB 5.1*6.3mm 0.5%KHz -20+80'C 800KHz Ceramic Resonator );Operating Temperature Range:-20 TO +80 'C;
Supply Ability:1000000 Piece/Pieces per Month 800KHz Ceramic Resonator;Resonator Impedance:50 ohm max;
Model Number:WTL2.01571ZX;OEM/ODM:Welcome;
Payment Terms:L/C,T/T,Paypal;Warranty:Global 180 Days Return;
Frequency:800KHz;Package Type:DIP;
Samples:Accept;Frequency Accuracy:Fc±0.5%KHz;
Port:Shenzhen;Place of Origin:Guangdong China;
Brand Name:WTL;Withstanding Voltage:DC 50 V;
Frequency Range:800KHz;Cetificate:ISO9001, ISO14001, SGS, RoHS;
Shipment:DHL, UPS, TNT,Fedex, EMS,China Post;

ZTB 5.1*6.3mm 0.5%KHz -20+80'C 800KHz Ceramic Resonator

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



SCOPE

This specification relates to piezoelectric ceramic resonator to be used in a clock generating circuit

for microprocessors.



ELECTRICAL CHARACTERISTICS

ZTB Ceramic Resonator DIP Type

Item

Specifications

P/N

WTL2.01571ZX

Center Frequency

800KHz

Frequency Accuracy

±0.5% KHz

Resonator Impedance

50 ohm max

Withstanding Voltage

DC 50 V

Operating Temperature Range

-20°C to +80°C

Storage Temperature Range

-30°C to +85 °C

Aging for ten years

±0.3% Max



ZTB 5.1*6.3mm 0.5%KHz -20+80'C 800KHz Ceramic Resonator

Packaging & Shipping



Our Services



1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ



1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)
