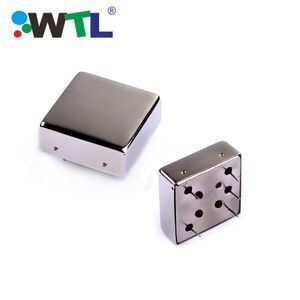

WTL Ultra-precision 25.4*25.4mm Oven Controlled Crystal Oscillator 5V 0.5ppb OCXO 10MHz

Product details
Frequency Range:5.000MHz-100.000MHz;Cross Reference:/;
Payment Terms:L/C,T/T,Western Union,Paypal;Frequency:10.000MHz;
Pushing (MHz/V):/;Media Available:datasheet;
Place of Origin:Guangdong China;Warranty:Global 180 Days Return;
Packaging Detail:Sponge packaging,40 pcs/Box, 5 boxes/Carton,200 pcs/Carton(WTL Ultra-precision 25.4*25.4mm Oven Controlled Crystal Oscillator 5V 0.5ppb OCXO 10MHz);Brand:oscillator;
Base Resonator:/;Port:Shenzhen;
Frequency Tolerance:± 0.5ppb;Payment:T/T, Western Union, PayPal,Credit Card;
Package Preview:;Nominal Frequency:10.000MHz;
Dimensions:25.4*25.4*12.5mm;Supplier Type:Original manufacturer;
Output Waveform:Sine Wave;Operating Temperature:-40°C+85°C;
Load Capacitance:-;Shipment:DHL, UPS, Fedex, EMS,China Post;
Cetificate:ISO9001, ISO14001, RoHS;Service:FAE Support;
Phase Noise Typ (dBc/Hz):/;Package Type:Throught Hole,DIP;
Application level:Industrial;D/C:/;
Model Number:WTL2.40209ZX;Brand Name:WTL;
Phase Noise:-155dBc/Hz @10KHz;Tuning Voltage (VDC):/;
Frequency Stability:+/-0.5ppm;Current - Supply (Max):/;
About Us:20 Years Experience;Steady Consumption:400mA;
Icc Max:/;Voltage - Supply:5v;
Frequency - Center:10.000MHz;Supply Ability:10000 Piece/Pieces per Month 10MHz OCXO;
Power (dBm):/;

WTL Ultra-precision 25.4*25.4mm Oven Controlled Crystal Oscillator 5V 0.5ppb OCXO 10MHz

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



FEATURE

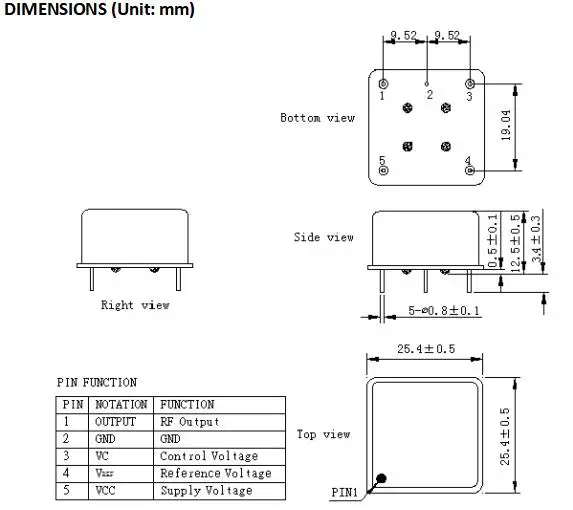

1. Dimension 25.4*25.4*12.5mm typical

2. SC Cut Crystal

3. Application:SDH/SONET, Telecommunication base station,Test and measurement equipment,Synthesizer,Digital switch,Reference Timing Circuit.

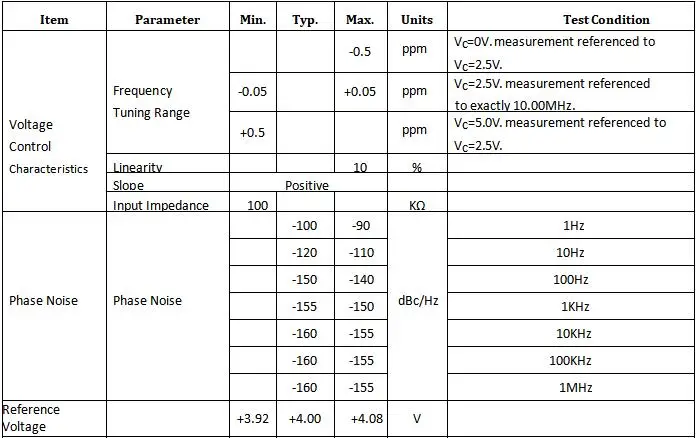

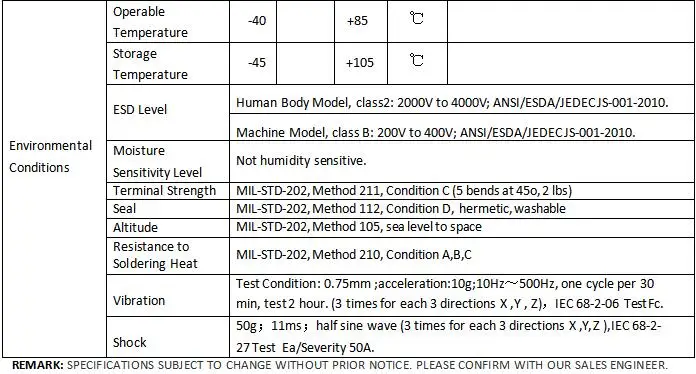

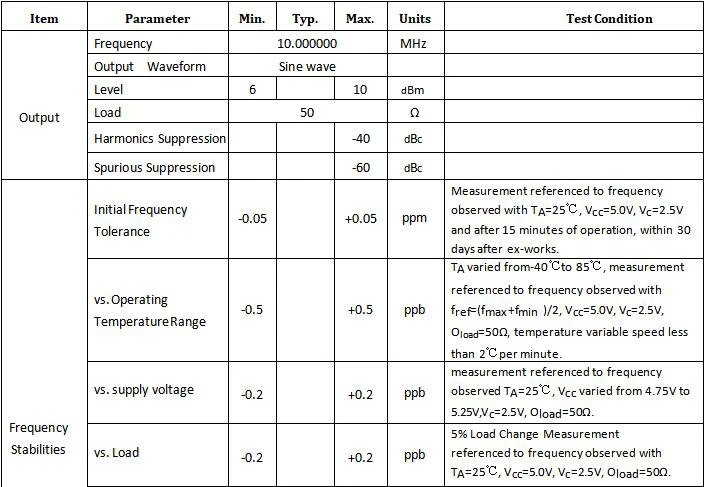

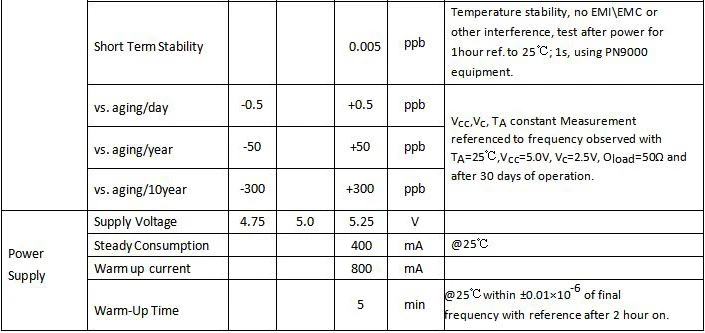

ELECTRICAL SPECIFICATION





WTL Ultra-precision 25.4*25.4mm Oven Controlled Crystal Oscillator 5V 0.5ppb OCXO 10MHz

Packaging & Shipping



Our Services



1.20 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 84 Countries and Regions, 29 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ



1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)
