Ultra-high pressure 250Mpa piston self-weight tester pressure gauge calibration self-weight tester

Supplier: Xi'an Xinyi Instrument Technology Co., Ltd.
Region: Shaanxi, China
Contact: Ms Mollie Jones
Price: $3399.00 / 1 - 9 pieces
$3199.00 / 10 - 99 pieces
$2999.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Package preview:		Warranty:	2 years
Supply capacity:	3000 pieces per month	type:	Pressure Calibration Equipment
application:	Digital pressure gauge, pressure sensor, pressure transmitter	Moderate:	Transformer Oil/Sebacic Acid
Origin:	Shaanxi, China	port:	Shenzhen Railway Station
Material:	Tungsten carbide	accuracy:	0.05% 0.02% etc.
Customization support:	OEM, OEM	lower limit:	5 MPa
model:	YWT-250, self-weight tester	brand:	Xinyi YB
Maximum:	250MPa	product name:	Self-weight tester
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Customization support:	OEM, ODM, OBM
Packaging Details:	Carton

Product Description

Ultra high pressure 250Mpa 2500bar self-weight tester self-weight tester for pressure gauge calibration

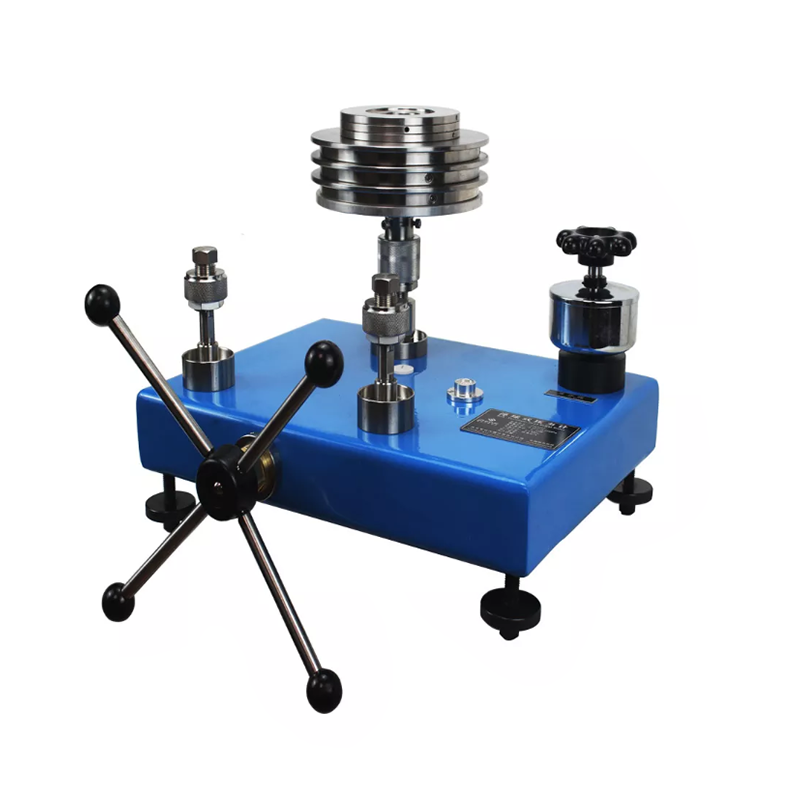

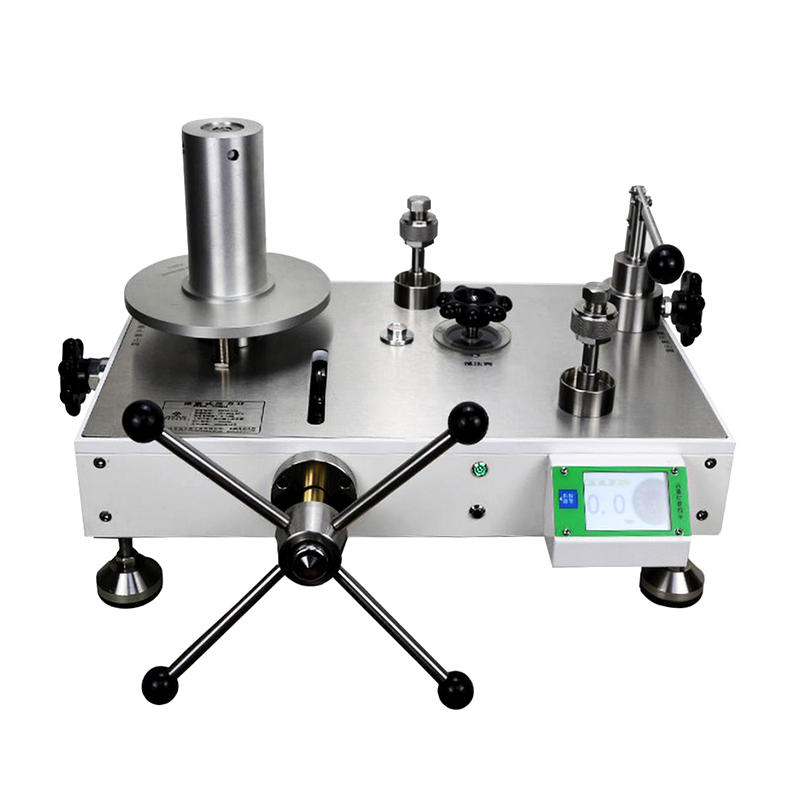

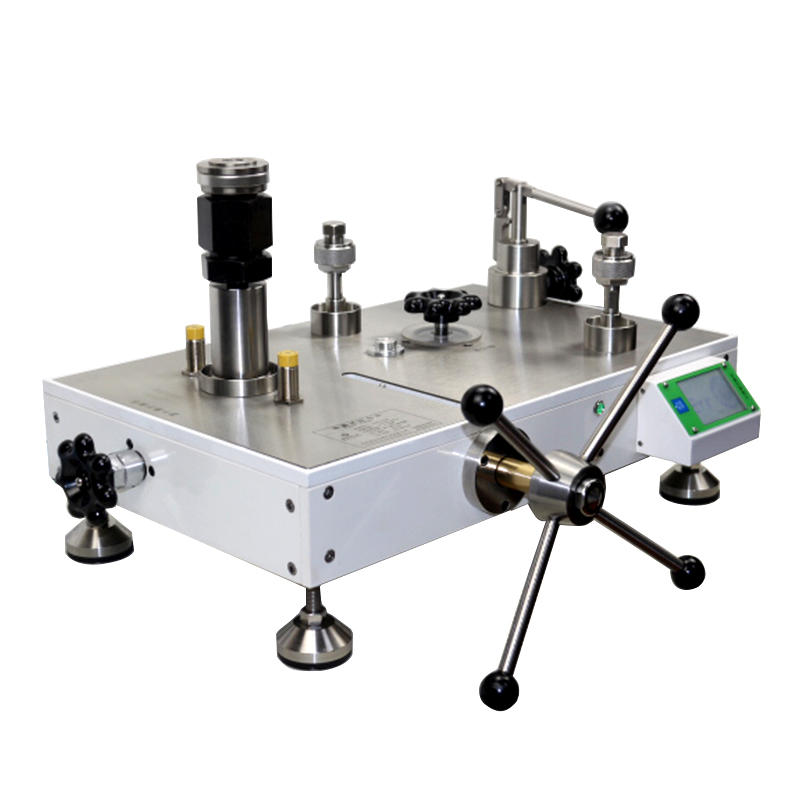

YWT~250 Piston Pressure Gauge Self-Weight Tester can generate pressure up to 250MPa, and is mainly used in metrological verification laboratories to verify digital pressure gauges, pressure sensors, pressure transmitters, precision pressure gauges and ordinary pressure gauges and other pressure gauges. It is suitable for the measurement departments of advanced measurement institutions, pressure instruments, instrument manufacturers and modern factories. Measuring range: 2-160MPa, 5-250MPa ★Accuracy grade: 0.05, 0.02, 0.01, 0.005 ★The most cutting-edge built-in pipeline layout, the desktop is simple and clean; ★With pre-compression function, easy to pressurize at high pressure; ★Piston and piston cylinder It is made of cemented carbide tungsten carbide material with high strength, high hardness and low low temperature linear expansion coefficient after careful grinding. The working environment temperature is wide and the performance is stable at 20±5°C; oil medium lubrication, high piston sensitivity; superhard material, The piston has a long service life and the pressure deformation is negligible; Manufactured according to the user's local gravity acceleration; Each weight is equipped with an adjustment cavity, which is convenient for regular inspection and adjustment; Please contact me for more information suitable for your specific requirements information.

Ordering Information

Warranty: Pressure Calibrator / Deadweight TesterOne year limited warranty to original purchaser. We will replace or repair defective products free of charge. This warranty does not apply to any equipment that has been modified, misused, or neglected. We will provide you with technical support 24 hours a day.
