Chemical Equipment Mixer Sta Food Grade High Quality Jacketed Mixing Tank Stainless Steel Mixing Tank Cosmetic Mixer

Supplier: Dongguan Strong Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Alisa Wang
Price: $519.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core components:	Gearboxes, pressure vessels, gears, bearings, engines, motors, PLCs, motors	Health status:	new
Weight (kg):	380 kg	Mechanical test report:	if
Package preview:		Warranty:	3 years
Marketing Type:	2020 New Products	Showroom location:	not any
type:	Homogenizer	Packaging Details:	sturdy wooden box
Blender Type:	Homogenizer	Main selling points:	long lasting
Spindle speed range (rpm):	1 - 63 rpm	Supply capacity:	200 sets per month
Health status:	new	Power (kW):	11.5 kW
Voltage:	120V/220V/380V/440V/Customized	brand:	strong
Main selling points:	long lasting	Processing materials:	chemicals, food
Weight (kg):	380	Applicable industries:	Manufacturing plants, machinery repair shops, food and beverage plants, farms, restaurants
application:	Liquid contains powder, liquid	Core component warranty:	3 years
Showroom location:	not any	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Video outbound inspection:	if

Product Description

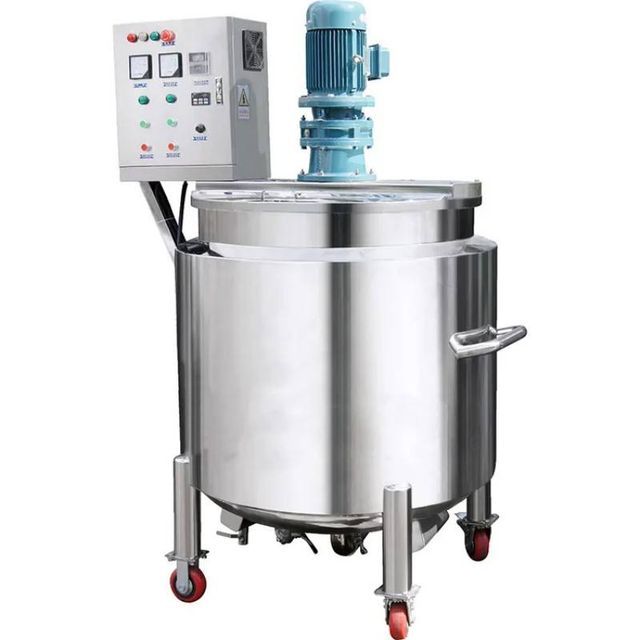

The mixing tank is used to mix, mix, blend and homogenize the materials. The stainless steel mixing tank can be standardized and humanized in design structure and configuration according to the requirements of the production process; the mixing tank can realize manual and automatic control such as feed control, discharge control, and mixing control during the mixing process. Stainless steel mixing tank has strong corrosion resistance. Not corroded by outside air and water. Each tank has been tested and inspected under high pressure, and has a long service life under normal pressure.

Machine Features:

1. Omni-directional wall scraping and stirring, using frequency converter to adjust the speed, can produce high-quality products with different processes according to customer requirements. 2. A variety of high-speed homogenizers, capable of powerfully mixing solid and liquid raw materials, and quickly dissolving various insoluble substances such as AES, AESA, LSA, etc. During the production of liquid detergent, energy consumption is saved and the production cycle is shortened. 3. The pot body is welded by imported three-layer stainless steel plates, and the pot body and pipes are mirror-polished, which fully meets the requirements of GMP. 4. According to customer requirements, the tank body can heat, heat and cool materials. The heating methods include steam heating and electric heating. The discharge is convenient, the bottom is discharged directly or through the transfer pump.

Machine parameters

Model	Capacity (L)	stirring power	stirring speed	Homogenizing force	Homogenization speed	heating method
PME-500	500	2.2	0-65	5.5-7.5	3000	Steam heating or electric heating (optional)
PME-1000	1000	4	0-65	7.5-11	3000
PME-2000	2000	5.5	0-53	11-15 days	3000
PME-3000	3000	7.5	0-53	18	3000
PME-5000	5000	11	0-42	twenty two	3000
PME-10000	10000	15	0-42	30	3000
