Health status: | new | Filling principle: | negative pressure |
Filling range: | 10-300ml | brand: | Cosmati |
Core component warranty: | 1 year | capacity: | 30-50 pieces/minute |
product name: | Lip gloss tube hand cream gel filling machine | Video outbound inspection: | if |
Feed cylinder structure: | Dual chamber feeding | Dosing device: | rotor |
Warranty: | 1 year | Applicable industries: | Manufacturing plants, retail |
port: | Shenzhen Port, Guangzhou Port | Package preview: | |
Showroom location: | not any | air pressure: | 0.4-0.6MPa |
Materials used for packaging: | plastic | Marketing type: | Hot Products of 2022 |
type: | Filling and sealing machine | Supply capacity: | 200 lotion tube sealing machines per month |
Weight (kg): | 380 | Main selling points: | Easy to operate |
Filling accuracy: | ±0.1% | payment terms: | Letter of credit, wire transfer |
Mechanical test report: | if | Core components: | engine |
Mechanical capabilities: | 4000 bottles/hour | | |

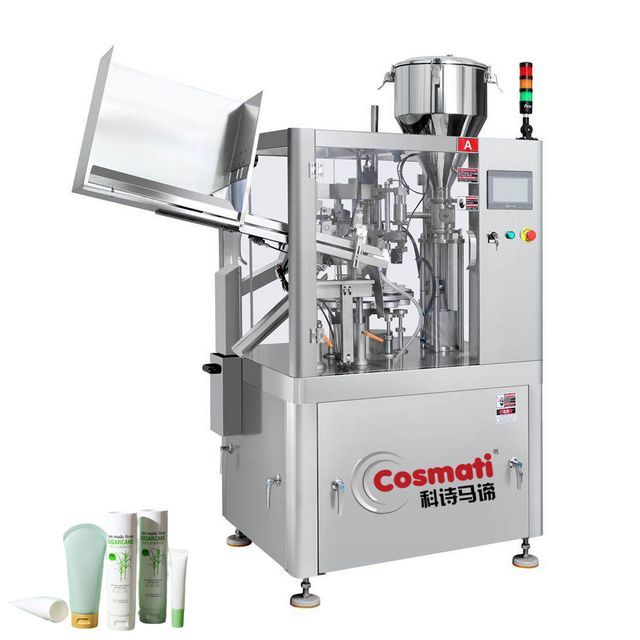

China fully automatic factory price hose filling and sealing machine
Automatic hose filling and sealing machines are widely used in toothpaste, cosmetics, pharmaceutical and food industries.
The equipment has a high degree of automation, including automatic tube loading, automatic color marking, automatic tail sealing, batch number printing, and automatic tube release. Using internal heating method, the Swiss-made "LEISTER" air heater is used to blow hot air from the inner wall of the hose to melt the plastic.
application

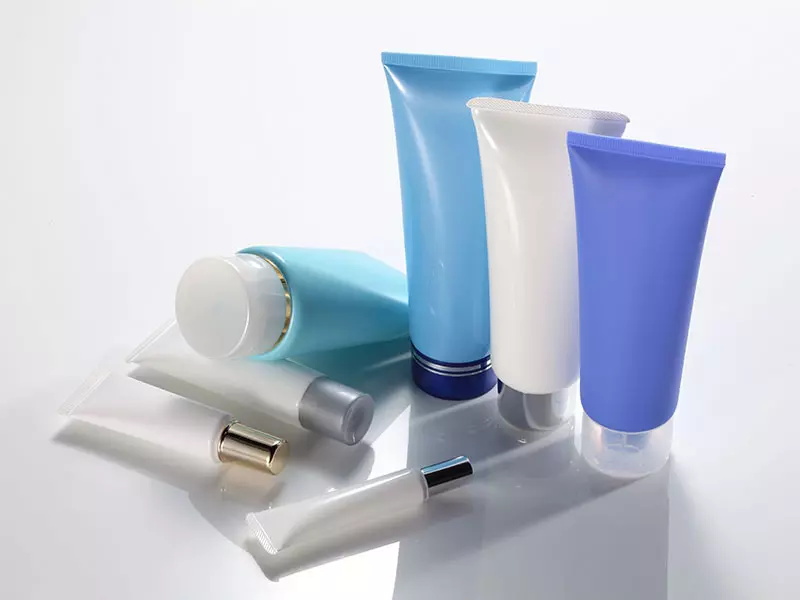

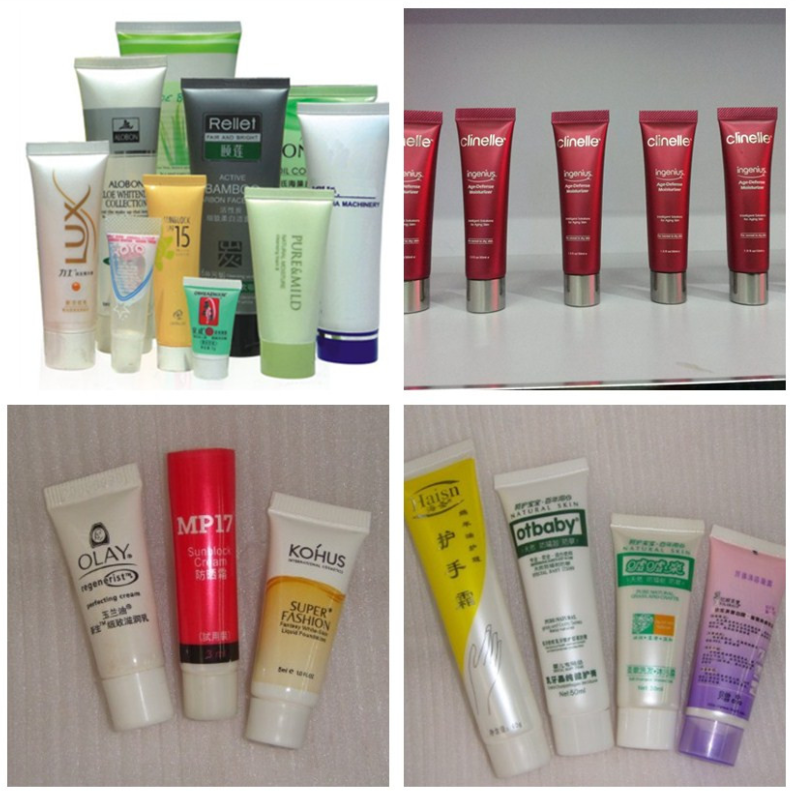

Suitable for ointment, toothpaste, facial cleanser, conditioner, shampoo, hand cream, eye cream, hair dye, shoe polish and other products.
Product Description
feature
◆The filling and sealing part is installed above the platform, and the semi-enclosed non-static frame can be seen in the visual cover, which is easy to observe, operate and maintain; ◆Stainless steel operation panel, plexiglass protective cover, equipped with door protection function; ◆The upper tube device is designed There is a vacuum adsorption device. After the upper tube interacts with the tube pressing device, insert the hose into the upper tube station; ◆Photoelectric benchmarking station, using high-precision probes, stepper motors, etc. to control the hose pattern to be in the correct position; ◆No tube, no filling, after the injection is completed , the blowing device blows off the tail of the paste; anti-drawing, anti-drip filling; ◆The waste cutting manipulator cuts the edge of the waste at the end of the hose, with special-shaped seals such as right angles, R angles or arcs; ◆Fault alarm, overload shutdown, Water pressure protection, air pressure protection.

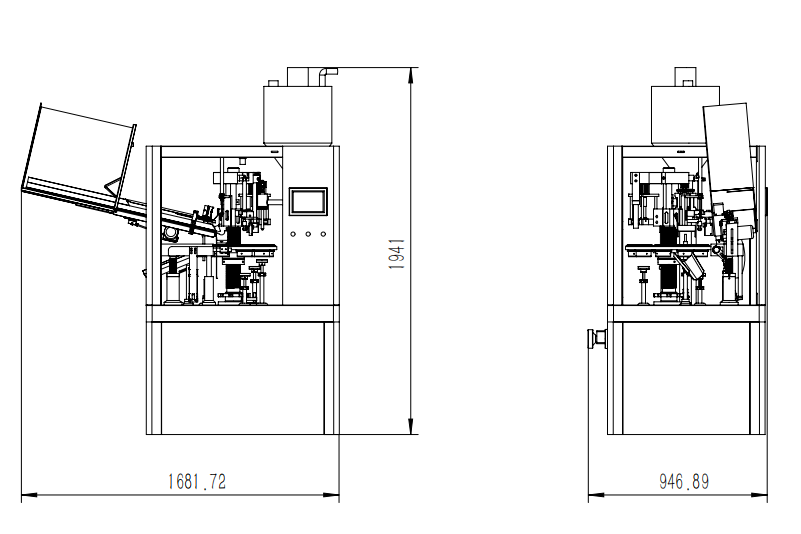

capacity | Dimensions (mm) | power supply | Sealing diameter | Filling accuracy |
40-50 tubes/minute. | Length 1700*Width 1000*Height 2000mm | 220v/380v, 4.1KW (total) | 15-50mm | ≤±1% |
Filling range | weight | Air consumption | Sealing height | work pressure |
5-250ml | 750kg | Greater than 600L/min | 50-220mm | 0.60MPa |

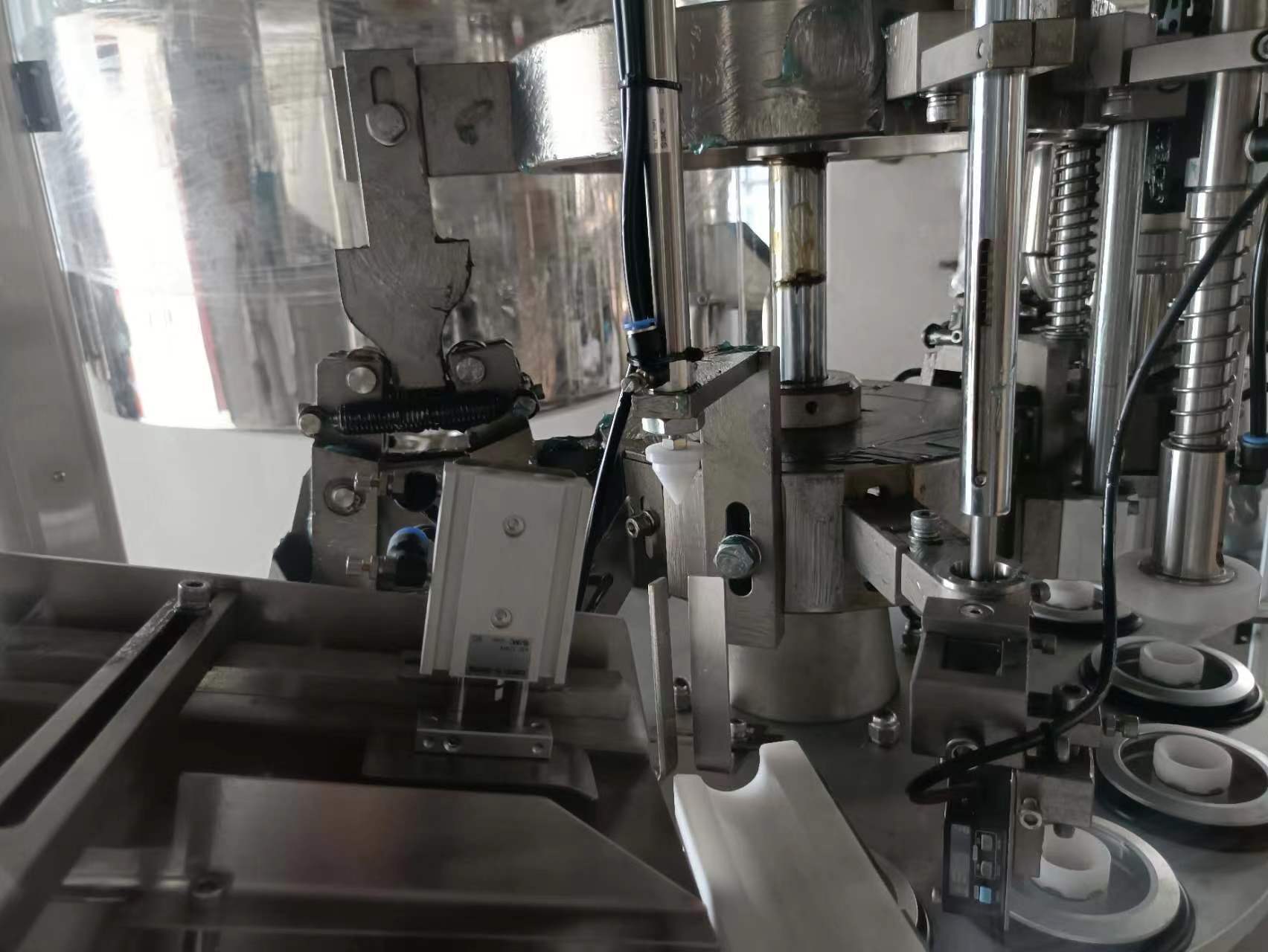

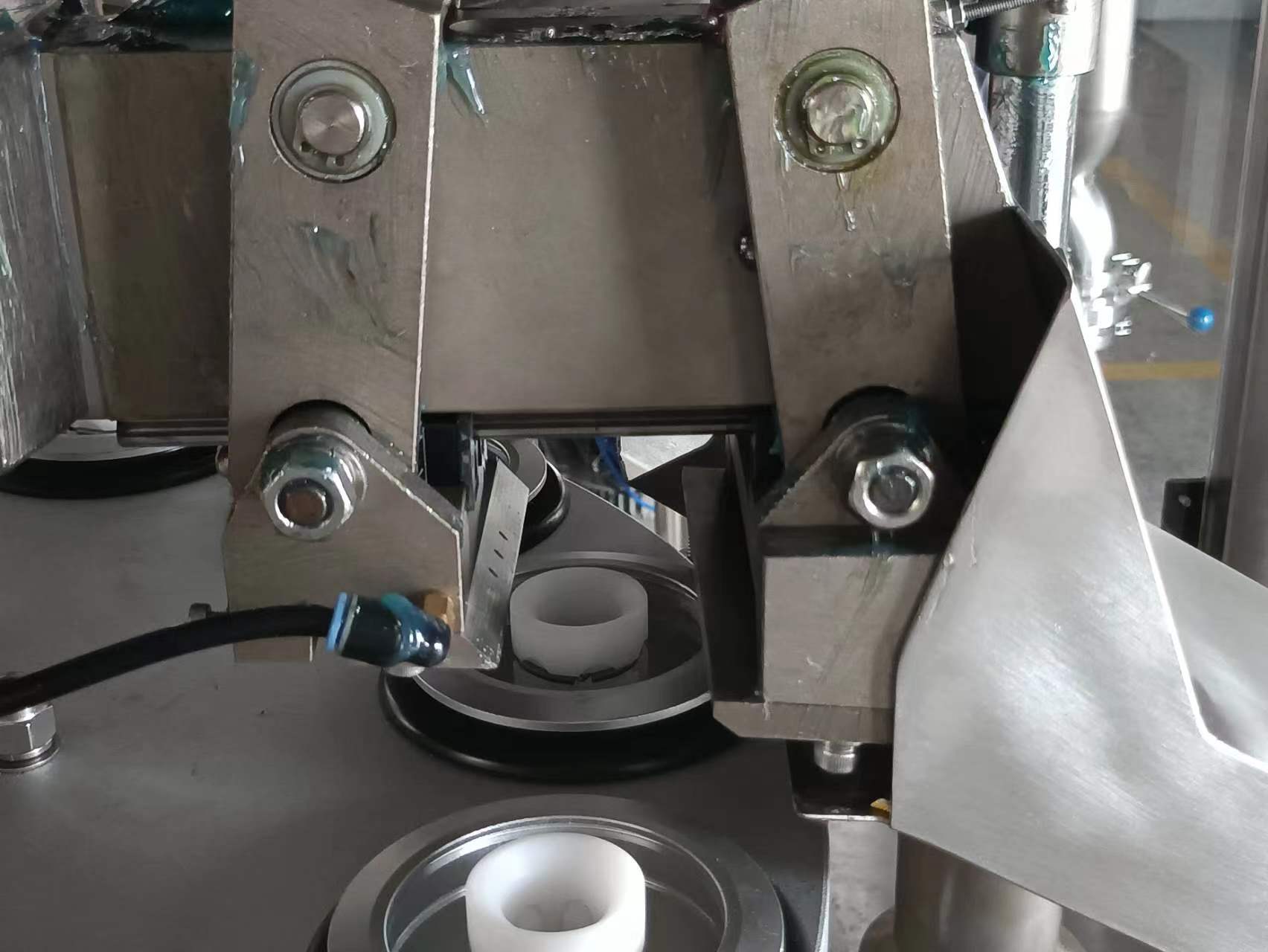

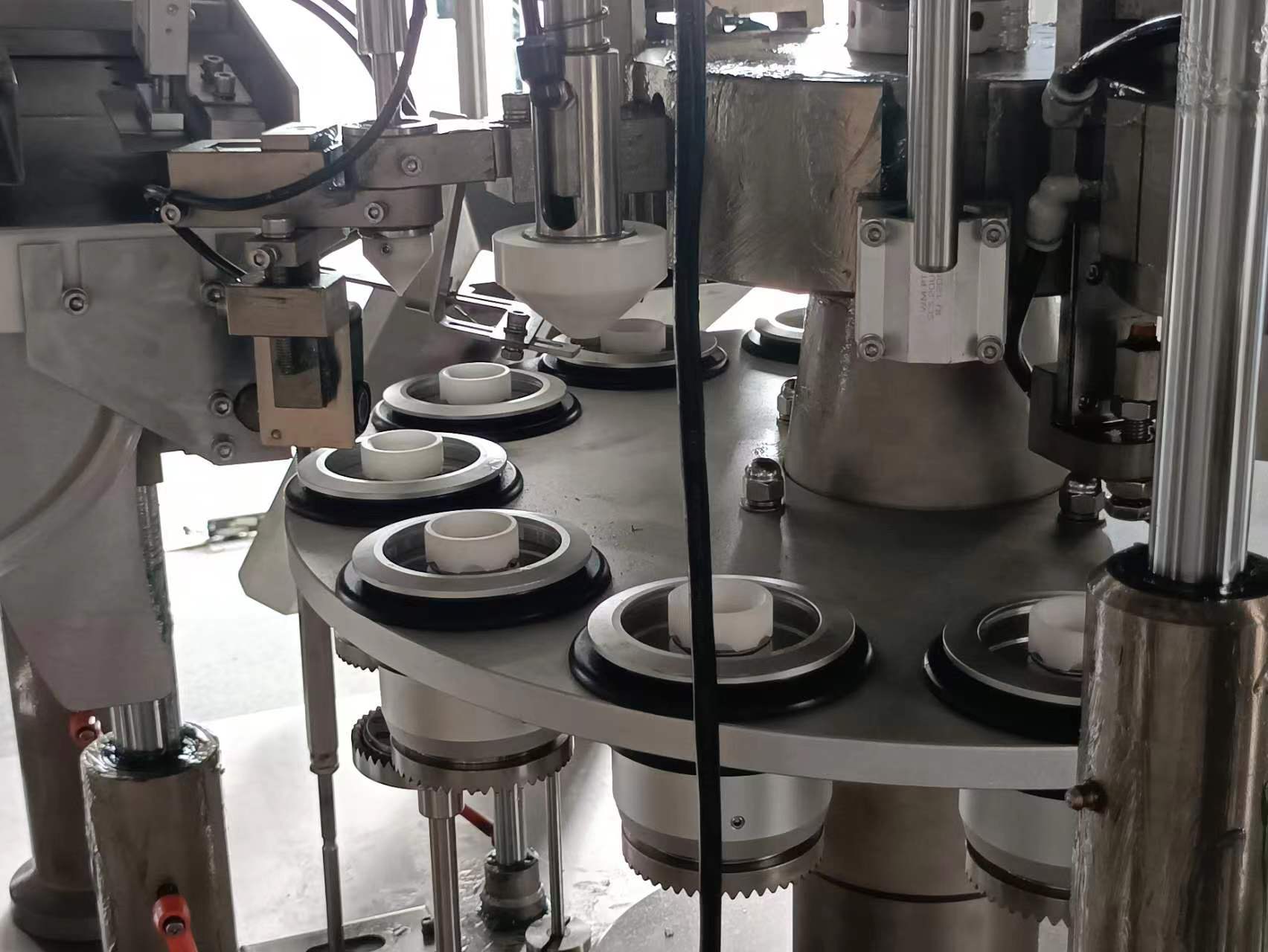

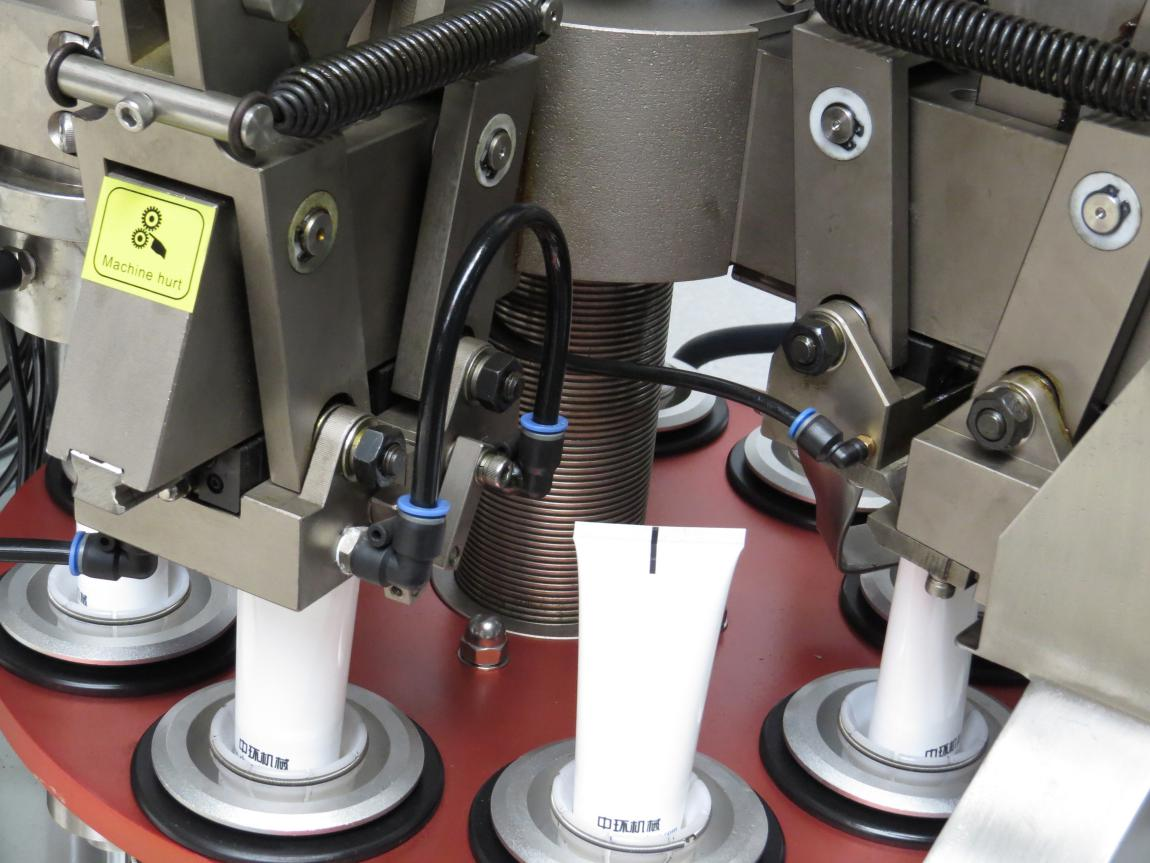

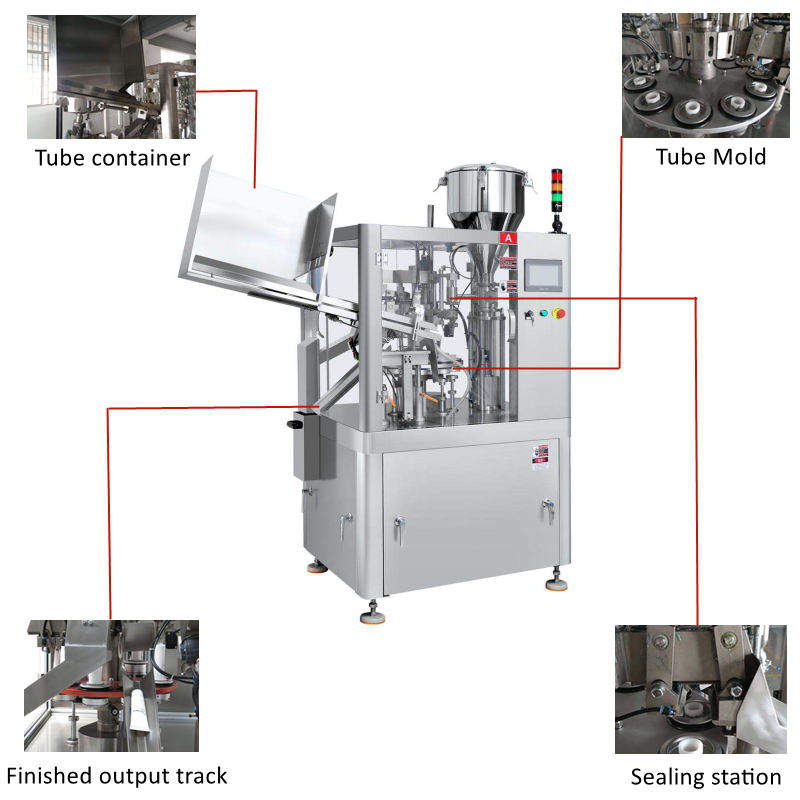

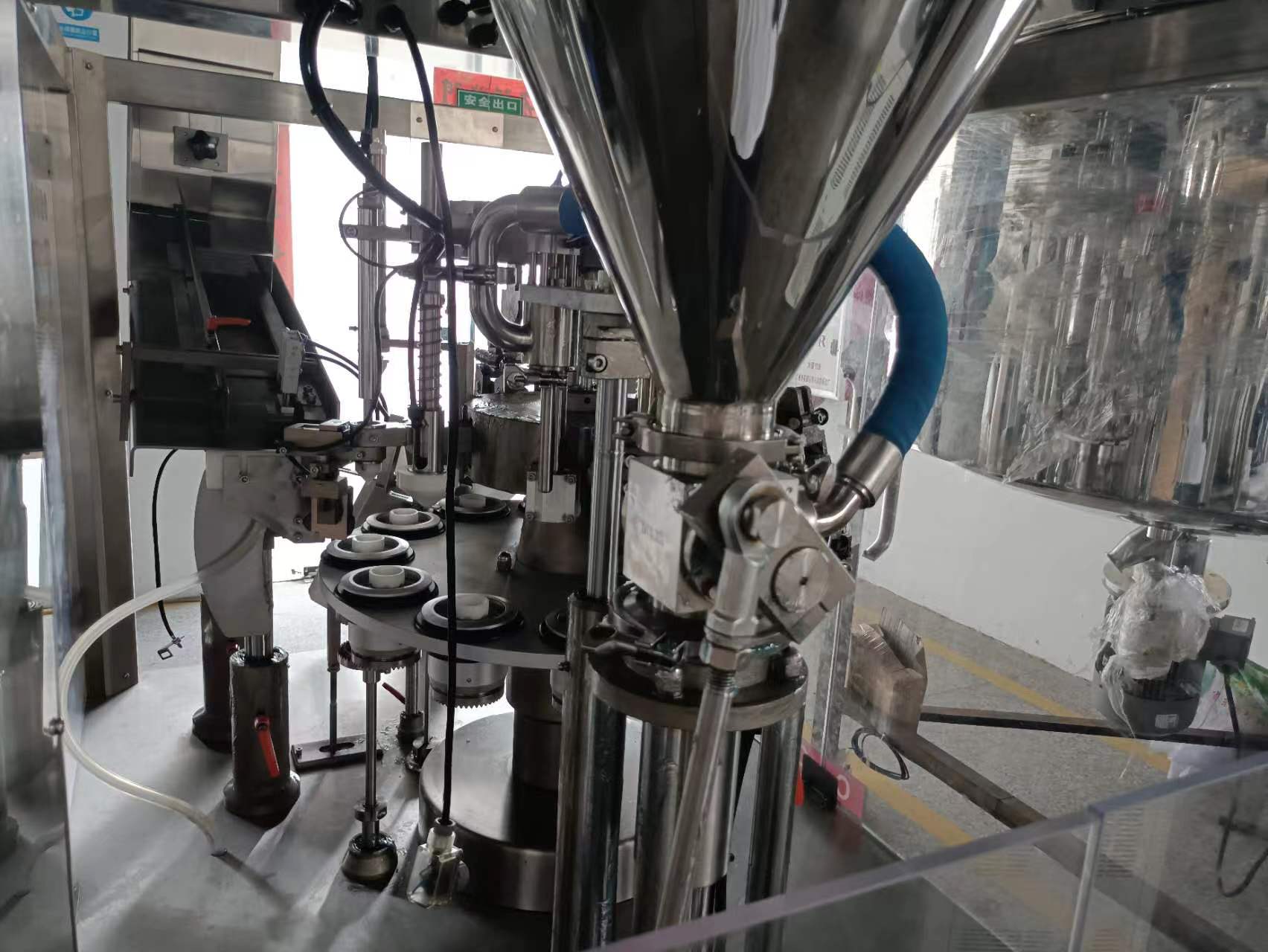

detailed picture
