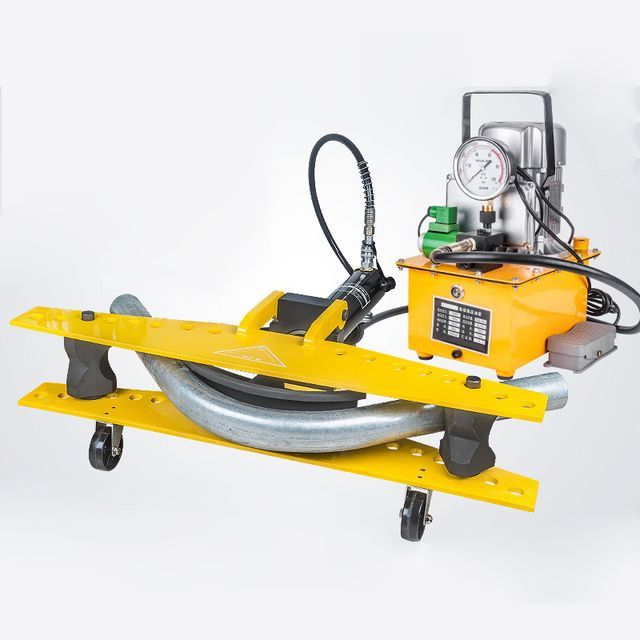

Low Price Electro-Hydraulic Automatic Pipe Bender for Bulk Splitting Type DWG-2

Click here to contact
Product details
capacity:12Tproduct name:Manual pipe bender
Maximum bending angle:180°pack:wooden box
Name:Manual pipe benderOrigin:Henan, China
Customization support:original design manufacturertype:HHW-1
Hydraulic system pressure:12 MPaSingle pack size:80X30X50 cm
Weight bracket:110 kgMaterial:Ductile Iron
Sales unit:single productThe scope of work:13~118mm
Gross weight per piece:30.000 kg
Description and application



modeler SWG-1 SWG-2 SWG-3 SWG-4 SWG-5
pressure 10 tons 16T 18T 21T 21T
work plan 170mm 250 mm 320mm 420mm 420mm
Tube Thickness 2-3.5mm 2.75-5 mm 2.75-6 mm 2.75-6 mm 2.75-6 mm
texture of material Ductile Iron Ductile Iron Ductile Iron Ductile Iron Ductile Iron
weight 20 kg 48 kg 98 kg 137 kg 186 kg

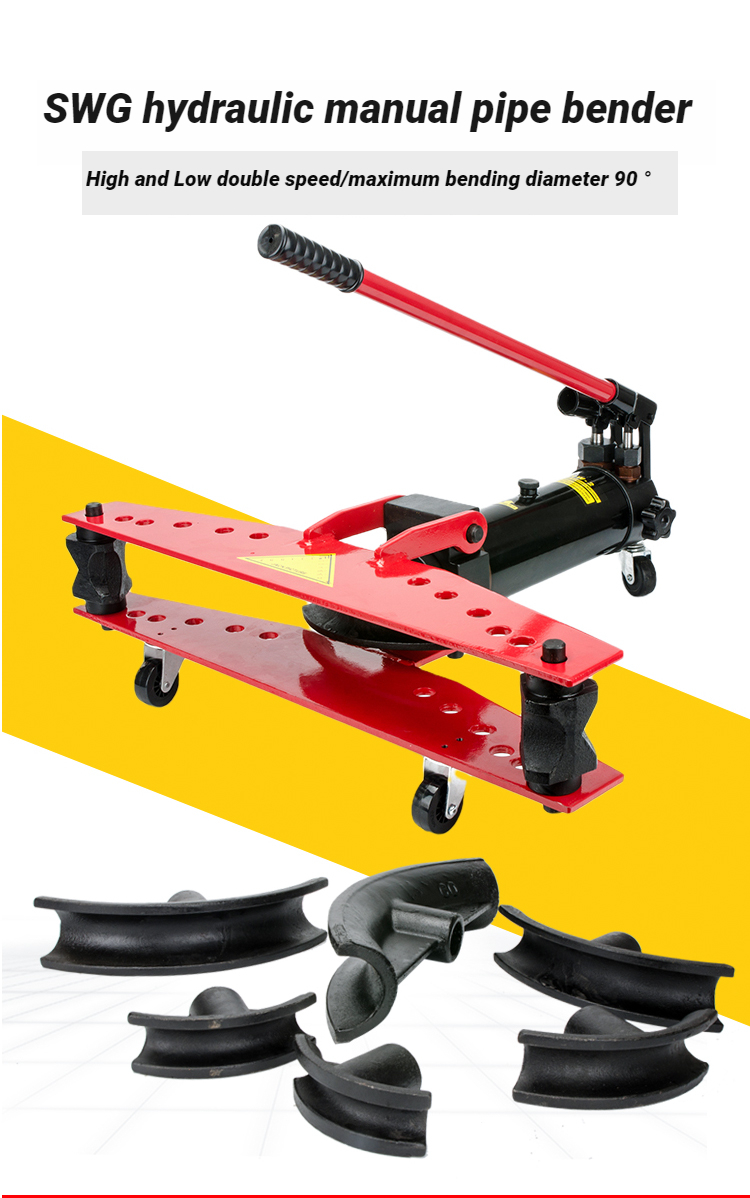

Standard mold size SWG-1 13mm/16mm/19mm/22mm/28mm/34mm (6)
SWG-2 22mm/28mm/34mm/42mm/48mm/60mm (6)
SWG-3 22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm (eight)
SWG-4 22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm/108mm (nine)
SWG-5 22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm/108mm/114mm (ten pieces)
                Corresponding size and wall thickness of mold outer diameter
Model diameter Nominal diameter Minimum wall thickness Specification name
φ10mm DN6 2mm 1/8"
φ13mm DN8 2mm 1/4"
φ16mm DN10 2mm 5/16"
φ19mm DN15 2.5mm 3/8"
φ22mm DN15 2.75 mm 1/2"
φ25mm diameter 20 2.75 mm 3/4"
φ28mm diameter 20 2.75 mm 3/4"
φ34mm DN25 3.25 mm 1"
φ42mm DN32 3.25mm 1-1/4"
φ48mm DN40 3.5mm 1-1/2"
φ60mm DN50 3.5mm 2 inches
φ75.5mm DN65 3.75 mm 2-1/2"
φ89mm DN80 4 mm 3 inches
φ108mm diameter 100 4.5mm 4 inches
φ114mm diameter 100 5 mm 5 inches

If there is no corresponding mold, you can choose a slightly larger mold size (such as 32mm, 34mm), and check according to the corresponding mold size.

Check whether the wall thickness is appropriate (0.5 more or less than 0.5 wall thickness)

Applicable to international A series imperial pipes and domestic B series metric pipes

Product Details

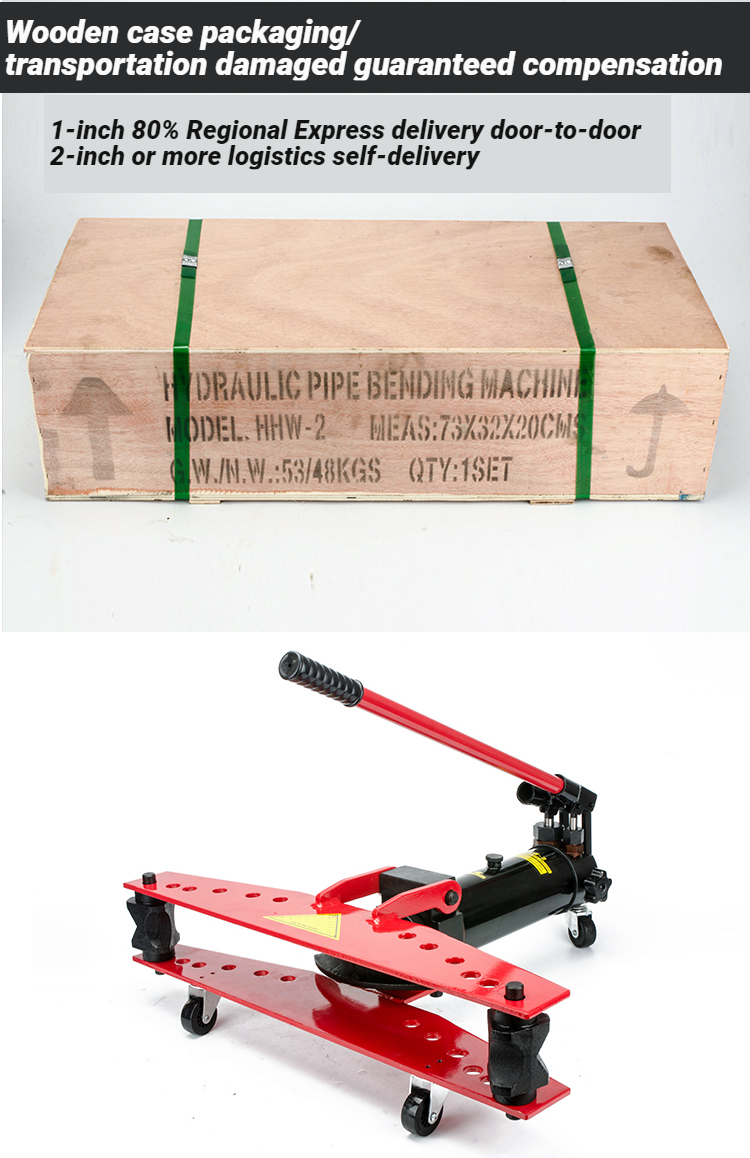

Parking and Transportation


                           Corresponding size and wall thickness of mold outer diameter
modeler SWG-1 SWG-2 SWG-3 SWG-4 SWG-5
Dimensions (mm) 660X350X200 730x350x200 800x350x250 890*400*280 980*400*320
weight 20 kg 48 kg 98 kg 137 kg
186 kg
