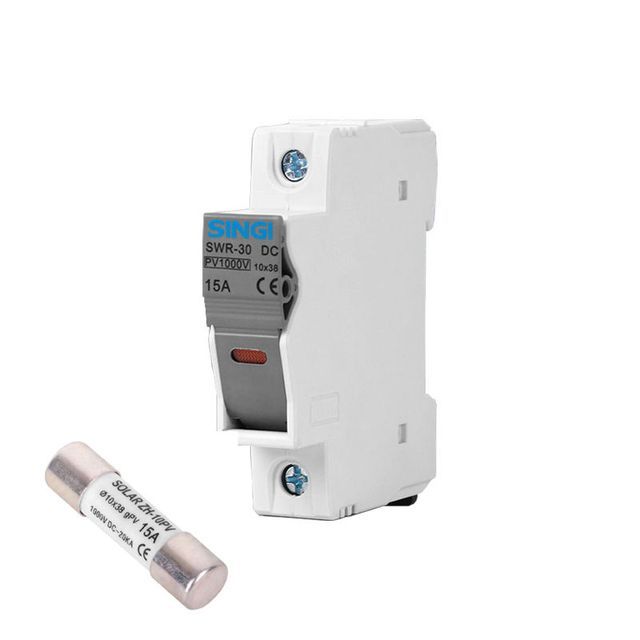

Photovoltaic DC fuse 1000V 10*38mm protection solar system fuse holder 30A OEM electrical safety low voltage base thermal fuse waterproof

Product details
port:Ningbo or Shanghaisafety standard:International Electrotechnical Commission
Supply capacity:30000 pieces per monthRated current (A):1-30A
payment terms:L/C, Western Unionmodel:SWR-30
Packaging Details:Standard export cartonRated voltage:400-1000V
usage:low voltageBreaking capacity:25KA, high
Origin:Zhejiang, Chinabrand:singi
Key words:DC photovoltaic fuse
Product Description
Rated voltage
(five)
pole
rated current
(A)
Breaking capacity IC
(A)
installation method
DC 400-1000V
1P
1.2.3.4.6.8.10.12.15.20.25.30A
25000A
TH-35 DIN rail installation
1. A series of 10x38mm fuse links specially designed to protect photovoltaic strings. These fuses can
Interruption of low overcurrents associated with faulty PV string arrays (reverse current, multi-array faults).

2. DC fuses are mainly used in DC combiner boxes in solar photovoltaic systems. When the photovoltaic panel or inverter causes overload or short circuit, it trips immediately to protect the photovoltaic panel, and the DC fuse is also used to protect other electrical components in the DC circuit when overload or short circuit occurs.
Specification
thing
value
birthplace
China
zhejiang
brand
singi
model
SWR-30
usage
low voltage
Breaking capacity
High
safety standard
International Electrotechnical Commission
Key words
Photovoltaic fuse
Rated current (A)
1-30A
Rated voltage
400-1000V
Breaking capacity
25KA
