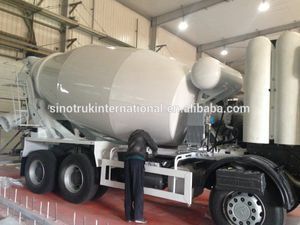

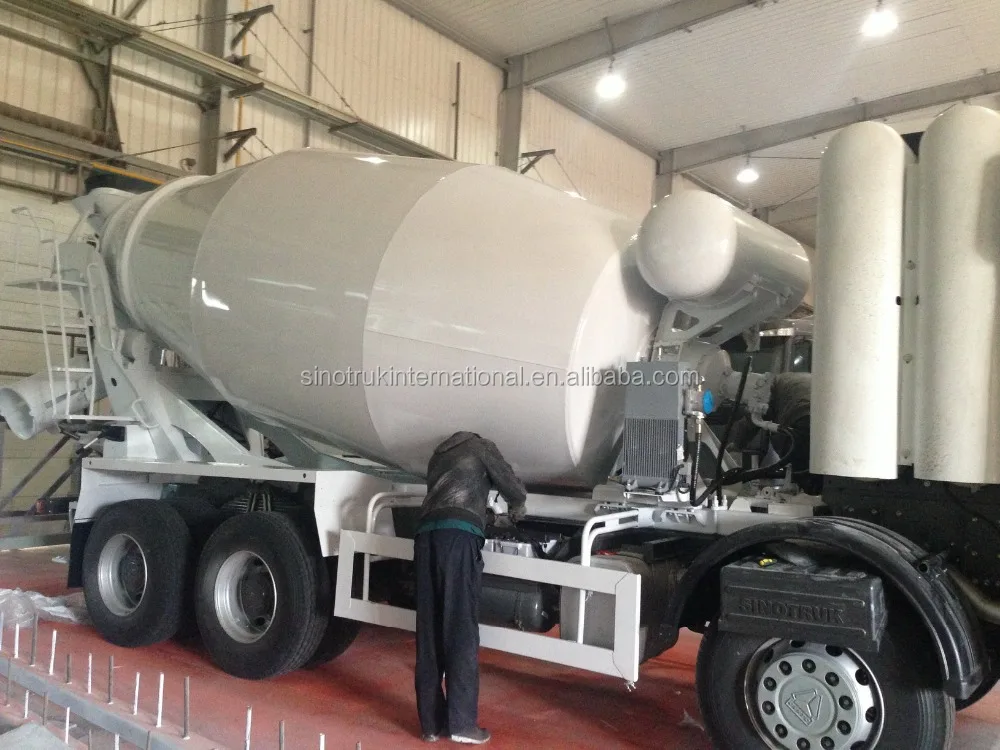

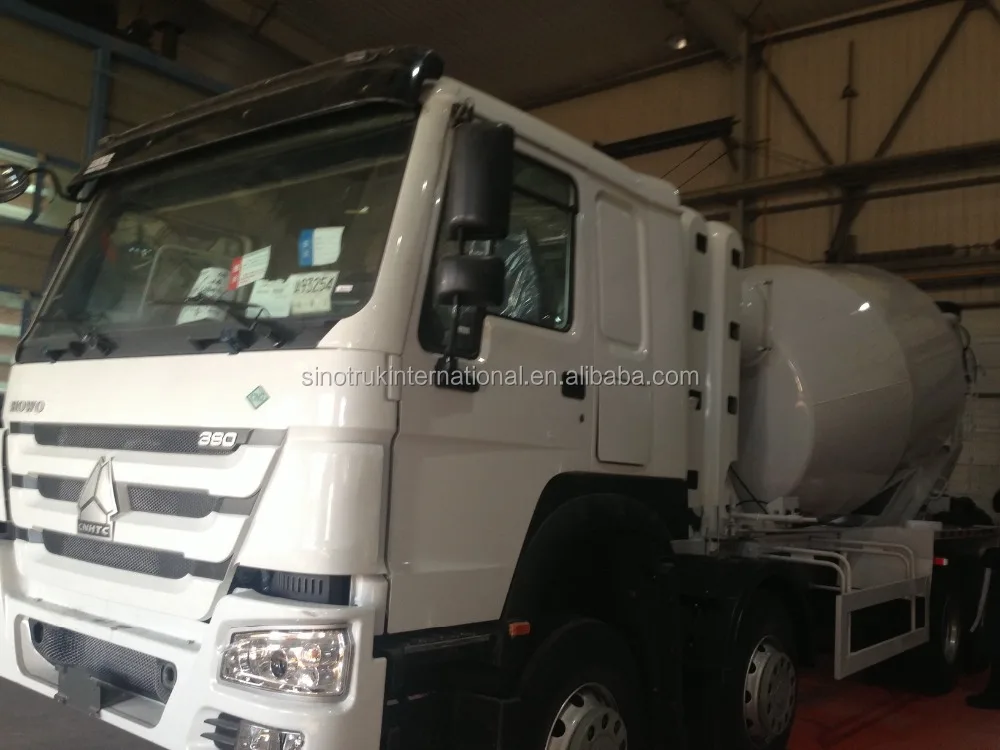

SINOTRUK HOWO 8x4 CNG cement mixer truck

Click here to contact

Product details

Max speed(km/h):	90;	Gross Vehicle Weight:	31000;
Transmission:	HW19710,10 forwards,2 reverse gear,manual operation;	Front axle:	HF9;
Tire specification:	12R22.5 standard tire,10 tires+1 spare tire;	Product Name:	HOWO CNG 8x4 concrete mixer truck 12cbm;
Curb weight(kg):	15900;	Steering:	ZF8098,With power steering;
Driving Type:	left hand drive;	Box dimension:	12CBM;
Packaging Detail:	Nude;	Place of Origin:	Shandong China (Mainland);
Delivery Detail:	30 days;	Supply Ability:	200 Unit/Units per Month concrete mixer truck for sale;
Port:	Tianjin, Shanghai, Qingdao or sa your needs;	GVW(kg):	31000;
Model Number:	ZZ1317N3667C;	Brand Name:	SINOTRUK;
Payment Terms:	L/C,T/T,Western Union;


Product Name	HOWO CNG 8x4 concrete mixer truck 12cbm
Driving Type	8×4,left hand drive
Weights
GVW(kg)	31000
Curb weight(kg)	15900
Dimensions
Wheelbase(mm)	1800+3200+1350
Overall Dimension(mm)	10150x2496x3900
Box dimension	12CBM
Max speed(km/h)	90
Engine
Engine model	T12.380-30(380HP)
Type	CNG
Drive Line
Transmission	HW19710,10 forwards,2 reverse gear,manual operation
Steering	ZF8098,With power steering
Brake system	Air brake
Axle
Front axle	HF9
Rear axle	HC16
Tire specification
Tire specification	12R22.5 standard tire,10 tires+1 spare tire
Specification of concrete mixer truck

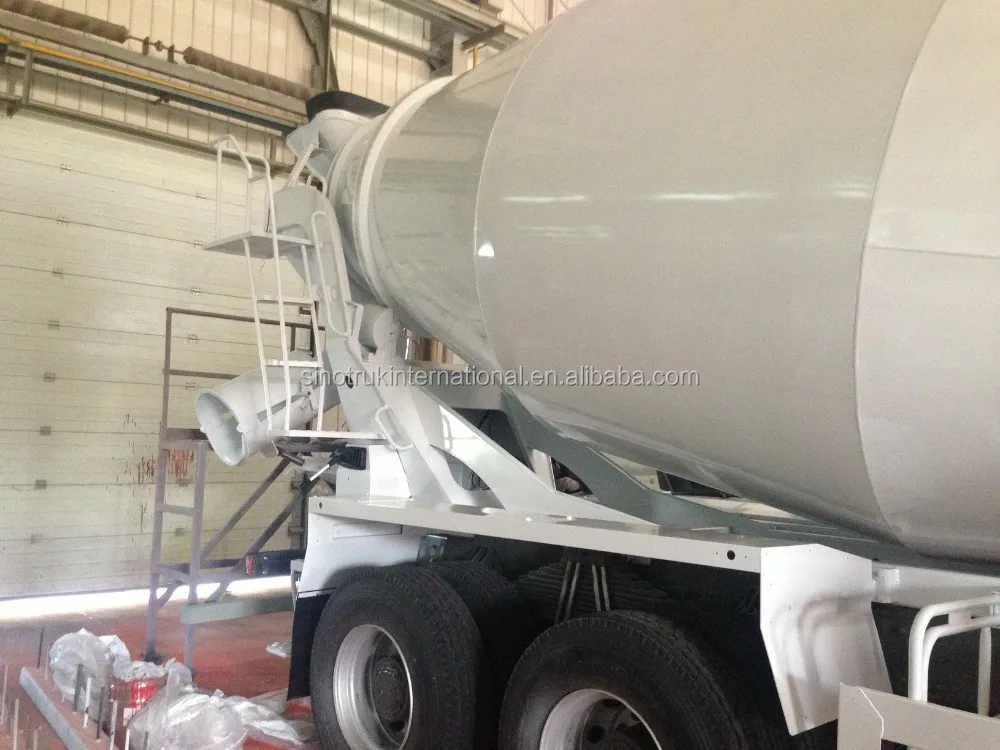

Mixer drum parameter	Tanker Material:Q345
	Filling speed (M3/min) ≥ 2.8
	Unloading speed (M3/min)≥ 1.2
	Discharge reside rat( %)≤ 0.5
	Mixer drum rotation speed(rpm) 0~12
Driving system	Reducer:Italy PMP
	Hydraulic pump: Italy PMP
	Hydraulic motor: Italy PMP
	Heat device : changzhou(made in china)
Water supply system	Tank volume: 400L
Water supply system	Air pressure water supply
Operating system	Model:linkage operation
