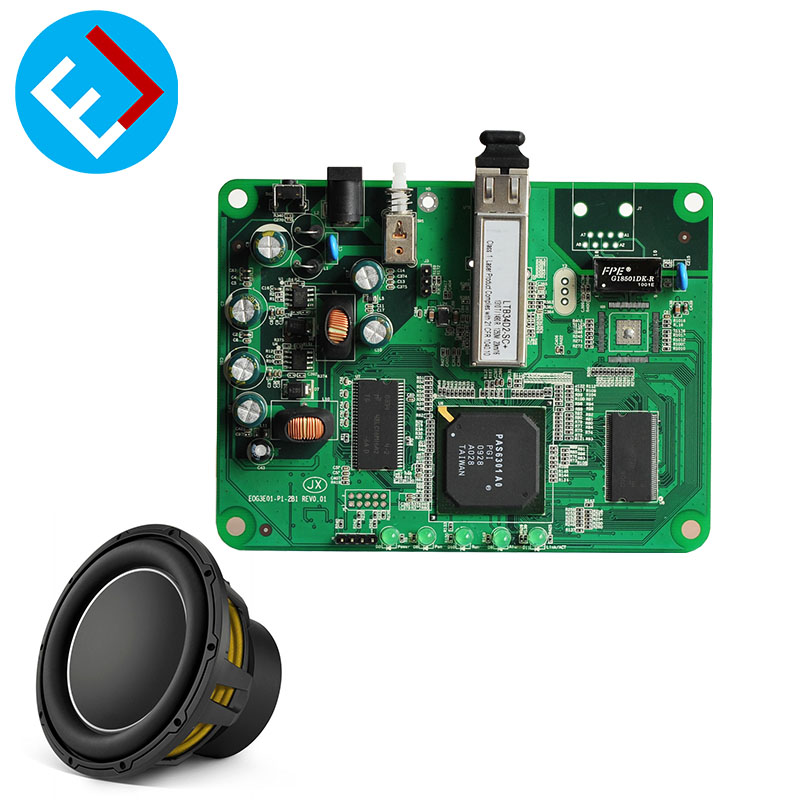

El Car Radio Smt/Dip Car Equipment Multilayer PCB Control Board Prototype Car Radio Pcba Assembly

  • Supplier: Shenzhen El Technology Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Bella Lei
  • Price: $10.00 / 1 - 99 pieces
    $1.00 / 100 - 999 pieces
    $0.10 / >=1000 pieces
  • Min. Order: 1 piece
Product details
brand:EL/customMaterial:CME1/FR-4/High TG FR4/Halogen Free FR4/Polyimide/Aluminum/PTFE
Origin:Guangdong, ChinaPlate thickness:0.1mm--10.00mm, 0.1-10mm
Surface treatment:HASL/OSP/Ag/ENIG/ENEPIG/Immersion Silver/Tinminute. Hole size:Mechanical 0.1mm, laser hole 0.075mm
minute. Line spacing:0.075m (3 million)Material mix laminate:4 layers - 10 layers (FR4+Ro4350, FR4+aluminum, FR4+FPC)
Packaging Details:Various specifications of electrostatic bags and cartonstype:PCBAs
Key words:Car radio PCBACopper thickness:0.5-6OZ, trial run: 12OZ,0.5-6OZ, trial run: 12OZ
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramPlate shape tolerance:±0.1 mm
Package preview:minute. line width:0.075m (3 million)
port:Shenzhen/Hong KongMinimum Line/Space:0.075m (3 million)
Supply capacity:300000 pieces per monthmodel:Car radio PCBA
Hole Location/Hole Tolerance:±0.05mm PTH: ±0.076MM NPTH: ±0.05mmSubstrate:CME1/FR-4/Aluminum/Copper/Flex/Rogers/Polyimide
Mini solder mask bridge:0.05mmlayer:1-32 floors
Board size:custom
Company Profile
Trading is just the beginning, our service is endless!In the early days of Shenzhen Yier Technology's development, our business started from OEM SMT assembly services. After more than 16 years of persistence and hard work, following this business philosophy, we have grown up step by step to provide customers with one-stop services (electronic manufacturing services ), including PCB board fabrication, component procurement and PCB assembly. Our high-quality services have been highly recognized by nearly 1,500 customers in more than 50 countries around the world. We have a factory building of more than 5,000 square meters and 200 employees. Our products are widely used in many fields such as industrial control, telecommunications, energy, automobiles, security, and medical care.
our service
Product Description
surface mount line
7 lines
capacity
8 million impressions per day
board size
680*550mm Min: 0.25"*0.25"
Minimum component size
0201-54 mm2 (0.084 in2), long connector, CSP, BGA, QFP
speed
0.15 seconds/chip, 0.7 seconds/QFP


wave soldering
PCB maximum width: 450mm
Minimum PCB width: unlimited
Component height: top 120mm/bottom 15mm



heat welding
Metal Type: Partial, Whole, Inlay, Side Step
Metal material: copper, aluminum
Surface treatment: gold-plated, silver-plated, tin-plated
Air bag rate: less than 20%

Crimp type
Pressure range: 0-50KN
Maximum PCB size: 800*600mm
Assembly type
SMT and through-hole
Solder type
Water Soluble Solder Pastes, Leaded and Lead-Free
file format
Bill of Materials, Gerber Files, Pick and Place Files (XYRS)
Service type
Turnkey, Partial Turnkey or Consignment
Component packaging
Dicing tape, loose tubing rolls, parts
rotation time
1-15 days
test
XRAY inspection, AOI test ICT, flying probe, burn-in, functional test
