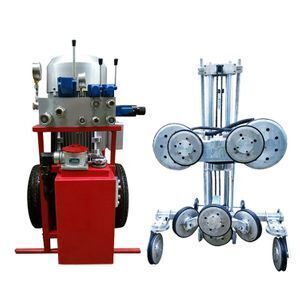

Block stone cutting and polishing wire saw machine

Product details
Function:Stone Engraving Carving Cutting;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Dimension(L*W*H):720*650*1050mm;Warranty:2 Years;
Port:Qingdao Shanghai Tianjin Guangzhou or Other Pointed Places in China;Weight:98kg+78kg;
Place of Origin:Henan China (Mainland);Voltage:380v 50HZ;
Beads Amount:40pc/m;Name:Stone Bridge Cutting Machine;
Condition:New;Supply Ability:680 Set/Sets per Month;
Wire Driving Mode:Hydraulic and Electric;Output Frequency:33HP;
Applicable Industries:Construction works ;Diamond Wire Diameter:11.5mm;
Working Speed:1300r/min;Brand Name:YUGONG;
Power(W):25kw;Certification:SGS CE ISO;
Use:Granite Marble Concrete Cutting;Wire Consumption:2-3m2/m;
Type:Bridge Saw;Application:Stone Industrial;
After-sales Service Provided:Online support,Video technical support;Production Capacity:2m2/h;
Packaging Detail:Block stone cutting and polishing wire saw machine 1)Wrapped by protective film; 2)Packed by standard import & export wooden cases or carton boxes.;Keyword:Dimond Wire Saw;

Block stone cutting and polishing wire saw machine

Product Description

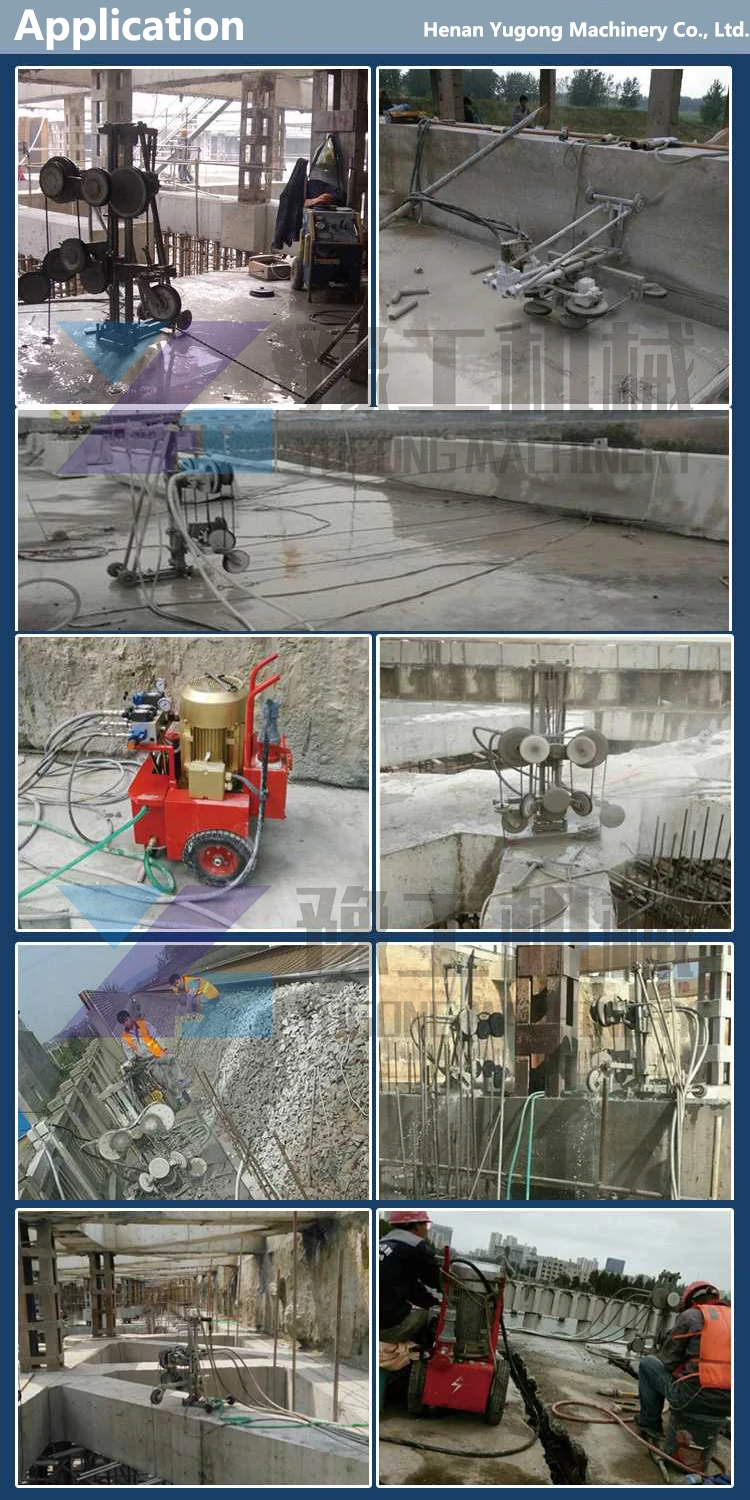

Diamond wire saw is a kind of cutting and splitting machine like rock splitter which can be used in the cutting of concrete, column, bridge, granite, stones, etc. For its wide use, diamond wire saw machine is also know as wire saw machine, concrete wire saw, wire stone saw, abrasive wire saw, granite wire saw cutting machine, quarry wire saw, and wire rock saw. The use of the diamond wire saw is quite flexible which can easily achieve transverse cutting and vertical cutting. Wire saw machine is a perfect choice if you want to cut some certain parts of a structure, even though works underwater 30-50 meters deep. So if you need help in this way, please feel free to contact us, and we will provide you with quality diamond wire saw machine and other technical helps.

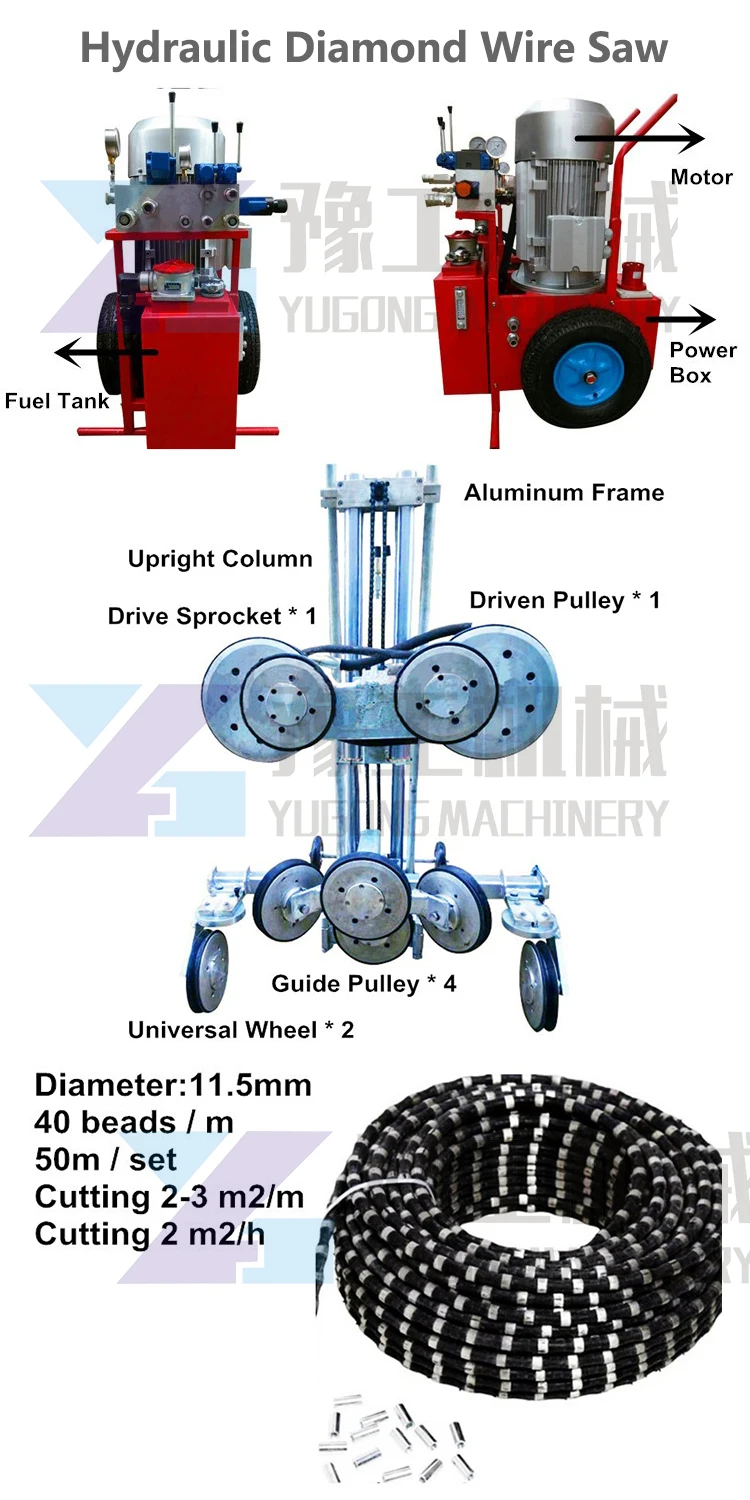

Technical Parameter of the Diamond Wire Saw Machine:

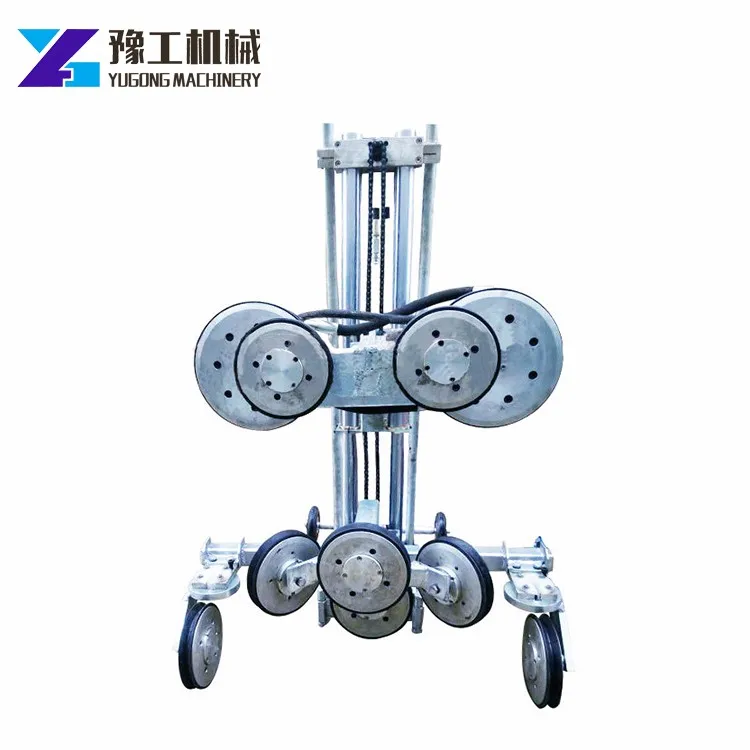

Hydraulic Wire Saw Parameter

Wire Driving Mode

Hydraulic

Motor Type

HM-80 (double cylinder)

Output Frequency

33HP

Axis Output Rotation

1300r/min

Max. Wire Saw

18m

Feeding Method

Automatic hydraulic

Weight

78kg

Dimension

90*90*1700mm

+

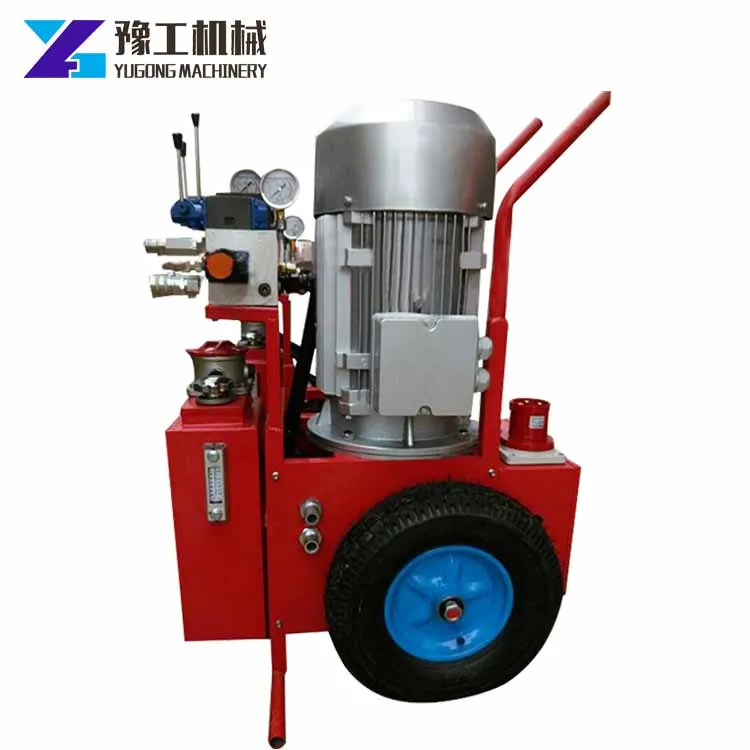

Hydraulic Pump Station Parameter

Rated Output Power

25kw

Working Voltage

380v 50HZ

Pump Station Type

Gear pump

Working Speed

1300r/min

Working Pressure

15-20Mpa

Oil Tank Volume

17L

Weight

98kg

Dimension

720*650*1050mm

Hydraulic Oil Model

46# / 48#

+

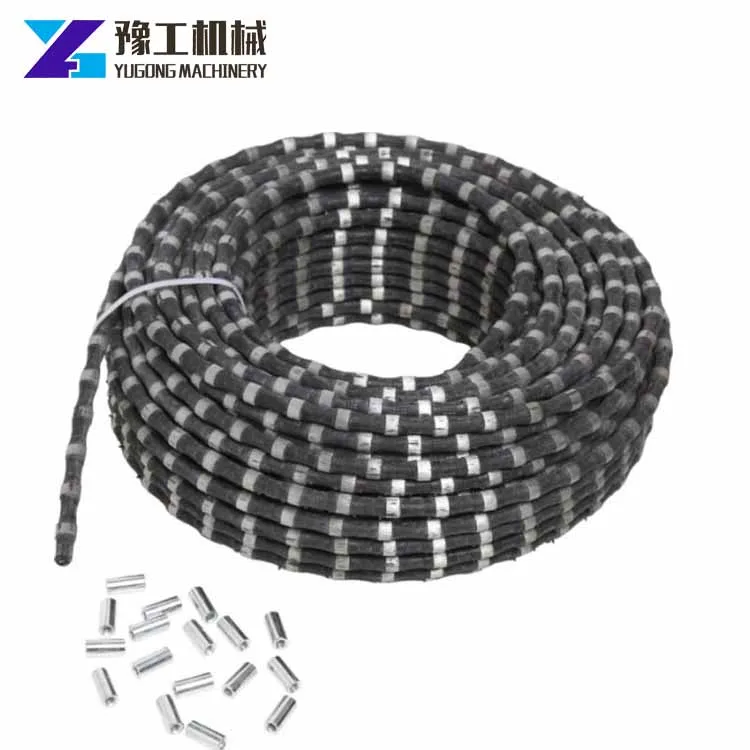

Diamond Wire Parameter

Diameter

11.5mm

Beads Amount

40/m

Working Efficiency

2m2/h

Wire Consumption

2-3m2/m

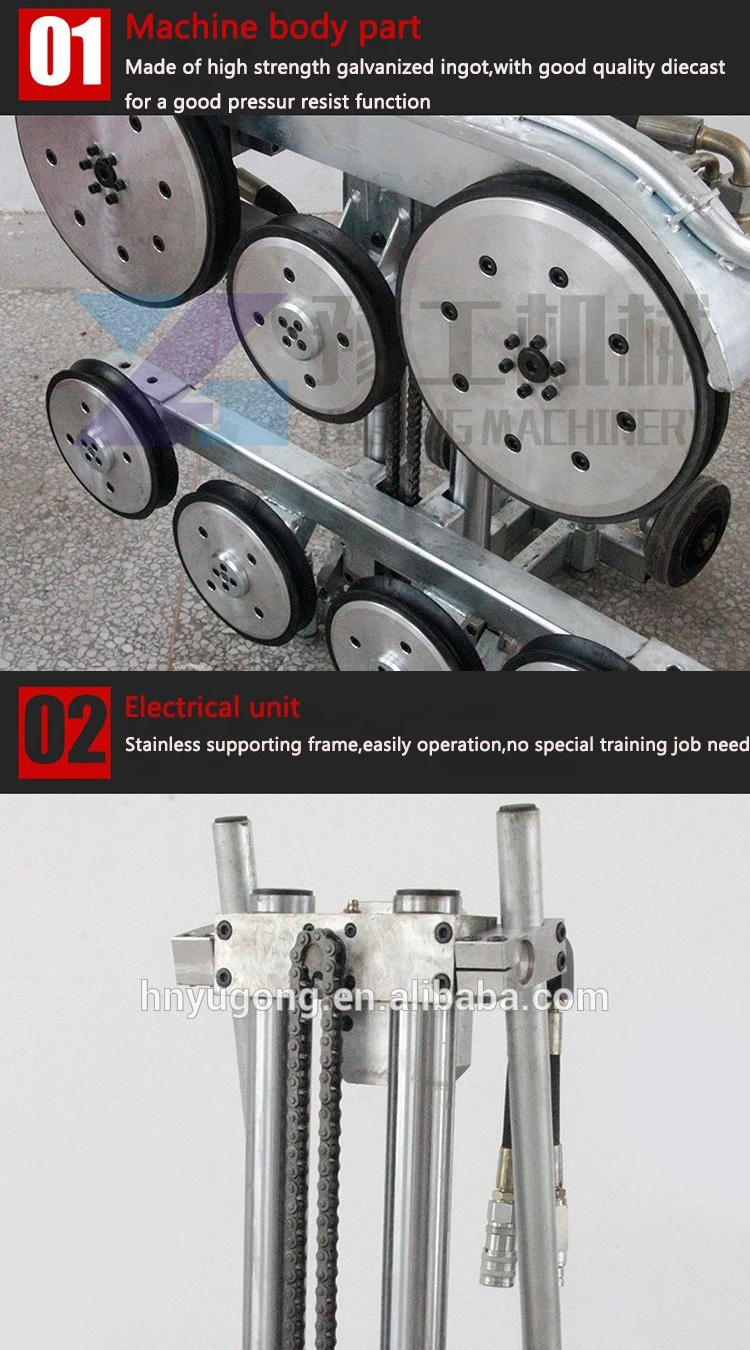

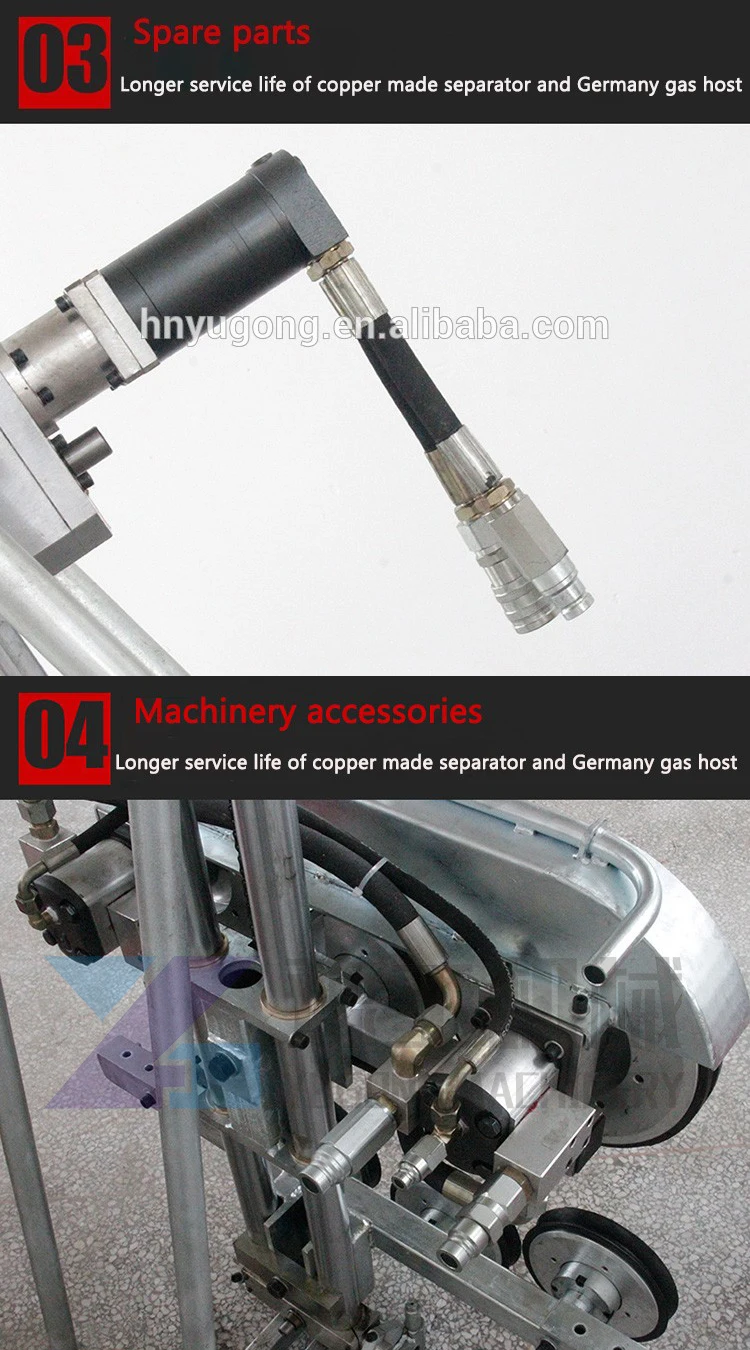

Detailed Images

The Outstanding Advantages of Diamond Wire Saw Machine:

1. Safe and Easy to operate. The use of machines can reduce the labor intensity, improve cutting ability and labor efficiency.
2.The linear cutting makes the construction section more orderly.
3.The improvement of working speed can shorten the construction period, further reduce the labor cost, improve the competitive advantages and expand the scale of acceptable construction projects.
4.The safety, reliable and stability of hydraulic wire saw greatly reduce the loss cost of construction equipment.

How to Choose The Suitable Diamond Wire Saw for Sale?

1.Consider the material you want to cut, as well as the cutting environment. The electric wire saw and hydraulic rope saw machine will be suitable for the cutting of concrete and the stone wire saw machine for mining is usually used in the mining, cutting and shaping of marble and granite.
2.Choose according to the thickness of the concrete, the size of the steel bar and the number of roots.
3.Choose depending on your desired efficiency and the consumables.
4.When you search on the Internet, you should find a real manufacture,such as,Yugong Machinery Co.,Ltd which can ensure the quality and save your cost at the same time.
