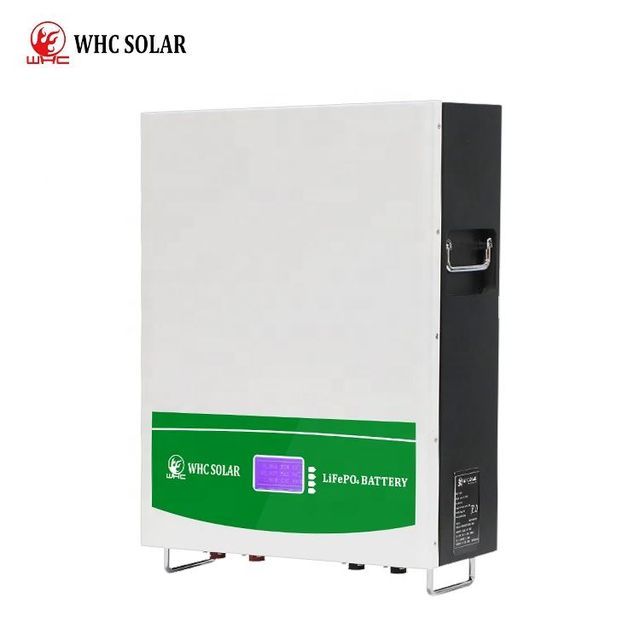

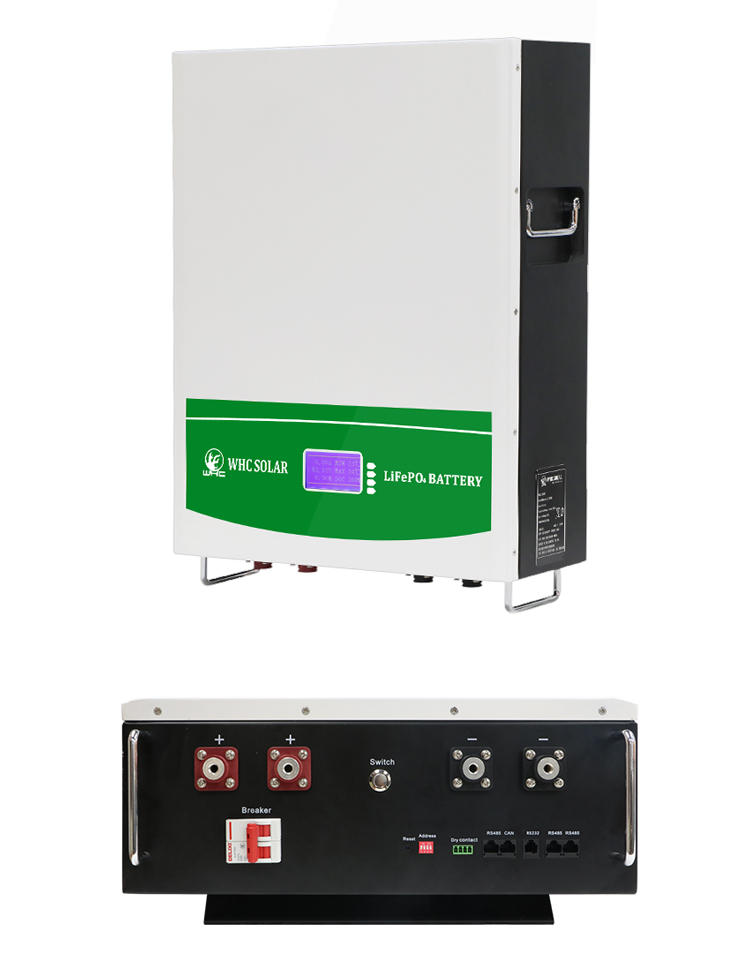

Key words: | 51.2V 100AH LiFePO4 lithium-ion battery | size: | 650*430*450MM |
capacity: | 100AH | port: | Los Angeles, Seattle, Washington State, Lagos, Nigeria, Freetown, Sierra Leone, Mombasa, Kenya |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal and Credit Card | brand: | Wanhua Solar |
Protect: | battery management system | Voltage: | 51.2V |
Supply capacity: | 200 pieces per day | product name: | Home Powerwall Batteries |
Package preview: | Battery Type: | LiFePO4 lithium-ion battery | |
aspect: | custom size | Cycle life: | > 4000 cycles |
usage: | The Sun can generate system | Battery Type: | Li-ion, LiFePO4 |
model: | WHC51.2V100AH | Origin: | Guangdong, China |
Q | 51.2V | 51.2V | |
Nominal capacity | 100 Ah | 200 Ah | |
Capacity@20A | 10 hours | 10 hours | |
vitality | 5120 Wh | 10240 Wh | |
resist | ≤20mΩ | ≤20mΩ | |
efficiency | 99% | 99% | |
Discharge specification | |||
Maximum Continuous Discharge Current | 50A | 100A | |
Peak discharge current | 100A | 100A | |
Recommended cut-off voltage | 40V | 40V | |
Fee specification | |||
Recommended charging current | 15-30A | 30-50A | |
maximum. recharging current | 100A | 100A | |
Recommended charging voltage | 58.4V | 58.4V | |
Mechanical Specifications | |||
aspect | 430*550*165mm | 500*850*165 mm | |
weight | 45 kg | 93 kg | |
Protection battery type | IP21 | IP21 | |
case material | Metal | Metal | |
Prismatic | 16S1P | 16S2P | |
total cell number | 16 pieces | 32 pieces |
