WHC solar generator 500W 1000w 2000w, portable solar generator 5000w 10000w 20000w, solar power plant complies with CE&FCC&RoHS

Supplier: Guangzhou Whc Solar Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr CHAN
Price: $0.65 / 500 - 999 pieces
$0.53 / 1000 - 2999 pieces
$0.44 / >=3000 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Controller type:	MPPT	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Inverter:	Pure Sine Wave Inverter	model:	Solar Power Station
Service life:	10 years	product name:	solar generator
port:	Los Angeles, Seattle, Washington State, Lagos, Nigeria, Freetown, Sierra Leone, Mombasa, Kenya	brand:	WHC
Origin:	Guangdong, China	Battery:	lithium battery

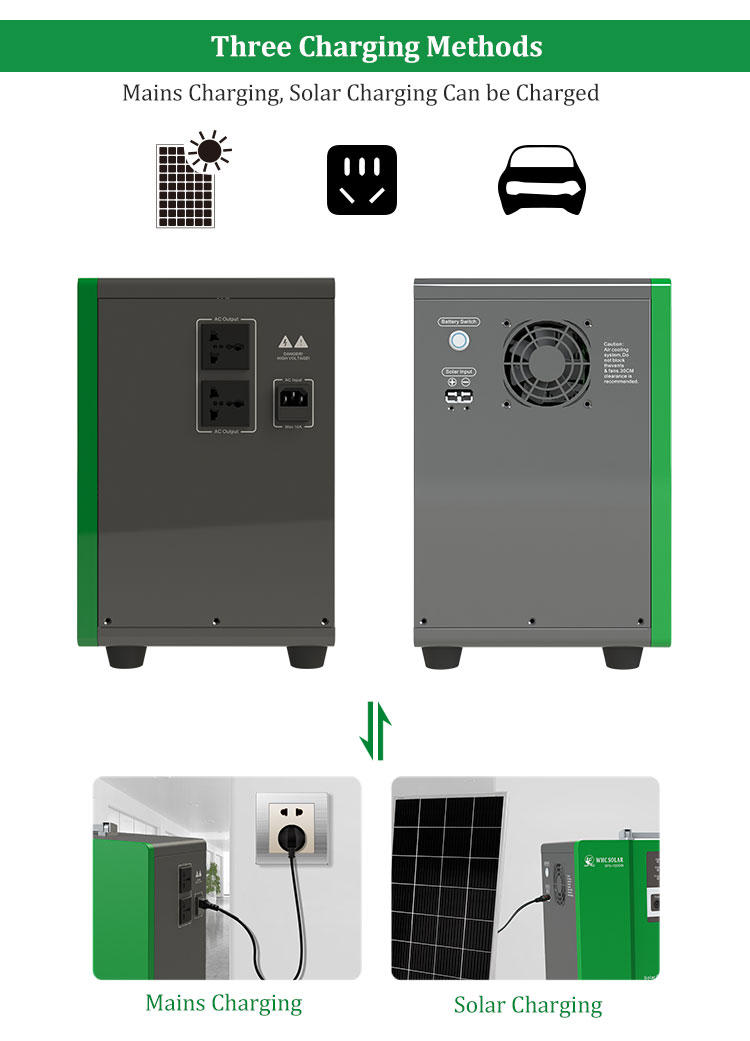

Energy source:	AC Adapter, Solar Panel	Key words:	solar generator
recharging current:	30A Maximum Power Tracking	Voltage:	12V-48V
Supply capacity:	200 pieces per day	Controller:	MPPT
usage:	home application outdoor	Package preview:
Battery Type:	lithium ion	capacity:	500W/1000W/2000W/3000W/5000W/10000W/20000W
Inverter type:	pure sine wave

Specification

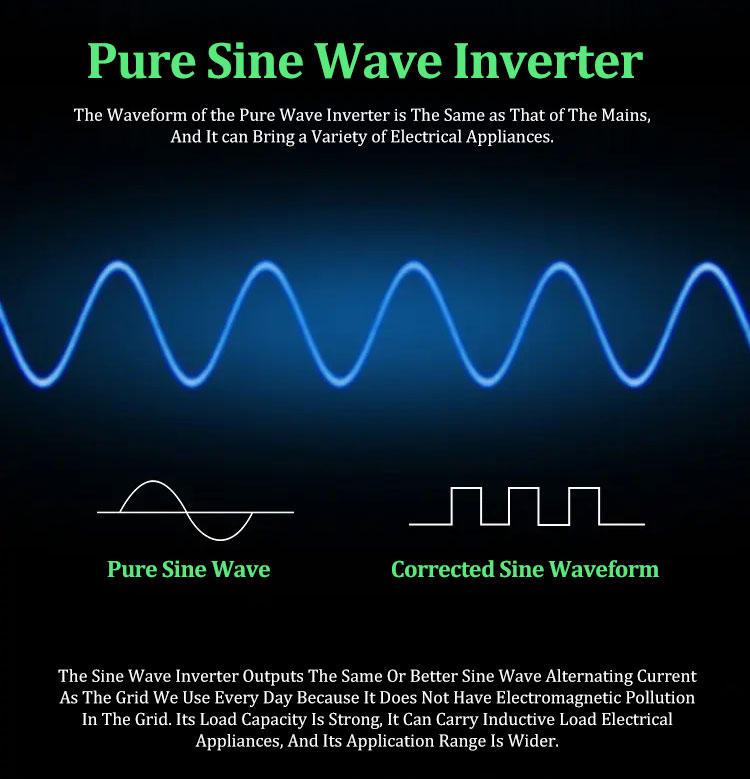

1. Pure sine wave inverter with dual CPU intelligent control technology

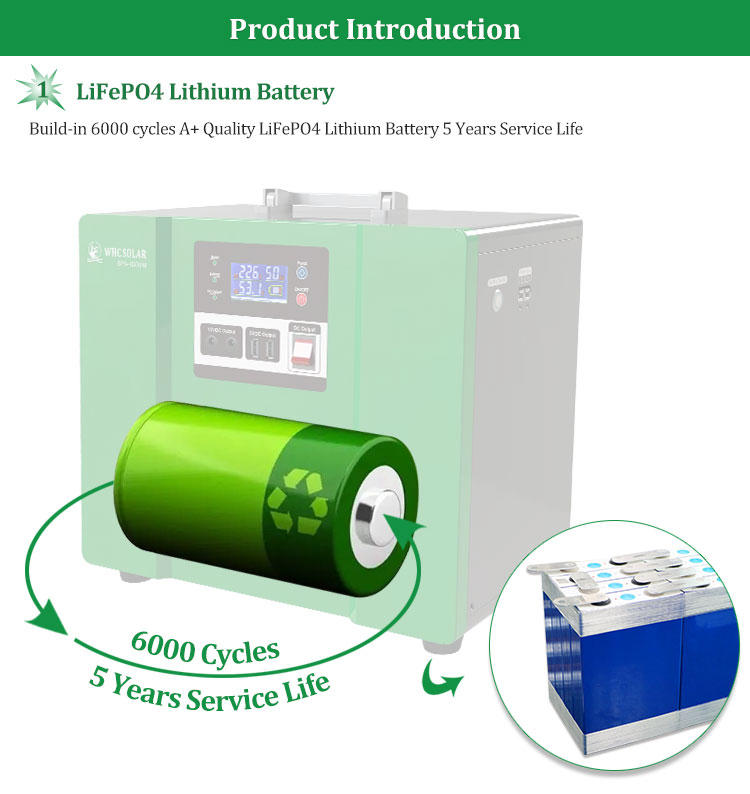

2. Built-in 6000 cycles A+ high-quality LiFePO4 lithium battery with 5-year service life

3. 100% full capacity inverter and battery

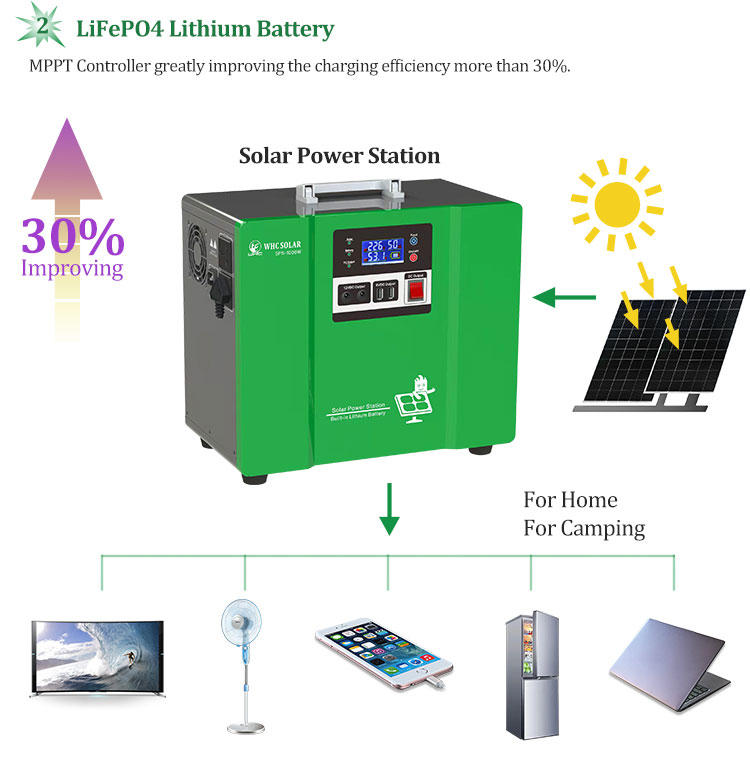

4. MPPT controller greatly improves the charging efficiency by more than 30%

5. Overcharge protection and over discharge protection, prolong battery life

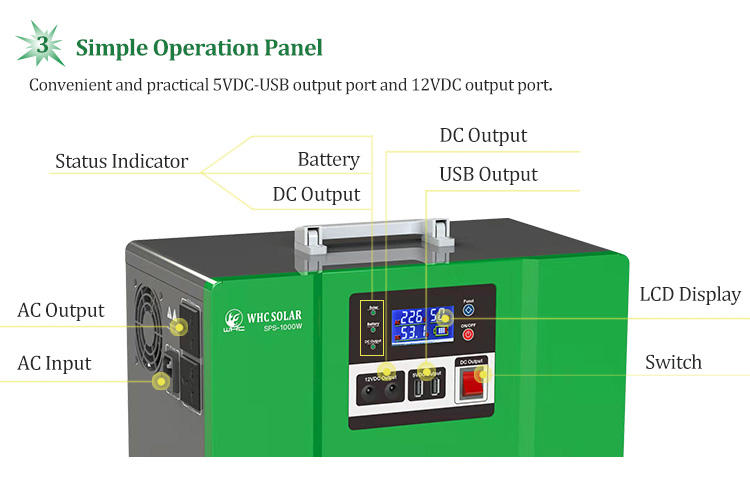

6. Convenient and practical 5VDC-USB output port and 12VDC output port

7. Comprehensive automatic protection and alarm functions such as AC output overload short circuit arc protection.

Model	SPS-500W	SPS-1000W	SPS-2000W	SPS-3000W	SPS-5000W
system voltage	12V	24V	24V	48V	48V
inverter
rated power	500W	1000W	2000W	3000W	5000W
Input voltage range	220-240V, 110-120V (optional)
The output voltage	220-240V, 110-120V (optional)
Output frequency	50/60 Hz
output wave	pure sine wave
Built-in lithium iron phosphate	640WH	1280WH	2560WH	2560WH	5120WH
solar input
maximum. PV	390W	780W	780W	1560W	1560W
Charging voltage range	18-55Vdc	30-55Vdc	30～150Vdc	60～150Vdc	60～150Vdc
Rated charging current	30A Maximum Power Tracking
Float voltage	13.7V	27.4V	27.4V	50.4	50.4
DC output
High voltage protection voltage	14VDC	28.5VDC	28.5VDC	57VDC	57VDC
Low voltage protection voltage	12VDC	24V DC	44.8VDC	44.8VDC	44.8VDC
5VDC USB output	2pcs/Max 2A
12VDC output port	2pcs/Max 2A
physical
heat dissipation/cooling	Intelligent exhaust fan temperature control
exhibit	digital LCD monitor
Charge	12V30A	24V30A			48V30A

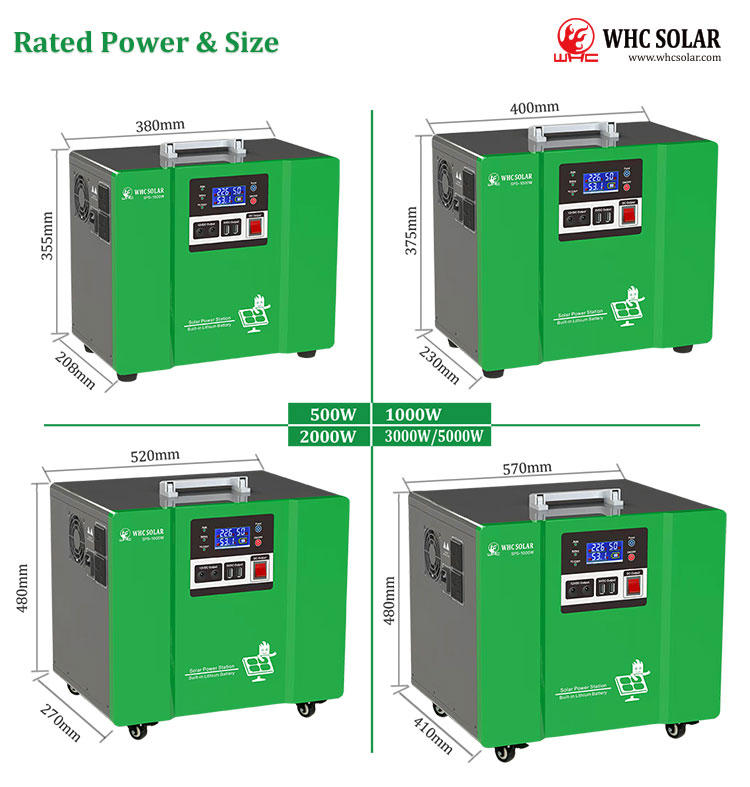

Box size (mm)	475300435	495325455	615365590	665585590
Box weight(Kg)	18.7	32.3	72.5	78	107
