Small diameter automatic paper straw making machine milk tea straw bending machine

Product details
port:Ningbo Portraw material:white kraft paper
Supply capacity:45 sets per month If you need it urgently, we can do our bestVideo outbound inspection:if
the inside diameter of:3.3mm-11.3mmMarketing type:2020 new products
brand:Gundamweight:1350
shape:U shapeShowroom location:not any
Packaging details:Wooden pallets and plastic filmVoltage:380V (can be customized)
strength:6kWpayment terms:Western Union, Letter of Credit, Wire Transfer
Core component warranty:1 yearWarranty:1 year
Applicable industries:Food and beverage factory, food store, food and beverage store, advertising agencyHealth status:new
Mechanical test report:ifDimensions (length*width*height):4000*1200*1600mm
Paper straw outer diameter:4-13mmPackage preview:
Place of origin:Zhejiang, ChinaCore components:PLC, motor, pump
Product Description

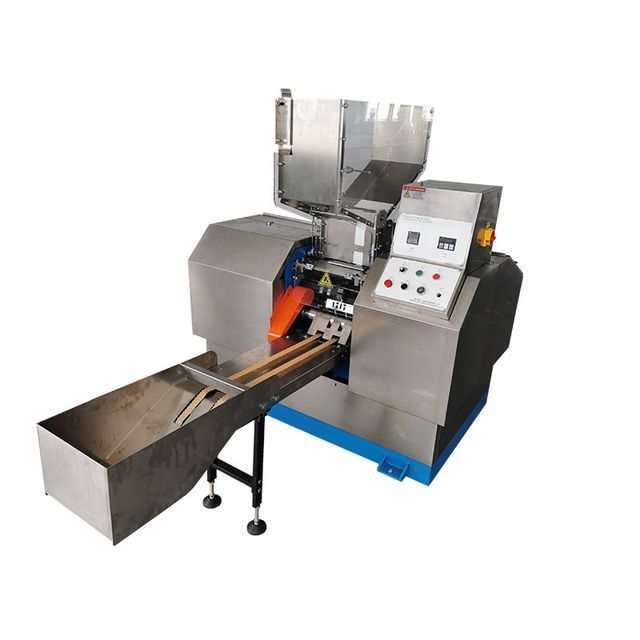

GD-Bend300
Paper straw bending machine
Its function is to turn a straight straw into a bendable, flexible straw. (Flexible paper straw making machine)
work process:
1) The operator only needs to put the straight paper straws into the hopper, then start the machine, and the flexible straws will automatically come out and land on the conveyor belt. 2) There are wheels and mold rods used to make indentations on the paper straw body. 3) Before pressing, a needle will be inserted into the hole of the paper straw to protect the paper straw from being over-pressed. 4) Finally, the flexible paper straws will come out on the conveyor belt. There are 2 types of indentation. One machine, choose 1 from 2.

feature
1) The whole process is carried out automatically;
2) High production efficiency, 1 operator, 150-250 pieces/minute;
3) Automatically counts how many paper straws have been used;
4) Touch screen, human-machine interface, easy to operate;
5) The production process is automatically counted and displayed on the touch screen. 6) Automatically shut down when failure occurs.
Specification
birthplace
China
Zhejiang
brand
Gundam
Health status
new
Video outbound inspection
if
Mechanical test report
if
marketing type
2020 new products
machine speed
0-250 pieces/minute
Straw inner diameter
3.8 mm
Straw outer diameter
4.5 mm
Straw length
150-240mm
engine
1.5kW
Wattage
380V/three-phase/50Hz
Machine size (length*width*height)
1900*1400*1600mm
Machine weight
1000kg
