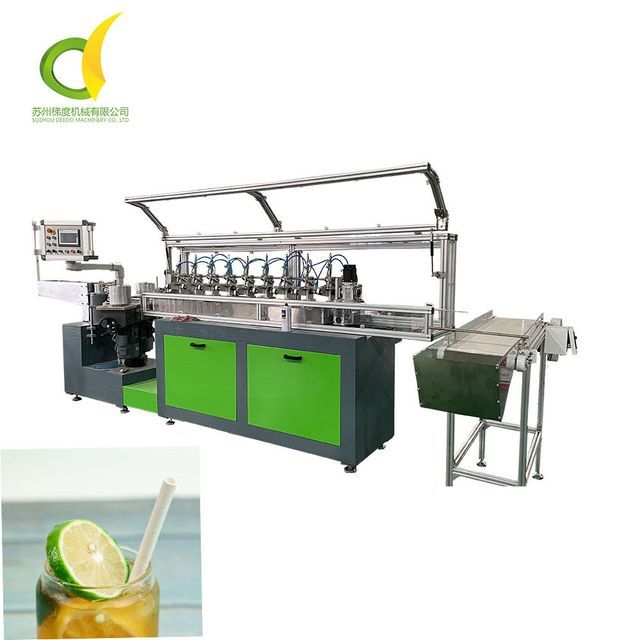

High speed automatic paper straw machine

Supplier: Suzhou Deedo Machinery Co., Ltd
Region: Jiangsu, China
Contact: Ms Julia Cao
Price: $39800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging details:	Fully automatic high-speed straw machine wooden box and wooden base	Warranty:	18 months
Mechanical test report:	if	Name:	Fully automatic high-speed straw machine
Supply capacity:	20 sets per month	Straight straw length:	80-1000mm
Voltage:	Depends on required	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
brand:	shiny straw	Dimensions (lengthwidthheight):	8000x5000x1900mm
port:	Shanghai	Cabinet electrical part:	ABB Siemens Schneider
weight:	1600	Showroom location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile , United Arab Emirates, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
Health status:	new	strength:	7kW
Straw thickness:	0.35±1mm	Core components:	PLC
speed:	250-500 pieces/minute	Marketing type:	Hot Products of 2022
the inside diameter of:	3.8mm-15.8mm	Core component warranty:	1 year
engine:	servo motor	After-sales service provided:	Engineers can repair machinery overseas
Place of origin:	Jiangsu, China	Video outbound inspection:	if
Cutting system:	Servo Control	Inverter:	ABB
Applicable industries:	Hotels, clothing stores, building materials stores, manufacturing plants, food and beverage plants, farms, restaurants, household, retail, food stores, print shops, construction projects, energy and mining, food and beverage stores, advertising agencies	Package preview:

product description

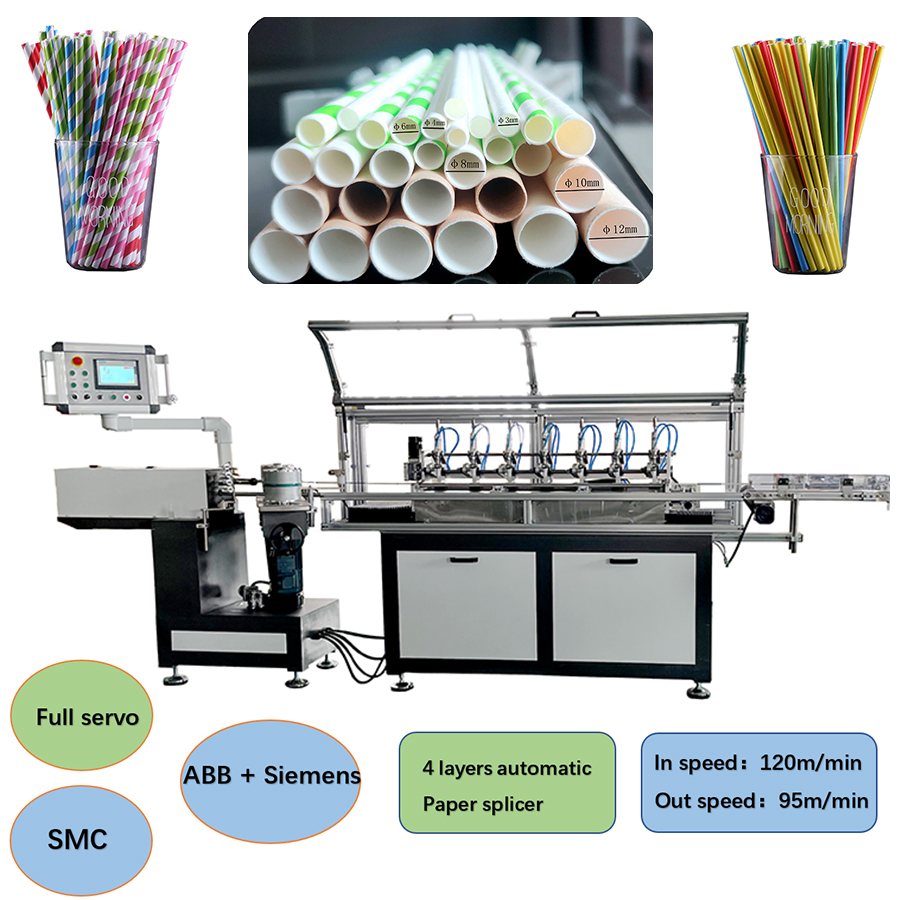

paper straw making machine

Shinestraw 550 stainless steel high-speed paper straw machine integrates paper feeding, gluing, rewinding and slitting.

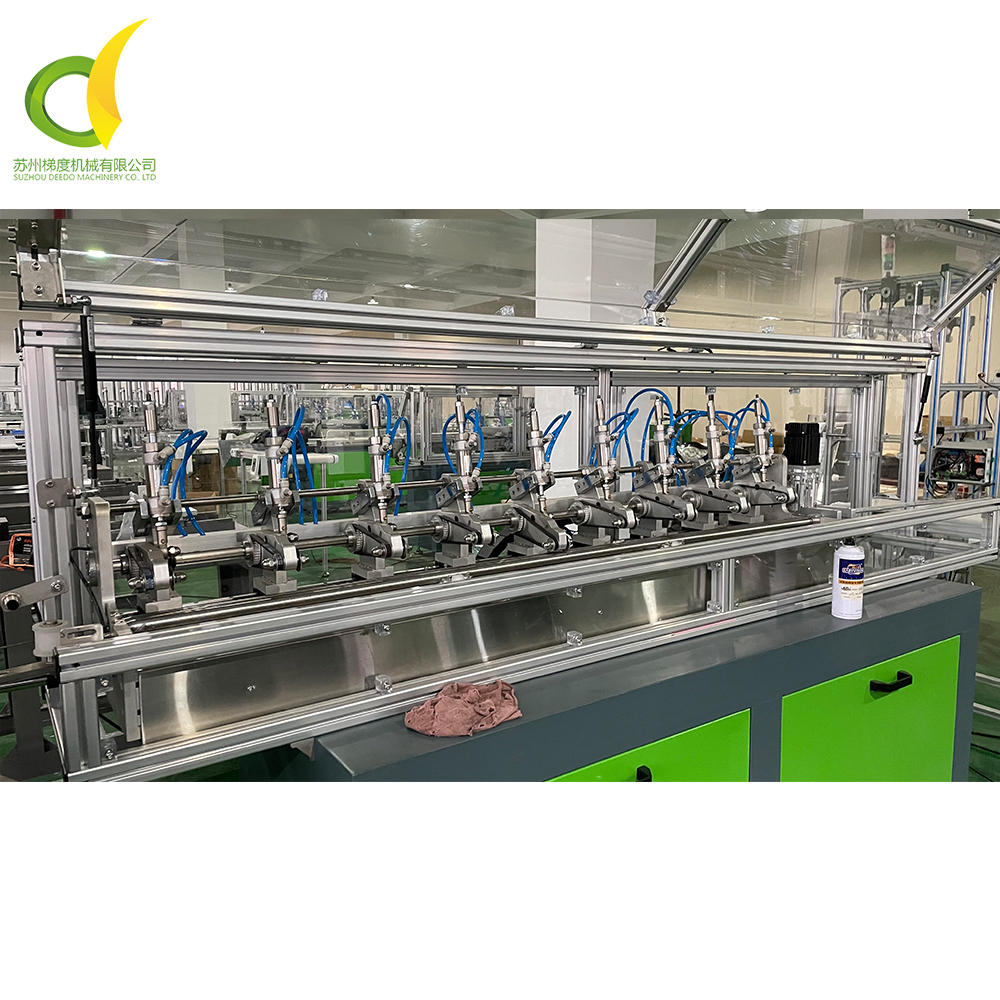

Equipped with a CNC multi-knife cutting system, it can cut finished paper tubes online. 4mm, 6mm; 8mm; 10mm, 12mm, etc.
1. This machine adopts PLC control, and the host machine is equipped with frequency conversion speed regulation.

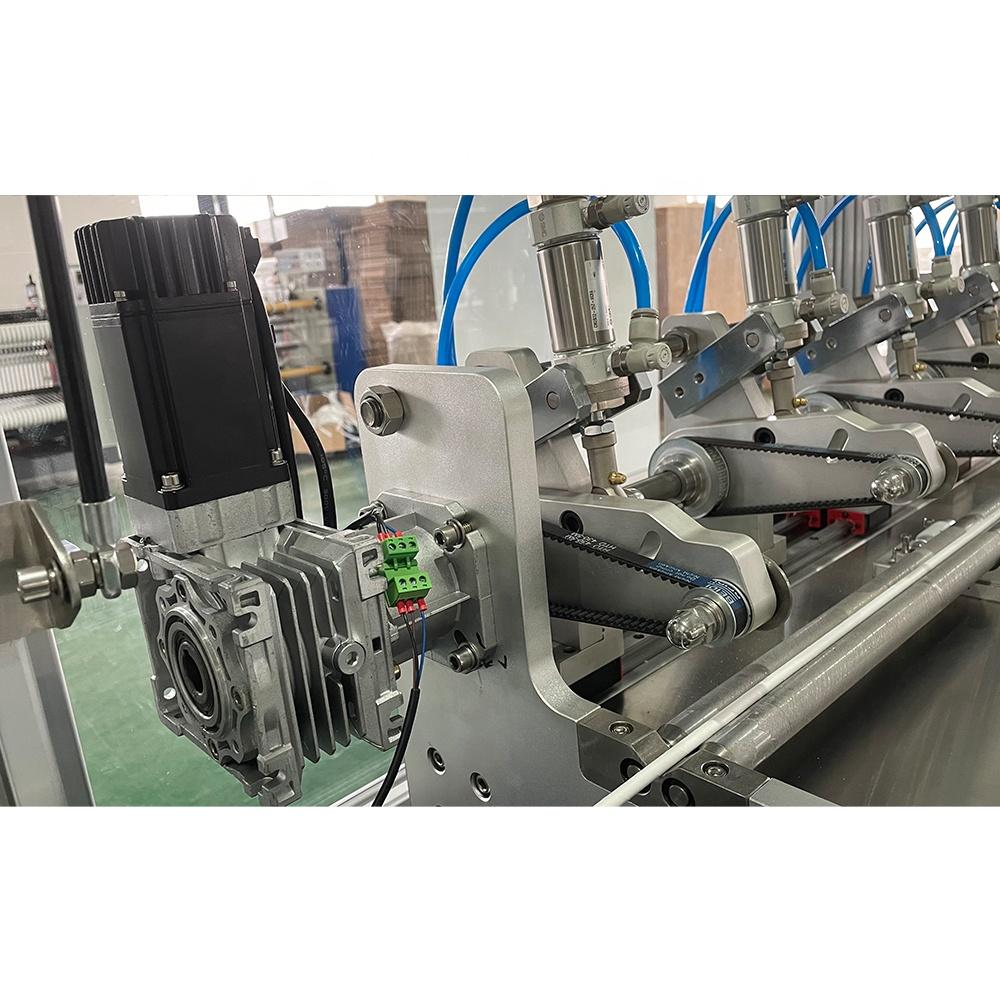

2. The cutting part adopts FUU-servo multi-knife cutting system, which can follow the motor for cutting simultaneously, with higher precision, saving time and efficiency.

Function overview

paper straw making machine

Paper straw diameter: 3-16mm

Servo motor: 3 pcs

server Driver:Taiwan TECO

Motion module PLC:custom made

Air pressure: 0.6MPa

Angel fix:Motor automatic

Fully automatic control

and ABB frequency converter

Production speed: 65-120m/min

Cutting blades: 6-9 pieces

product specifications

No	machine type	SS550
1	paper straws	3-5 floors
2	Paper straw diameter	Gear motor 3kw
3	Motor model and power	3 pieces
4	Servo motor brand	Taiwan TECO
5	Servo drive	Taiwan TECO
6	cutting blade	6-9 pcs
7	Cutting control	Servo control (Taiwan TECO)
8	maximum. Torque	500Nm
9	Winding head control	Frequency converter (ABB)
10	PLC touch screen	Siemens
11	Motion module PLC	custom made
12	speed control	inverter
13	Inverter brand	ABB Switzerland
14	Cutting pneumatic parts	Japan SMC
15	screw drive	Taiwan TBI
16	air pressure	0.5Mpa
number 17	angel correction	Motor automatic
18	Fixed length method	Coding (Brand: Omron)
No. 19	Airport space	6000mm×4000mm
