Drinking machine, paper straw making machine, paper straw making machine

Supplier: Suzhou Deedo Machinery Co., Ltd
Region: Jiangsu, China
Contact: Ms Julia Cao
Price: $19000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	18 months	After Warranty Service:	Video technical support
Mechanical test report:	if	the inside diameter of:	3mm-16m
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Packaging Preview:
Inverter:	ABB	weight:	1600
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	Flexible straw length:	150-245mm
brand:	shining straw	Video external inspection:	if
Supply capacity:	20 sets per month	Voltage:	depends on need
Cabinet electrical components:	Siemens Schneider	Straight straw length:	100-1000mm
Showroom location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile , UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia	place of origin; place of origin:	Jiangsu, China
Marketing Type:	Hot Products of 2019	speed:	250-420/min
strength:	5kW	port:	Shanghai
Core Components Warranty:	1.5 years	Dimensions (LWH):	6000x4000x1900mm
Health status:	new	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Engineering, Energy and Mining, Food and Beverage Stores, Others, Advertising company
Straw Thickness:	0.35±1mm	Packaging Details:	Wooden box and wooden base for beverage straw machine.
After-sales service provided:	Engineers can repair machinery overseas	motor:	servo motor

Product Description

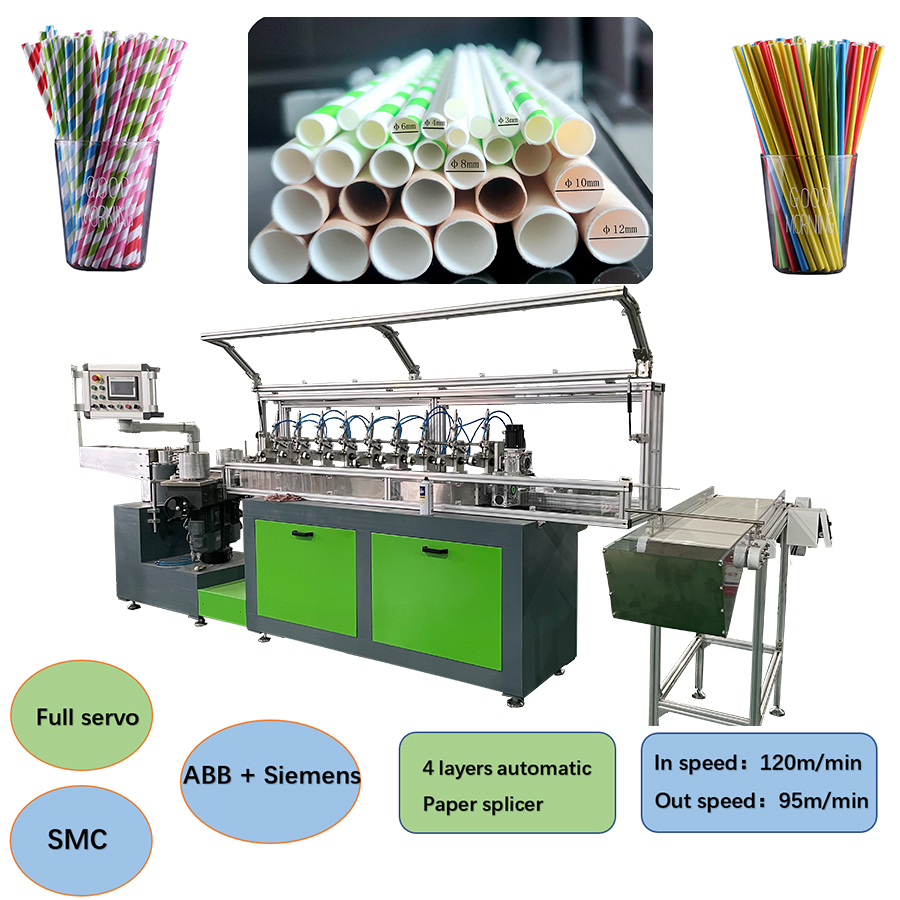

The paper straw making machine is suitable for producing different sizes of paper straws with a diameter of 3-16mm. Mainly used in the production of paper straws, refill tubes, electronic cigarettes, nail sand rings, balloon sticks and other machines. Straw paper machine 6-9 cutter system.
1. Adopt PLC controller; main motor adopts frequency conversion speed regulation; touch screen man-machine interface. Easy parameter setting and operation.
2. Cutter system, new structure of cutting cylinder. Easier adjustment of cylinder stroke when changing to a different cylinder
Diameter Die.
3. Automatic glue feeding function glue station, glue station heating and recycling function. Automatic glue spraying system (imported from American Valco
Melton).
4. Equipped with 3 sets of servo motors for left and right movement of the cutting system, supporting rollers and cutting knives.
5. The machine is equipped with intelligent centralized monitoring, and the production data can be imported into the user's ERP system
Facilitate the collection of production data.
6. Remote detection function, the machine can be remotely diagnosed and repaired through the Internet, and the after-sales service is simpler.
7. Paper straw machine automatic paper roll connection function hanging bracket, automatic splicer, 3-5 layers.
8. The main electrical components are selected from famous brands, such as main servo motor, servo motor driver, frequency conversion charger.

Product parameters

1	machine type	Stainless Steel 550
2	paper straws	3-5 layers
3	Paper straw diameter	3-16 mm
4	Paper straw length	5cm-120cm
5	Motor model and power	Geared motor 3kw
6	machine speed	85-120m/min in paper
7	machine speed	Paper output 65-105m/min
8	servo motor	3
9	Servo motor brand	TECO Taiwan
10	server Driver	TECO Taiwan
11	cutting blade	7-9
12	cutting control	Servo control (TECO.TAIWAN)
13	Winding head control	Inverter (ABB)
14	PLC touch screen	Siemens
15	Motion Module PLC	custom made
16	speed control	Inverter
17	Inverter brand	ABB Switzerland
18	Cutting pneumatic parts	Japan SMC
19	screw drive	TBI.Taiwan
20	air pressure	0.5 MPa
twenty one	Angel Correction	Motor automatic
twenty two	fixed length	Code (Brand: Omron)
twenty three	machine area	6000mmx6000mm

detailed picture

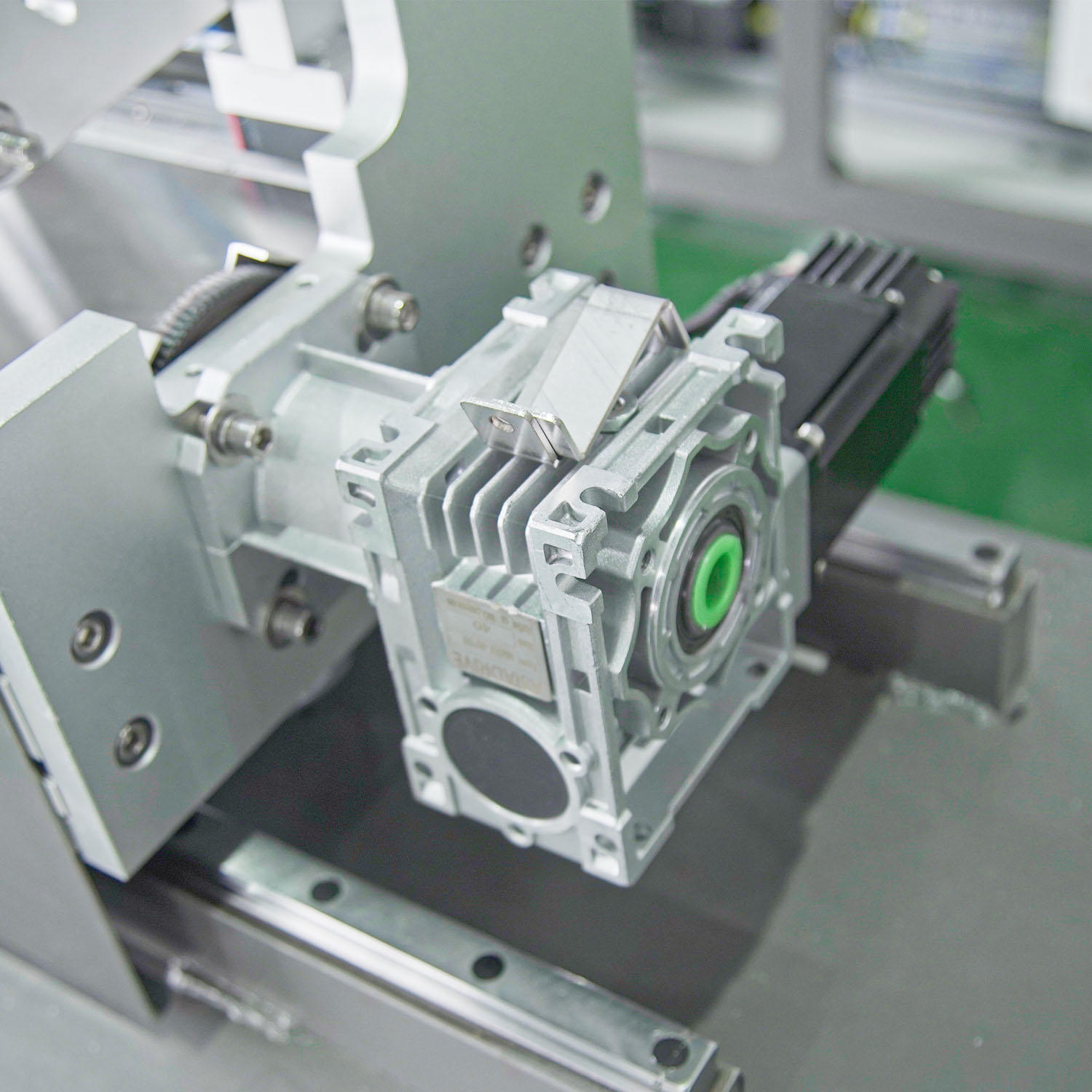

TECO Servo

cutting blade

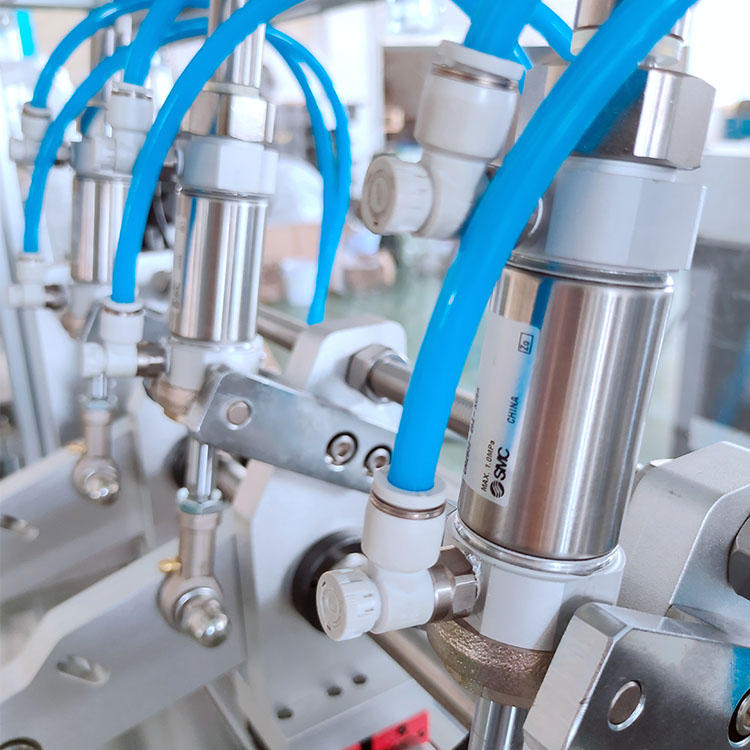

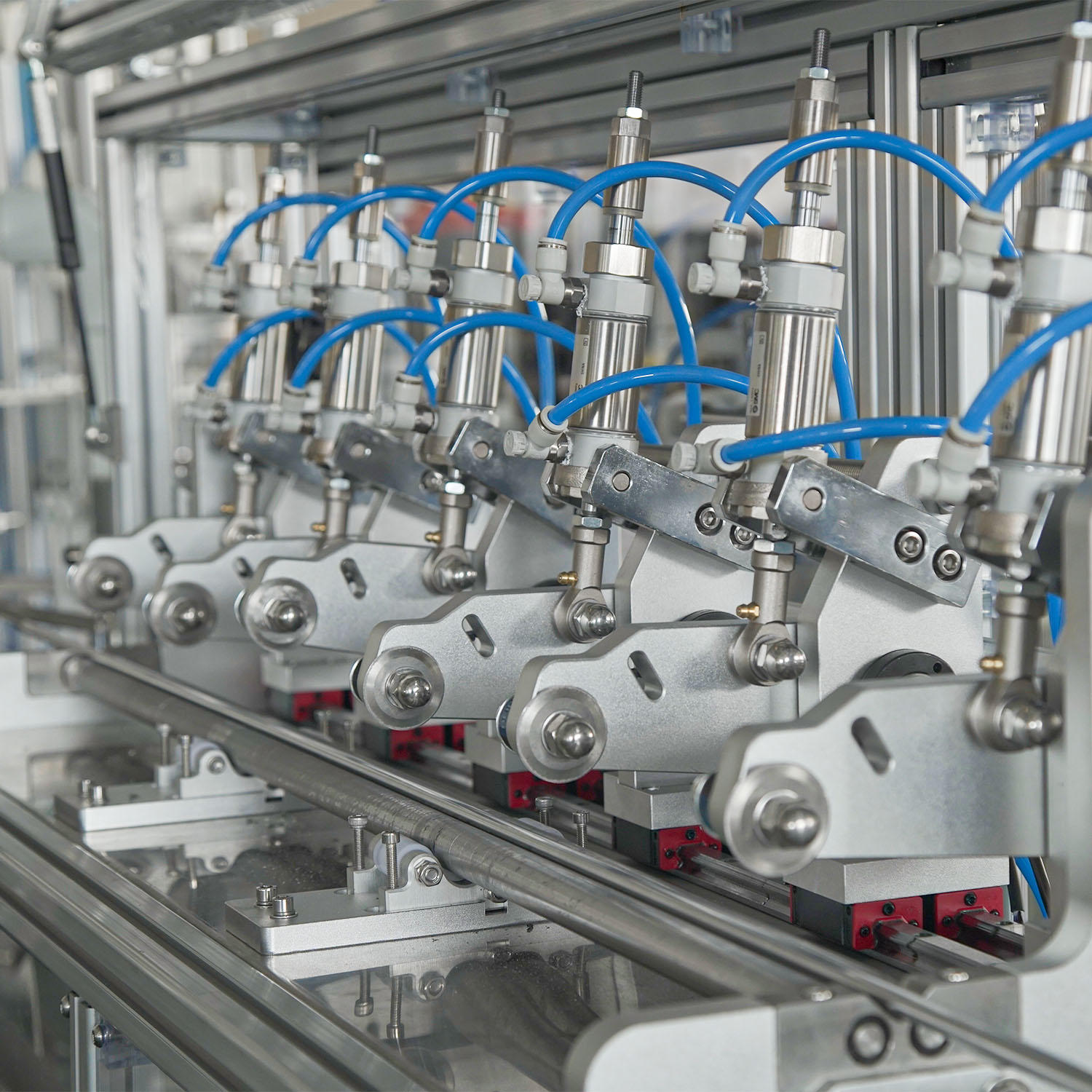

SMC cutting cylinder

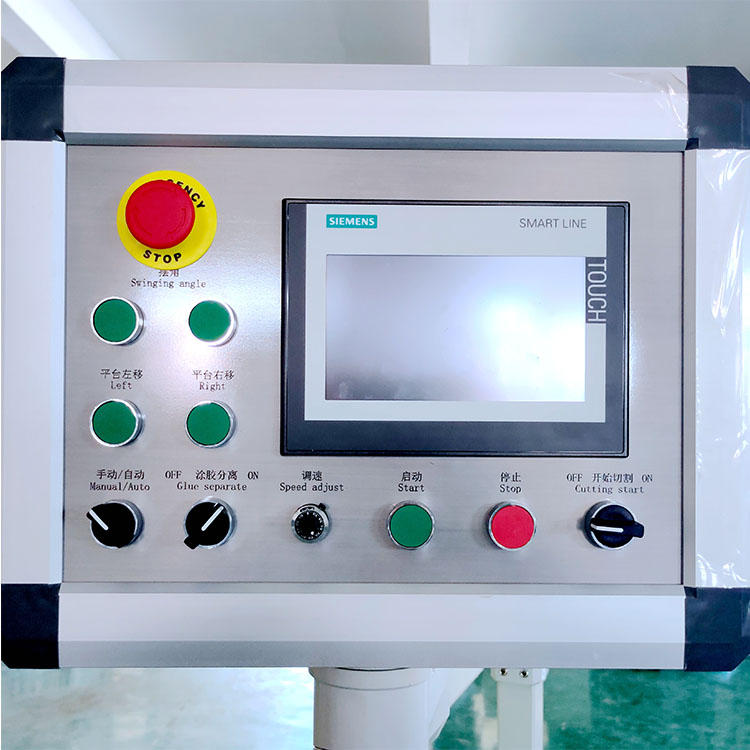

Siemens PLC touch

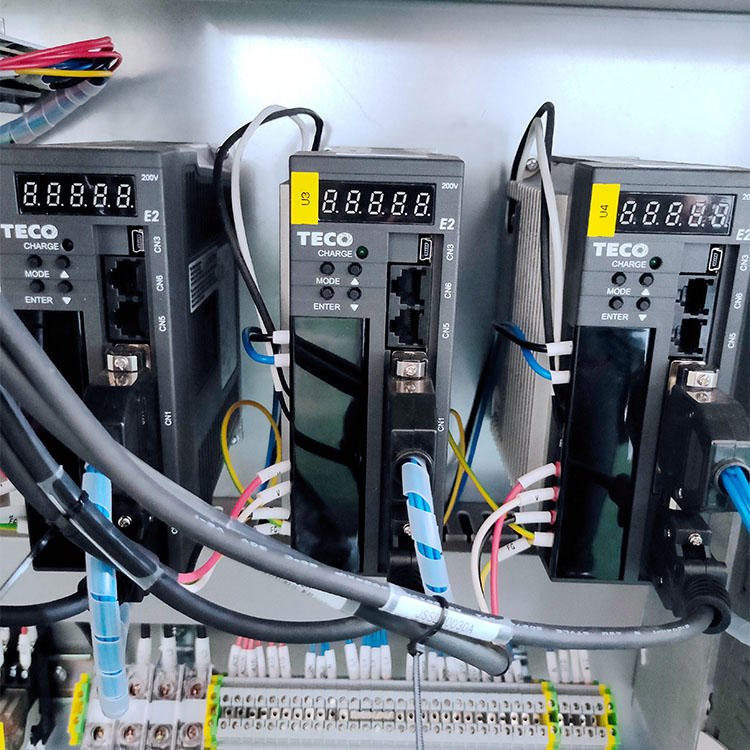

Servo system Teco Taiwan

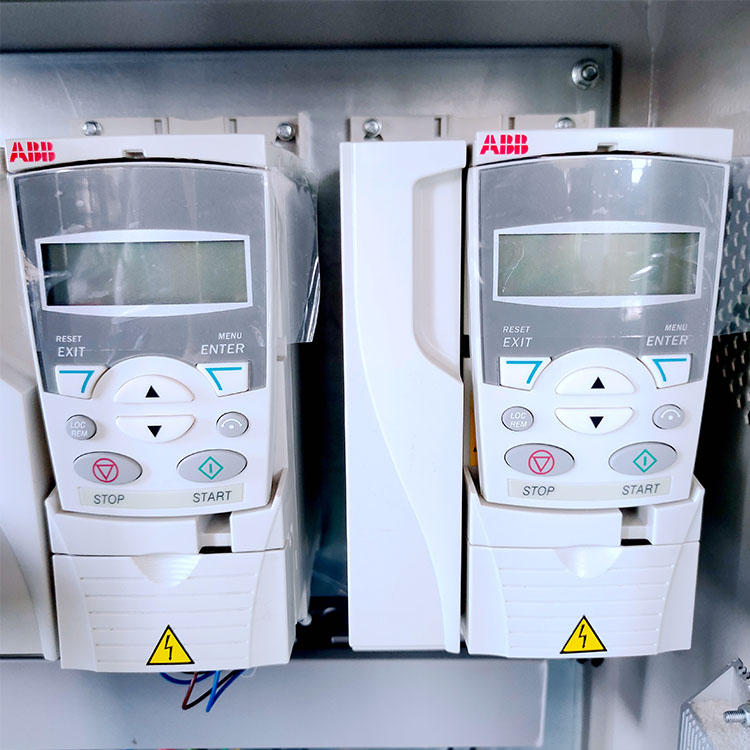

ABB inverter

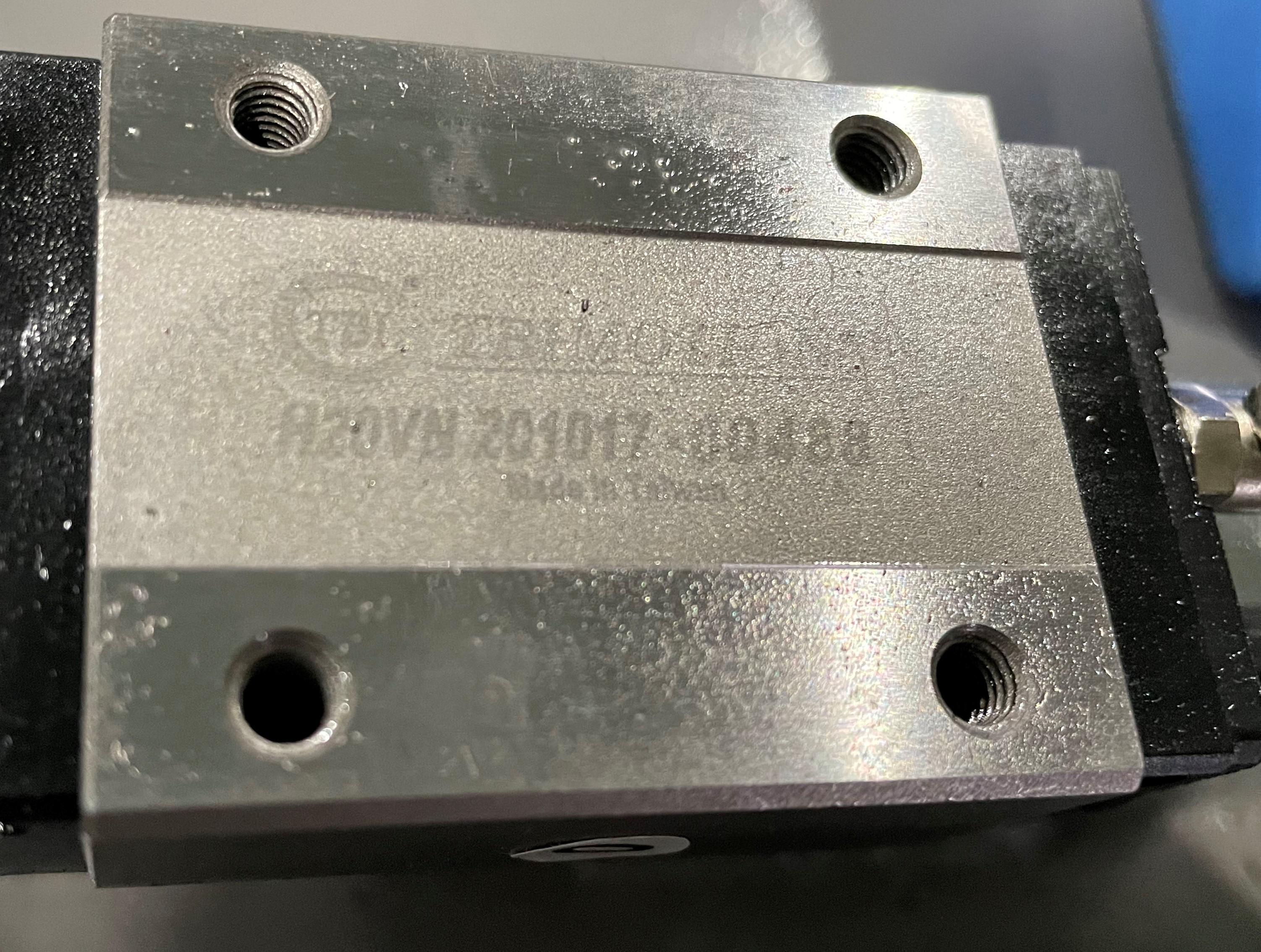

TBI lead screw

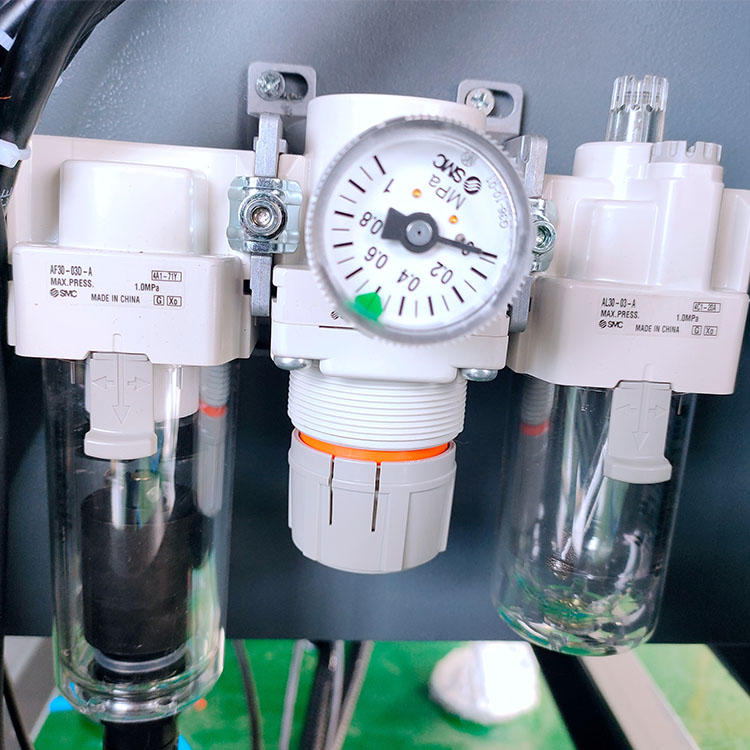

Japan SMC cutting pneumatic

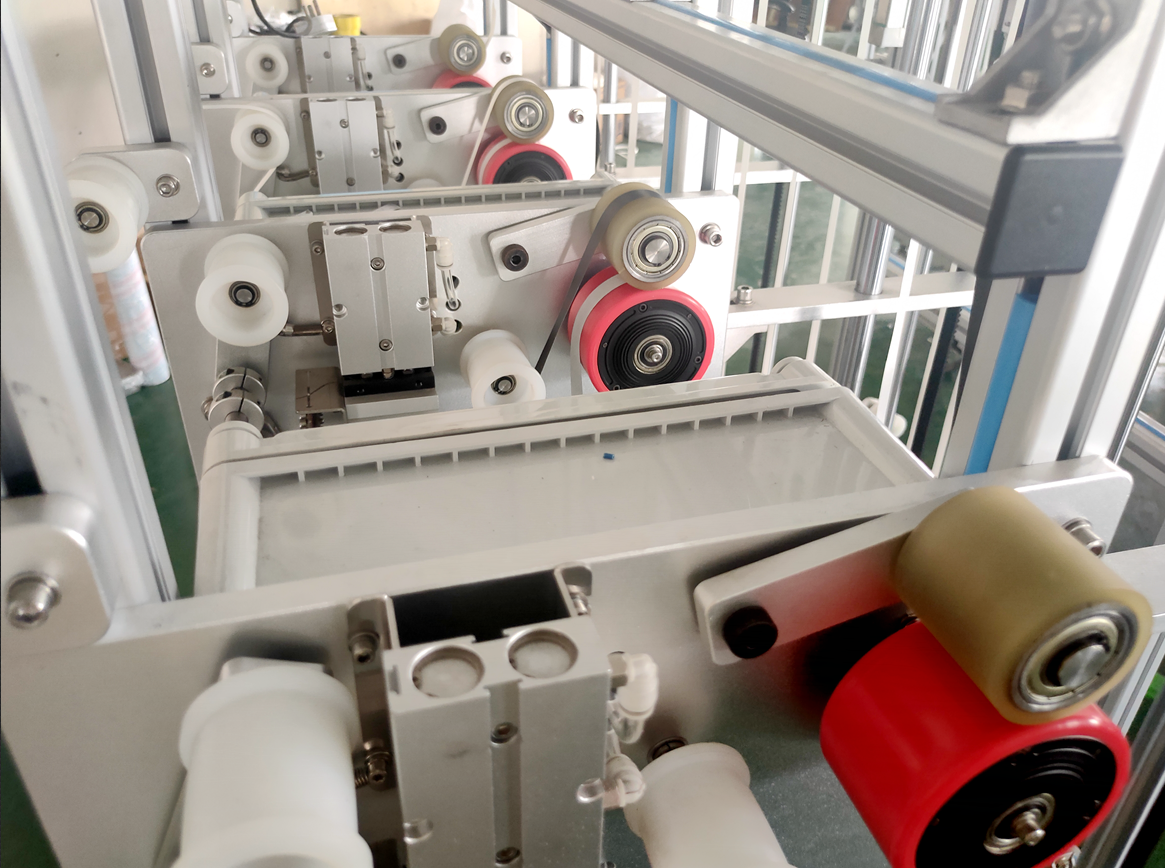

constant tension

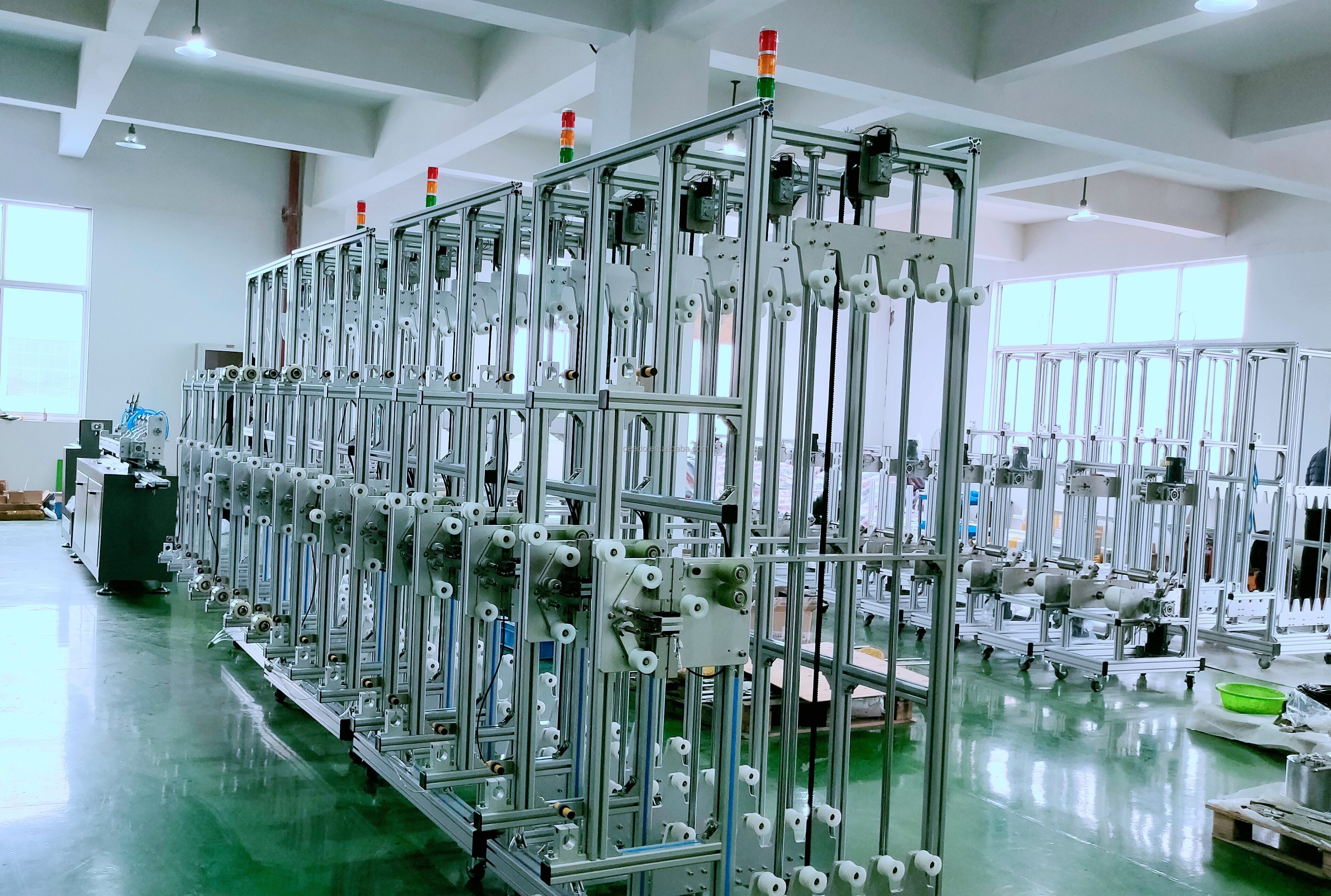

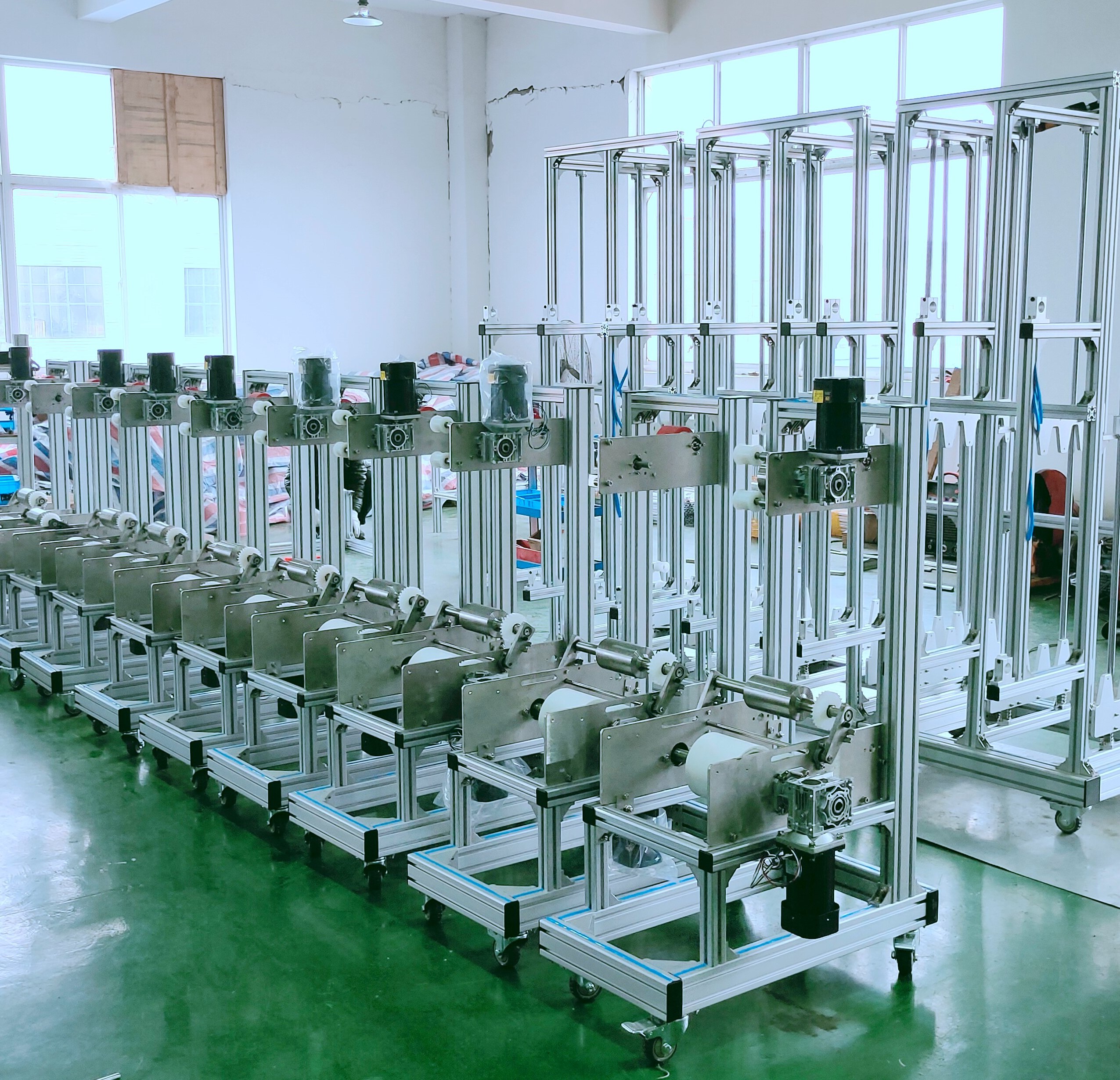

Automatic splicing paper holder, constant tension, faster and more stable.

main feature

1. The machine can be remotely linked in the later stage, and the system software program can be updated online
2. The minimum pipe diameter can reach 3mm.
3. Full servo control. Adopt Taiwan TECO full servo motor.
4. The cylinder is SMC. The frequency converter is from ABB in Switzerland, and the display is from Siemens in Germany.
5. Automatic paper change. It will be simpler, faster and easier to operate.
6. All motors are deployed inside the machine, easy to clean external hygiene.
7. With the simplest transmission principle, the frequency of user maintenance is minimized.
8. We have two alarm systems, one is jammed, the other is broken, or other machine problems, the machine will stop automatically.
9. Automatic straw machine, we have our own patented technology.

10. The best thing we do is after-sales service. The pre-sales and after-sales personnel can contact at any time, and we will reply as soon as possible.
