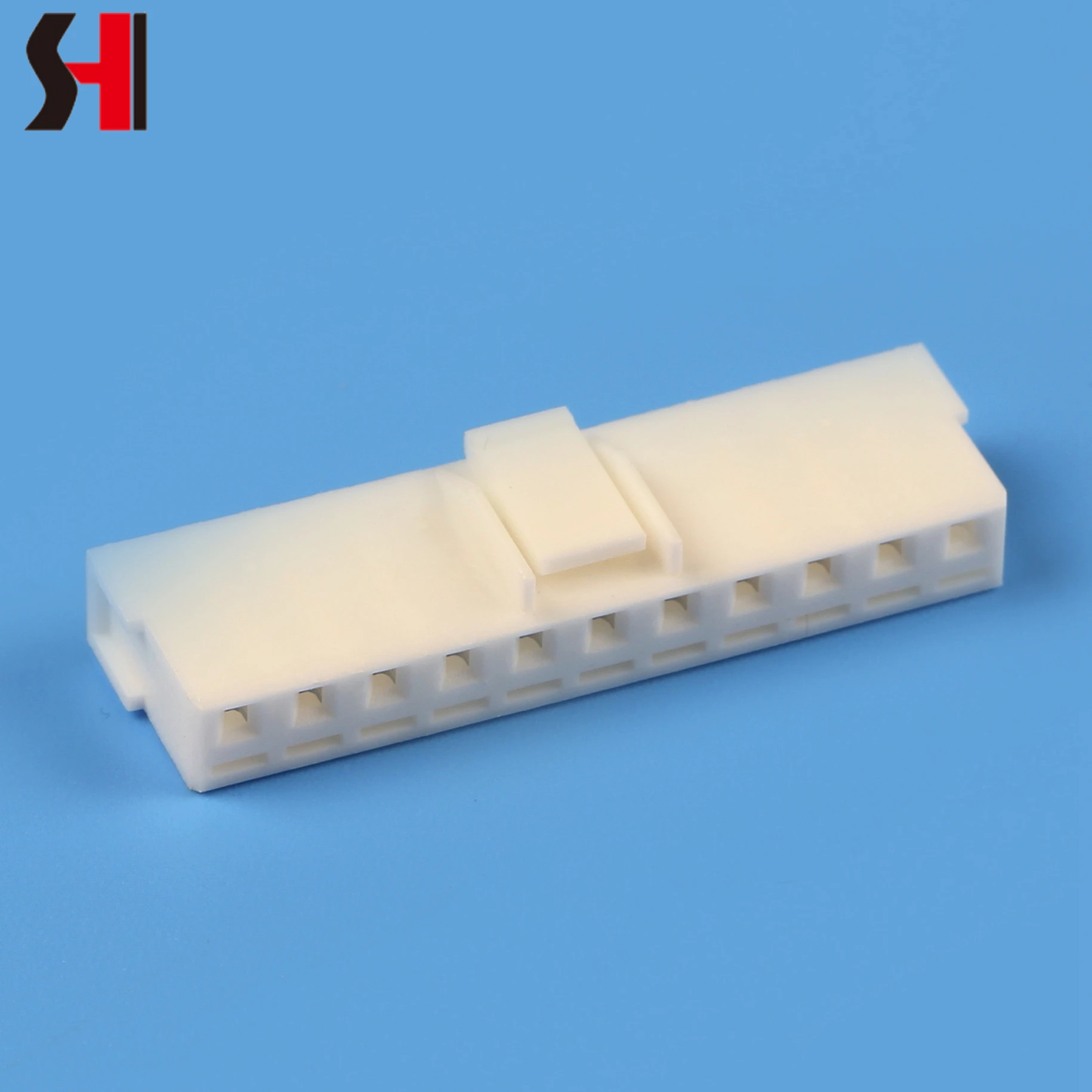

MOLEX SPOX 35156 3.96MM pitch 11pins wire to board electrical pcb terminal alternative connector equivalent male housing

Supplier: Zhejiang Shenghui Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Iris Zheng
Price: $0.04 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Material:	Nylon 66 UL94 V-0;	Place of Origin:	Zhejiang China (Mainland);
Poles:	11;	Supply Ability:	1000000 Piece/Pieces per Month;
Port:	NINGBO/SHANGHAI;	Applicable wire:	AWG #24 to #18;
Current rating:	7.0A AC.DC;	Payment Terms:	L/C,T/T,Western Union,PAYPAL;
Temperature:	-25 to +85;	Model Number:	MOLEX 35156/SH39603-11y;
Certificate:	UL.TUV.ROHS.CQC.NQA;	Type:	ADAPTER;
Voltage rating:	250V AC.DC;	Withstand voltage:	1500V AC/MINUTE;
Application:	Power;	Brand Name:	sheng hui;
Insulation Resistance >:	1000MΩ;	Contact Resistance <:	15mΩ;
Packaging Detail:	We use good quality lucid bag ,1000pcs/bag.Outer package is 5 lelves export carton .;	Gender:	Male;

Product Description

item	MOLEX SPOX 35156 3.96MM pitch 11pins wire to board electrica pcb l terminal alternative connector equivalent male housing
Poles	11
current rating	7.0A AC,DC
Voltage Rating	250V/AC.DC
Temperature Range	-25℃ TO +85℃
Contact Resistance	≤15mΩ
Insulation Resistance	≥1000MΩ
Withstand Voltage	1500V AC/MINUTE
Applicable Wire	AWG #24 TO #18
Housing Material	PA66 UL94 V-0
Certificate	UL.ROHS.CQC.NQA.TUV
