Place of Origin: | Liaoning China (Mainland); | Driving mode: | 4x2; |
Max. Speed(km/h): | 80; | Dimensions (L x W x H) (mm): | 7440X2140X3450; |
Brand Name: | kaifan; | Internal Size(mm): | 1000x650x1100; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; | Supply Ability: | 500 Set/Sets per Year Fire Truck; |
Fuel Type: | Diesel; | Packaging Detail: | Fire Truck:payment methods: varies from place to place standard export package; |
Max. Working height: | 18000; | Max. Working radius: | 10670; |
External dimensions: | 7440X2140X3450; | Port: | SHANGHAI; |
Adjustment: | Single adjustable; | Rated loading: | 200 (or 2 persons ); |
Condition: | New; | Emission Standard: | Euro 4; |
Structure type: | 3-section telescopic boom; | Type: | 18m insulated; |
Transmission Type: | Manual; |

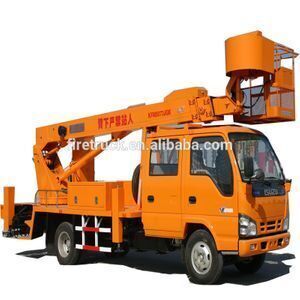

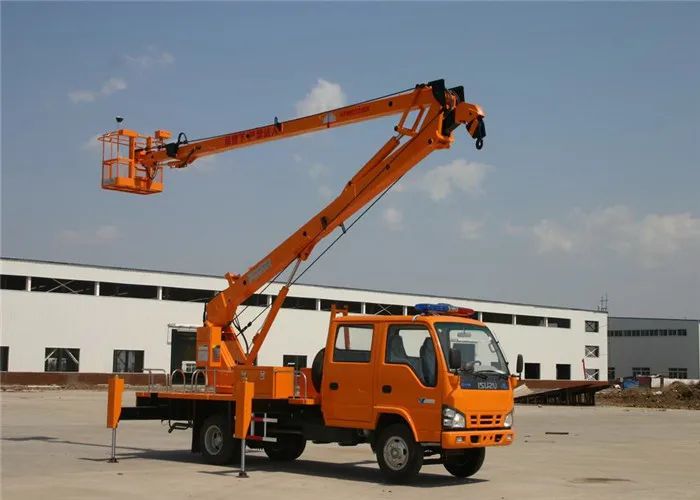

1,Main Parameters
Bulletin No. | KFM5073JGK | |
Type | GKS-18Q | |
External dimensions(mm) | 7440×2140×3450 | |
Structure type | Three-section telescopic boom | |
Working Cage | Internal size(mm) | 1000×650×1100 |
Rated loading(kg) | 200(or 2 persons) | |
Max. Working height(mm) | 18000 | |
Max. Height from ground(mm) | 16300 | |
Rotation angle(º) | Left 90 º, right 90 º | |
Max. Working radius(mm) | 10670 | |
Working radius when doing the highest height(mm) | 4500 | |
Working Boom | Lifting angle(º) | -15~75 |
Out rate speed(mm/sec) | 8500/50 | |
Ret rate speed(mm/sec) | 8500/50 | |
Boom rack rotation angle(º) | 360 | |
Boom rack rotation speed(r/min) | 2 | |
Outrigger | Vertical span(mm) | 4000 |
Horizontal span(mm) | 3800 | |
Traveling of vertical outrigger(mm) | 550 | |
Adjustment | Single adjustable |
2,Chassis Introduction
Traveling Performance Parameters | Chassis model | ISUZU NKR77LLWCJAY |
Persons | 2+3 | |
Axle base (mm) | 3815 | |
Wheel base (front/rear)(mm) | 1504/1425 | |
Driving mode | 4×2 | |
Front suspension(mm) | 1015 | |
Rear suspension(mm) | 2340 | |
Approaching angle(º) | 24 | |
Departure angle(º) | 10 | |
Max. Grade ability(%) | 30 | |
Min. Turning diameter(mm) | 18000 | |
Min. Ground clearance(mm) | 190 | |
Engine | Engine model | 4KH1-TC |
Rated power(kw/r/min) | 96/3400 | |
Torque(N,m/r/min) | 280/1700 | |
Max. Speed(km/h) | 80 | |
Gas consumption per one hundred miles(diesel oil) (L) | 11 | |
Specification of the tire | 7.50-15 | |
The whole weight(kg) | 6484 | |
Max. Weight with whole loading(kg) | 6809 |
3,Equipments Introduction
1. ISUZU NKR77LLWCJAY
2. Working boom assembly
3. Rotation structure assembly
4. Body transformation assembly
5. Extending outrigger
6. Spare type & tool box
7. Hydraulic system assembly
8. Electric system assembly
9. Safety control system
1, Q: Why should we choose you ? |
A: We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting. |
B: We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur |
C: We have our own R&D team, production workshop, QC management team, international marketing team and after service team. |
D: We will provide the most professional and the best service on every business discussion and operation procedure. |
E: We can provide special design for different specification requirement according to different orders or tender documents. |
G: We have jointed ventures with Morita for 4 years, so the technology, design and quality are same with Morita. |
H: We have collaboration with various top enterprises of fire protection sector, Such as Darley, Rosenbauer, HALE, AKRON, Ekhart, etc. |
I: Our Certifications: ISO, TUV, CCCF, SONCAP, CNAS, SGS,MH /T5002-9, MEP, CQC. |
2, Q: What's your Payment method? |
A: T/T 30% deposit, balance will be paid by T/T before delivery |
B: 100% L/C before start production |
3, Q: What logistics ways we can work for shipment? |
A:We can ship fire trucks by various transportation tools |
B:We will go by sea to all main continents such as South America, Middle East, Africa, Oceania and Europe etc. |
4, Q: What's the delivery time? |
A: 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model. |
B: ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit. |
C: European brand chassis 9 months upon receipt of advance deposit. |
5, Q: Can you provide the ISO9001 certificate or some others related? |
A: Yes. We have been exporting fire trucks for years. Rich experience for exporting to different countries like African market, Russia and South America. This helps us to know the importance of handling with various certificates. |

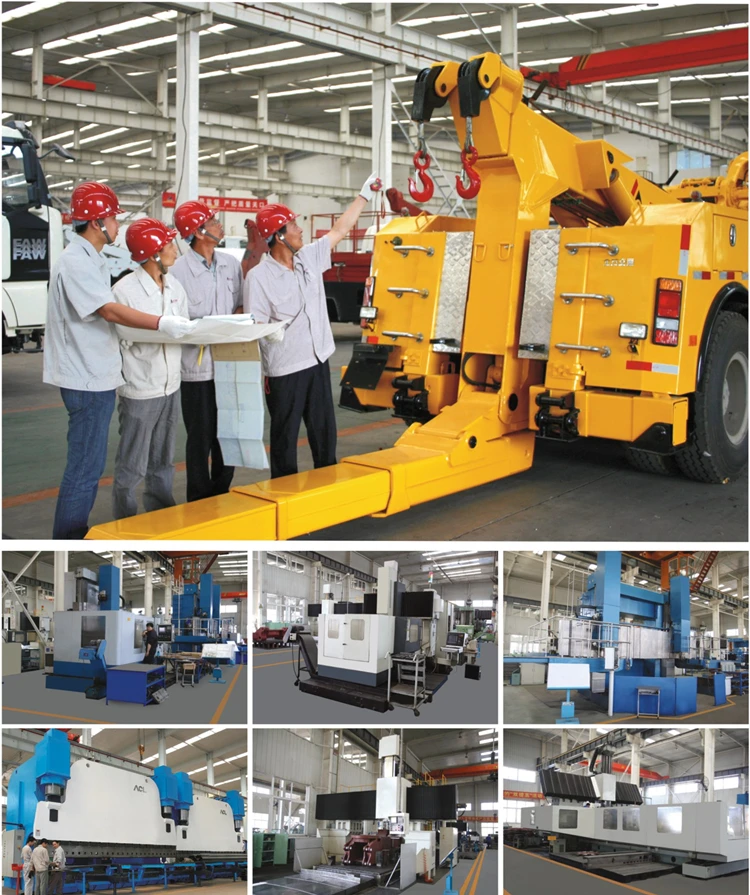

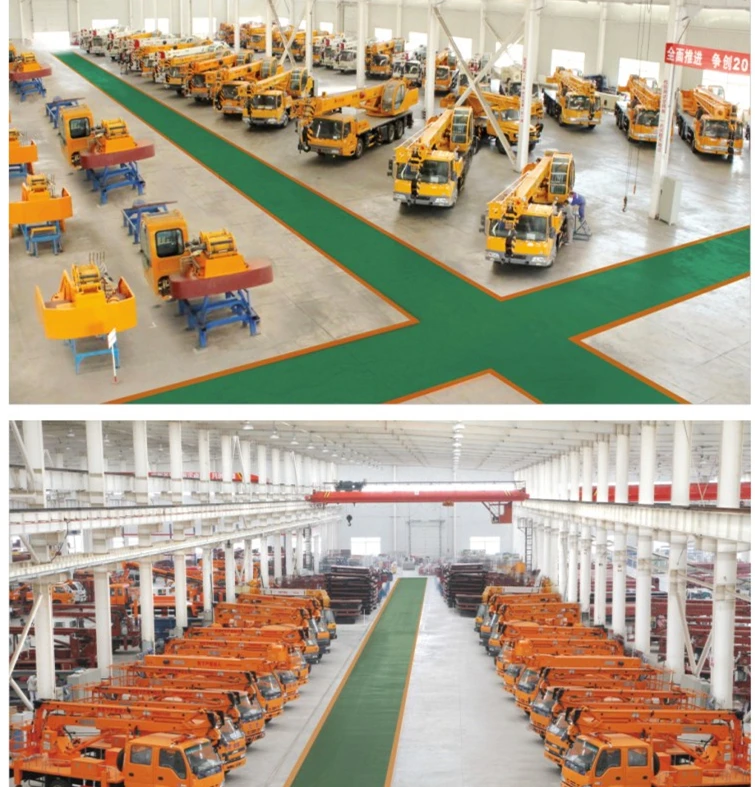

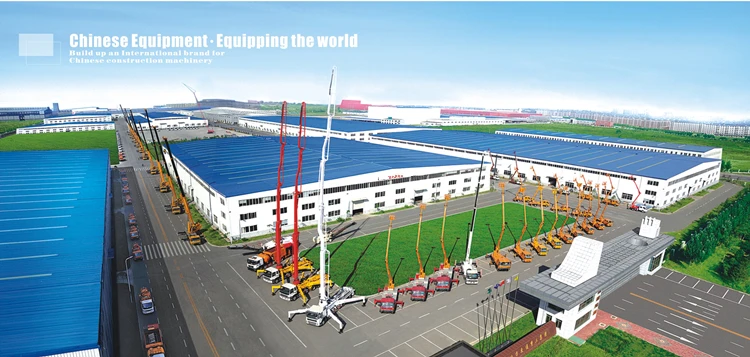

Shanghai Jindun is a professional fire protection enterprise,one of the largest fire protection equipment and fire fighting vehicle manufacturer.Our company owns a first-rate ultra-large modern factory, internationally advanced processing equipment, domestic and foreign sales networks and a powerful service system, gathers many top technicians and industrial experts, and has 112 types of products, including CAFS fire trucks, water tank foam trucks, rescue vehicles, gas supply vehicles and other general fire trucks.Our Company will give you best products and best service.
