Commercial 110W 24 GPM UV Water Purification System for Algae Growth Prevention UV

Supplier: Dino Purification Equipment(Guangzhou) Co., Ltd.
Region: Guangdong, China
Contact: Mr Allon Wei
Price: $295.00 /set
Min. Order: 1 set

Click here to contact

Product details

Lamp power:	55 watts*2	Year:	2022
Applicable industries:	Hotels, manufacturing plants, food and beverage plants, farms, restaurants, household, retail, food stores, print shops, food and beverage stores	strength:	110 watts
productivity:	5.4 cubic meters/hour	Place of origin:	Guangdong, China
weight:	9kg	Inlet and outlet diameter:	1" male
Showroom location:	not any	application:	water purification system
Mechanical test report:	not available	operating hours:	8001-10000
port:	Guangzhou, Shenzhen, Shanghai	Weight (kg):	9kg
Supply capacity:	1,000 sets per month	Packaging details:	Packing type Water treatment UV filter Single package size: 102.522.442 cm Single gross weight: 11 kg
aspect:	102.522.442cm	Video outbound inspection:	not available
Core components:	ultra violet light	payment terms:	L/C, Western Union, T/T, PayPal
flow:	24 gpm	product name:	Fish pond UV filter

Product Description

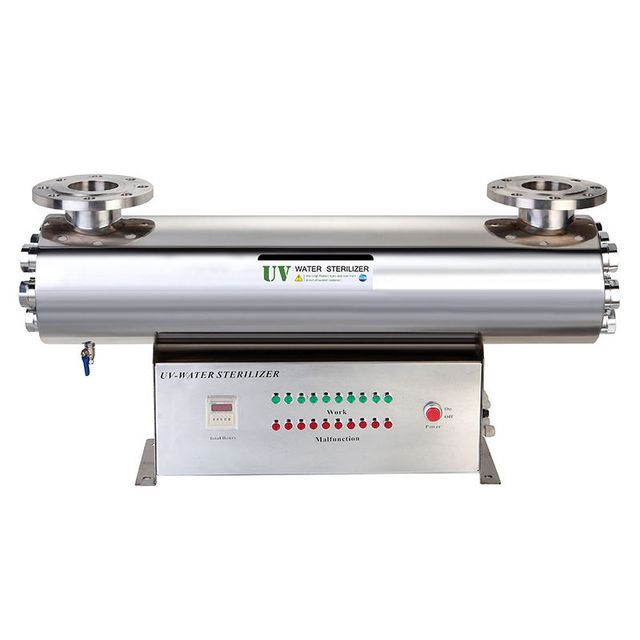

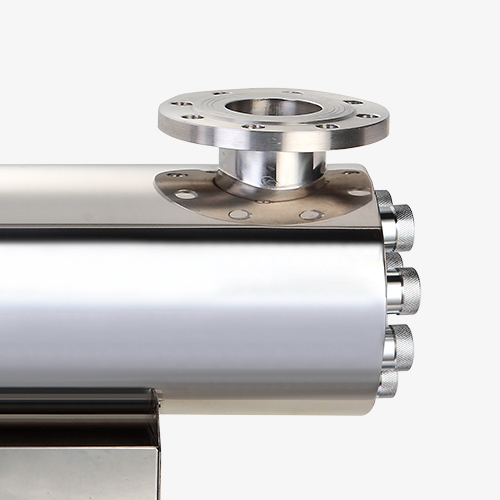

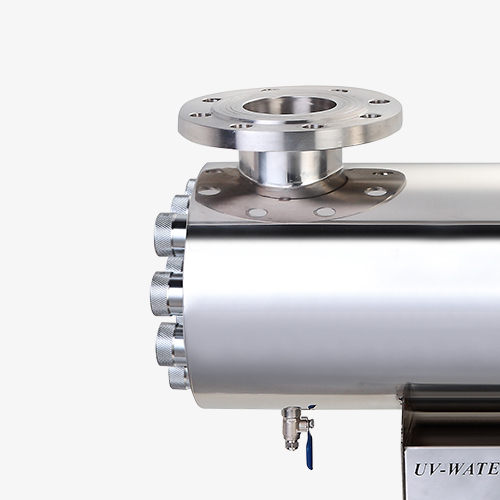

The inside and outside of the UV sterilizer are made of 304SS# stainless steel, and the inside and outside of the main body are polished to enhance UV irradiation. It is assembled with high-purity quartz tubes and combined with special ultraviolet lamps for water treatment. It has strong sterilizing power, long life, stable and reliable operation, and sterilization efficiency greater than 99.99%.

feature

Effective

99.99% destroys bacteria (e.g. E. coli), viruses and protozoan cysts.

safe

No chemical residue.

simple

easy installation. Audible and visual alarm indicators for lamp failure.

economy

Low maintenance cost and easy repair.

Require

-Maximum working pressure: 8bar (116psi)

-Ambient water temperature: 2-40 0C (36-1040F)

-Iron < 0.3ppm (0.3mg/L)

-Hardness<7gpg(120mg/L)

-Turbidity <1NTU

-UV transmittance>75%

electric

Voltage

-110V or 220V 50/60Hz

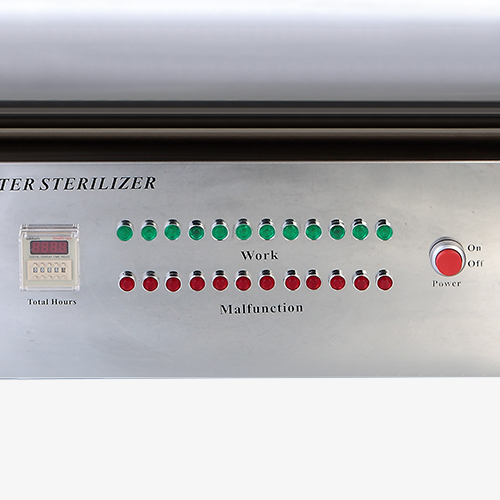

alarm

- Hearing and vision

index

- Lamp operation and malfunction

Elective

-UV intensity monitor

Time Relay

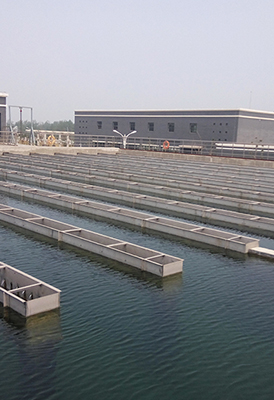

Application areas

application:

Short-wave radiation with a peak value of 253.7nm (UVC) is used for disinfection purposes. UVC germicidal lamps can inactivate bacteria, viruses and fungal spores with a sterilization rate of up to 99.99%. UV technology is mainly used in areas where there is a risk of microbial contamination.

Dino Purification’s UV systems are widely used for water disinfection in:

Industrial water systems, residential drinking water, food processing, pharmaceutical industry, household water purifiers, beverage equipment disinfection, garbage disposal and other fields, residential tap water, swimming pools, spas, hotels, hospitals, schools, laboratories, commercial water sales, municipal Water treatment, fish ponds.

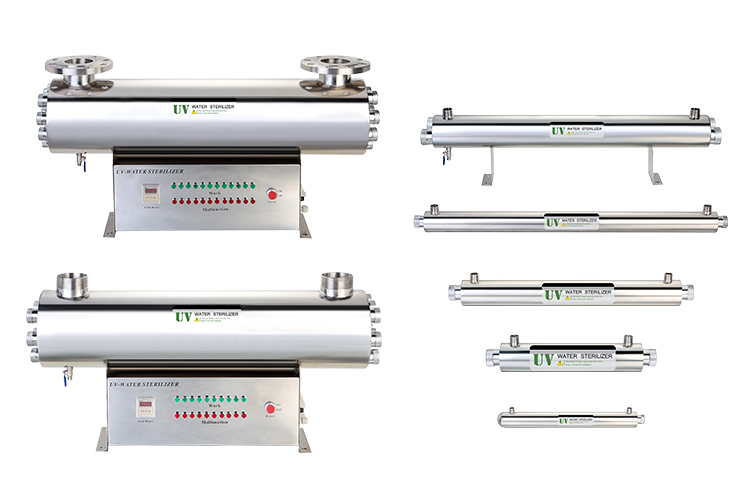

Specification

Model

flow

Reactor size

input/output port

Package Size

UV lamp code

Lamp power

Quartz tube code

ballast code

DN-SDB-110

5.4 cubic meters/hour

24 gpm

950×108mm

1 inch male

102.5×22.4×42cm/1 set

UVT5-455

55 watts x 2

QT5-940

EB-G4055

DN-SDB-165

8.1 cubic meters/hour

36 gpm

950×133mm

1.5 inch male connector

102.5×24.8×45cm/1 set

UVT5-455

55 watts x 3

QT5-940

EB-G4055

DN-SDB-220

10.9 cubic meters/hour

48 gallons/minute

950×133mm

1.5 inch male connector

102.5×24.8×45cm/1 set

UVT5-455

55 watts x 4

QT5-940

EB-G4055

DN-SDB-330

16.3 cubic meters/hour

72 gpm

950×133mm

2 inches male

107.0×35.0×60cm/1 set

UVT5-455

55 watts x 6

QT5-940

EB-G4055

DN-SDB-440

21.8 cubic meters/hour

96 gpm

950×219mm

3 inch male

107.0×40.0×70cm/1 set

UVT5-455

55 watts x 8

QT5-940

EB-G4055

DN-SDB-550

27.2 cubic meters/hour

120 gpm

950×275mm

4 inch male

109.0×48.0×80cm/1 set

UVT5-455

55 watts x 10

QT5-940

EB-G4055

DN-SDB-660

32.7 cubic meters/hour

144 gallons/minute

950×275mm

4 inch male

109.0×48.0×80cm/1 set

UVT5-455

55 watts x 12

QT5-940

EB-G4055

● Cavity material: 304 SS (316L SS available upon request) ● 4-pin or 2+2-pin optional Philips UV lamp
