Quanchai Diesel Engine 3Ton HELI CPCD30 Forklift for Sale

Supplier: Newindu Construction Engineering (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Ken Ye
Price: $10000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Fork Width:	125mm;	Stage:	2;
After-sales Service Provided:	Engineers available to service machinery overseas;	Package Preview:	https://sc02.alicdn.com/kf/HTB1VfW1acfrK1Rjy1Xdq6yemFXa5.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1ZGC3affsK1RjSszgq6yXzpXaG.jpg_640x640.jpg;
Certification:	ISO;	Brand Name:	HELI;
Place of Origin:	Anhui China (Mainland);	Fork Length:	920mm;
Type:	Powered Pallet Truck;	Power Souce:	Diesel Engine;

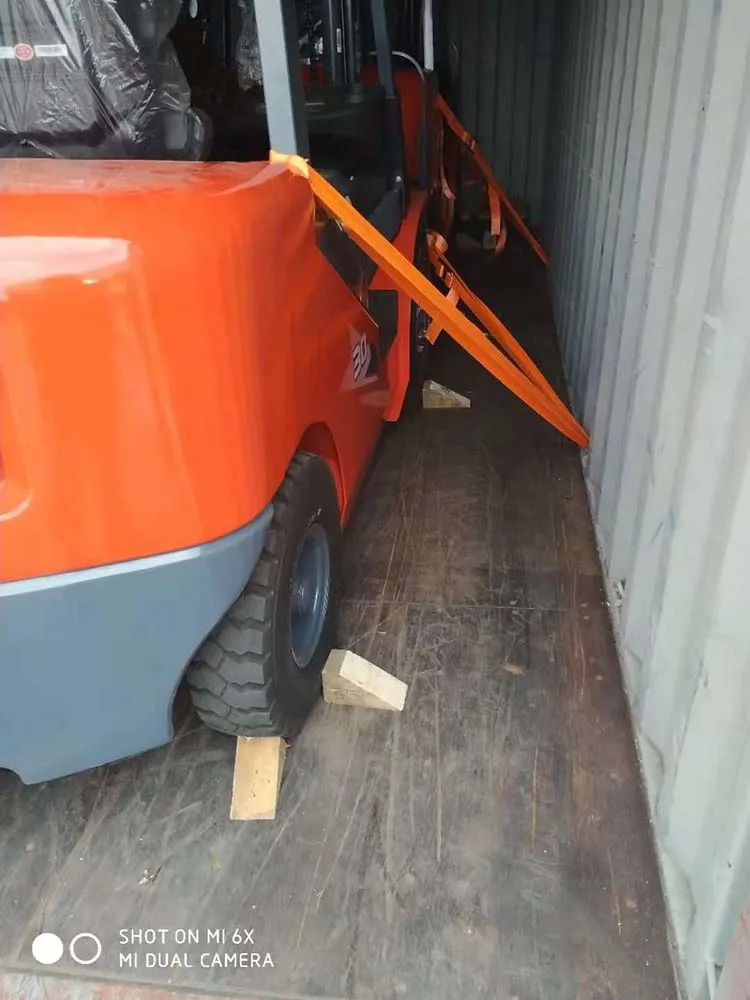

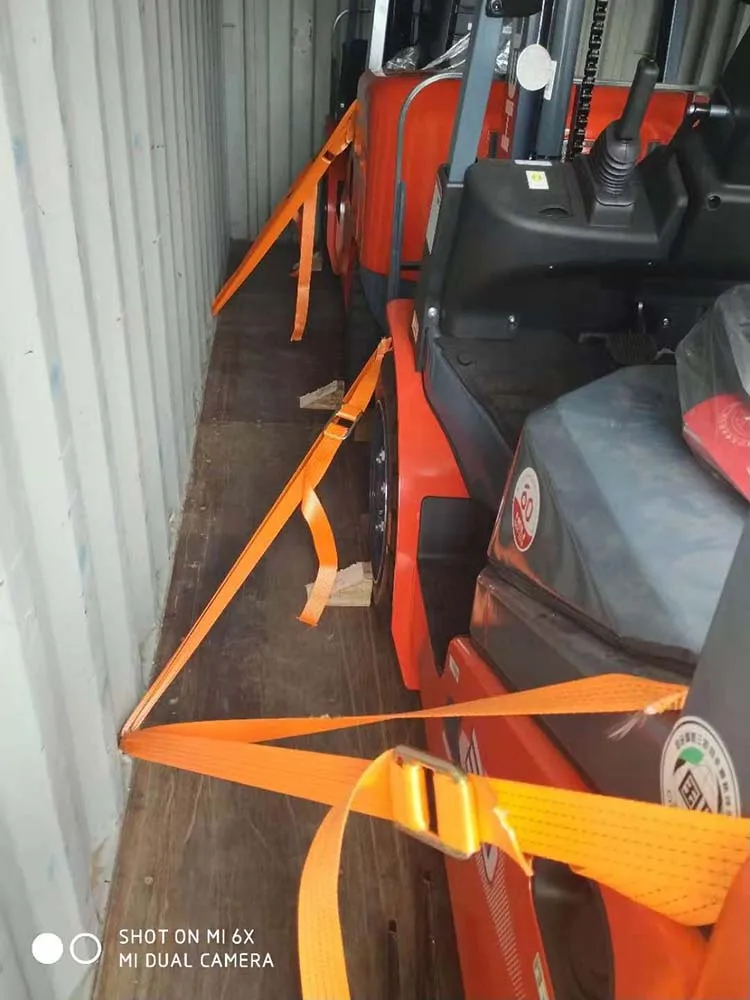

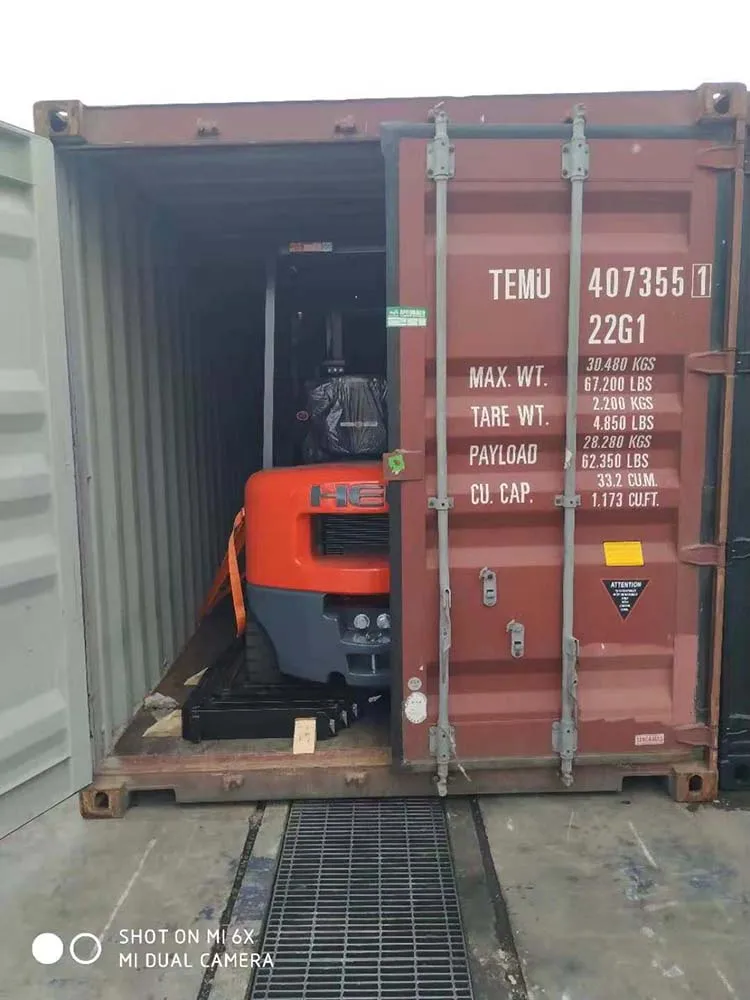

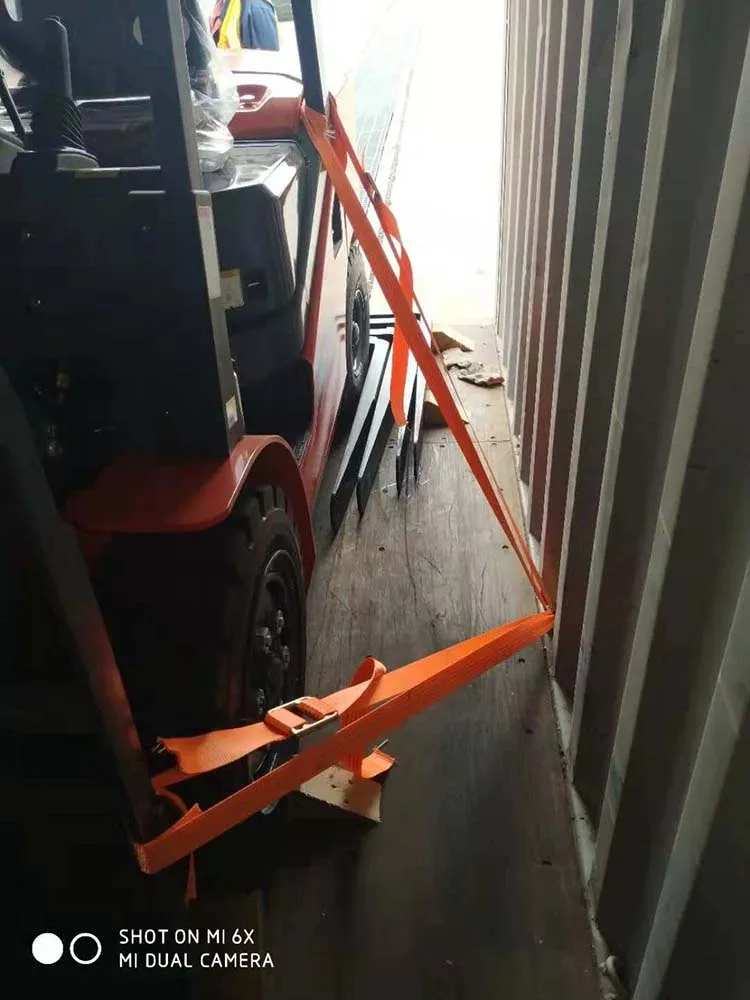

Condition:	New;	Package Type:	one 20GP can fit 2 units 3 ton forklifts;
Fork Size:	107012525mm;	Load Centre:	500mm;
Min. Lifting Height:	120mm;	Selling Units:	Single item;
Engine Brand:	Quanchai;	Warranty:	1 Year;
Single package size:	275X123X217 cm;	Tyre Type:	pneumatic tyre;
After-sales Service Provided:	Free spare parts;	Max. Lifting Height:	3000mm;
Overall Dimensions:	274812252170mm;	Single gross weight:	4,370 KG;

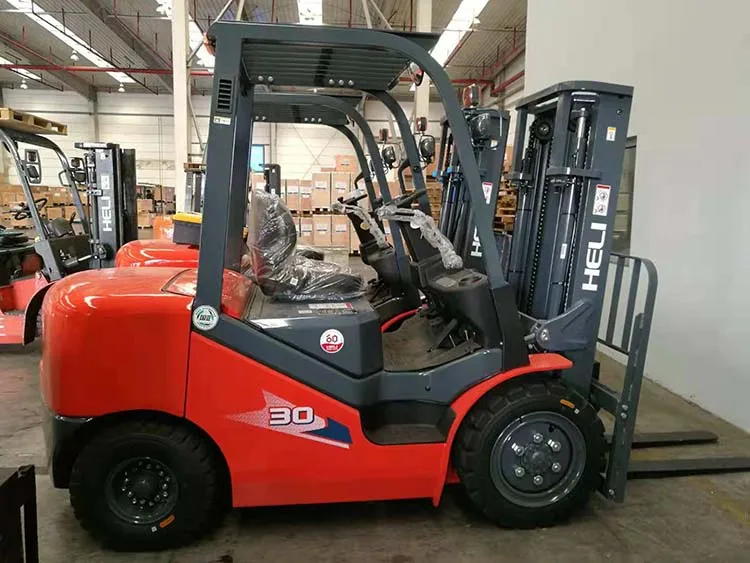

Quanchai Diesel Engine 3Ton HELI CPCD30 Forklift for Sale

Please Contact

Aring Zhou

Email: aring at newindu.com

Wechat/Whatsapp/Mobile: +86 15855426352

Skype: zyy1520724641 at outlook.com

Web: http://www.evangelchina.com/

Product Description

This new series forklift trucks that made with the latest technical design provide you excellent operating performance. HELI forklift trucks high standard performance, comfortable driving experience and the simple and safe operation will make your work handier.

Environmental Friendly

- The emission meets EC and EPA new regulation.

- High efficiency hydraulic system to lower the fuel consumption.

- Using environmental friendly material.

- Damping device on the mast to reduce impact and vibration.

- Sound insulating and absorbing device are used to reduce the noise.

Ergonomics design

- Using power braking system to reduce footplate strength.

- Control lever right located to effectively reduce drivers arm tiredness.

- Dual combined switch lever as a car to enable easy operating.

- Wide mast with good visibility.

- Wide space for boarding and driving , increasing leg space.

- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.

Safety performance

- Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.

- Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned.

- Safety device in mast hydraulic system prevents material falling down in case of hose broken.

- High pressure hose is designed far away from the driver.

- Safety wire harness, using waterproof plug

Main Parameters

Model			CPCD30
Rated Capacity		kg	3000
Load Center		mm	500
Lift Height		mm	4500
Free Lift Height		mm	145
Mast Tilt Angle		°	6/12
Front Overhang		mm	482
Overall Size	Length to face of forklift	mm	2695
	Overall width	mm	1225
	Mast lowerd height	mm	2070
	Mast extended height	mm	4250
	Overhead guard height	mm	2090
Turning Radius		mm	2420
Min.right angle aisle width		mm	2885
Speeds	Drive speeds	km/h	18/19.5
	Lifting Speeds	mm/s	470/520
	Lowering Speeds	mm/s	≤600
Max.Gradeability		%	15
Total Weight		kg	4350
Tires	Front		28*9-12PR
Tires	Rear		6.5-10-10PR
Wheel Base		mm	1700
Thread	Front	mm	1000
Thread	Rear	mm	970
Engine	Model		Xinchang 490BPG
	Rated output	kw/rpm	37/2650
	Rated torque	N.m/rpm	148/2000
	No., of cylinder		4
	Displacement	L	2.54
