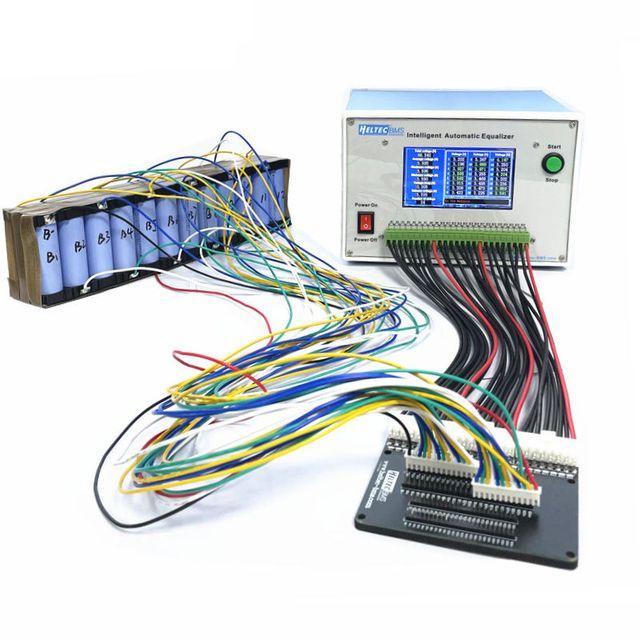

Battery Repair Equipment 2~24S 3A 4A Intelligent Automatic Equalizer Active Equalizer Suitable for Lipo Lifepo4 LTO Battery Repair Equipment

Supplier: Chengdu Heltec Energy Technology Co.,Ltd
Region: Sichuan, China
Contact: Ms Jacqueline Zhao
Price: $220.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Voltage:	-	Warranty:	3 months
storehouse:	EU, America, Mainland China	Place of origin:	Sichuan Province, China
brand:	Hertech BMS	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal
model:	1990	Balance type:	Discharge balancer
type:	Repair, manufacturing	custom made:	Yes
Package preview:		Packaging details:	1. Battery Repairer 2~24S 3A 4A Intelligent Automatic Equalizer Active Balancer is suitable for Lipo Lifepo4 LTO battery repair equipment*1 set 2. Anti-static bag, anti-static sponge and corrugated carton.
Supply capacity:	500 pieces per day	aspect:	-
usage:	battery repair equipment	Maximum balancing current:	3A is lifepo4; 4A is ternary

notes:

Due to system reasons, the minimum order quantity can only be set to 5 pieces. If you have other requirements, you can also accept 1 or more. Please feel free to contact us for specific order requirements and to make adjustments for you.

Product Description

brand:	Hertech BMS
product:	Battery Repairer 2~24S 3A 4A Intelligent Automatic Equalizer Active Balancer Suitable for Lipo Lifepo4 LTO Battery Repair Equipment
storehouse:	European Union, America, Mainland China warehouse
Material:	PCB board
country of origin:	China
Minimum order quantity:	1
Balance type:	Discharge balancer

Summary:

This equalizer directly displays the sum and voltage difference of each string

The equalizer starts compensation with one click. After the compensation is completed, it automatically stops and gives a warning.

The equalizer does not charge the battery during the equalization process. So there is no risk of overloading the balance.

hint:

Before balancing, please check whether the lowest voltage is lower than the battery over-discharge voltage. If it is lower than the battery over-discharge voltage, please balance the charge first, and then balance it after the battery is fully charged. The effect will be better.

feature:

Supports 2 to 24 strings of lithium batteries, supports ternary lithium, lithium iron phosphate, and cobalt-converted lithium. It supports 1.5V to 4.5V batteries. If the voltage exceeds the range, an audible warning will sound and a reverse polarity warning and reminder will be displayed: reverse connection, Overvoltage (greater than 4.5V), low voltage (less than 1.5V)
After the protection function is balanced, it will automatically stop and sound a warning sound to indicate that the balance is completed.

Constant resistance 1 ohm discharge balance

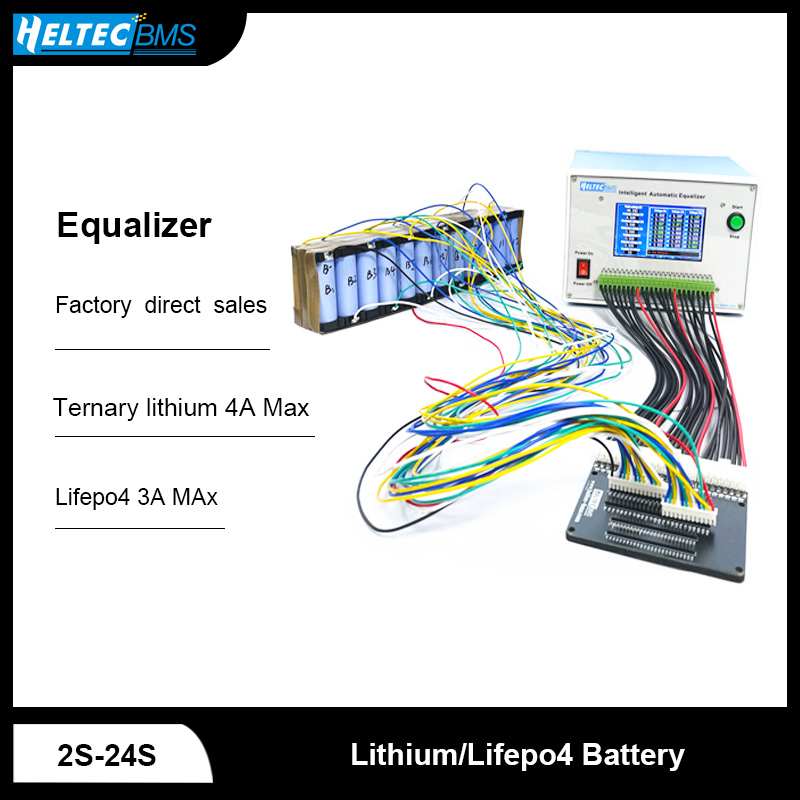

Balance current is large:

Ternary lithium-4A Max

Lifepo4 3A Max

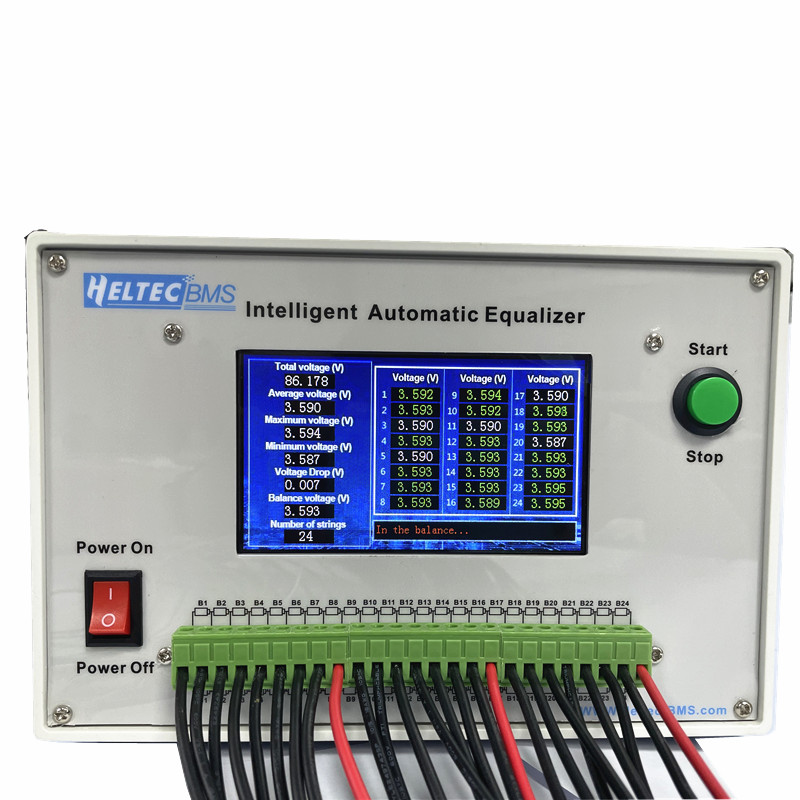

Display each string voltage, total voltage, highest string voltage, lowest string voltage, maximum voltage difference of battery pack, average voltage, balance voltage, and number of battery packs

Battery maintenance steps:

This is a bad battery:

1) Replace the battery

2) Fully charged

3) Balance

4) Fully charged

5) Battery maintenance completed

●Discharge method:

Advantage:

1. Don’t charge the battery, don’t worry about overcharging

2. The speed of the entire balancing process is consistent and the balancing speed is fast

in conclusion:

Since the balancing method is to discharge the energy of the high-voltage string until it equals the lowest voltage string, the excess energy is wasted.

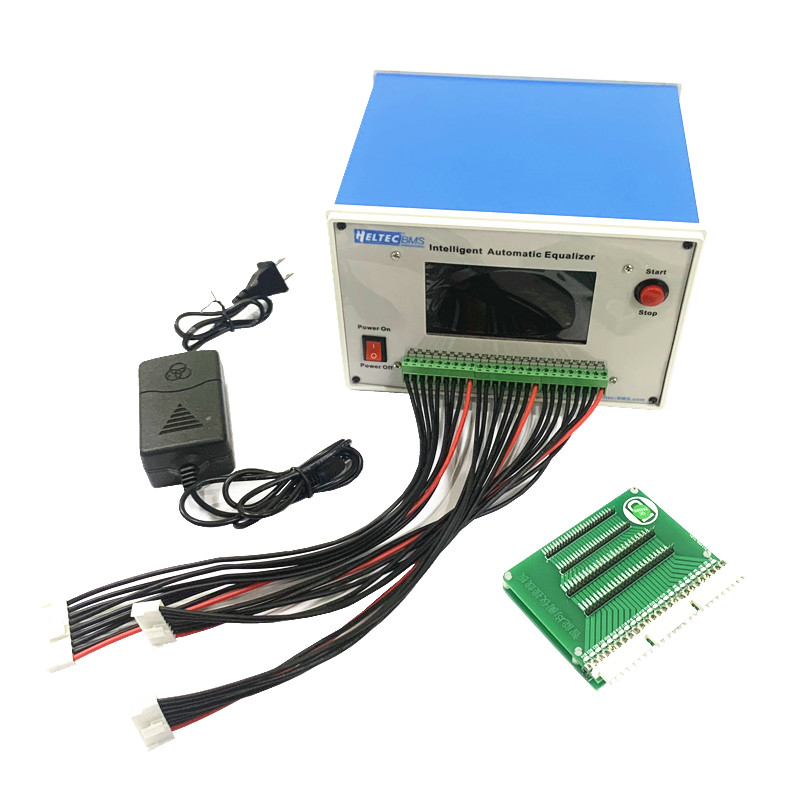

Package Included
