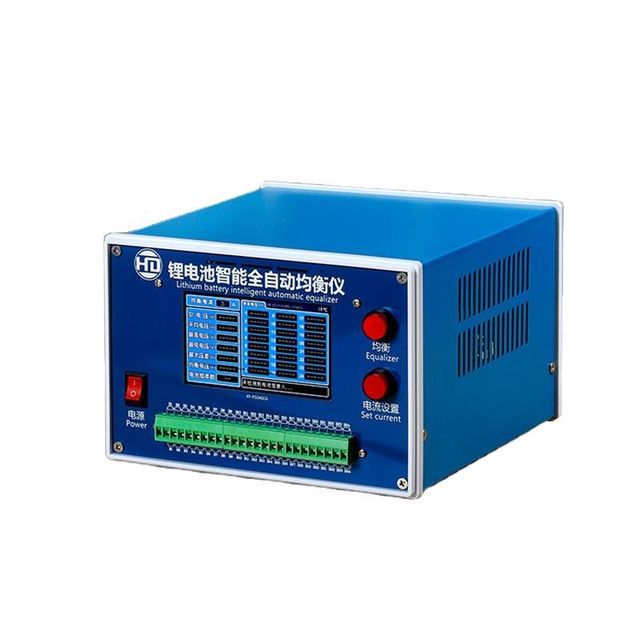

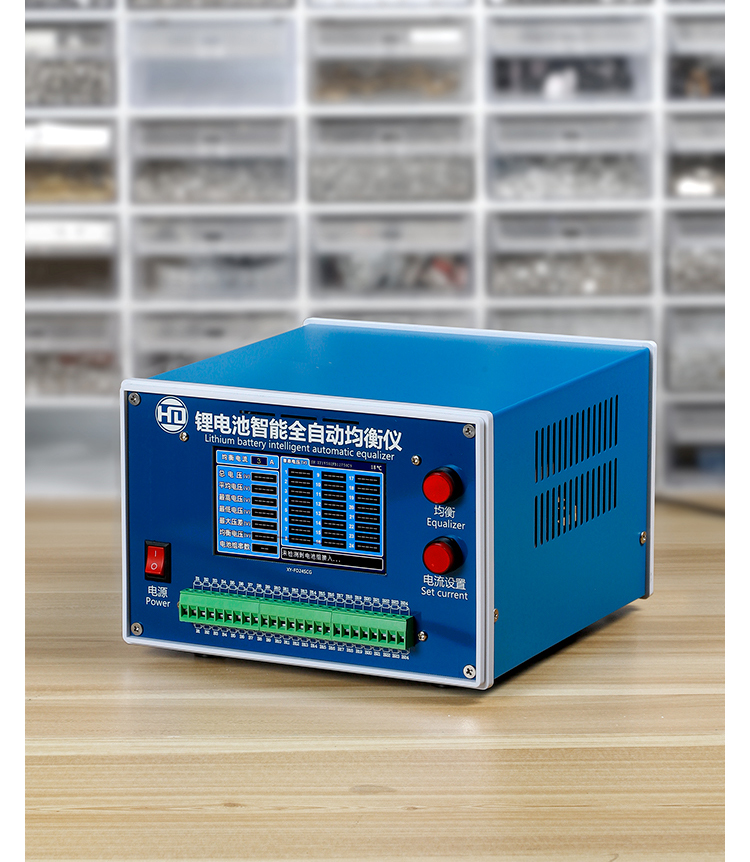

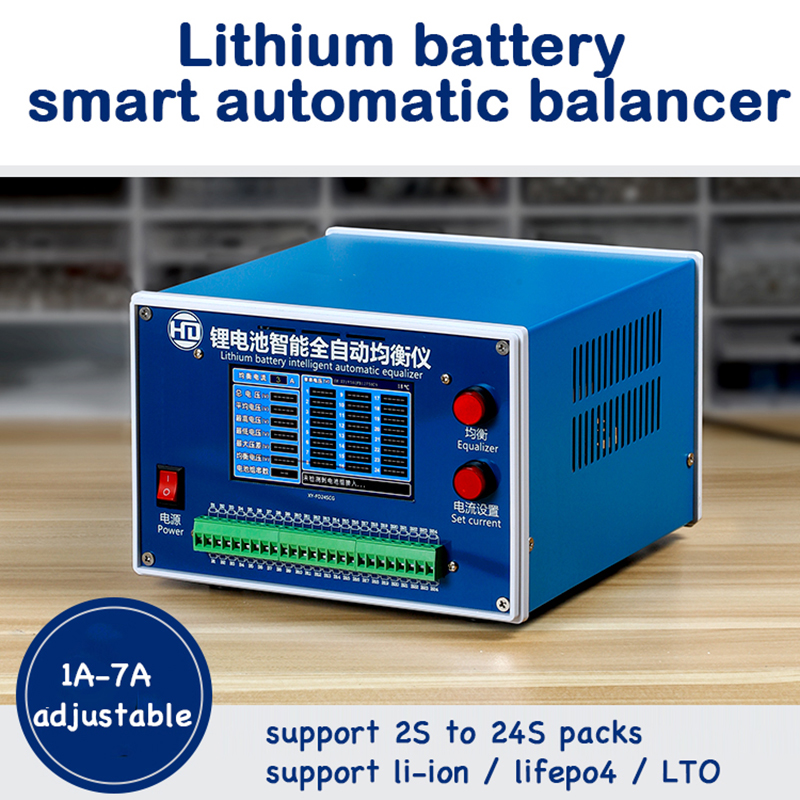

Active Balancer Current 1A to 7A Adjustable Lithium Battery Balancer Equalizer 2S-24S Balanced Differential Voltage Restorer

feature:

Supports battery packs ranging from 2S to 24S, 2.0V-4.5V Li-ion/Lipo/Lifepo4/LTO.

Support: over-temperature protection/reverse connection protection/over-voltage protection/low-voltage protection/balance automatically completed and prompted.

Support automatic identification of balanced voltage.

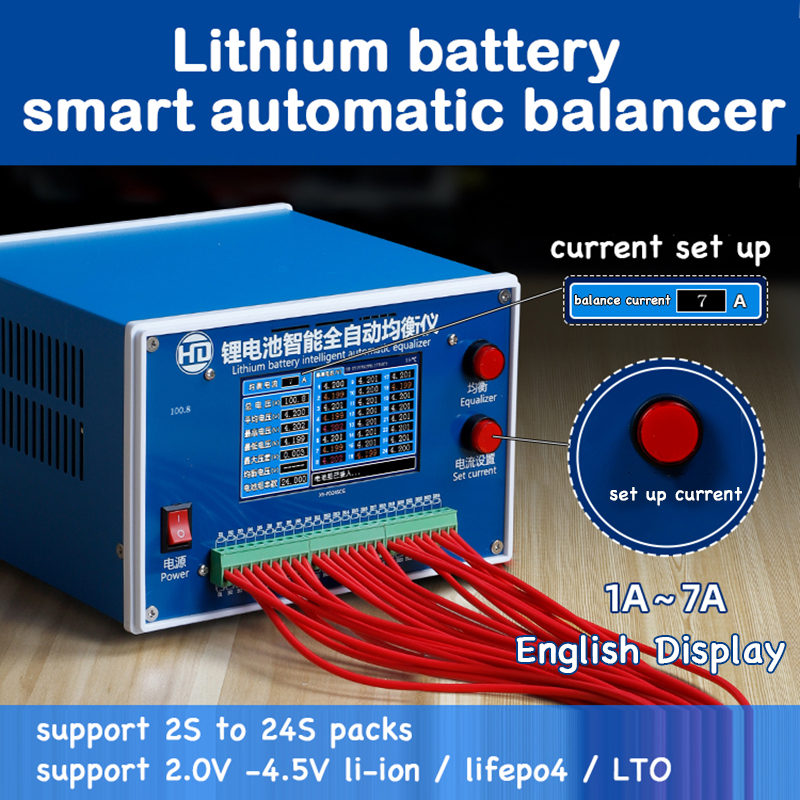

The balance current can be set from 1A to 7A.

The equalizer directly displays each series voltage and voltage difference.

There is an English version displayed (English is sent by default)

The equalizer has a one-touch balancing function. No need to balance each series individually

The equalizer starts balancing with one click, and automatically stops and alarms after the balance is completed, no need to be on duty.

Our smart equalizer does not charge the battery while balancing, so you don't have to worry about the danger of overcharging while balancing.

Note: Before balancing, please check whether the lowest voltage is lower than the over-discharge voltage of the battery. If it is lower than the over-discharge voltage of the battery, please charge the battery before balancing; if the battery is fully charged before balancing, the effect will be better.

Model XY-FD24SCG

Power supply mode DC 12V 4A

Single channel voltage measurement range 1V~5V

Single channel voltage display accuracy 0.001V

Single-channel voltage collection accuracy ≤ (0.05%+0.003V)

Single channel voltage working range 2.0V~4.5V

The balance current is adjustable from 1A to 7A (the smaller the voltage, the greater the impedance, and the smaller the current)

Working temperature and humidity: 0℃~50℃, 20%~80%RH.

Working environment: no corrosive, explosive, insulation-destroying gases and conductive dust, etc.

Constant resistance PWM pulse discharge equalization

Adjustable balance current: maximum 7A

Size: 207mm*205mm*145mm

1A~7A adjustable current: The set current is the current when the voltage is equal to 4.5V. The actual balance current takes the set current as a reference and is automatically adjusted according to the current voltage and line resistance. The smaller the voltage, the greater the wire resistance, and the smaller the current. .

Balance voltage (2V~4.5V) is automatically recognized and easy to operate.

Automatic voltage recognition and one-click balancing.

Voltage downward adjustment: Based on the lowest voltage, voltage downward adjustment means that all voltages are balanced to the lowest voltage of the series.

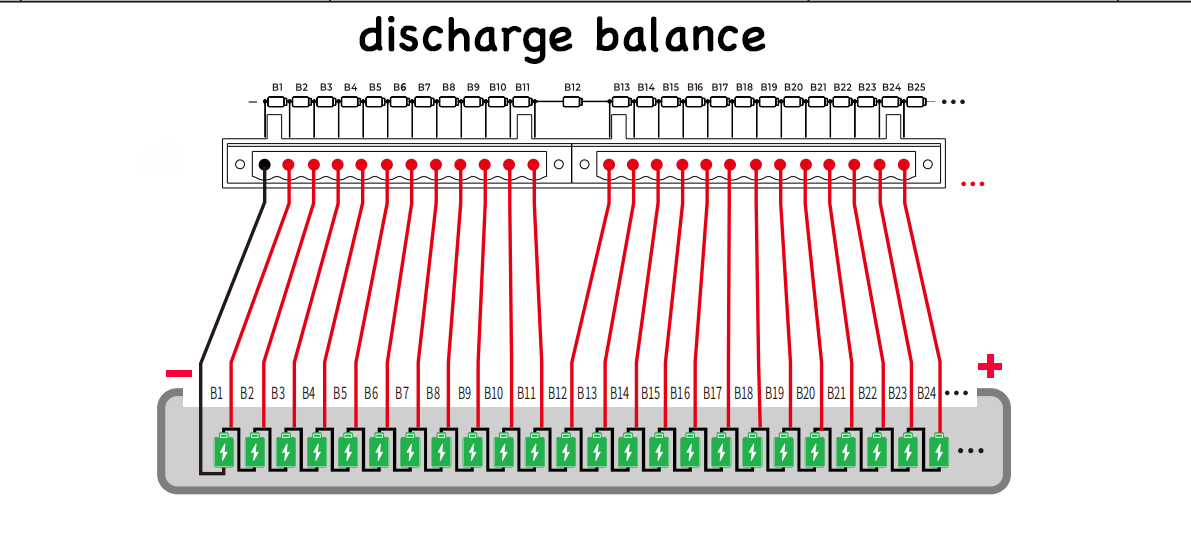

Battery maintenance steps discharge balancing:

If battery is damaged: Replace battery - Fully charged - Balancing completed - Fully charged - Battery maintenance completed

If there is no bad battery: Fully charged - Fully balanced - Fully charged - Battery maintenance completed

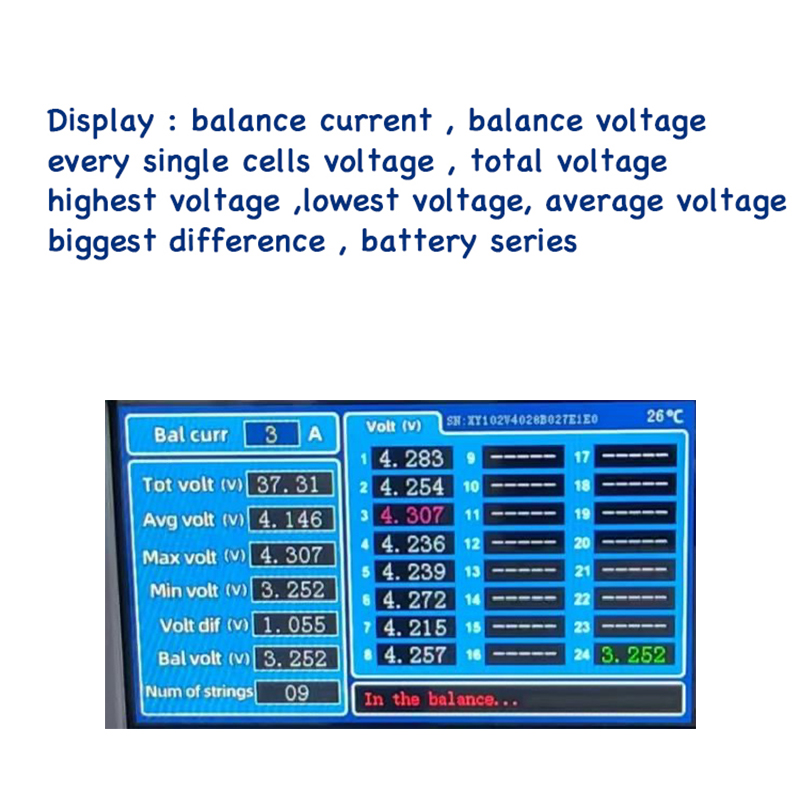

The display content is rich: balance current, balance voltage, single string voltage, total voltage, maximum voltage, minimum voltage, average voltage, maximum voltage difference, number of battery strings, etc.

+
