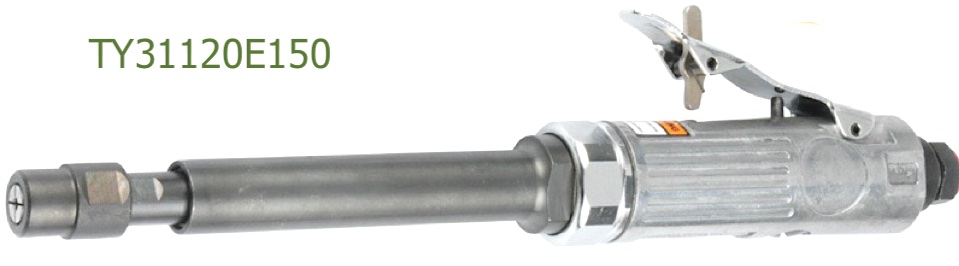

TY31120E150 Pneumatic 6mm. 5.9-Inch Professional Die Grinder Expansion for Limited Space Applications

Product details

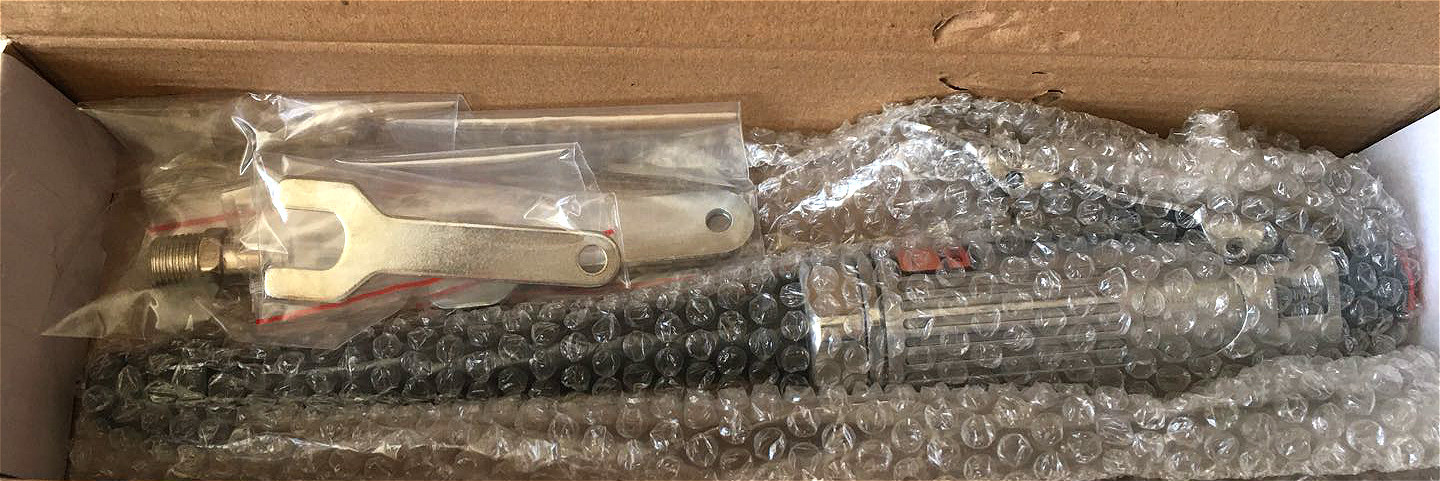

application:Heavy Duty Grinding and Surface PreparationPackage preview:
Air inlet:1/4"Air duct:3/8"
weight:0.7 kg (1.54 lbs)model:TY31120E150
Chuck capacity:3 mm (1/8 inch)Applies to:General grinding
Gross weight of single piece:2.000kgEnergy source:pneumatic
Grinder type:Mold grinderSales unit:Single product

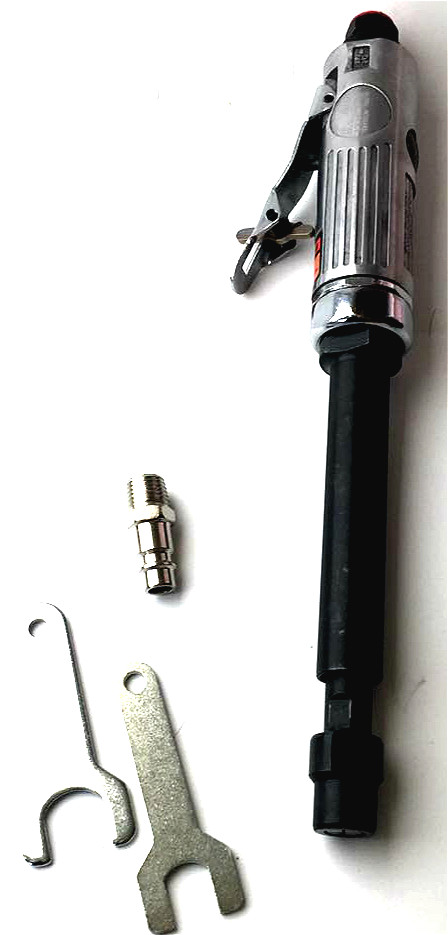

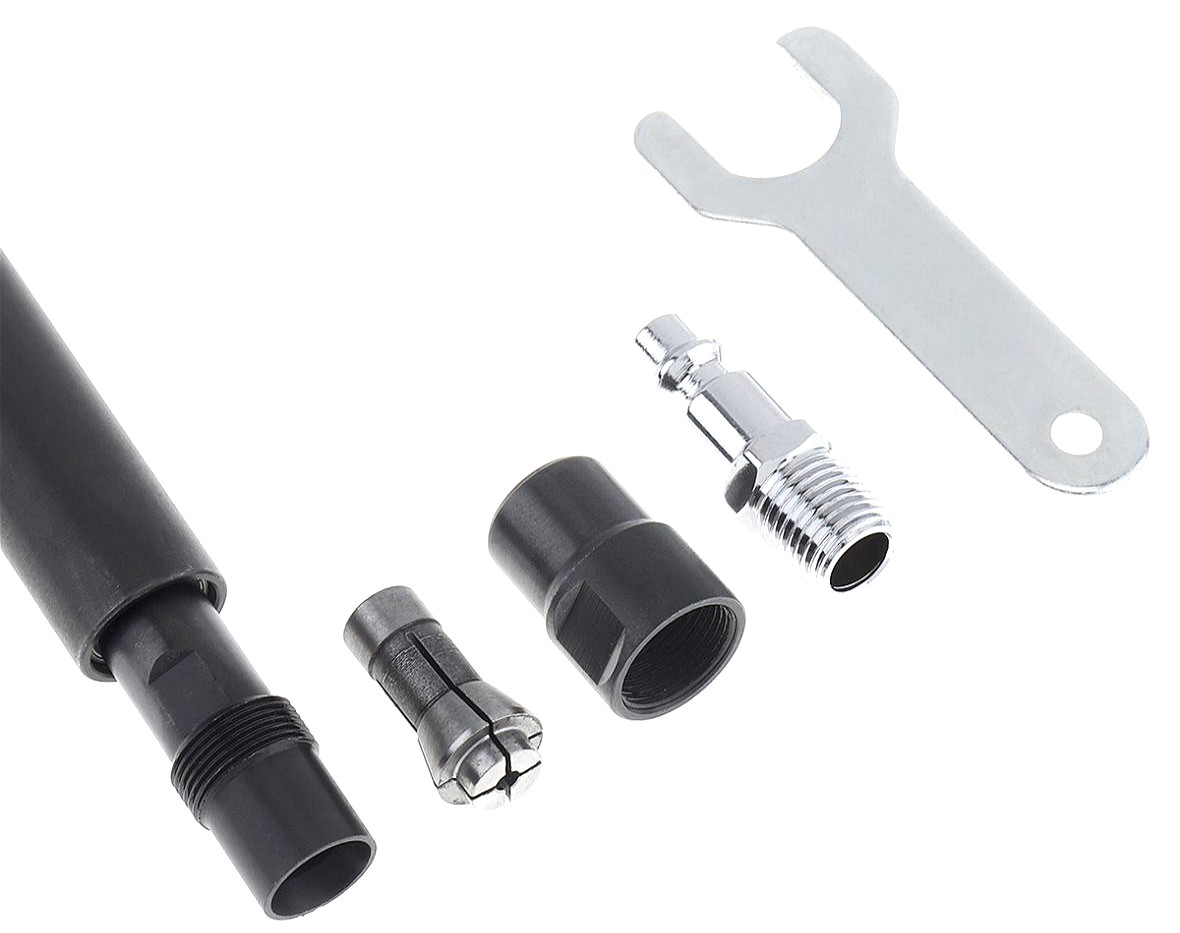

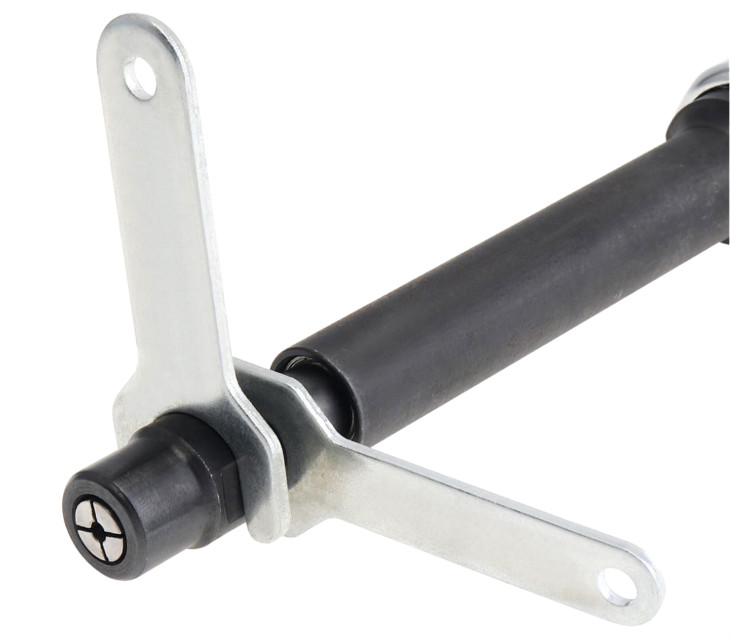

Warranty:6 monthsPackaging details:Scope of supply 1* TY31120E150 1* External thread connector 2* Disassembly wrench 1* Technical passport (#9940009)
Single piece packaging size:1X1X1cmgrade:DIY
Place of origin:Shandong Province, ChinaItem number:353127
expand:5.9 inchesVentilation location:rear



Model

TY31120E150

Model number name

3: Abrasive tools

1: Online grinder

1: Chuck grinder

20: Free speed (20,000 rpm)

E: Extended mold grinder

150: Shaft length (150mm)

speed

20,000 rpm

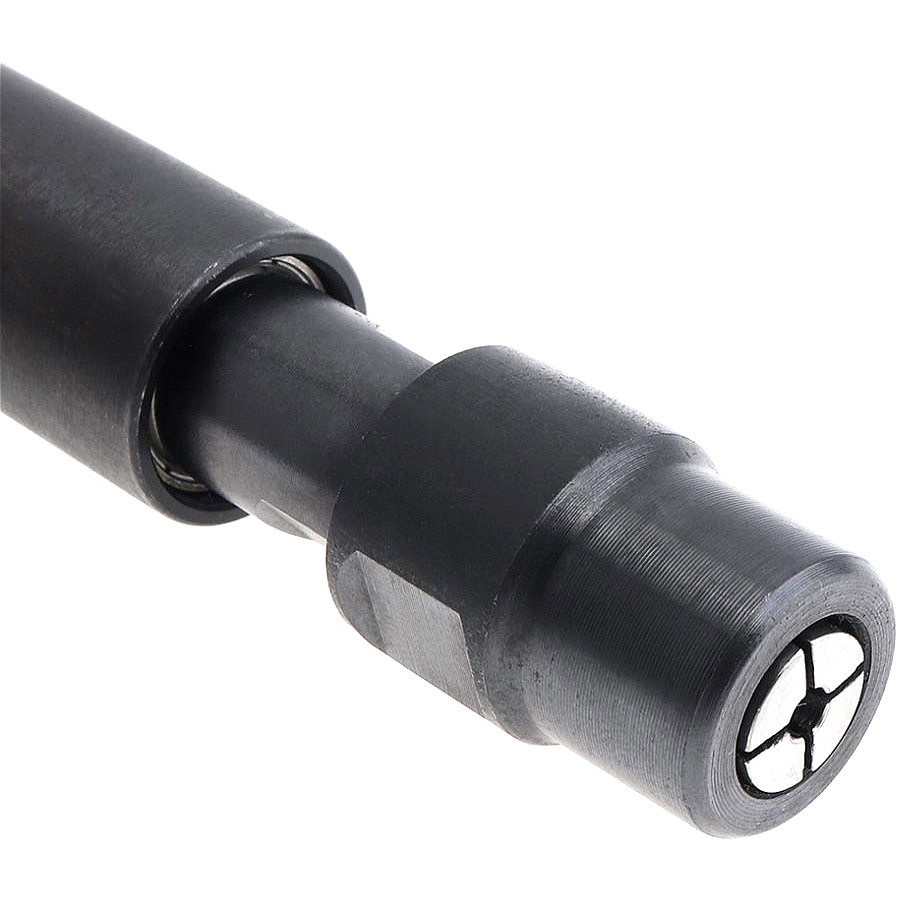

Chuck capacity

3mm and 6mm

weight

0.7 kg (1.5 lbs)

Air consumption

4 CFM @ 90 PSI

air inlet

1/4”

REC air hose

3/8”

Exhaust position

rear

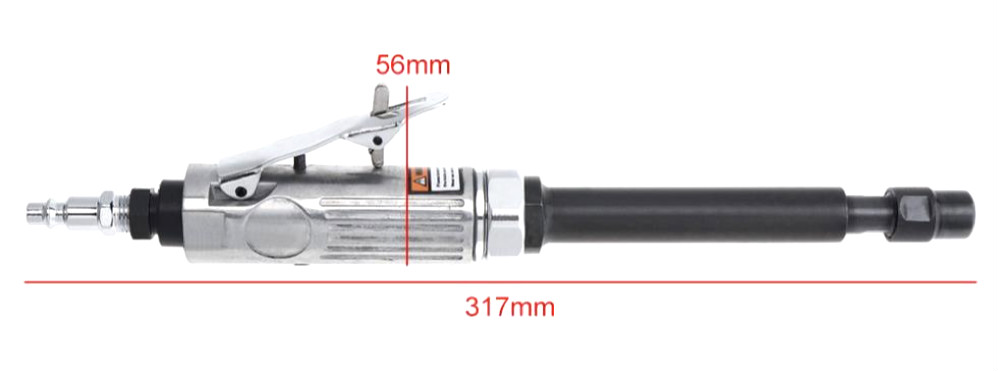

length

12-1/2”

current

pneumatic

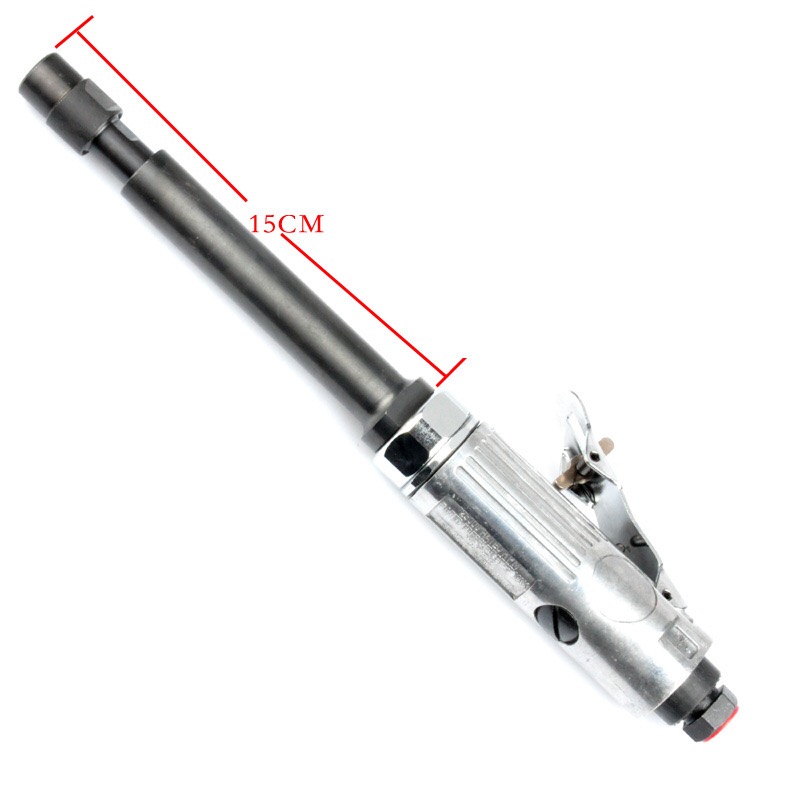

expand

150 mm (5.9 inches)

stock keeping unit

353127

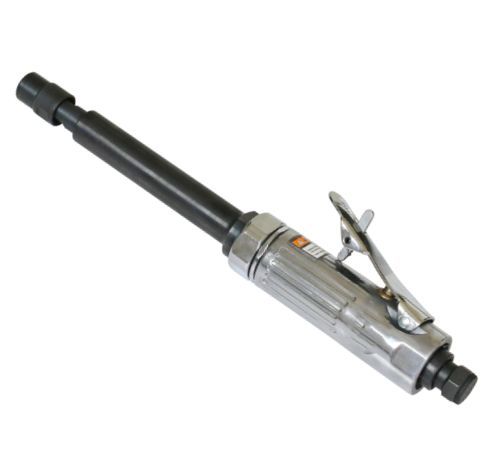

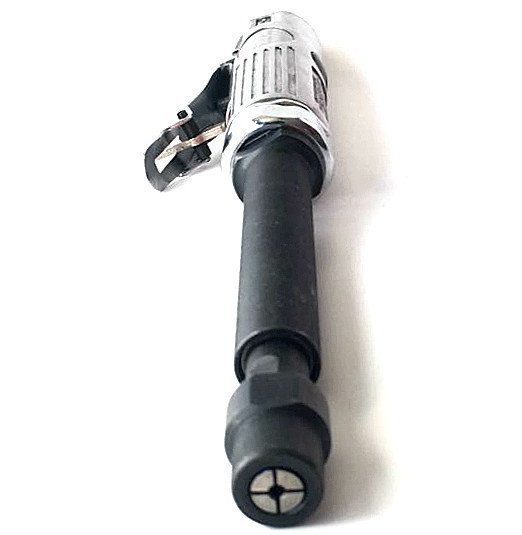

The Tarboya Professional Air Extended Die Grinder features a paddle trigger for superior control and a 5.9-inch extended shaft to reach obstructed areas. The ergonomic grip reduces vibration, while the compact design provides excellent maneuverability.

  • 5.9-inch extension for space-constrained applications

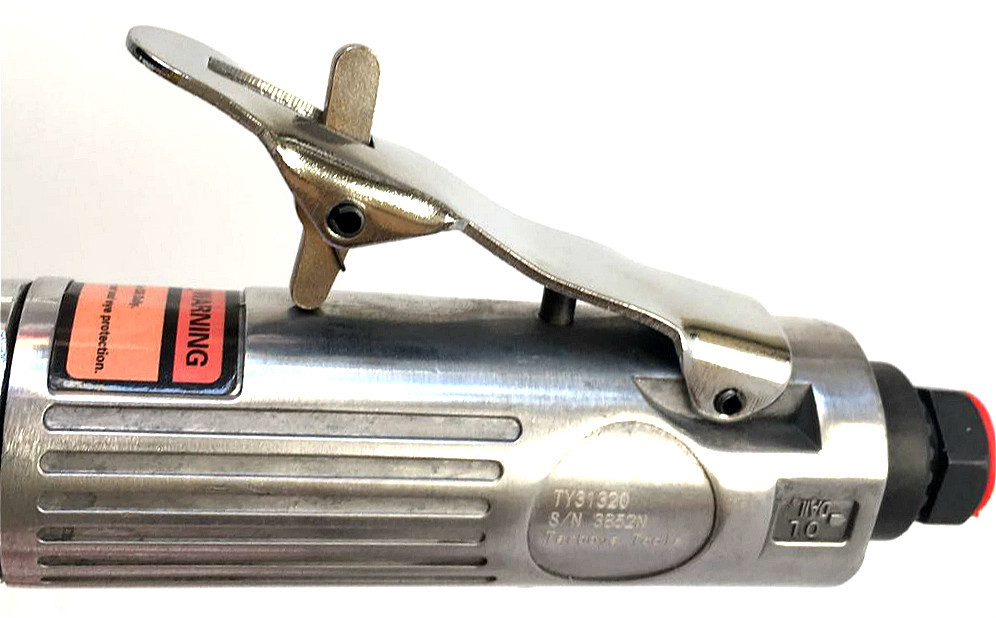

  • Safe paddle trigger provides smooth operation and control
  • Ergonomic grip provides comfort, reduces vibration and reduces fatigue
  • Adjustable speed control
  • It is very suitable for the surface of various types of molds (shoe molds, tire molds, rubber shell switch molds, home appliance molds, etc.) and hardware products (faucets, zippers, hardware tools and various complete sets of equipment boxes, etc.), internal object surfaces, gears, and in-plane surfaces. Surface polishing, chamfering, engraving, internal processing, rust removal, smoothing, solder joint removal, edge trimming, and edge deburring of holes, grooves and other special-shaped parts.

The Tarboya Grinding Tool Manual can be downloaded from:www.tarboya.com









At Tarboya, we only bring you two things: quality products and exceptional service. Every time you use air tools, we'll make sure you have the technology you need to be safe and efficient. Tarboya supplies Russian pneumatic equipment and general pneumatic tools. Our team is able to design, develop, CNC retrofit and produce innovative, high quality pneumatic tools and accessories for multiple industries, meeting the most demanding applications. Exports of Tarboya started in mid-2018 and our Alibaba store opened in 2019. Before 2018, we were only engaged in inland sales. That's what I want to say. Our production and marketing team have more than 10 years of experience in the pneumatic tool industry. These cadre are very knowledgeable and know a lot about air tools.

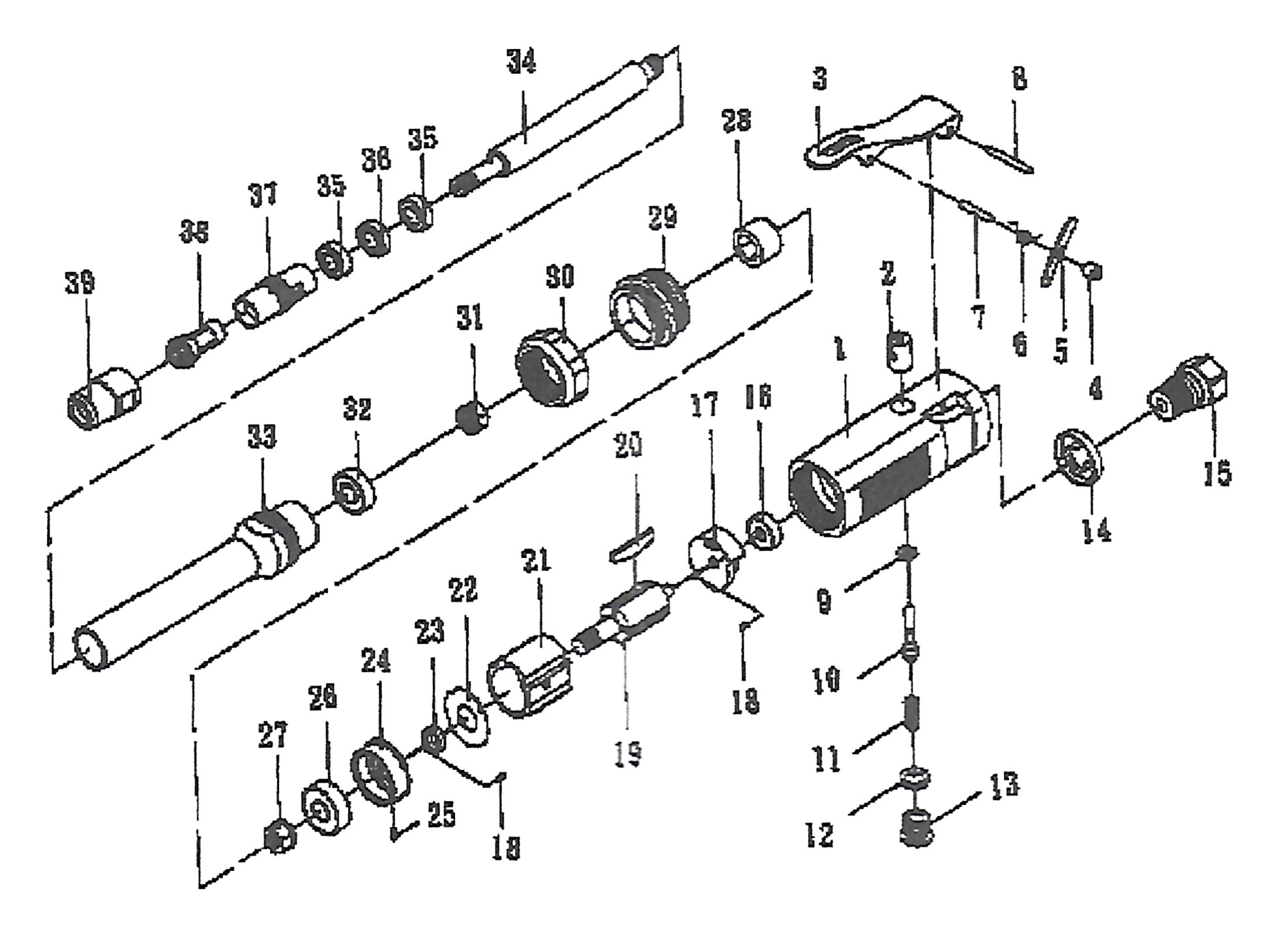

You'll find that the Tarboya's user manual, which we call a Passport at Tarboya, is not a simple exploded diagram or Google-translated general safety rules, but accurately written, detailed technical instructions and operating instructions.

We assure you that only the best designs, materials and production methods are used to manufacture tools bearing the Tarboya name.

High-quality tools, favorable prices, professional papers, and fast after-sales service. These are the four that Taboa wants to put in your hands.

Tarboya warrants the TY31120E150 Pneumatic Extended Die Grinder to be free from any material or manufacturing defects for a period of 6 months from the date of delivery. The warranty period for perfect functionality of the goods and materials used is 6 months from the date of delivery of the goods.

Tarboya undertakes to eliminate any possible defects covered by the warranty free of charge and without undue delay so that the purchaser of the goods can use the products correctly. If the Buyer exercises its rights arising from liability for defects not covered by the warranty, the Buyer shall pay all related costs.

Tarboya's warranty will be void if:

  • Improper use of the machine,
  • Use in violation of national or international standards,
  • Incorrect installation,
  • Compressed air supply failure or poor quality
  • Serious deficiencies in maintenance,
  • Unauthorized modification and/or intervention,
  • Total or partial failure to follow the instructions in the manual
  • Abnormal events, natural disasters, etc.
