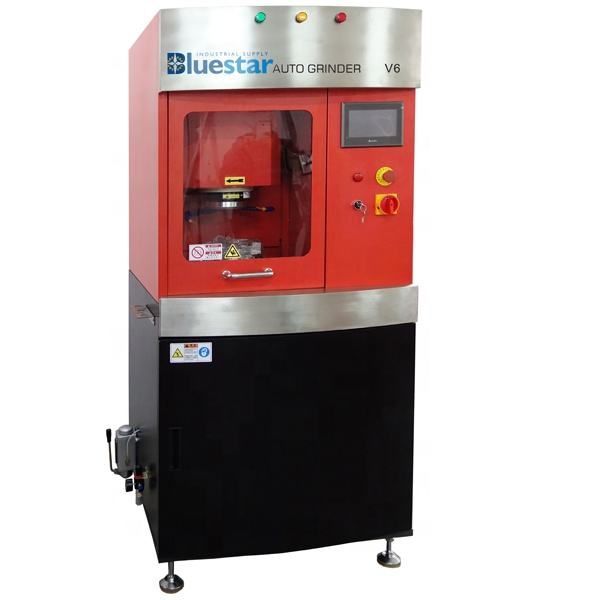

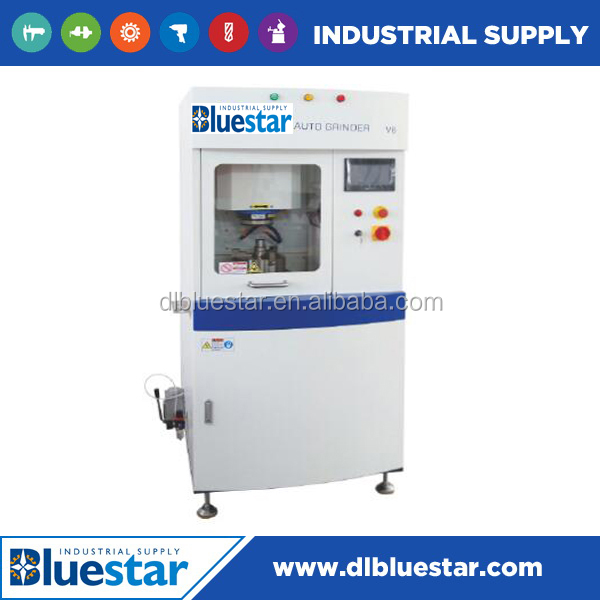

Automatic Punch Die Grinder Punch Tool Grinder, Die Grinder

  • Supplier: Dalian Bluestar Trading Co., Ltd.
  • Region: Liaoning, China
  • Contact: Ms Yang Sun
  • Price: $9000.00 / 1 - 4 units
    $8500.00 / 5 - 9 units
    $8000.00 / >=10 units
  • Min. Order: 1 unit
Product details
application:General grinding and polishingPackaging Details:wooden box
Origin:China ShanghaiGrinder type:Die grinder
color:blue white/red blackSupply capacity:100 units per month
Applies to:General grindingcontrol:Siemens CNC
model:DBS V6port:Shanghai Port
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGrambrand:blue star



Product Description



Features of Automatic Die Grinder

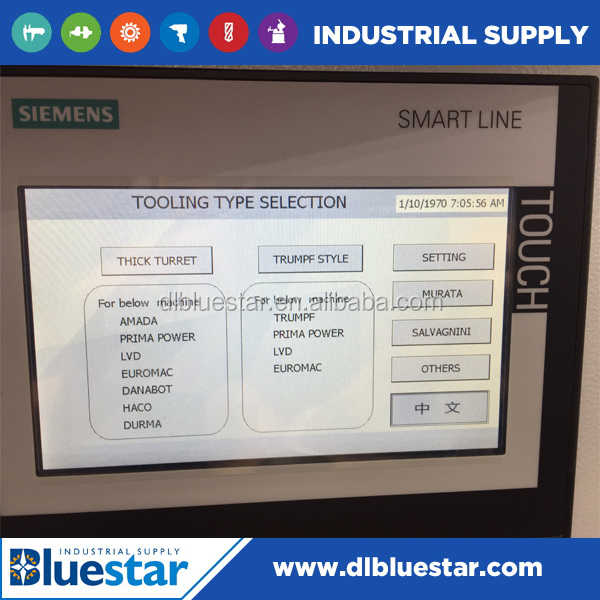

* Touch screen interface, easy to operate, support multiple languages

* Taiwang ball screw, PLC, servo power support

*Friendly grinding system, no need to know the grinding parameters

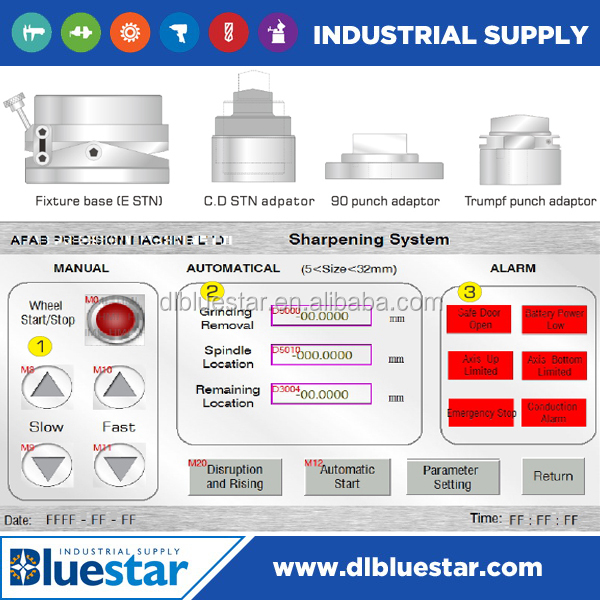

*Simple fixture design, quick and easy loading and unloading of dies

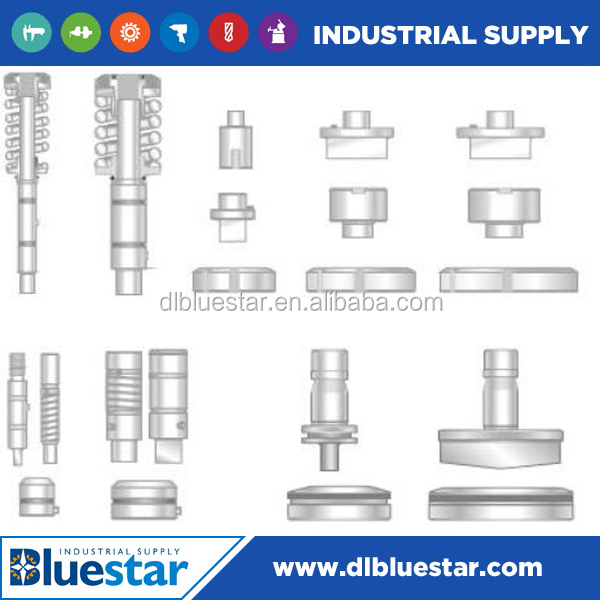

*Clamps for popular tools (amada, trumpf, mul-tool, murata, savagnini)

*Optional shear adjustment fixture

*Machine color: blue white red black



Specifications (Automatic Die Grinder)
VoltageAC 380V, 50HZ
main motor power2.2KW, 2840 rpm
Turntable motor0.1KW, 1440 rpm
servo motor0.75 kW
cooling motor0.045 kW
grinding diameter200 mm
Wheel diameter (interchangeable with Togu 3)150mm
Machine size (LXWXH)820x810x1810mm
