3mm-13mm CNC Automatic Drill Bit Groove Grinder Drill Bit Groove Grinder

Supplier: Dalian Bluestar Trading Co., Ltd.
Region: Liaoning, China
Contact: Ms Yang Sun
Price: $22000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Whether CNC:	CNC system	Voltage:	380V
After-sales service provided:	Online support, video technical support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services	brand:	blue star
Core components:	Motors, bearings, gearboxes, engines, gears, PLCs	Core component warranty:	1 year
Supply capacity:	100 sets per year	Mechanical test report:	if
Origin:	China Shanghai	Dimensions (LWH):	1500X1200X1500mm
Showroom location:	India, Romania, South Korea	Surface roughness (μm):	10
After Warranty Service:	Video Technical Support	Local service locations:	UAE, Brazil, Mexico
Power (kW):	2.2	Main selling points:	automatic
Video outbound inspection:	if	Grinding diameter (outer diameter) (mm):	13
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Health status:	new
port:	Chinese port	Marketing Type:	2020 New Products
Packaging Details:	wooden box	Applicable industries:	manufacturing plant
Warranty:	1 year	Weight (kg):	1500
Certification:	ISO9001

Product Description

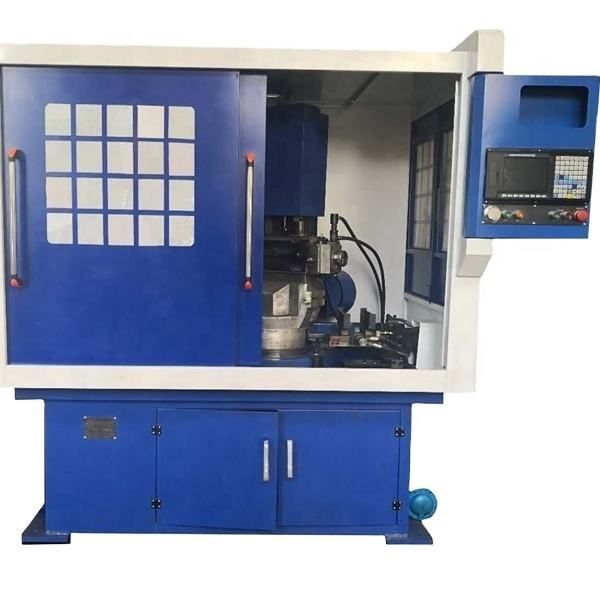

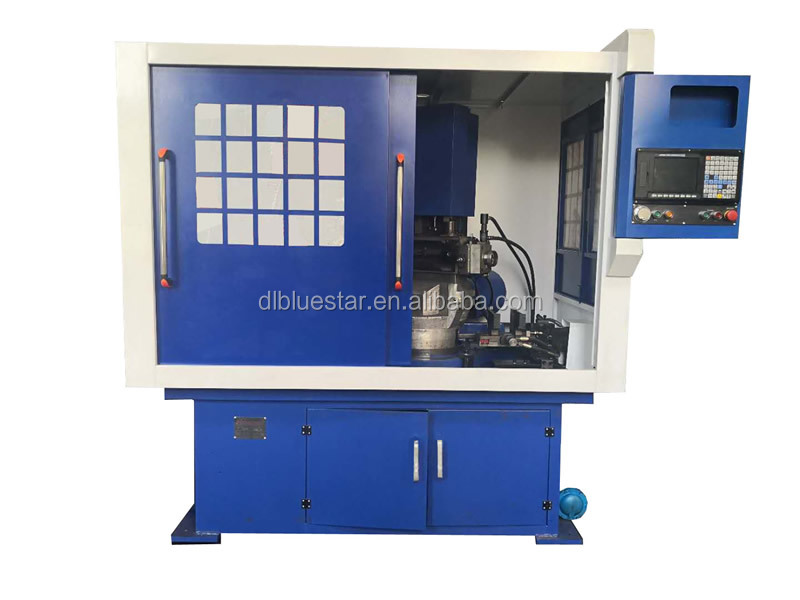

DBS-SKMG-18 CNC Automatic Drill Bit Groove Grinder Drill Bit Groove Grinder

Grinding machine model: DBS-SKMG-18
Control system: four-axis linkage
Operation mode: automatic
Capacity quantity/9 hours: 3000~4000
Grinding wheel spindle motor power: 4KW, 5.5KW, 7.5KW, 11KW, 18.5KW
Grinding wheel spindle lifting assembly structure: spindle lifting balance weight configuration
Grinding wheel specifications: Φ305, Φ355, Φ405xΦ203xB
Grinding wheel material: resin single crystal corundum grinding wheel
Grinding wheel speed: 72m/s
Service life of a grinding wheel: 2~3 days
Trimming method: shaping roller trimming or two diamond pen trimming
Forming roller speed: 3000~5000rpm (driven by high-speed adjustable motor)
Cooling medium: 5# white oil
Processing range: φ3~φ18
Clamping, feeding, magazine, trimming: hydraulic control
Grinding machine weight: 1.6 tons
Supplement: The specific parameters are subject to the actual situation. The underlined words indicate that our company is different from other manufacturers and has obvious advantages in processing or operation.

our service

Why choose Bluestar brand machine tools:
1) High quality and competitive price
2) More than 10 years export experience
3) CE, SGS, ISO certification
4) Provide OEM service
5) 24 hours online problem solving service (Skype, Trademanager)
6) 12 months quality assurance
