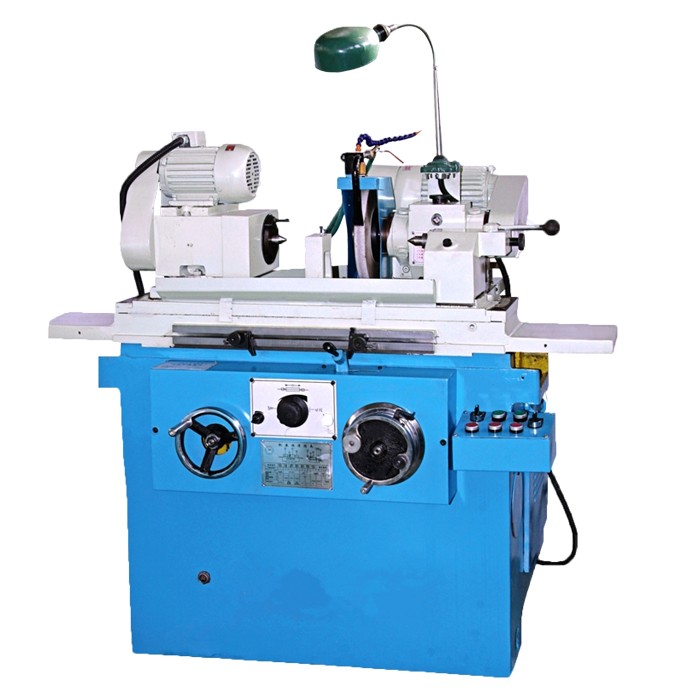

M1308 300mm Cylindrical Grinder

Click here to contact
Product details
Weight (kg):1500Name:M1308x300
Packaging Details:plywood boxpayment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram
Core Components Warranty:1 yearplace of origin; place of origin:China
Showroom location:UAE, Mexico, Romania, Australia, Turkey, Thailand, Italy, Brazil, ChileGrinding Diameter (Outer Diameter) (mm):80
Health status:newMain selling point:high accuracy
Warranty:1 yearVideo external inspection:if
Local service location:Argentina, Turkey, UAE, Indonesia, Chile, Peru, Australia, VietnamCore components:Bearings, Gearboxes, Gears, Pumps
Center height:115mmCNC or not:Common, CNC
After-sales service provided:Provide overseas service center, free spare parts, online support, video technical supportGrinding length (outer diameter/inner diameter):300mm
Supply capacity:50 sets per monthport:Shanghai
Mechanical test report:ifApplicable industries:Energy & Mining, Construction Engineering, Mechanical Repair Shop
strength:2340Marketing Type:New Products 2020
After Warranty Service:Video technical support
Product Description

M1408 Universal Cylindrical Grinder is simple in operation, fast in processing speed, high in precision and cheap in price; there are two transmission modes, hydraulic or manual; it is used for precision machining of small parts in the mechanical industry.

describe
unit
M1308×300
Grinding Diameter (OD/ID)
mm
Φ2~Φ80
Grinding length (outer diameter/inner diameter)
mm
300
center height
mm
115
table speed
m/min
0.1~4
Maximum travel of the table
mm
340
Maximum workpiece weight
Kilogram
10
Rotation range of worktable
.
﹣3~+7°
Wheel peripheral speed
m/s
35
external size
mm
Maximum Φ250×25×Φ75 Minimum Φ180×Φ75
Inner wheel spindle total speed
rpm
Working head and tailstock center
Morse
NO.3
Machine motor power
kilowatt
2.34
Dimensions (L×W×H)
mm
1360×1240×1000
machine weight
Kilogram
1500
