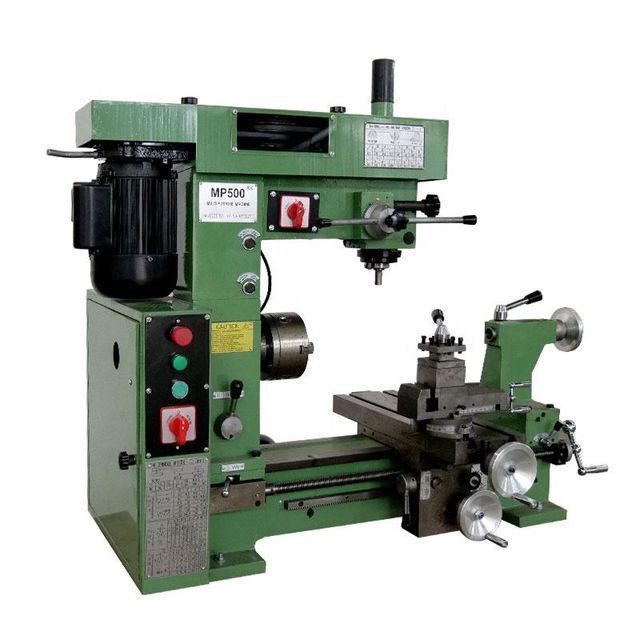

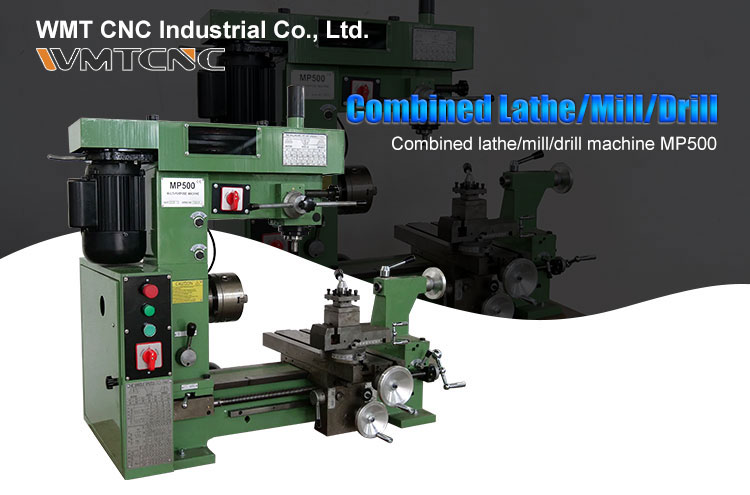

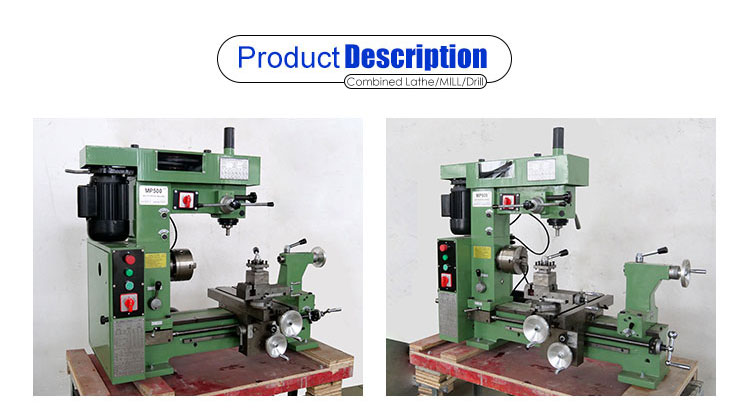

MP500 High Precision CE Combination Lathe

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Jesse Wong
Price: $1300.00 / 1 - 4 sets
$1250.00 / 5 - 19 sets
$1200.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	type:	horizontal
CNC or not:	normal	Health status:	new
maximum. Workpiece length (mm):	800 mm	payment terms:	L/C,Western Union,D/P,D/A,T/T,PAYPAL
weight:	280KGS	Processing capacity:	medium
Dimensions (LWH):	1130x580x1100mm	year:	brand new
Spindle Bore (mm):	28mm	Warranty:	1 year
Local service location:	Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Argentina, South Korea, Chile, Colombia, Algeria, Romania, Bangladesh, South Africa, Nigeria	Certification:	CE, ISO
Spindle taper:	MT3	Core Components Warranty:	1 year
Weight (kg):	280kg	Distance between centers:	500mm
model:	MPV500	Table size (LXW):	475x160mm
Packaging Preview:		Applicable industries:	Clothing Store, Mechanical Repair Store, Home, Retail, Construction Works
port:	Shanghai Port	rocking in bed:	420mm

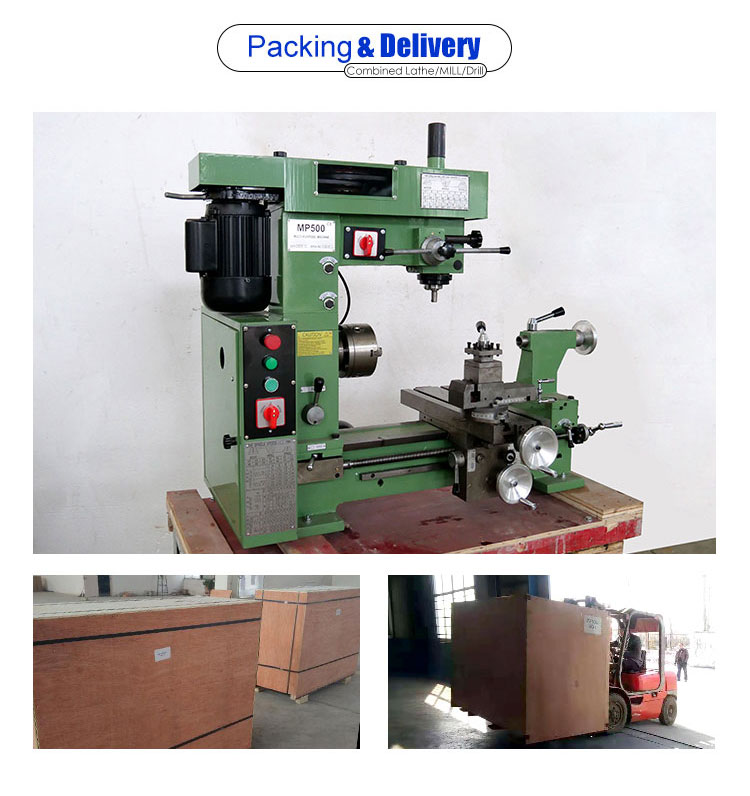

After Warranty Service:	Video technical support, online support, spare parts	Packaging Details:	It is nicely packaged in plywood packaging.
Spindle motor power (kW):	0.75kw	Auto grade:	manual
Core components:	Bearings, gears, motors, gearboxes, PLC	place of origin; place of origin:	Anhui, China
Supply capacity:	50 sets per month	maximum. Turning length (mm):	800 mm
Spindle hole:	28mm	Main selling point:	high accuracy
Video external inspection:	if	accurate:	high precision machine
After-sales service provided:	Online support, video technical support, free spare parts, on-site installation and commissioning training	brand:	WMTNC
Marketing Type:	New Products 2020	Showroom location:	Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Colombia, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Malaysia, Australia
color:	Custom Options	Voltage:	110V/220V/380V
Spindle speed range (rpm):	160 - 1360 rpm

feature:

Turning, Milling, Drilling and Stamping
Metric or imperial thread cutting
Suitable for processing metal, wood and other materials
Versatile, small footprint, economical

Specification	MP500
maximum. rocking in bed	420mm
maximum. distance between centers	500mm
maximum. Longitudinal stroke	400mm
maximum. cross travel	200mm
Spindle taper	MT4
Spindle hole	φ28mm
Spindle speed step	7 steps
Spindle speed range	160-1360 rpm
barrel travel	70mm
barrel taper	MT3
Metric thread range	0.2-6mm
Inch thread range	4-120T.PI
Automatic feeding longitudinal range	0.05-0.35mm/ 0.002-0.014"
Cross-range automatic feeding	0.05-0.35mm/ 0.002-0.014"
maximum. Drilling capacity	φ22mm
Table size (length × width)	475×160mm
maximum. end mill	φ28mm
maximum. face milling cutter	φ80mm
Distance from spindle center to column	285mm
Distance between spindle and table	306mm
Up and down stroke of headstock	110mm
Spindle taper	MT3
Spindle speed step	16 steps
Spindle speed range	120-3000 rpm
Spindle head rotation	±360°
Motor Power	0.75kw
Package dimensions	1130×580×1100mm
Net weight/GW	245/280 kg
