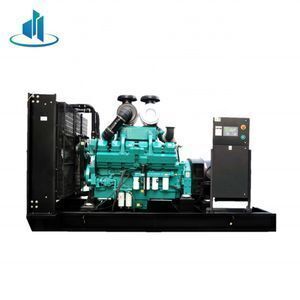

AC Three Phase 590KVA 220V 230V 1500RPM Diesel Generator

Click here to contact

Product details

Speed:	1500rpm;	Output Type:	AC Three Phase;
Number of cylinders:	L6;	Standard ambient temperature:	15 ~ 40℃;
Rated Current:	1060A;	Frequency:	50Hz;
Fuel consumption:	202g/kw.h;	Steady frequency adjustment rate:	± 0.5%;
Max Power:	650KVA;	Standard altitude:	0 ~ 1,000m;
Single package size:	490X225X260 cm;	Model Number:	R650C;
Rated Power:	590KVA;	Brand Name:	NA;
Engine brand:	Cumminus KTAA19-G6;	Selling Units:	Single item;
Package Type:	Skid pack/sea shipping;	Place of Origin:	Sichuan China (Mainland);
Single gross weight:	8,100 KG;	Rated power factor:	0.8 (lag);
Delivery Detail:	0 days after payment;	Displacement:	18.9L;
Rated Voltage:	400/230V;	Standard relative humidity:	0 ~ 60%;

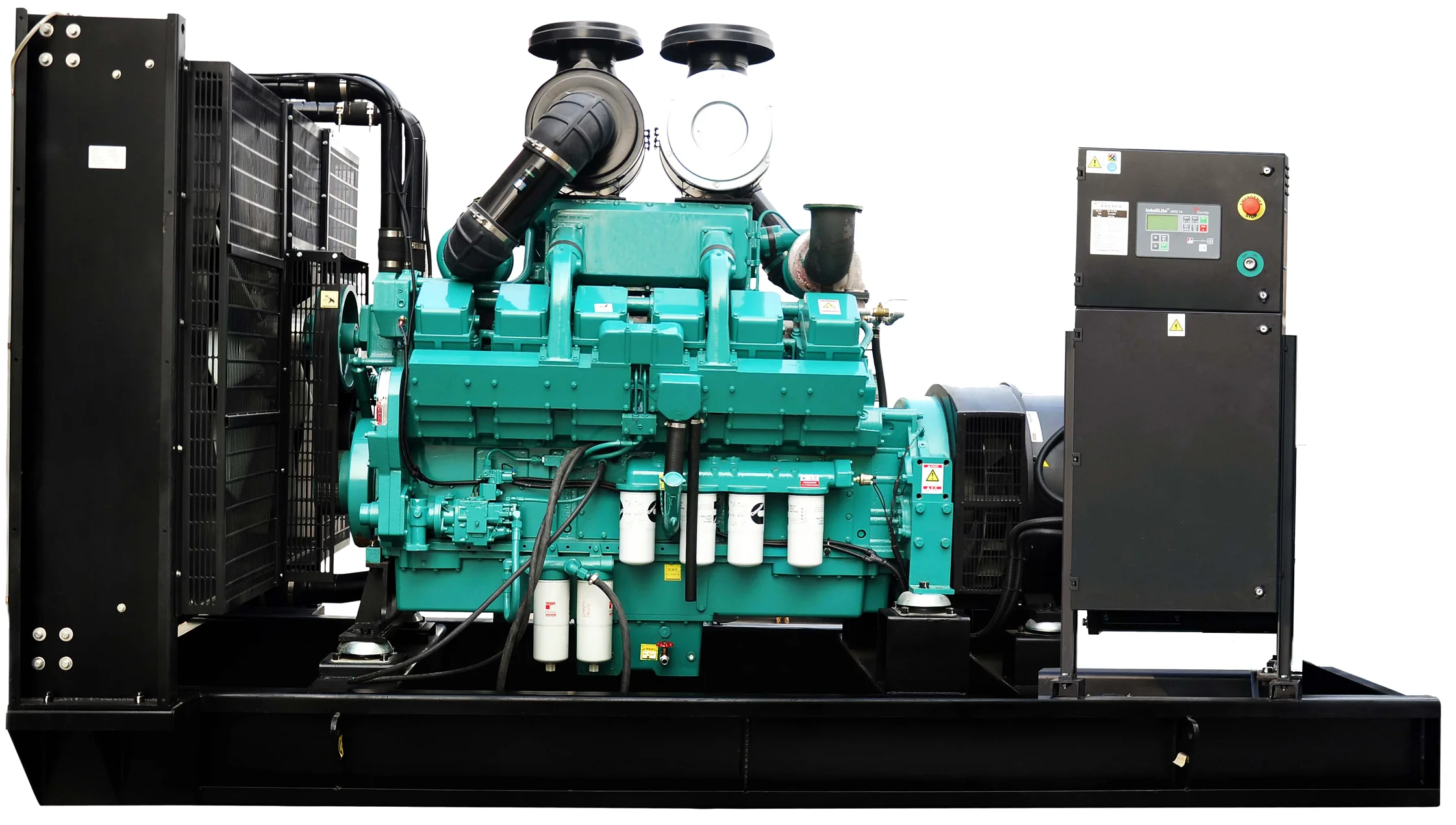

AC Three-Phase 590KVA 220V/230V/400V 1500RPM Diesel Generator

Product Overviews

Product Description

Generator set
Type	Parameter	Unit
Generator set model	R650C
Rated power of the unit	590	kva
Maximum power of the unit	650	kva
Frequency / rated speed	50/1500	Hz/rpm
Rated voltage	400/230	V
Rated current	1060	A
Connection mode	three-phase
Rated power factor	0.8 (lag)
Steady frequency adjustment rate	±0.5	%
Standard altitude	0~1000	m
Standard ambient temperature	15~40	°C
Standard relative humidity	0~60	%

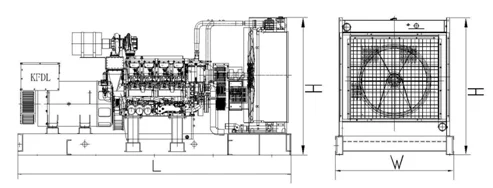

Unit size L x W x H(silent case)	4900×2250×2600	mm
Unit weight	8000	Kg

Diesel engine
type	Parameter		Unit
Engine brand	CUMMINS
Engine brand	KTAA19-G6
Engine power	570/712	Kw/Kva
Engine model	1500	rpm
Number of cylinders	L6
Displacement(L)	18.9	L
Cylinder diameter and stroke	159/159	mm
Speed control	Ele
LO capacity(L)	50	L
Fuel consumption(g/kwh)	202	g/kw.h
Alternator
Generator brand	WATTEK
Generator model	WHI5D
form	4 pole
Excitation mode	AVR
Pitch	2/3
Voltage	400/230	V
Motor efficiency	93.6	%
voltage fluctuation	≤1.0	%
Waveform distortion	1.5	%
Insulation grade	H
Protection grade	IP 23
THF/TIF	<2%/50
