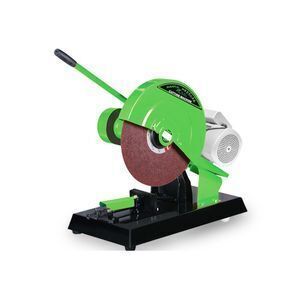

High-quality 2.2kw circular saw metal cutting machine/cut off machine

Product details
adjustable angle of the clamp:±45°;Weight:62kg;
Brand Name:Tieteng;Single gross weight:65 KG;
After-sales Service Provided:No overseas service provided;strong fiber grinding wheel:400x32x3.2 or 400x25.4x3.2;
grinding wheel no-load speed:48 m/s;Voltage:220V/380V;
Condition:New;Place of Origin:Zhejiang China (Mainland);
Dimension(L*W*H):75*49*60cm;Single package size:75X49X60 cm;
Selling Units:Single item;Sample:delivery in 7-15 days;
Warranty:half a year;grinding wheel safe speed:60 m/s;
Package Type:wooden packing for High-quality 2.2kw circular saw metal cutting machine/cut off machine;Rated Power:2.2kw;
Company Experience:More than 10 years;Certification:CE ISO9001;
Product name:High-quality 2.2kw circular saw metal cutting machine/cut off machine;Color,Logo:Customized,OEM one-stop service;
Package Preview:https://sc01.alicdn.com/kf/HTB1_0sbKXmWBuNjSspdq6zugXXaO.jpg_640x640.jpg;Spindle no-load speed:2860 r/min;
Product Introduction

Title goes here.

High-quality 2.2kw circular saw metal cutting machine/cut off machine

model

J1GA-400
J1GB-400
voltage
V
220
220
motor
kw
2.2
3
Spindle no-load speed
r/min
2860
2860
grinding wheel no-load speed
m/s
48
48
grinding wheel safe speed
m/s
60
60
strong fiber grinding wheel
m/m
Φ400xΦ32x3.2or
Φ400xΦ25.4x3.2
Φ400xΦ32x3.2or
Φ400xΦ25.4x3.2


max cutting ability
steel pipe
mm
Φ135x6
Φ135x6
angle steel
mm
100x10
100x10
groove steel
mm
125x53
125x53
round steel
mm
Φ50
Φ50
adjustable angle of the clamp
°
±45°
±45°
gross weight
kg
57
65
packing size
cm
75*49*60
75*49*60

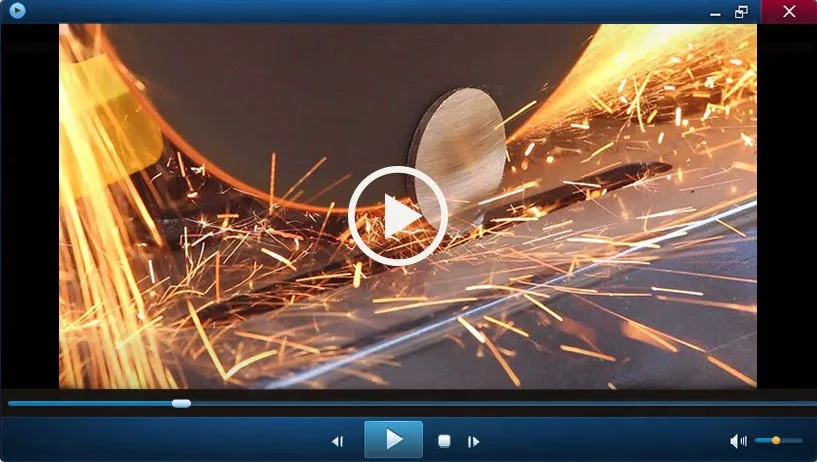

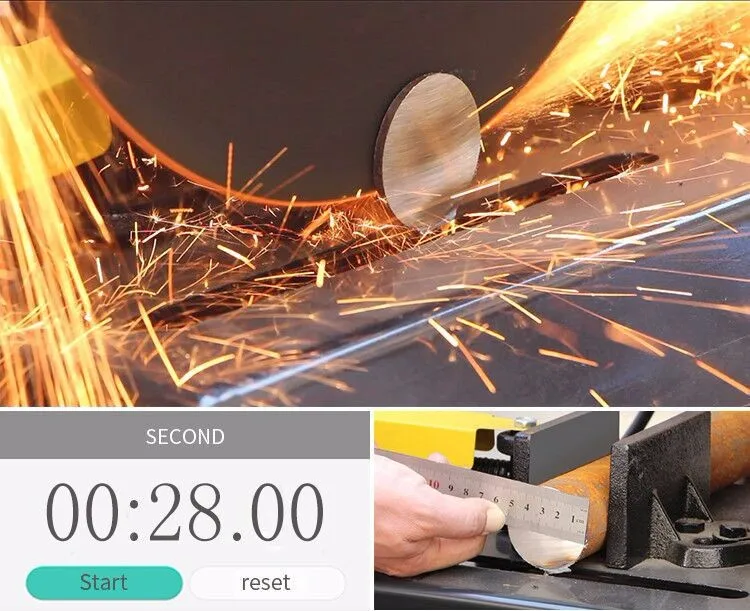

it only takes 28seconds to cut the solid round steel which diameter is 5 centimeters.

Heavy clamping design make grinding wheel steadier.

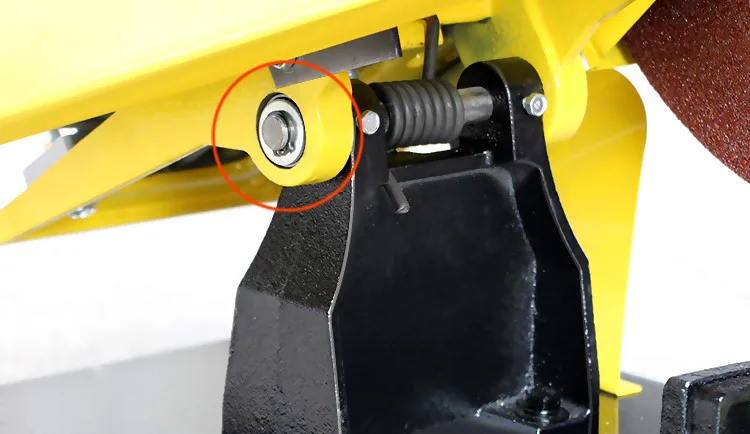

Supporting parts use Bearing structures,Less wear on long-term cutting,easier to uplift and press.

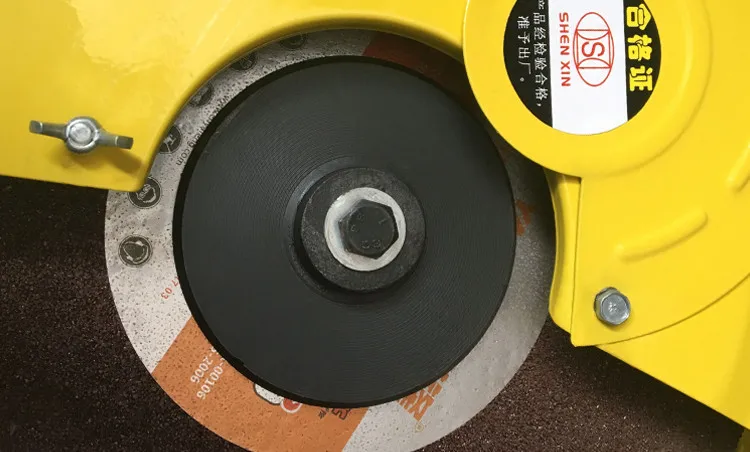

Assemble/disassemble grinding wheel button

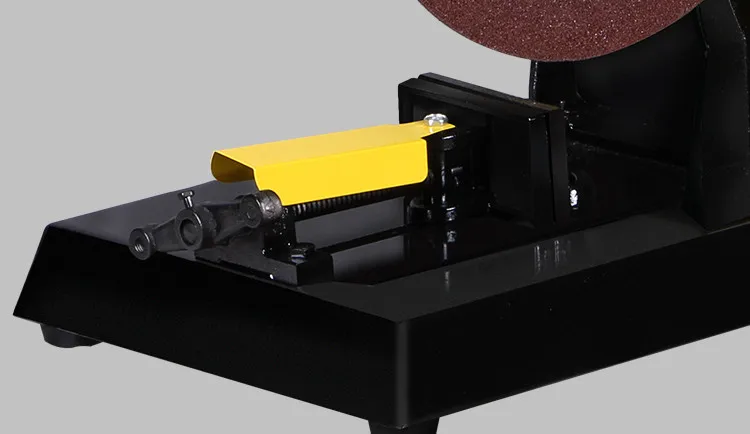

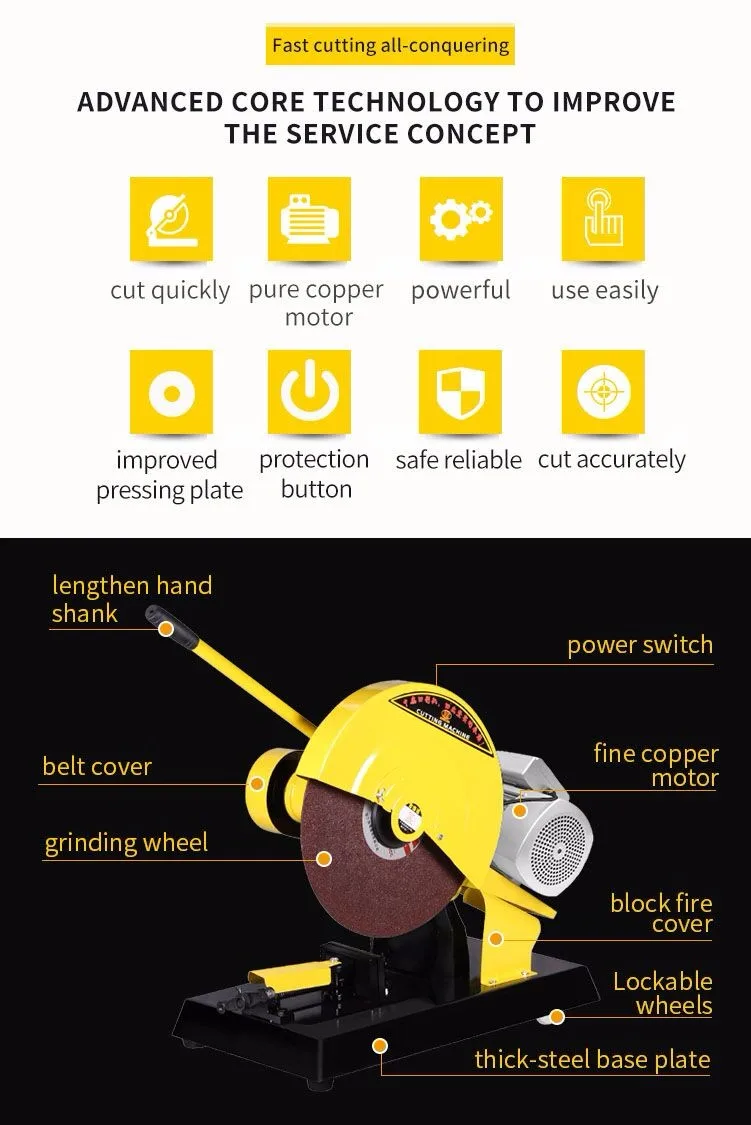

Thick-steel base plate

Thickness is 5mm.non-defromation under heavy stress

Water proof button

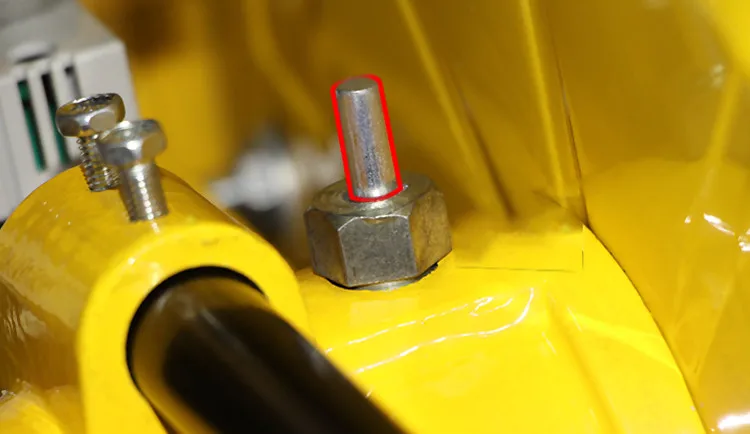

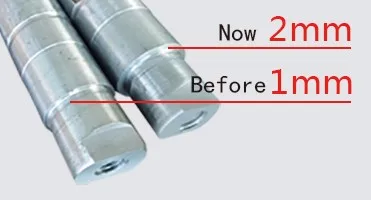

Increase the contact area of the clamp and shaft, reduce the wear of the splint, and increase the life of the splint by more than four times

Company Profile

Title goes here.

2.2kw electric high power cut off machine/iron rod cutting machine

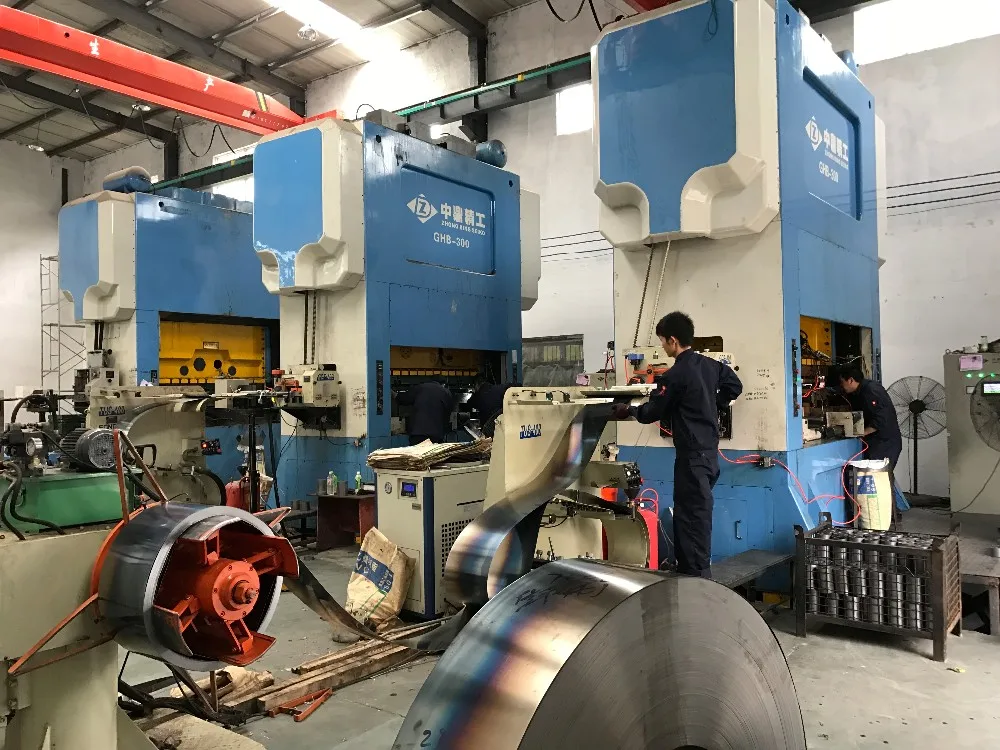

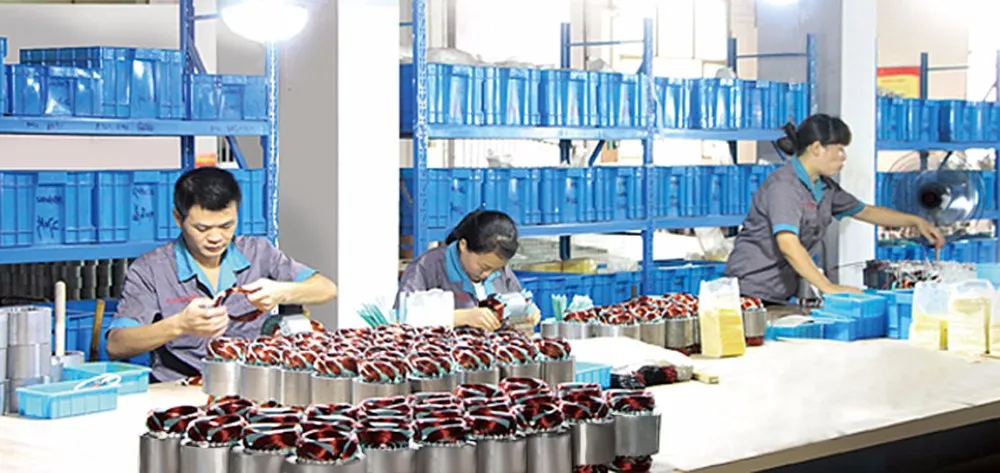

Yongkang Tieteng Hardware Tools co., Ltd is a motor manufacturer with the self-managerial import&export authority, we are a large-scale enterprise includes motor development, research, production, sales and service, and covers an area of more than 11000 square meters.

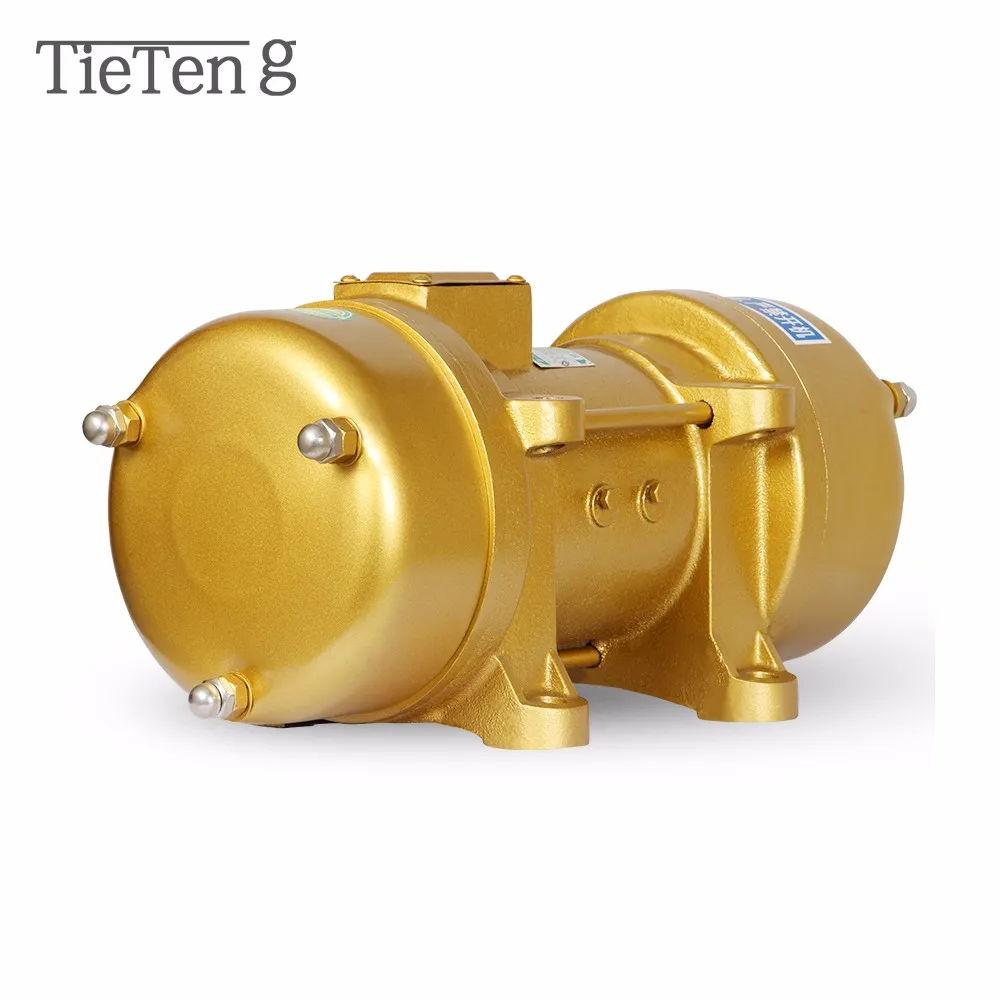

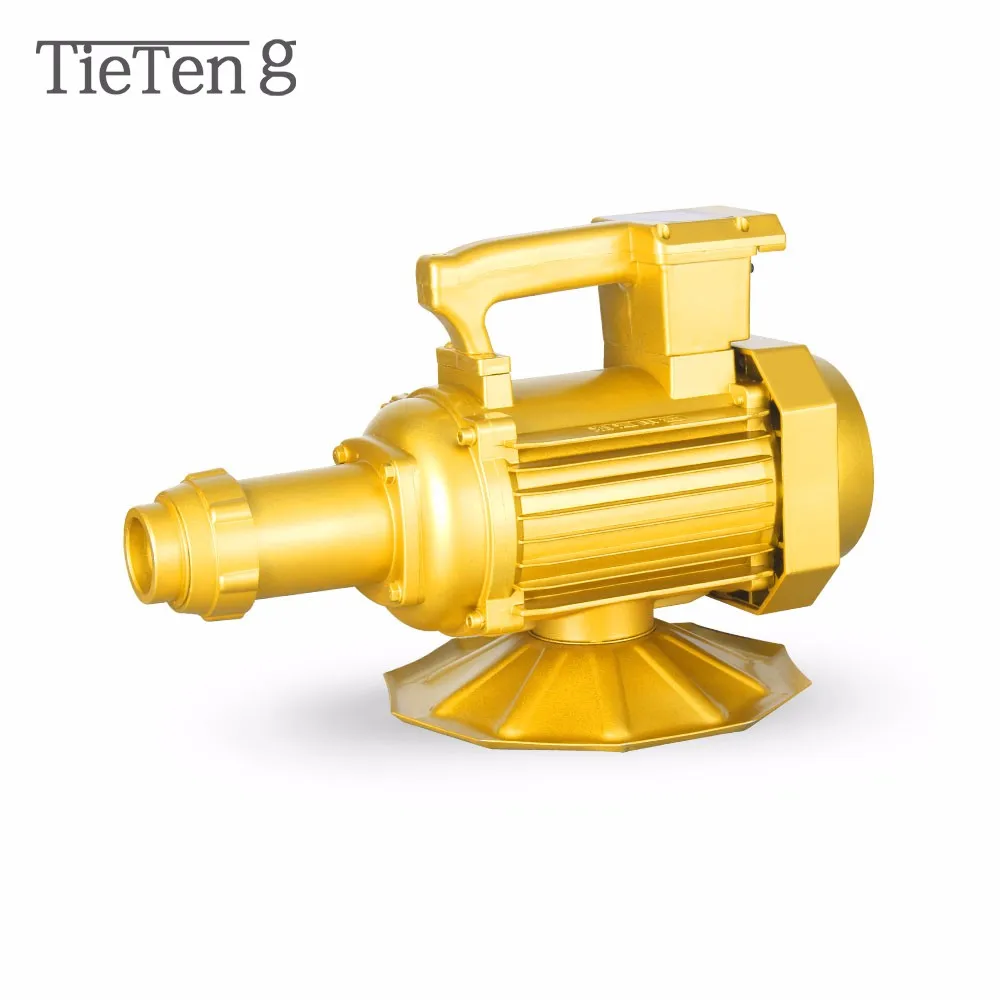

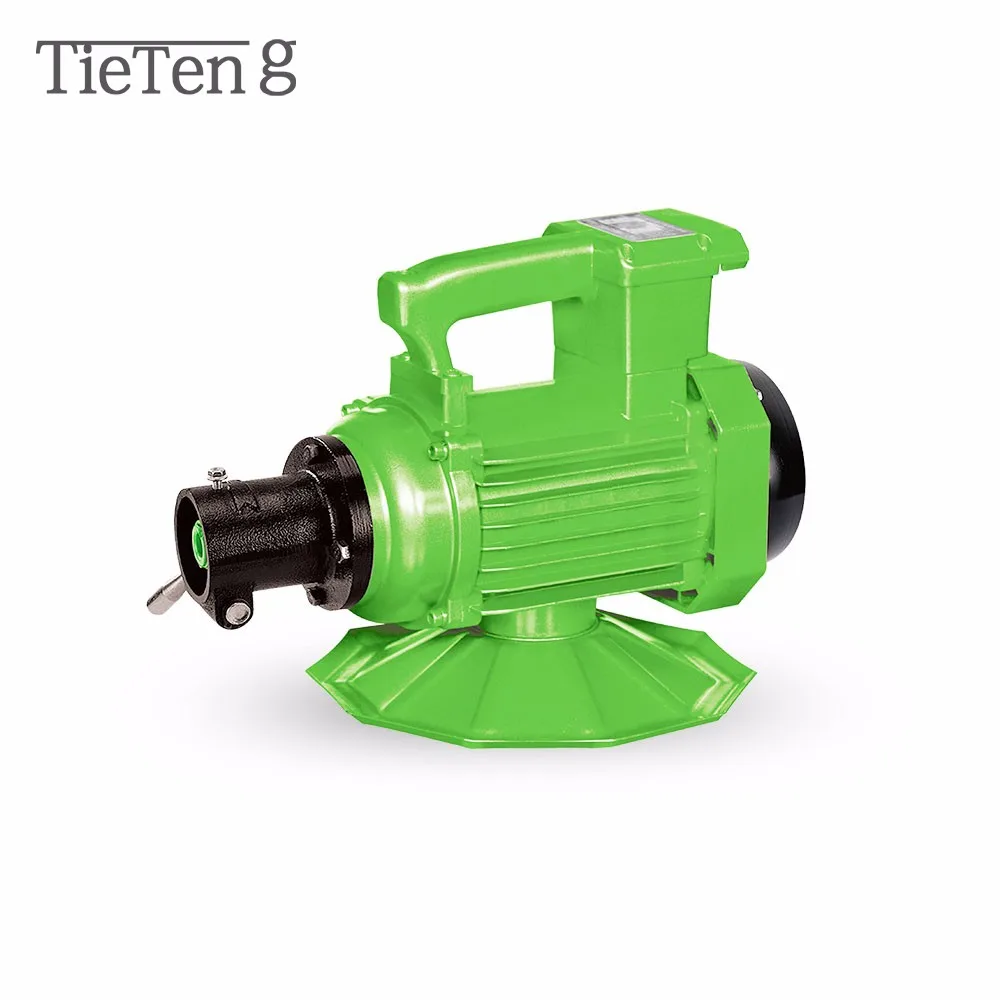

Yongkang Tieteng Hardware Tools co.,Ltd is a professional company specialized in the production of single-phase motor, three-phase motor, cutting machine, vibrator, concrete vibrating spear, bench drill, wood-working bench saw,etc. especially the single phase motor, vibrator and concrete vibrating spear is popular overseas.
Independent innovation and technological transformation make Tieteng sustained ahead in the market competition. We are constantly develop new products and sincerely hope to cooperate with new and old customers to create resplendence.








----------------------------------------------- T      I       E    T    E     N     G ----------------------------------------------
-
CERTIFICATIONS
YONGKANG TIETENG HARDWARE TOOLS CO.,LTD

Company always strives for the survival by the quality,insist on innovation for development,set up a technology product research and developmentcenter,has a number of highly qualified professionals,such as scientific research and development and independent innovation.Have achieved excellent results,according to the requirements of different customers,we have the ability to customize for supporting manufactures provide motor.

Packing and Shipment

Packaging Details:1 pc /wooden carton

Delivery Detail:
Sample:delivery in 7-15 days
Mass goods:Shipped in 25-35 days after payment
