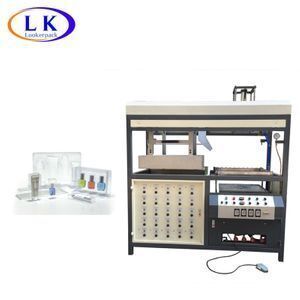

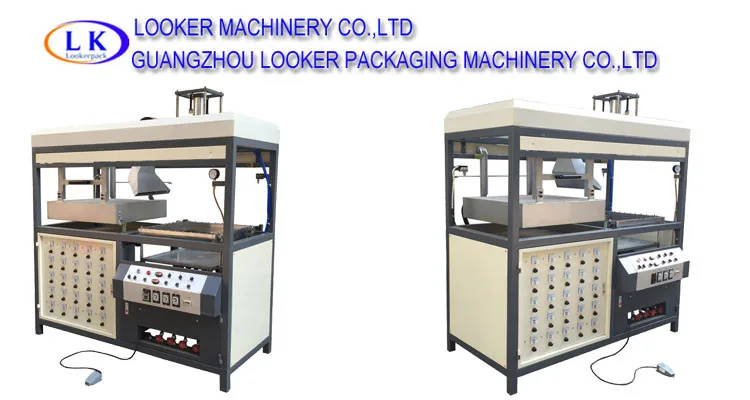

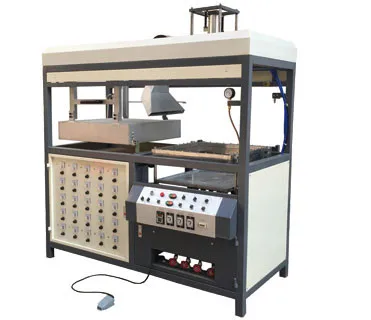

plastic thermoforming machine

Product details
Condition:New;Dimension(L*W*H):1800*1200 *2000mm;
Delivery Detail:0 days after payment;Single gross weight:670 KG;
Warranty:12 months;Processing Type:Plastic Thermoforming Machine;
Package Preview:https://sc01.alicdn.com/kf/HTB1d_HXKkyWBuNjy0Fpq6yssXXap.jpg_640x640.jpg;Machine size:1800*1200 *2000mm;
Thickness of material:0.2~1.5mm;Oversea service:Yes;
Selling Units:Single item;Max. forming height:200mm;
Package Type:polywood case;After-sales Service Provided:No after-sales service,Video technical support,Field installation, commissioning and training,Online support;
Certification:CE;Vacuum:20 cubic meter /H;
Single package size:1900X1160X2000 cm;Warranty:1 year;
Product Type:Plastic Sheet;Brand Name:Looker;
Speed:200~300moulds/H;Place of Origin:china;
Voltage:AC380V;After-sales Service Provided:Engineers available to service machinery overseas;
Power(W):12.5KW;Max.forming size:560*610mm;
Weight:650kgs;
Product Description

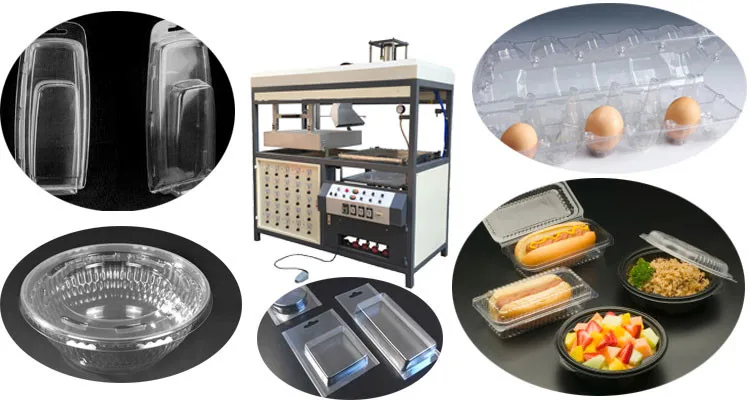

Product Application

Suitable for PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc, the machine furnace produce heat to soften the plastic       sheet, then vacuum pump sucks the plastic sheet down to the forming mould area to finish the forming, different            forming mould enable to have different forming shape. This machine is ideal for the sample making purpose and small quantity order production.

Main Features

1. 25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
2. 25pcs Solid state voltage regulators, control heating boards simple and visualized.
3. Large-scale cooling fan which can cool the products quickly.
4. Water-spray cooling system which suit for thick material.(optional)
5. Manual and Semi-auto style.

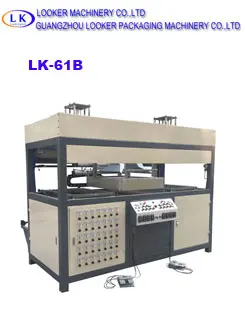

Model
LK-61
Power supply
AC380V
Power
12.5KW
Max.forming size
560*610mm
Max. forming height
200mm
Speed
200~300moulds/H
Thickness of material
0.2~1.5mm
N. weight
650KG
Machine size
1800*1200 *2000mm

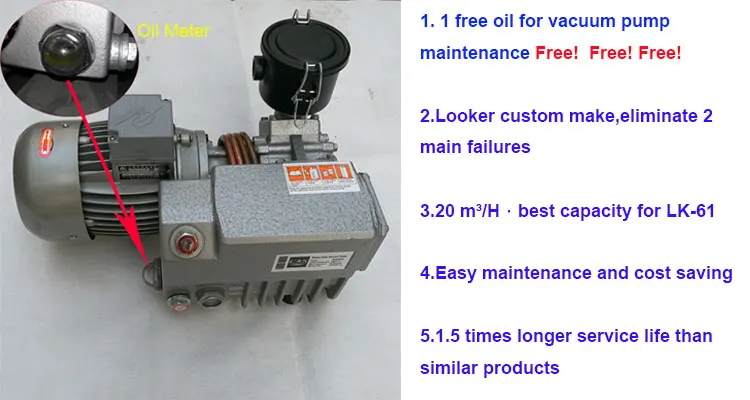

            Vaccum
                    20 m³/H

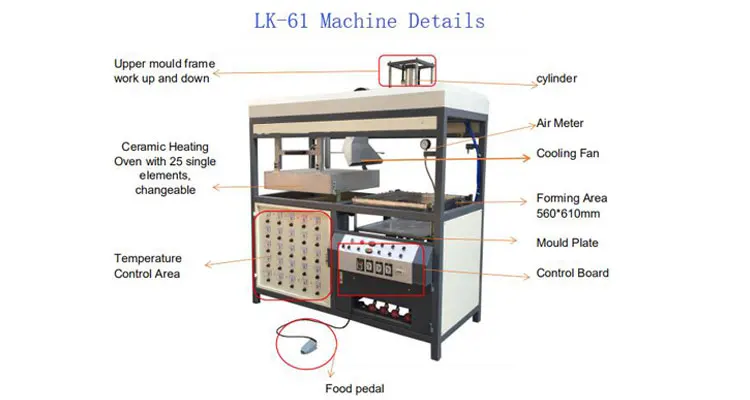

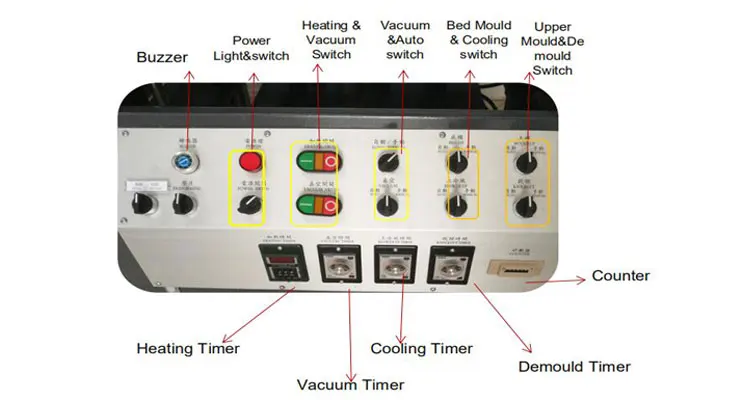

Machine Details

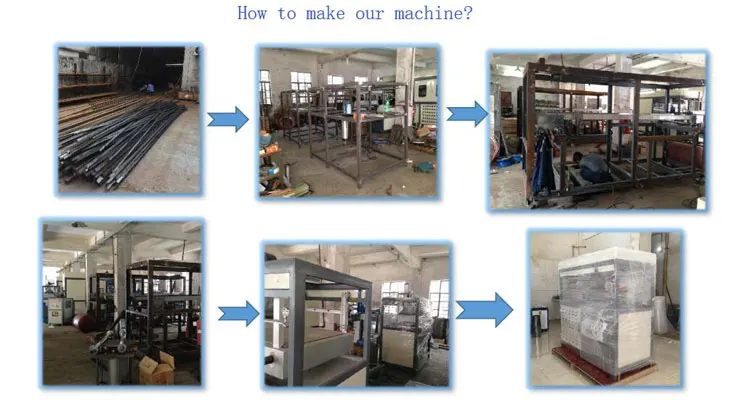

Production Process
Packing & Delivery
Packaging
Size
1930 (L) * 1220 (W) * 1890 (D)
Weight
670kgs

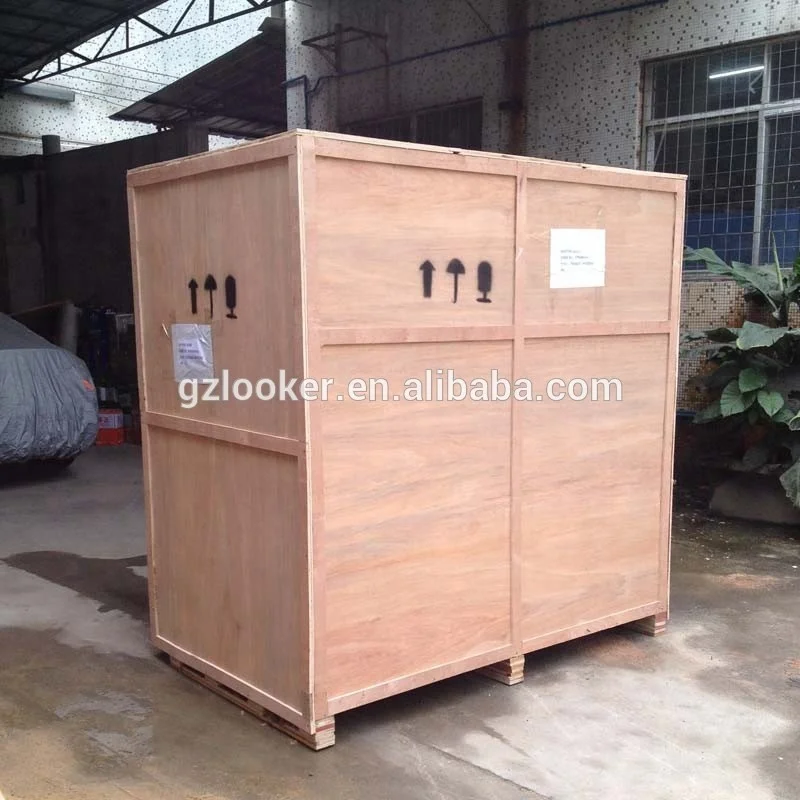

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

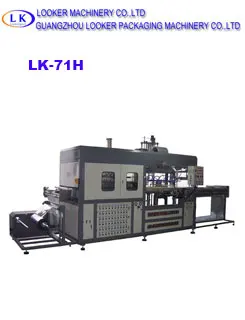

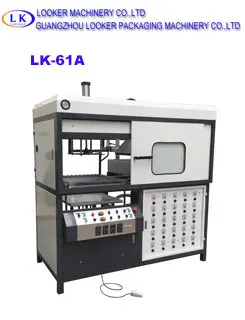

Related Products
