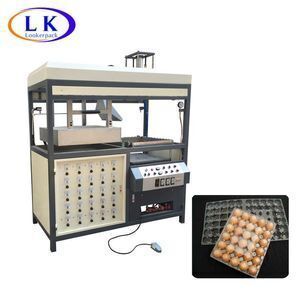

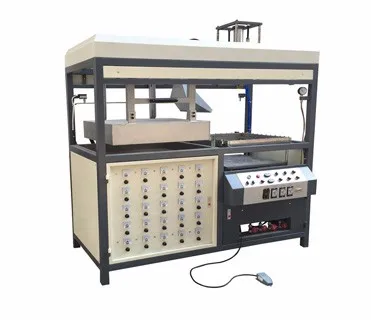

Semi-auto Vacuum Forming Machine

Product details
Product name:Semi Vacuum Forming Machine;Condition:New;
Single package size:196X116X200 cm;Single gross weight:650 KG;
Brand Name:LOOKER;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Home Use,Retail,Food Shop,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
After-sales Service Provided:Online support,Video technical support,Field maintenance and repair service;Selling Units:Single item;
Automatic Grade:Semi-Automatic;After-sales Service Provided:Engineers available to service machinery overseas;
Usage:Plastic Forming Machine;Warranty:One year;
Packaging Type:Wooden case;Model:LK-61;
Package Type:The normal package is wooden box(Size: L1900*W1160*H2000 mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.;Machine type:Semi Vacuum Forming Machine;
Voltage:380/220/110V;Power Supply:380V/220V/110V;
Certification:CE;Dimension(L*W*H):1800*1200 *2000mm;
Speed:200-300moulds/hour;Weight:600kgs;
Place of Origin:Guangdong China;
Product Description

Product Application

Suitable for PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc, the machine furnace produce heat to soften the plastic sheet, then vacuum pump sucks the plastic sheet down to the forming mould area to finish the forming, different forming mould enable to have different forming shape. This machine is ideal for the sample making purpose and small quantity order production.
Main Feature
1.Fix with high quality vacuum pump and has stable performance and strong suction. independent temperature control system, simple operation and easy maintenance.
2. 25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
3. 25pcs Solid state voltage regulators, control heating boards simple and visualized.
4. Large-scale cooling fan which can cool the products quickly.
5. Water-spray cooling system which suit for thick material.(optional)
6. Manual style and Semi-auto style available.
7. Button or pedal control available, Improve production efficiency.
Model
LK-61
Power supply
AC380V
Power
12.5KW
Max.forming size
560*610mm
Max. forming height
200mm
Speed
200~300moulds/H
Thickness of material
0.2~1.5mm
N. weight
600kgs
Machine size
1800*1200 *2000mm
Material
PVC, PET PP.PS
Detailed Images

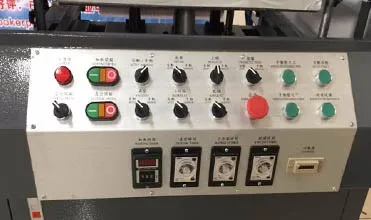

Controll Board

Name: Controll Board
Brand: Looker
Original: China
This is mechanical machine, it is easy to understand to operate for worker. just need to control it by button .
Each function of button is easy to understand.

Foot Pedal

Name: Foot Pedal
Brand: Looker
Original: China
Food pedal mode enable furnace auto-running, release hand and increase production efficiency. convenient operation

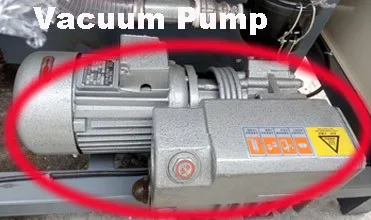

Vacuum Pump
Name: Vacuum Pump
Brand: Looker
Original: China
High quality brand choose for each machine
20CBM/H

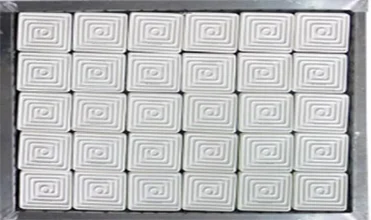

Ceramic panel oven heater

Name: Heater panel
Brand: LOOKER

Quantity: 25 pcs

You can choose quartz or ceramic as you want

Our standard machine is using quartz heater, it is easy to get heater in short time for save electric power.

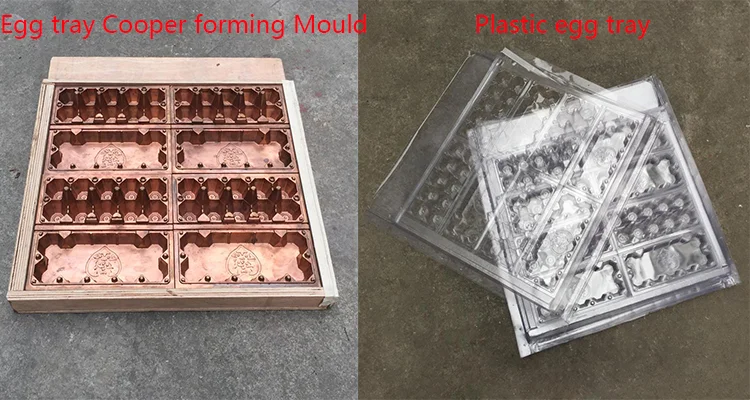

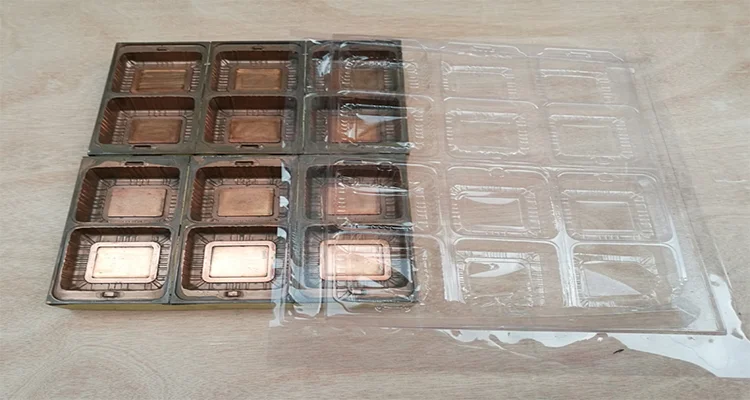

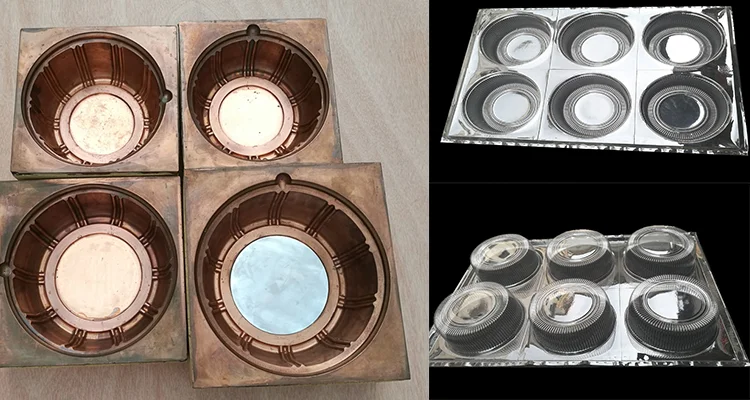

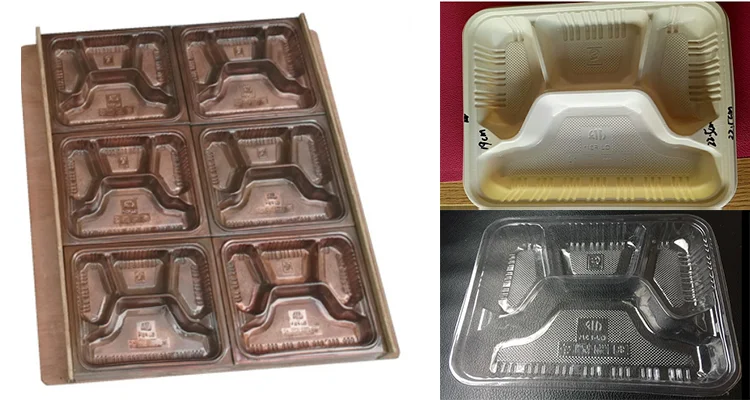

Mould & Samples

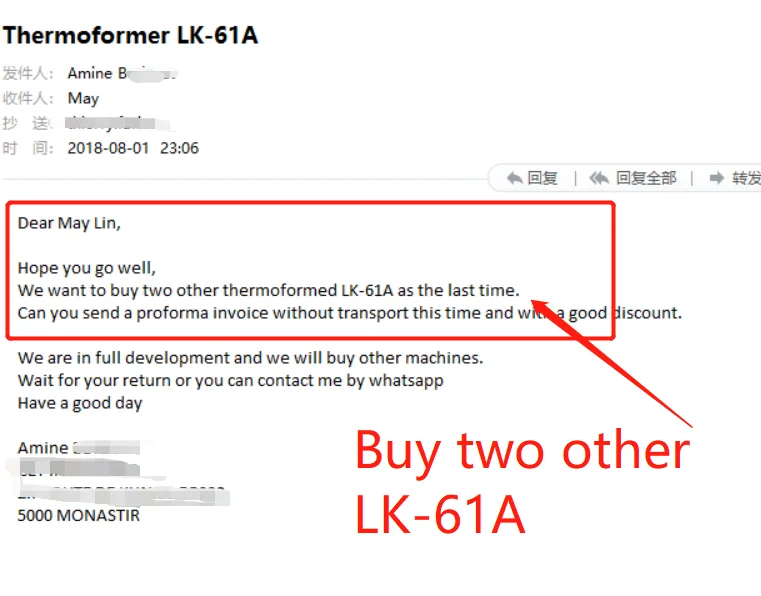

Customer Feedback
The customer who bought our machine and would like to sell our machine in their local market.
we got positive feedback from each of our customer because we have good term for after- sales support and good service for all customer . We are looking for machine agent all the time .let us get win- win together !
Related Products
Working size : 560*710mm
 Working size : 710*1200mm
Working size :  560*610mm
Our Service

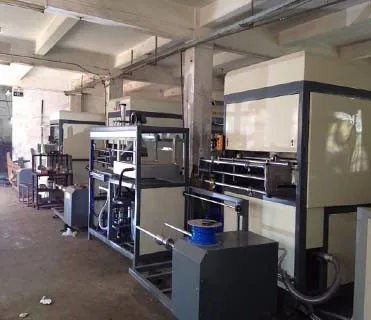

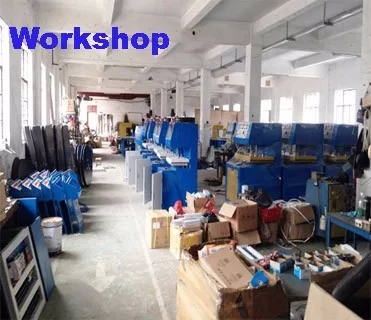

Our Factory View

Overseas after sale service is available. Our engineers are fluent in English and have strong technical skills. Actually we have rich experience on overseas after sale service, we have been to many countries and all our customers are satisfy with our service.

Of course , our machine is simple and easy to understand.

We will provide each customer below thing for each machine , this is enough to learn how to use our machine .


1.Machine English Manual
2.Machine Video LINK to show you when we test your machine  from start to end ( one step by one step)
3.Installation & Operation CD
4.Tools case

5.spare parts
