China supplier 35x55x25mm GE series high quality ball and socket joint radial joint bearing GE35ES 2RS

China supplier 35x55x25mm GE series high quality ball and socket joint radial joint bearing GE35ES 2RS

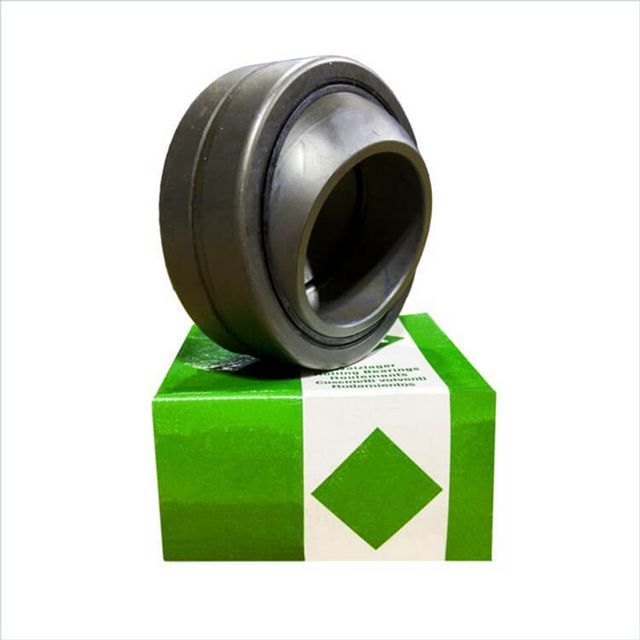

The GE Series radial spherical plain bearings feature double seals and are suitable for pivoting high load bearing applications where angular misalignment is required, such as hydraulic cylinder rod ends. Its outer ring has a single break to facilitate inner ring installation, its inner and outer rings have grooves and oil holes for easy lubrication, its dual nitrile seals prevent contaminants from entering, and its wide inner ring cross-section provides High misalignment adjustment. The CN (normal) radial clearance of this roller bearing is suitable for applications where thermal expansion will not reduce the clearance. The bearing's inner and outer rings are made from fully hardened carbon chromium steel and are heat treated to increase hardness for optimal wear resistance. Its spherical contact surfaces are precision ground to maximize face contact between the inner and outer rings. The bearings are phosphate treated before being coated with dry film lubricant for corrosion resistance and have an operating temperature range of -22 to 266 degrees Fahrenheit (-30 to 130 degrees Celsius). This type of spherical plain bearing is suitable for vehicle suspensions and articulated joints in heavy equipment.

Sliding bearings provide low-friction sliding contact for relative motion between machine parts. They are the simplest type of bearings and have no rolling elements. There are three basic types of plain bearings: radial plain bearings (also called sleeve bearings or bushings), which are used to support rotating or reciprocating shafts, and thrust bearings (also called washers). ), used to support axial loads on shafts, and linear bearings that support and guide the linear motion of parts. Flanged sleeve bearings have a flange on one end to support axial loads. Spherical bearings are radial bearings that allow angular misalignment of the shaft. Plain bearings are made from durable, low-friction materials such as sintered or cast bronze alloys, plastic or a combination of metal housings and plastic bearing surfaces. They can be lubricated externally or by a lubricant embedded in the bearing material. Plain bearings are used in automobiles, construction and mining equipment, textile manufacturing equipment and robots, among others.

We are a professional bearing manufacturer. We strictly control every process from raw material procurement to production. Our mission and commitment is to provide customers with the right products, the right services and the right delivery time.

Our main products are as follows:

1. Ball bearings

2. Roller bearings

3. Deep groove ball bearings (605-6020, 623-6220, 6300-6320, 6403-6413 series)

4. Spherical roller bearings; (21000, 22000, 23000, 24000, 29000 series)

5. Cylindrical roller bearings (N, NU, NJ, NF, NUP, NN, NNU, FC, FCD, FCDP, NNCF, NNF, SL, etc. NU222, NNU4952, N236, NJ315, NF216, NNCF2218, NNF5008, SL185032...)

6. Tapered roller bearings; (30000 series and inch sizes.)

7. Angular contact ball bearings (7000, 7200, 7305, 7400 series)

8. Aligning ball bearings, four-point contact ball bearings

9. Thrust ball bearings. (50000 series)

10. Thrust roller bearings (292/500, 29488, 293/710, 29248, 292/800)

Thrust cylindrical roller bearings, (89309-TV,81234-M,81132-TV,ZARN2557-TV)

Thrust tapered roller bearings, (TTSV525, TTSX440, TTSX640Y, TTSX800)

Thrust needle roller bearings, (TP35521, TP2542, TP1831, TP1427, TP1024)

Thrust spherical roller bearings, (294/750M, 29396E, 29360E, 293/750E, 293/530E)

11. Insert spherical bearings with seat (UCP, UCF, UCFL)

12. Ceramic bearings

13..Stainless steel bearings

14.Clutch bearings, automobile bearings

15. Spherical bearings (GE200ES, GE140ES, GE120ES, GE110ES, GE10E, GE100ES)

16. Plastic bearings (6300, 6001, 6201, 16001. POM, PP, PA, UPE, PTFE material)

17. Needle roller bearings (BK0509, BK0810, BK1816, BK1416, BK6020, BK3520)

18. Solid needle roller bearings (BK2212, HK0808)

19. Bearing parts (balls, bearing rings, bearing grease, rubber seals, bearing boxes, bearing sleeves, bearing cages, guide rails)

20. Lazy Susan bearings (D8788/830,798/525,789/700,7397/2700G2K3,6787/820G, etc.)

21. Spiral roller bearing, 7921C/DT

22. One-way bearing, cs35

23. Rolling mill bearings, (FC2028104, 382052X2, FC202880, 381040X2)

24. Full complement roller bearings (3NCF6913VX2, 3NCF5930VX2, SL014834)

25.Integral eccentric bearing, UCFLU318

27. Split bearings, (412740, 230SM115MA, 222Sm55T,)

28. Combined bearings (ZARN90180, ZARN3585, ZARN70130)

29. Ball screw bearing (7602040TN, 7602020TNl, 20TAC47BUC10PN7B)

30.Thin wall bearings

31. Oil-free lubricated bearings, 1553r

32.Flange bearing,681

33.Linear motion bearings (7602035TNl, LB101929, LB203245, LB304768)

34. High temperature bearings (970207, 970306, 970204, 970312)

35. Turbocharger bearings (6304ADMA, N304ADMA, 7304ADLA/DF, 6308ADMA)

36. Water pump bearings (WR1630119, WR2040105D2, WIR1938151)

37. Non-standard bearings (050,332/334,52713,A334/332A)

If you want to know more about our products, please feel free to contact me. You can also visit our online company profile, which includes our latest product lines. After receiving your detailed requirements, we will be happy to provide you with a quote.

I look forward to hearing from you as soon as possible. And hope to have the opportunity to cooperate with you in the future.
