SQZ10 M10X1.25 common rod end bearings SQZ10 M10X1.25

Supplier: Jinan Maolei Bearing Co., Ltd.
Region: Shandong, China
Contact: Ms jiessie zhang
Price: $1.50 / 10 - 99 sets
$1.00 / >=100 sets
Min. Order: 10 sets

Click here to contact

Product details

Serve:	OEM customization service	Material:	Chrome steel
application:	bike	lubricating:	Oil
Certificate:	ISO9001:2008	port:	Guangzhou or as your request
cage:	iron cage	Accuracy class:	P0 P6 P4 P5 P2
Packaging Details:	A. Tubular packing+outer carton+pallet B. Single carton+outer carton+pallet C.Tubular packing+middle carton+outer carton+pallet D. According to your requirements.	Supply capacity:	1 million sets per month
brand:	LLH or as required	Applicable industries:	Building materials store, manufacturing plant, retail, print shop, energy and mining, other, advertising agency
feature:	longevity	accurate:	ABEC1 ABEC3 ABEC 5 ABEC7
type:	end of pole	Origin:	Shandong Province, China
model:	SQZ10 M10X1.25	pack:	plastic pipe
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	vibration:	V1 V2 V3 V4

Packaging and Shipping

Packaging Details A: Tube + Carton + Pallet

B: single box + outer box + pallet

C: tube bag + middle box + outer box + tray

D: According to your request

Delivery time Shipped within 3 days after payment

Product Description

describe:

The joint bearing is composed of an inner spherical surface and a spherical outer ring, which can bear large loads. Depending on its type and structure, it can bear radial load, axial load or radial and axial combined load. Since the inner surface and the outer spherical surface are inlaid with composite materials, the bearing can produce self-lubricating effect when it is working. It is generally used for slow swinging motion, and it is also suitable for tilting motion within a certain angle range. When the misalignment between the supporting shaft and the shaft shell hole is large, self-lubricating joint auxiliary bearings are used in water conservancy, special machinery and other industries.

feature:

1. Bearings with stretch rods, stretched with right-hand or left-hand external threads.

2. The surface of the rod body and the housing with lubrication holes or grease nipples is galvanized.

3. The allowable working temperature of the rod end joint bearing can be used in the temperature range of - 30 °C to + 80 °C, and maintain a suitable bearing capacity.

application:

Joint bearings are widely used in water conservancy projects, metal forming machine tools, engineering machinery, automation equipment, automobile shock absorbers, water conservancy machinery and other industries.

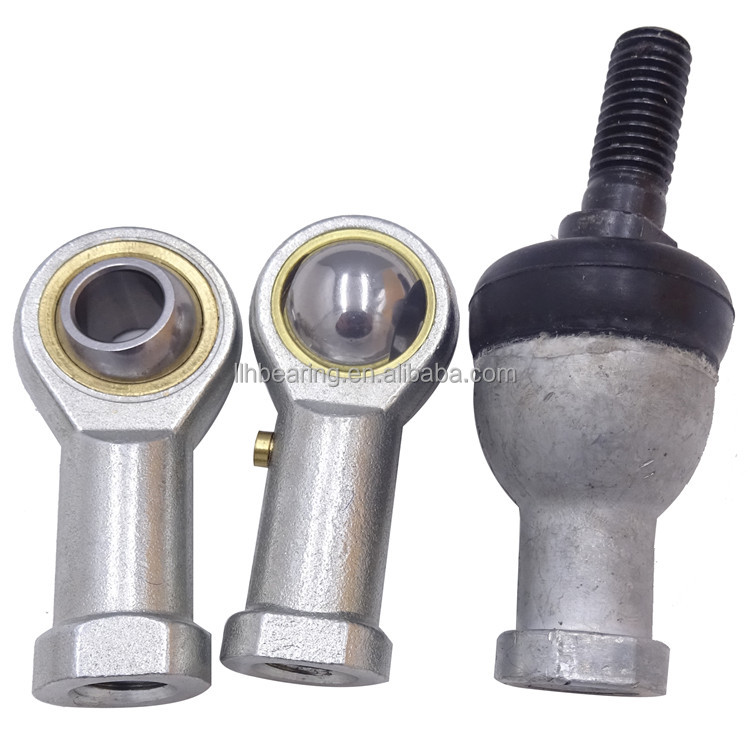

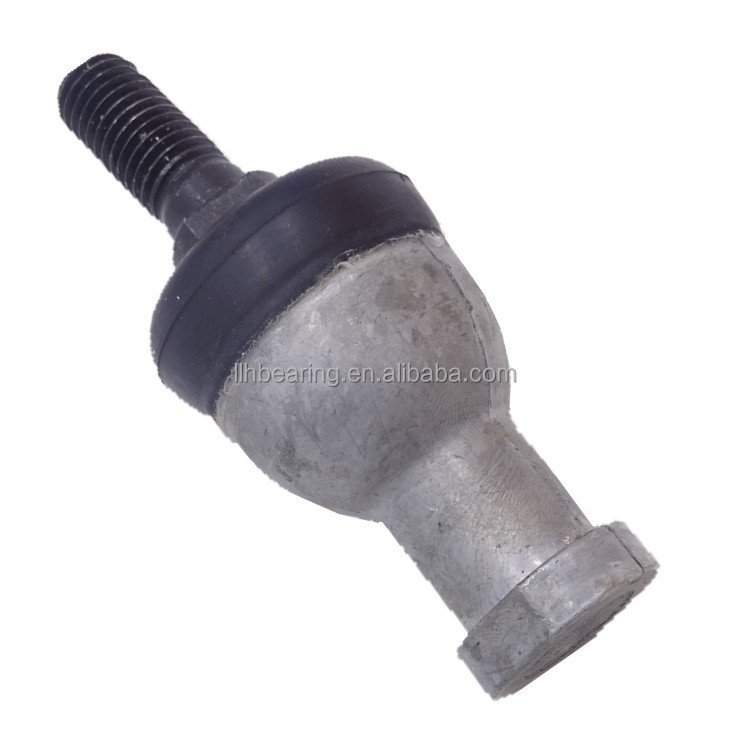

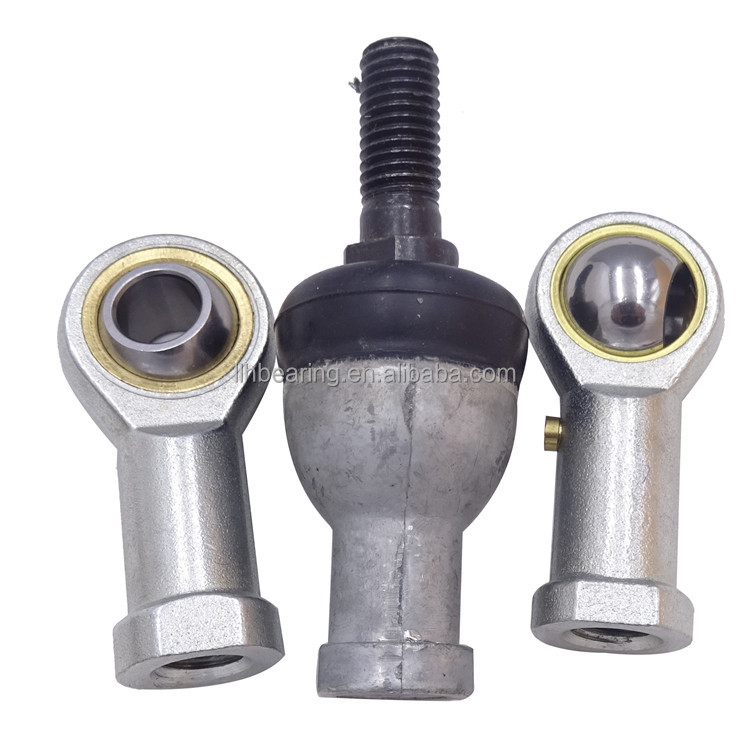

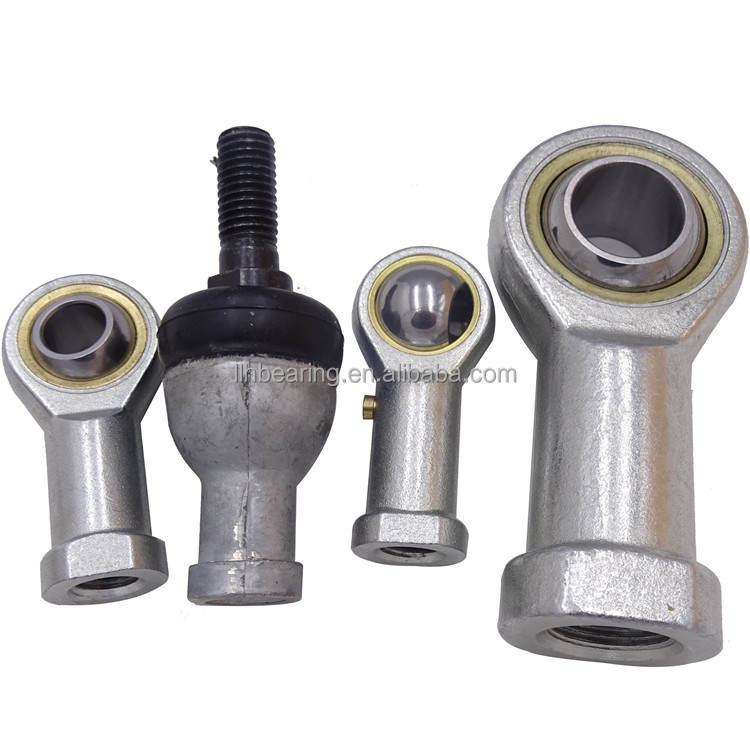

product display

Related models

part number		Dimensions mm													specified load	weight
right hand	left hand	d	d1	d2	d3	l1	l2	S1	L	L1	L2	L3	D2	S2	KN	Kilogram
SQZ 5 RS	SQZL 5 RS	5	M5x0.8	9	20	8	11	7	46	twenty four	4	12	11	9	2.8	0.025
SQZ 6 RS	SQZL 6 RS	6	M6x1.0	10	20	11	12.2	8	55.2	28	5	15	13	11	3.7	0.041
SQZ 8 RS	SQZL 8 RS	8	M8x1.25	12	twenty four	12	16	10	65	32	5	16	16	14	5.8	0.075
SQZ 10 RS	SQZL 10 RS	10	M10x1.5	14	30	twenty one	19.5	11	80.5	35	6.5	18	No. 19	number 17	8.4	0.12
SQZ 10-1 RS	SQZL 10-1 RS	10	M10x1.25	14	30	15	19.5	11	74.5	35	6.5	18	No. 19	number 17	8.4	0.12
SQZ 12 RS	SQZL 12 RS	12	M12x1.75	number 17	32	twenty four	twenty one	15	91	40	6.5	20	twenty two	No. 19	11	0.18
SQZ 12-1 RS	SQZL 12-1 RS	12	M12x1.25	number 17	32	number 17	twenty one	15	84	40	6.5	20	twenty two	No. 19	11	0.18
SQZ 14 RS	SQZL 14 RS	14	M14x2.0	No. 19	38	28	23.5	number 17	109	45	8	25	25	twenty two	15	0.27
SQZ 14-1 RS	SQZL 14-1 RS	14	M14x1.5	No. 19	38	twenty two	23.5	number 17	103	45	8	25	25	twenty two	15	0.27
SQZ 16 RS	SQZL 16 RS	16	M16x2.0	twenty two	44	29	25.5	No. 19	118	50	8	27	27	twenty two	15	0.36
SQZ 16-1 RS	SQZL 16-1 RS	16	M16x1.5	twenty two	44	twenty three	25.5	No. 19	112	50	8	27	27	twenty two	15	0.36
SQZ 18 RS	SQZL 18 RS	18	M18x1.5	twenty three	45	25	31	20	130.5	58	10	32	31	27	No. 19	0.54
SQZ 20 RS	SQZL 20 RS	20	M20x1.5	27	50	25	29	twenty four	133	63	10	38	34	30	No. 19	0.57
SQZ 22 RS	SQZL 22 RS	twenty two	M22x1.5	27	52	26	33	twenty four	145	70	12	43	37	32	twenty three	0.76

part of our product

Attached:Some types of bearings we supply (if you cannot find the bearing you need, please contact us directly)

our service

1. High speed, high precision, low noise, long life

2. Wide range of applications

3. Large inventory

4. Small order accepted

5. Competitive price and high quality
6. Various brands
7. Requires little maintenance
8. Support OEM
9. Our company adheres to the business philosophy of "quality first, reputation first", and the product specifications are based on evidence. We enjoy a good reputation in the international market for our perfect service and sufficient supply.
