Foodstuff conveyor mesh belt dryer /fruit /seafood/red dates drying machine

Supplier: Shaoxing Shangyu Xinye Foodstuff Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms. Dasen Ye
Price: $8888.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T;	Warranty:	One Year;
Power(W):	depend on the machine model;	Place of Origin:	Zhejiang China (Mainland);
Type:	Cooler;	After-sales Service Provided:	Engineers available to service machinery overseas;
Supply Ability:	5 Set/Sets per Month;	Weight:	depend on the machine size;
Delivery Detail:	Shipped in 120 days after payment;	Certification:	CE, ISO9001;
Dimension(LWH):	depend on the cpacity;	Type:	Fluid Bed Drying Equipment;
Model Number:	Custome Made;	Product name:	mesh belt dryer /fruit /seafood/red dates drying machine;
Port:	Ningbo;	Packaging Detail:	Wooden Box Or Bare Machine for mesh belt dryer /fruit /seafood/red dates drying machine;
Certification:	ISO9001:2008;	Brand Name:	WUYE;
Condition:	New;	Voltage:	local voltage;

Product Description

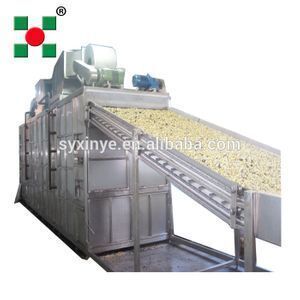

mesh belt dryer /fruit /seafood/red dates drying machine

Belt dryer is continuous through-flow drying equipment for drying breathable good sheet, strip, granular materils,the dryer has fast drying,high evaporation strength,good product quality advantages.

suitable for the drying of granule products , marine , carrot, mushroom, green vegetables, bell pepper, garlic, pumpkin, sweet potato, bamboo shoots, products, etc.

Belt Dryer
Model	DW-1.2-8	DW-1.2-10	DW-1.6-8	DW-1.6-10	DW-2-8
Quantity of unit	4	5	4	5	4
Length of drying section(m)	8	10	8	10	8
Belt width(m))	1.2		1.6		2
Thickness of raw material(mm)	≤60
Operation temperature(°C)	50-140
Steam consume(kg/h	120-300	150-375	150-375	170-470	180-500
Drying time(h)	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2
Drying capacity (kg/h)	60-160	80-220	75-220	95-250	100-260
Overall dimensions(m)	9.56*1.49	11.56*1.49	9.56*1.9	11.56*1.9	9.56*2.32

Features

1.You can adjust the amount of air, heating temperature,

residence time,and feed rate in order to achieve the best

drying results.

2.Device configuration flexibility, you can use mesh belt

and material cooling system flushing system.

3.Heating source can be steam, oil, electricity or coeal fired(oil),stove supporting

Belt Dryer Technical Description

Belt dryer will have to deal with the maerial through the appropriate charging machine, distribution on the conveyor belt,conveyor belt through the hot air circulation system, circulation system has one or several wet system. Material from the conveyor belt, through the hot air after allocator, blowing into jet mesh belt, from the bottom up and from the top down through the conveyor belt material, so that the material uniform drying. Applicable to a variety of vegetable, fruits, sea food, etc.

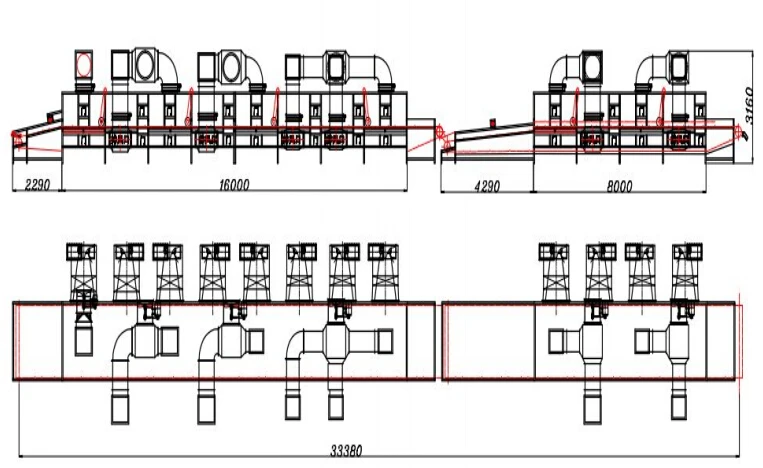

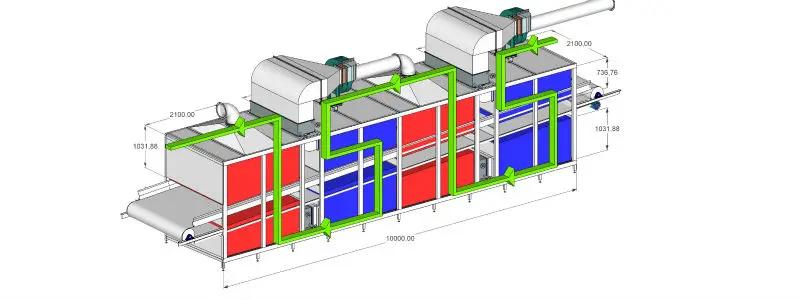

Drawing of Belt Dryer

Our Company

Company Introduction

Shangyu Xinye Foodstuff Machinery Co., Ltd. is a professional food machinery manufacturer, which

located in Shangyu District, Shaoxing City, Zhejiang Province, China. It had founded in 1995 with a

registered capital of 10Million RMB.We passed the evaluation of ISO9001:2001 certification in 2002. Our company has more than 200 employees. Our main Products are quick-freezing equipment, pretreatment processing lines, drying machines, air coolers, evaporation condensers,ect.We design, produce and

install all kinds of all kinds of refrogerators.

Our products have already formed a mature market in China and are also exported to Vietnam, South

Korea, Japan, Russia and Pakistan ect. We are willing to set up good business relationships with

customers from all around the world. You are warmly welcomed to contact us.

Our service

1. Before sale: We will offer quotation and machins drawing.

Welcome customers visit our company and we will bring customers to see our machines.

2.Production: Raw materials imported by import or brand-name products.

We must manufacture machines according to the contract we singed.

3. After sale: we'll help installing and testing the machines,then we'll teach customer to operate the

machines and repair them. if have big problem ,we'll send engineer to customer side.
4. Guarantee: one year.

5. My company will provide first-class equipment, the most reasonable price, the most innovative and

the best service for your company.

Certifications

Our company passed the evaluation of ISO9001:2001 certification in 2002.

Our company passed the evaluation of SGS certification in May,2016.

Our company has 50 national invention patents.

Our company won the title of provincial science and technology enterprises.

Etcetera

Packing & Delivery

FAQ

1.Capacity: our machines are custome-made, the capacity depend on customer's request. different capacity different machine size.
2.Material: Make of Stainless steel 304,except motor ,bearing,and some metal parts.
3.Prepare parts:We'll supply some easy broken parts for all machines.
4.Voltage: As custoemers local voltage, customer should tell us before processing machines.
5.After sale: we'll help install and testing the machines,then we'll teach customer to operate the machines and repair them.if have big problem ,we'll send engineer to customer side.
6.Service:All machines take lifetime service.
