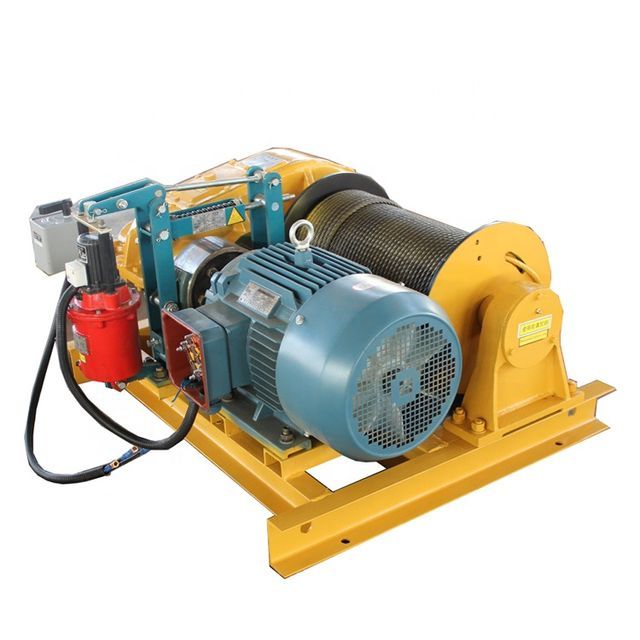

High quality customized JK 10 tons 15 tons 30 tons fast electric winch

  • Supplier: Henan Sinoko Cranes Co., Ltd.
  • Region: Henan, China
  • Contact: Ms Vicky Guo
  • Price: $7680.00 / 1 - 2 sets
    $4650.00 / >=3 sets
  • Min. Order: 1 set
Product details
product name:Double drum electric friction open winchWarranty:1 year, 3 years
Supply capacity:10,000 sets per quarterstrength:710W, 1400W, 1200W, 1200W
Place of origin:Henan, Chinaapplication:crane, slipway, ship, dry dock, coast, crane
Packaging details:wooden boxpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
port:Tianjin/Qingdao/ShanghaiEnergy source:electrical
Key words:Crane winchcolor:client needs
Minimum order quantity:1 setSling type:wire rope
brand:Chinese cranePackage preview:
Voltage:120V, other, 380VCustomization support:OEM, OEM, ODM, OBM
model:Jie KangWork system:A3, A5, A8
Product Description
Electric winch.
The double drum electric winch has a load capacity of 1-30 tons and is used for material handling.

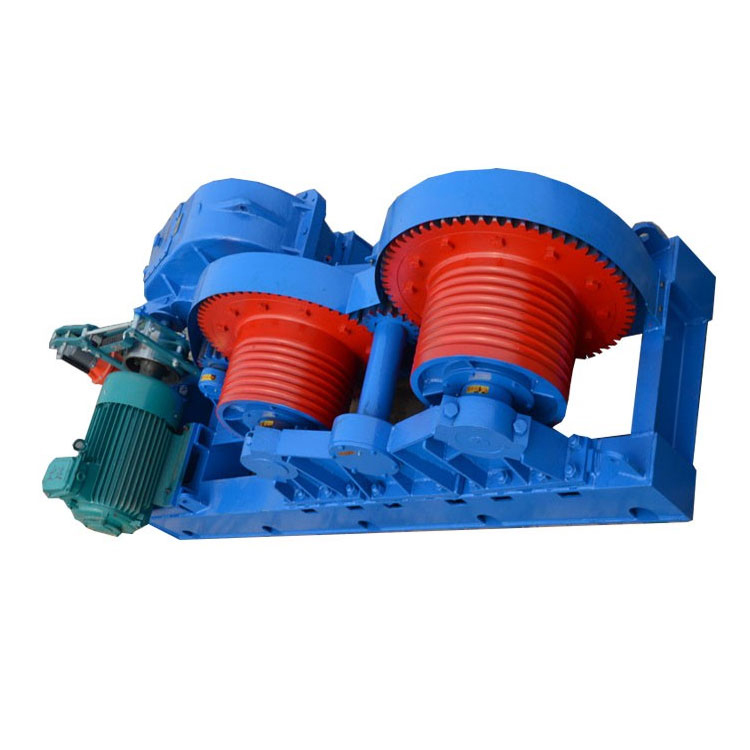

JK series double-drum electric friction winch for long-distance traction of wire rope, double-drum, high-speed, hand-controlled braking, double-drum, one drum can store the wire rope; one drum can be used for piling. This is the best piling winch.
Specification
type
Rated load (kn)
Rated speed
(m/min)
Rope capacity (m)
Motor power(kw)
Overall dimensions (mm)
Total weight (kg)
JK1 type
10
twenty two
100
4
620*701*417
300
JK1.6
16
twenty four
120
5.5
945*996*570
500
JK2 type
20
twenty four
120
7.5
945*996*570
550
JK3.2
32
25
200
15
1325*1335*840
1200
JK5
50
30
200
30
1900*1620*985
2400
JK8
80
25
250
45
1533*1985*1045
3500
JK10
100
30
300
55
2250*2500*1300
5100
